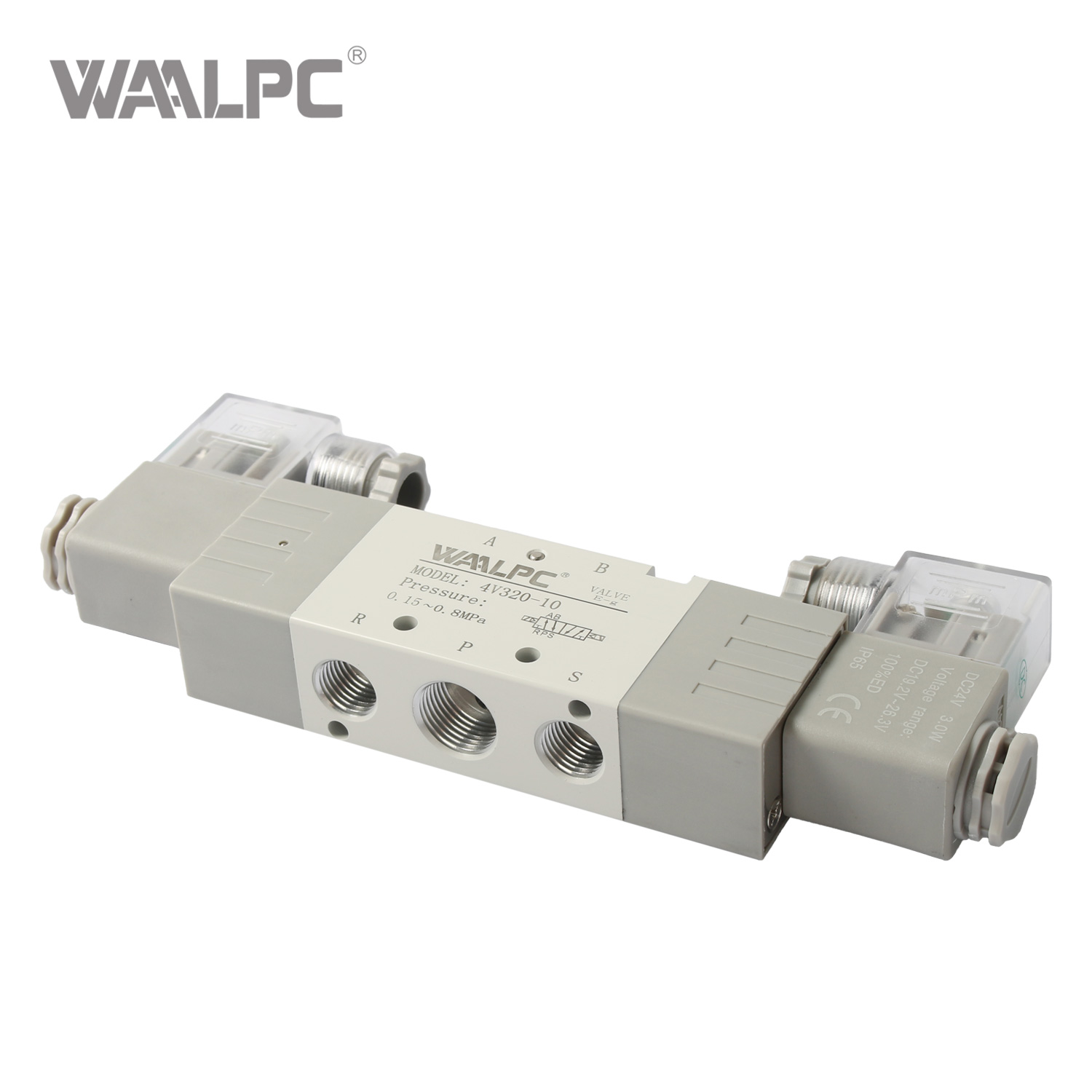

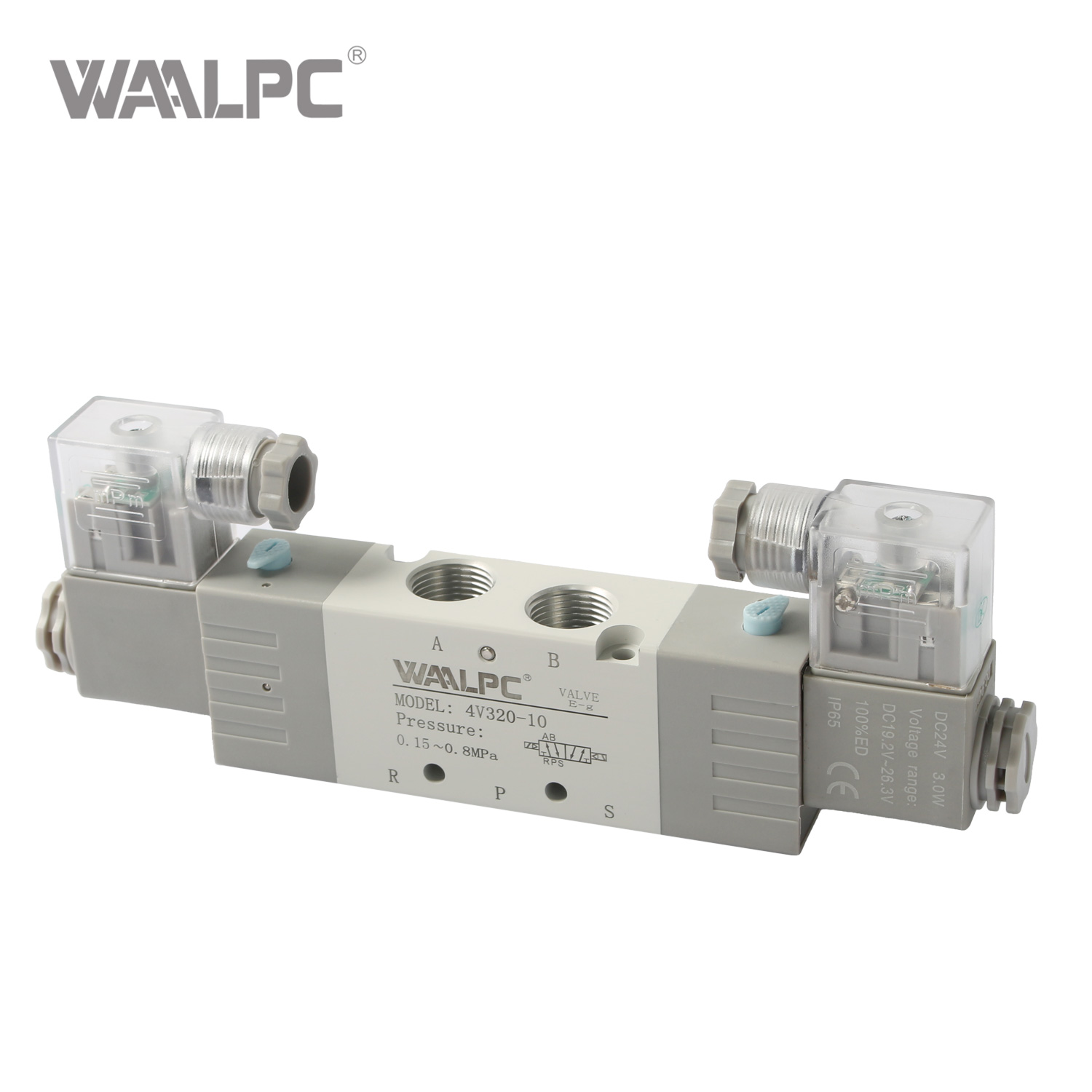

4V320 Solenoid Valve Durable Pneumatic Valve 5 Port 2 Position 4V Series PT1/4'' 3/8''

Solenoid Valve Durable Pneumatic Valve 5 Port 2 Position 4V Series PT1/4'' 3/8''

Solenoid Valve 4V320 Series Durable Pneumatic Valve with Quick Response for Machinery Applications

High Performance 4V300 Series 5/2 Way Pneumatic Solenoid Valve with PT3/8 Port for Heavy Duty Automation

4V320 Solenoid Valve Durable Pneumatic Valve 5 Port 2 Position 4V Series PT1/4'' 3/8''


Size:	White Black
Availability:

Solenoid Valve features a comprehensive lineup of 5/2 - way and 5/3 - way pneumatic solenoid valves. With models like 4V310 - 10, 4V320 - 10, and 4V330C - 10, the series offers various port sizes, including PT3/8 and PT1/4, ensuring seamless integration into diverse industrial setups. These valves utilize a sophisticated sliding column structure, which minimizes friction and guarantees stable operation even under fluctuating pressure conditions.

Model:
4V320-10
Brand:
WAALPC
Code:
8481202090

Product Description

Solenoid Valve Advantages

4V320-10

1. Unmatched Performance in Harsh Environments

Wide Operating Range: Capable of working under pressures ranging from 0.15 to 0.8 MPa and in ambient temperatures between -20°C and 70°C, these valves can handle the toughest industrial challenges.

Exceptional Durability: Boasting a service life of up to 15 million cycles, the 4V300 series reduces maintenance frequency and significantly cuts down on long - term operational costs.

2. Energy - Efficiency and Low Maintenance

Low Power Consumption: Consuming only minimal power (DC 24V, AC 220V), the 4V300 series helps reduce energy costs, making it an eco - friendly and cost - effective choice.

Lubrication - Free Design: Eliminating the need for lubrication, these valves not only simplify maintenance but also prevent potential contamination, making them suitable for sensitive applications such as food and beverage manufacturing.

Easy Installation: The manifold - mountable design and standard electrical connections (DIN socket or lead wire) allow for quick and hassle - free installation, minimizing downtime during system setup or upgrades.

3. Precision and Speed

Ultra - Fast Response: The 4V300 valves achieve an astonishing 0.03 - second response time, enabling instantaneous directional switching and ensuring high - speed automation processes run smoothly.

Optimal Flow Capacity: With a 28.0mm² effective cross - sectional area, these valves provide high - flow performance, meeting the requirements of demanding industrial applications.

Flexible Pilot Options: Choose between internal and external pilot configurations to adapt to different pressure conditions and application needs, enhancing the valve's versatility.

Solenoid Valve Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Model	4V310-08 4V320-08	4V330C-08 4V330E-08 4V330P-08	4V310-10 4V320-10	4V330C-10 4V330E-10 4V330P-10
Fluid	Air (to be filtered by 40μm filter element)
Acting	Internal pilot or external pilot
Port size [Note1]	In=Out=Exhaust=1/4''		In=Out=3/8''Exhaust=1/4''
Orifice size (Cv) [Note4]	4V310-10, 4V320-10: 28.0mm²(Cv=1.65) 4V330C-10: 21.3mm²(Cv=1.25)
Valve type	5 port 2 position	5 port 3 position	5 port 2 position	5 port 3 position
Operating pressure	0.15~0.8MPa(21~114psi)
Proof pressure	1.2MPa(175psi)
Temperature	-20~70℃
Material of body	Aluminum alloy
Lubrication [Note2]	Not required
Max.frequency [Note3]	5 cycle/sec	3cycle/sec	5 cycle/sec	3cycle/sec
Weight(g)	4V310-08: 310 4V320-08: 400	450	4V310-10: 310 4V320-10: 400	450

[Note1]PT thread, G thread and NPT thread are available.

[Note2]Once lubricated air is used, continue with same medium to optimise valve life span. Lubricants like ISOVG32 or equivalent are recommended.

[Note3]The maximum actuation frequency is in the no-load state.

[Note4]Equivalent orifice Sand Cv are all calculated from the flow rate data.

STRUCTURE&DIMENSION(MM)

4V320 structure

Specification Download

Solenoid Valve 4V300 Detailed page.png
