China Manufacturer Pneumatic Solenoid Valve Airtac 2-position 5-way Directional Reversing Valve

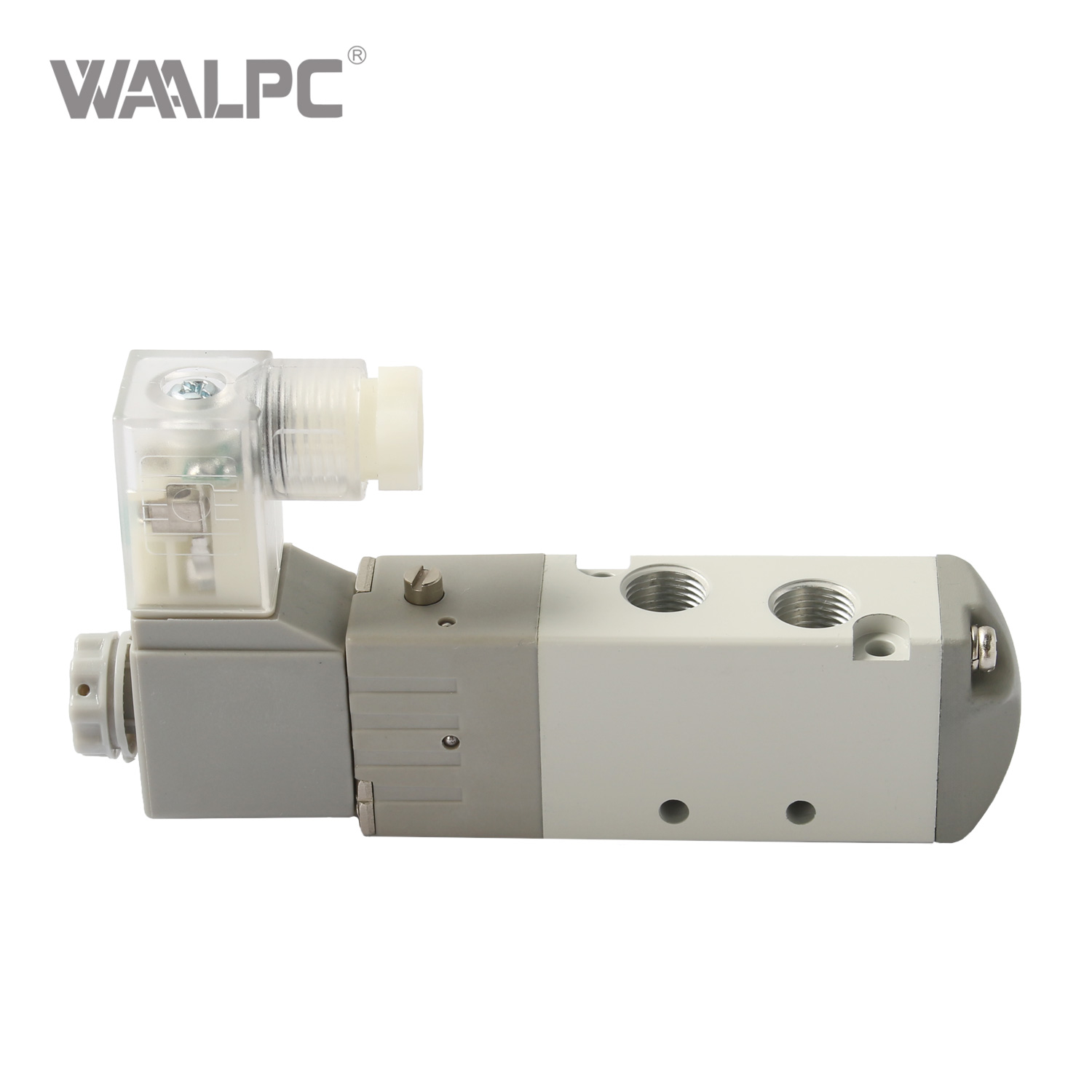

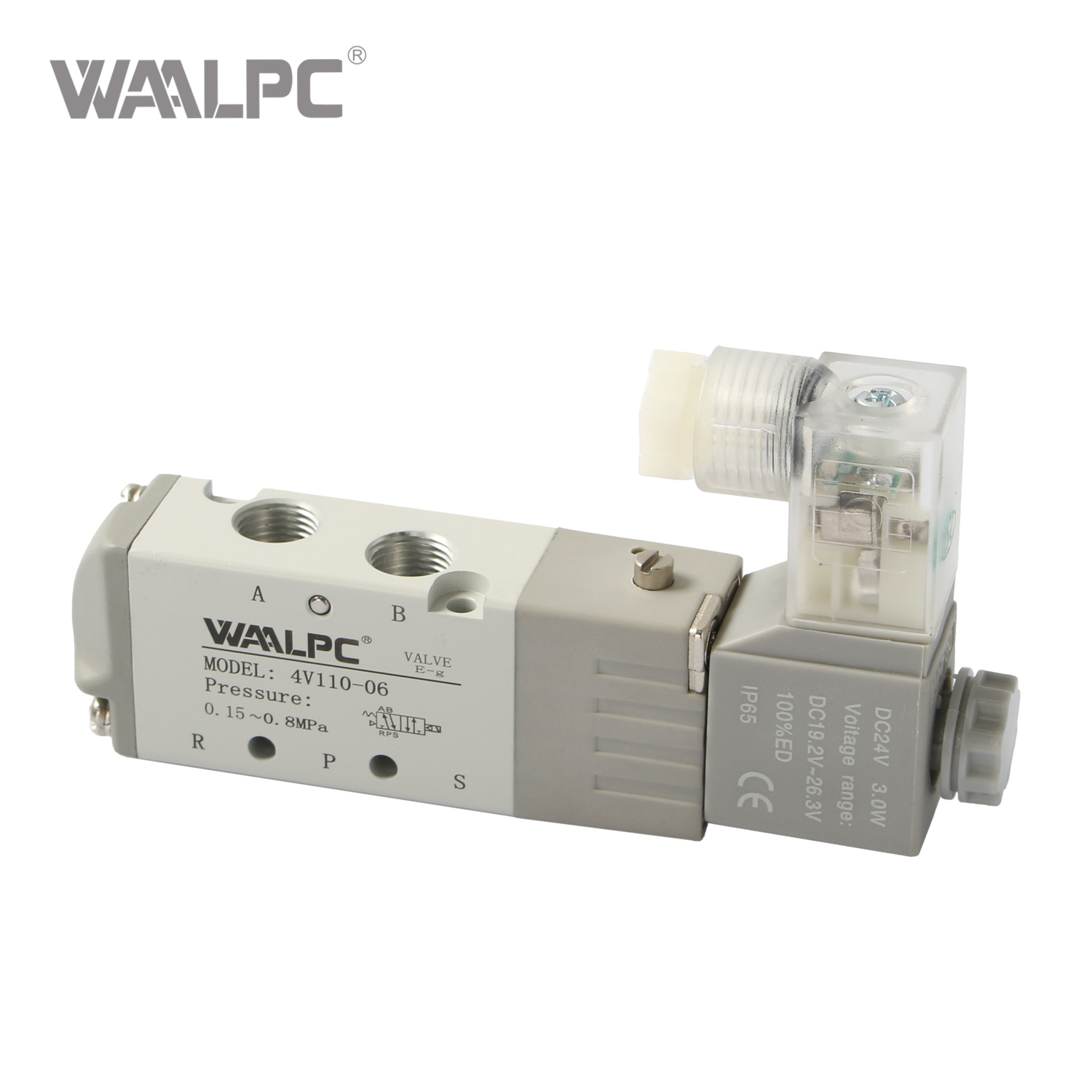

China Manufacturer Pneumatic 4V Series Solenoid Valve Airtac Type 2-position 5-way Directional Reversing Valve

China Manufacturer Pneumatic 4V Series Solenoid Valve Airtac Type 2-position 5-way Directional Reversing Valve


Color:	Black White
Availability:

Quantity:



Inquiry Add to Basket

The 4V Series Solenoid Valve delivers exceptional performance in controlling air, water, light oil, and other neutral gases/liquids. Designed for automation, machinery, and processing applications, this compact yet powerful valve ensures rapid response, durability, and energy efficiency — making it the ideal choice for modern industrial systems.

Model:
4V Series
Brand:
WAALPC
Code:
8481100090

Product Description

1. Ultra-Compact Design Space-saving footprint ideal for applications with limited installation space (e.g., compact machinery, medical devices, and robotics).

2. Robust Construction Durable aluminum alloy body with stainless steel core for corrosion resistance and long-term reliability. IP65 protection against dust, water jets, and industrial contaminants.

3. Versatile Compatibility Wide voltage options: 12V DC, 24V DC, 110V AC, 220V AC (customizable upon request). Multiple port sizes: M5, G1/8, or NPT threads to fit diverse pneumatic/hydraulic systems.

4. Easy Integration & Maintenance Standardized mounting holes for quick replacement and compatibility with existing setups. Manual override function for easy testing and troubleshooting without disassembly.

5. Cost-Effective Performance 10+ million cycle lifespan reduces downtime and replacement frequency. Interchangeable with major brand equivalents (e.g., Airtac Serie), offering a budget-friendly alternative.

Technical Parameters

DATA SHEET

Model	4V110-M5 4V120-M5	4V130C-M5 4V130E-M5 4V130P-M5	4V110-06 4V120-06	4V130C-06 4V130E-06 4V130P-06
Fluid	Air (to be filtered by 40μm filter element)
Acting	Internal pilot or external pilot
Port size [Note1]	In=Out=M5		In=Out=1/8''
Orifice size (Cv) [Note4]	4V110-06,4V120-06:10.2mm²(Cv=0.6) 4V130C-06:8.6mm²(Cv=0.51)
Valve type	5 port 2 position	5 port 3 position	5 port 2 position	5 port 3 position
Operating pressure	0.15~0.8MPa(21~114psi)
Proof pressure	1.2MPa(175psi)
Temperature	-20~70℃
Lubrication [Note2]	Not required
Max.frequency [Note3]	5 cycle/sec	3cycle/sec	5 cycle/sec	3cycle/sec
Weight(g)	4V110-M5: 120 4V120-M5: 175	200	4V110-06: 120 4V120-06: 175	200

[Note1]PT thread, G thread and NPT thread are available.

[Note2]Once lubricated air is used,continue with same medium to optimise valve life span.Lubricants like ISOVG32or equivalent are recommended.

[Note3]The maximum actuation frequency is in the no-load state.

[Note4]Equivalent orifice Sand Cv are all calculated from the flow rate data.

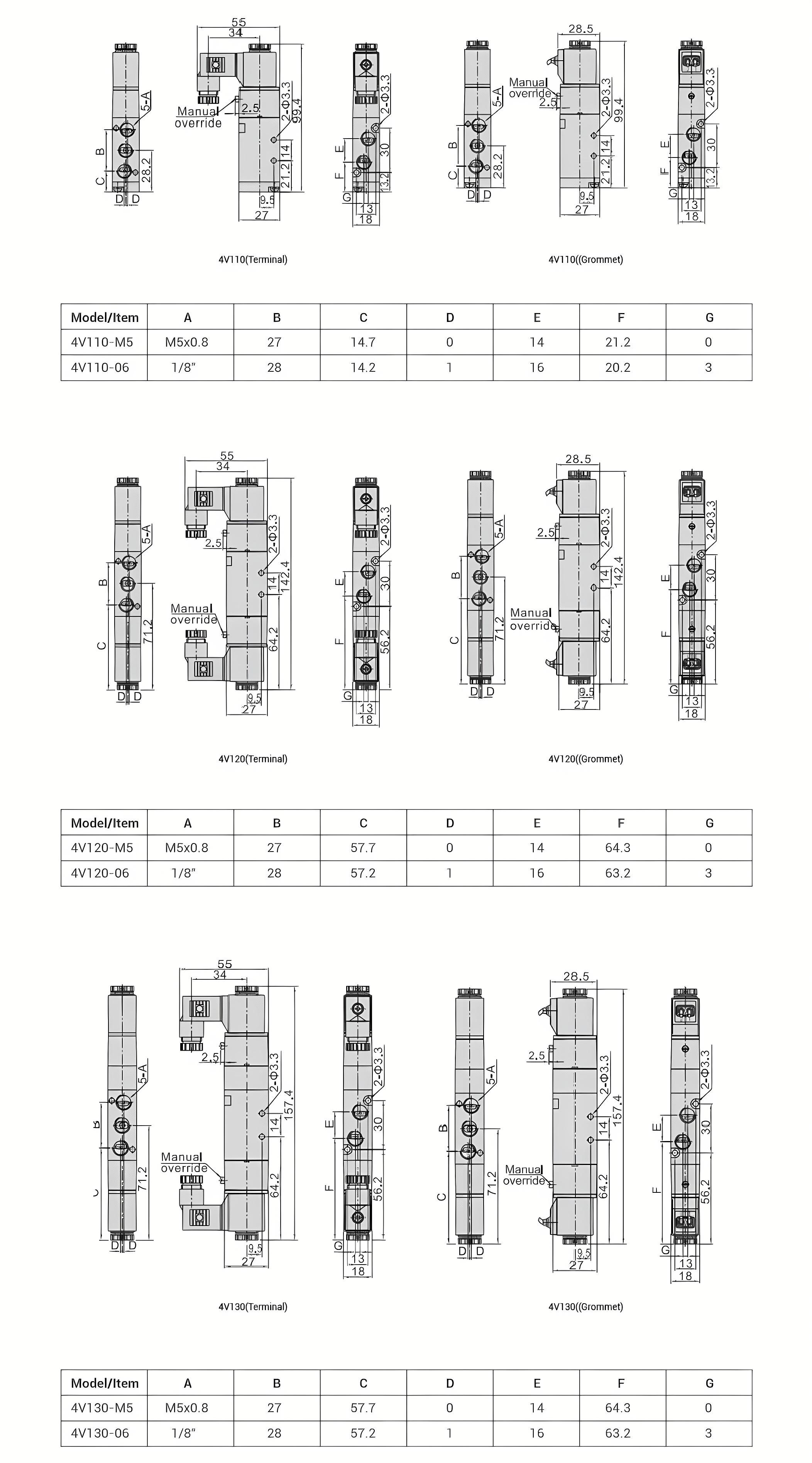

OVERALLDIMENSION&STRUCTURE

Solenoid Valve

solenoid valve

Specification Download

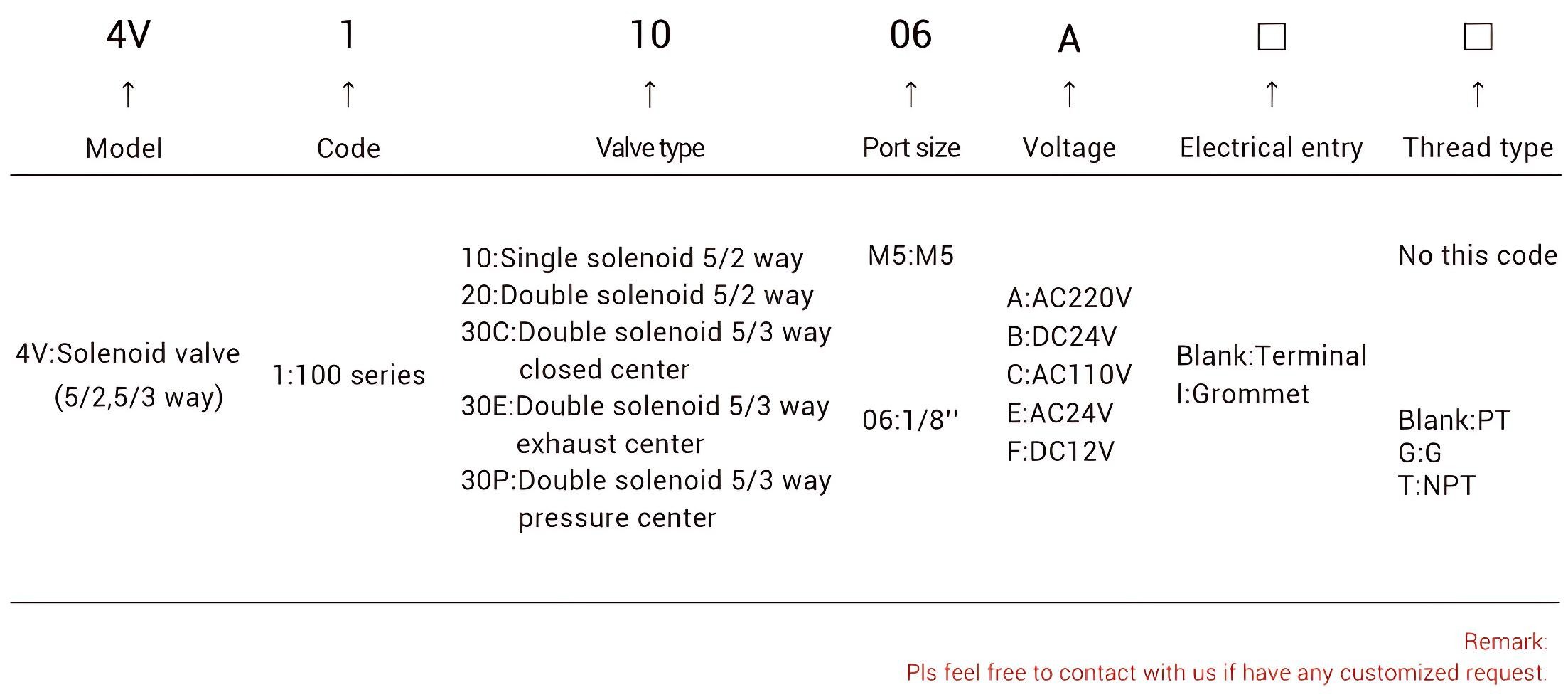

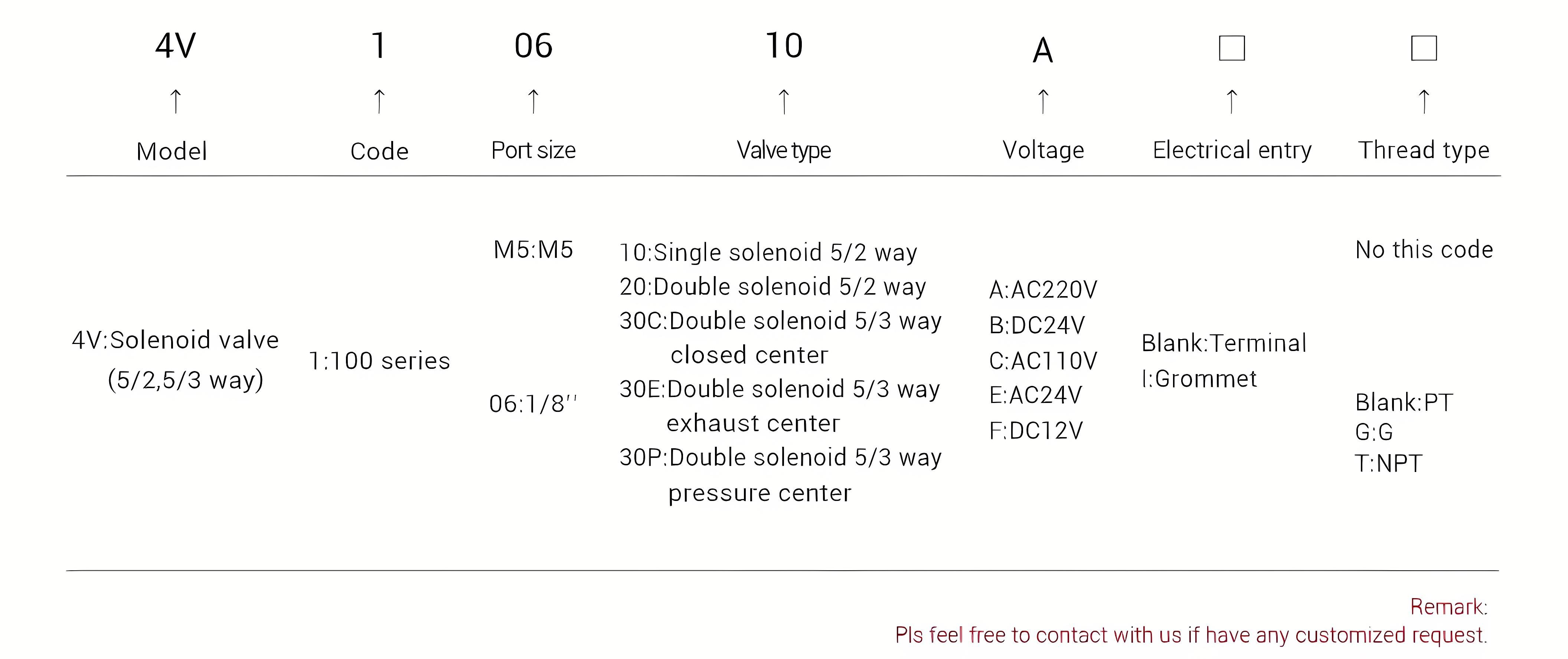

Solenoid Valve 4V100 Detailed page.png

Solenoid Valve 4V200 Detailed page.png

Solenoid Valve 4V300 Detailed page.png

Solenoid Valve 4V400 Detailed page.png
