ARM Series Miniature Pressure Regulator – Complete Guide To ARM5S & ARM10 Compact Pneumatic Regulators

Introduction

In modern precision manufacturing, the demand for miniaturization is reshaping every aspect of industrial equipment. Pneumatic systems are no exception. As devices become smaller, faster, and more precise, the components that control them must follow suit — delivering the same reliability and performance in a fraction of the space.

The WAALPC ARM Series is a family of miniature pressure regulators engineered specifically for space-constrained, high-precision pneumatic applications. With models including ARM5S (ultra-compact single-unit regulator) and ARM10 (small manifold regulator), the ARM Series offers exceptional pressure control in a lightweight, versatile package.

This guide provides a comprehensive overview of the ARM Series, covering model nomenclature, technical specifications, working principles, application scenarios, installation guidelines, and maintenance best practices.

1. What Is a Miniature Pressure Regulator?

A pressure regulator (also known as a pressure-reducing valve) is a pneumatic component that reduces and stabilizes the pressure of compressed air from a supply source to a desired operating pressure. It ensures that downstream pneumatic devices — such as cylinders, valves, grippers, and air tools — receive a consistent, controlled air supply regardless of fluctuations in the input pressure.

Miniature pressure regulators take this functionality and compress it into an exceptionally small form factor, making them ideal for applications where space is at a premium, weight must be minimized, or precision is paramount.

Why Miniaturization Matters

• Space savings: Occupies as little as 1/3 of the volume of traditional regulators

• Weight reduction: ARM5S weighs only 33g, ARM10 weighs 60g

• Precision applications: Enables integration into compact, high-density equipment like electronic manufacturing systems, medical devices, and robotics

• System efficiency: Reduces overall system footprint and simplifies layout

2. ARM Series – Product Overview

The WAALPC ARM Series includes two primary model families: ARM5S (ultra-compact single-unit regulator) and ARM10 (small manifold regulator with multiple configuration options).

2.1 Series Nomenclature

ARM Series model codes follow a systematic structure:

2.2 ARM5S Series – Ultra-Compact Single-Unit Regulator

The ARM5S Series is designed as a standalone, ultra-compact pressure regulator for applications requiring minimal space and weight.

Key Features:

• Ultra-compact design: Width of only 14mm

• Lightweight: Only 33g (ARM5SA-08-A)

• Two mounting options: Direct mounting or DIN rail mounting

• Standard reverse flow function: Prevents backflow from downstream

• Overflow structure: Standard overflow type; non-overflow type available as option

• Pressure setting range: 0.05–0.7 MPa (standard)

• Low-pressure option: 0.05–0.35 MPa available

Available Connector Configurations (ARM5S):

Note: "A" suffix indicates pressure gauge included.

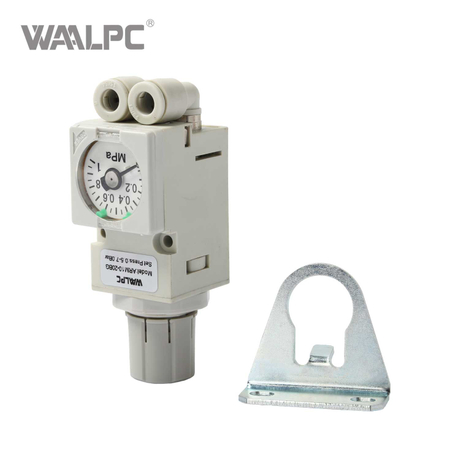

2.3 ARM10 Series – Small Manifold Regulator

The ARM10 Series is a small manifold-type regulator offering greater flexibility in configuration and installation.

Key Features:

• Lightweight: 60g

• Flexible knob position: Can be positioned on top, front, or bottom

• Flexible piping direction: Top or bottom

• Quick-connect fitting options: Straight or L-type available

• Interchangeable fitting sizes: Tube sizes can be changed

• Standard reverse flow function

• Digital pressure switch compatible

• Pressure gauge compatible: Models available with or without pressure gauge

• Oil-free specification available (option)

Available Connector Configurations (ARM10):

Note: ARM10 offers additional flexibility with knob position and piping direction options.

3. Technical Specifications

3.1 ARM5S Series Specifications

3.2 ARM10 Series Specifications

4. Working Principle

The ARM Series regulators operate on the direct-acting pressure-reducing principle. This is the most common and reliable mechanism for pressure regulation in pneumatic systems.

4.1 How It Works – Step by Step

1. Pressure Setting

• The operator turns the adjustment knob, which compresses a set spring.

• The spring force pushes down on a piston (ARM5S) or diaphragm (ARM10).

2. Valve Opening

• The downward force moves the valve stem, opening the valve port.

• Compressed air flows from the inlet (IN) through the valve to the outlet (OUT).

3. Pressure Feedback

• The output pressure is fed back to the underside of the piston/diaphragm through a sensing passage.

• This creates an upward force that opposes the spring force.

4. Dynamic Balance

• When output pressure reaches the set point, the upward force balances the spring force.

• The valve automatically adjusts its opening to maintain this balance.

• If output pressure rises above the set point, the valve closes slightly.

• If output pressure drops below the set point, the valve opens further.

5. Overflow Function

• When downstream pressure exceeds the set point (e.g., due to external factors), the overflow mechanism opens.

• Excess air is vented to atmosphere, quickly restoring the set pressure.

• This feature is standard on most ARM Series models.

6. Reverse Flow Function

• ARM Series regulators include a standard reverse flow (backflow) function.

• This allows air to flow backward through the regulator when downstream pressure exceeds upstream pressure — preventing trapped pressure and enabling smooth system operation.

4.2 Piston-Type vs. Diaphragm-Type Compression

5. Key Features and Advantages

5.1 Ultra-Compact Size

ARM Series regulators are designed for space-constrained applications. The ARM5S has a width of only 14mm — making it one of the smallest pressure regulators available on the market. The compact design enables integration into densely packed equipment where traditional regulators simply cannot fit.

5.2 Lightweight Construction

Weight reduction is critical in applications like robotics and portable equipment. ARM5S weighs only 33g, while ARM10 weighs 60g. This lightweight design reduces the overall mass of moving systems and simplifies installation.

5.3 Flexible Mounting Options

Both ARM5S and ARM10 offer two mounting methods:

5.4 Versatile Connector Options

ARM Series regulators offer a wide range of connector configurations:

• Straight joints: For inline connections

• Pipe bends (L-type) : For 90° direction changes

• Multiple tube sizes: Ø4, Ø6, Ø5/32", Ø1/4"

This flexibility allows the regulator to be configured for virtually any piping layout.

5.5 Standard Reverse Flow Function

The reverse flow (backflow) function is standard on both ARM5S and ARM10. This prevents pressure from being trapped in the downstream circuit when the supply pressure drops — a common cause of system malfunctions.

5.6 High Precision

ARM Series regulators deliver high-precision pressure control with minimal output pressure fluctuation. The direct-acting design ensures rapid response to pressure changes, maintaining stable output even under varying load conditions.

5.7 Digital Pressure Switch Compatibility (ARM10)

ARM10 regulators are compatible with digital pressure switches. This enables:

• Remote pressure monitoring

• Integration with PLC and control systems

• Automated fault detection and alerting

6. Application Scenarios

ARM Series miniature pressure regulators are used across a wide range of industries where space, weight, and precision are critical:

6.1 Electronics Manufacturing

• PCB assembly: Precision air pressure for pick-and-place machines

• Semiconductor equipment: Clean, stable air for wafer handling

• SMT (Surface Mount Technology) : Component placement and soldering

ARM regulators are ideal for electronic manufacturing due to their compact size and high precision.

6.2 Medical Devices

• Diagnostic equipment: Stable air supply for analytical instruments

• Surgical tools: Precise pressure control for pneumatic surgical devices

• Laboratory automation: Compact integration into benchtop instruments

6.3 Robotics and Automation

• Collaborative robots (cobots) : Lightweight components for articulated arms

• End-of-arm tooling (EOAT) : Gripper pressure control

• Automated test equipment: Precise pressure for fixture clamping

The lightweight design of ARM Series regulators (33g for ARM5S) makes them particularly suitable for robotic applications where every gram counts.

6.4 Precision Instruments

• Analytical instruments: Gas chromatography, mass spectrometry

• Measurement equipment: Pneumatic sensors and gauges

• Optical systems: Air-bearing pressure control

6.5 Small Pneumatic Systems

• Miniature cylinders: Direct pressure control

• Air grippers: Precise gripping force adjustment

• Valve islands: Integrated pressure regulation

6.6 Industries

7. Installation Guide

7.1 Pre-Installation Checks

Before installing an ARM Series regulator:

1. Verify the model: Confirm connector type, tube size, and pressure range match your requirements

2. Check the air supply: Ensure inlet pressure does not exceed 1.0 MPa

3. Inspect the regulator: Check for any shipping damage

4. Prepare mounting location: Ensure adequate clearance for knob access

7.2 Installation Steps

Mounting:

1. Select mounting method: Choose direct mounting or DIN rail mounting

2. Mount securely: For direct mounting, use appropriate screws; for DIN rail, snap the regulator onto the rail

3. Ensure vertical orientation: For optimal performance, mount with the adjustment knob facing upward or as specified

Piping:

1. Cut tube squarely: Use a tube cutter for a clean, perpendicular cut

2. Deburr the tube end: Remove any burrs that could damage seals

3. Insert tube: Push the tube fully into the connector until it stops

4. Pull gently: Confirm the tube is securely retained

Adjustment:

1. Open air supply: Slowly introduce compressed air

2. Adjust pressure: Turn the knob clockwise to increase pressure, counterclockwise to decrease

3. Lock setting: If equipped with a lock nut, tighten to prevent accidental adjustment

7.3 Important Installation Rules

8. Maintenance and Troubleshooting

8.1 Routine Maintenance

8.2 Troubleshooting Guide

8.3 Service Life Considerations

ARM Series regulators are designed for long service life with proper maintenance. Key factors affecting service life:

• Air quality: Clean, dry air (5μm filtration or better) extends seal life

• Operating frequency: Higher cycling rates may accelerate wear

• Ambient conditions: Temperature extremes and contaminants reduce life

• Operating pressure: Operating within rated range prevents damage

9. Selection Guide

9.1 Selection Criteria

9.2 Sizing Example

Application: Controlling air pressure for a miniature gripper in an electronics assembly robot, requiring precise 0.3 MPa pressure, space-constrained installation, Ø4 tubing.

Recommended models:

• ARM5SA-06 (ultra-compact, 14mm width, 33g, Ø4 straight connectors, with pressure gauge)

• ARM10-06 (slightly larger, 60g, more configuration options)

9.3 ARM5S vs. ARM10 Comparison

10. Why Choose WAALPC ARM Series?

WAALPC ARM Series miniature pressure regulators offer a compelling combination of precision, compactness, and versatility:

• ✅ Ultra-compact design — ARM5S width of only 14mm for space-constrained applications

• ✅ Extremely lightweight — 33g (ARM5S) and 60g (ARM10) for weight-sensitive systems

• ✅ High precision — Stable output with minimal pressure fluctuation

• ✅ Flexible mounting — Direct or DIN rail mounting options

• ✅ Versatile connectors — Straight or pipe bend, multiple tube sizes

• ✅ Standard reverse flow — Prevents pressure trapping

• ✅ Overflow standard — Quick pressure relief when needed

• ✅ Digital pressure switch compatible (ARM10) — Remote monitoring capability

• ✅ Wide pressure range — 0.05–0.7 MPa standard, low-pressure option available

• ✅ Durable construction — Designed for long service life in demanding applications

Conclusion

The WAALPC ARM Series miniature pressure regulators represent the cutting edge of pneumatic miniaturization. With the ARM5S offering an ultra-compact 14mm width and 33g weight, and the ARM10 providing flexible configuration options including digital pressure switch compatibility, the ARM Series covers a wide spectrum of precision pneumatic control requirements.

Key takeaways:

• ARM5S: Ultra-compact (14mm wide, 33g), piston-type, ideal for space- and weight-critical applications

• ARM10: Compact (60g), diaphragm-type, flexible knob position and piping direction, digital pressure switch compatible

• Both models: Direct-acting, standard overflow, standard reverse flow, 0.05–0.7 MPa pressure range, 1.0 MPa max working pressure

• Connector options: Straight joints and pipe bends, Ø4/Ø6 or Ø5/32"/Ø1/4" tube sizes

• Mounting: Direct or DIN rail

• Applications: Electronics manufacturing, medical devices, robotics, precision instruments, and small pneumatic systems

By selecting the correct ARM Series model for your application and following proper installation and maintenance procedures, WAALPC ARM Series regulators will deliver years of reliable, precise pressure control.

For more information about WAALPC ARM Series miniature pressure regulators or to discuss your specific application requirements, please contact our technical sales team or visit www.waalpc.com.
