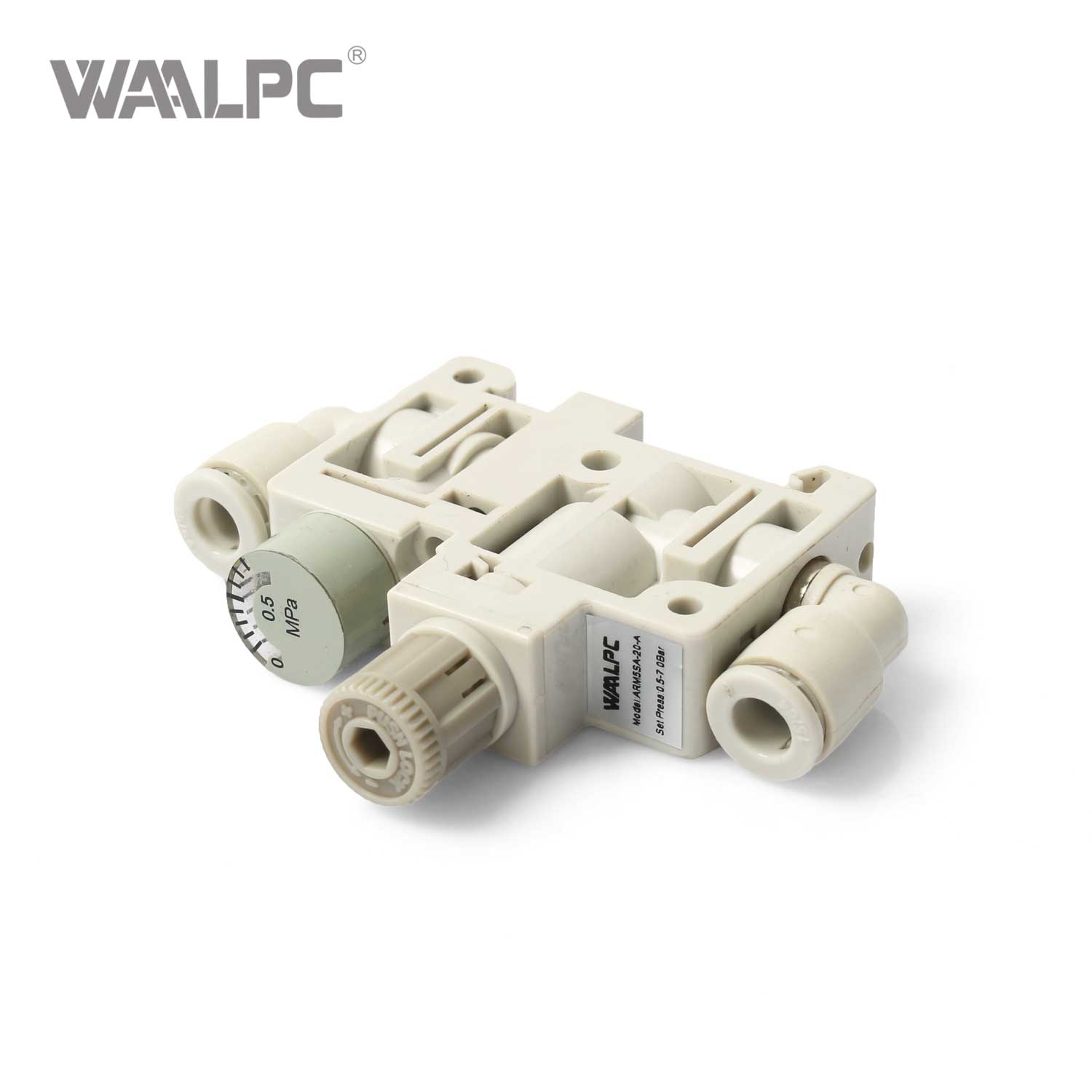

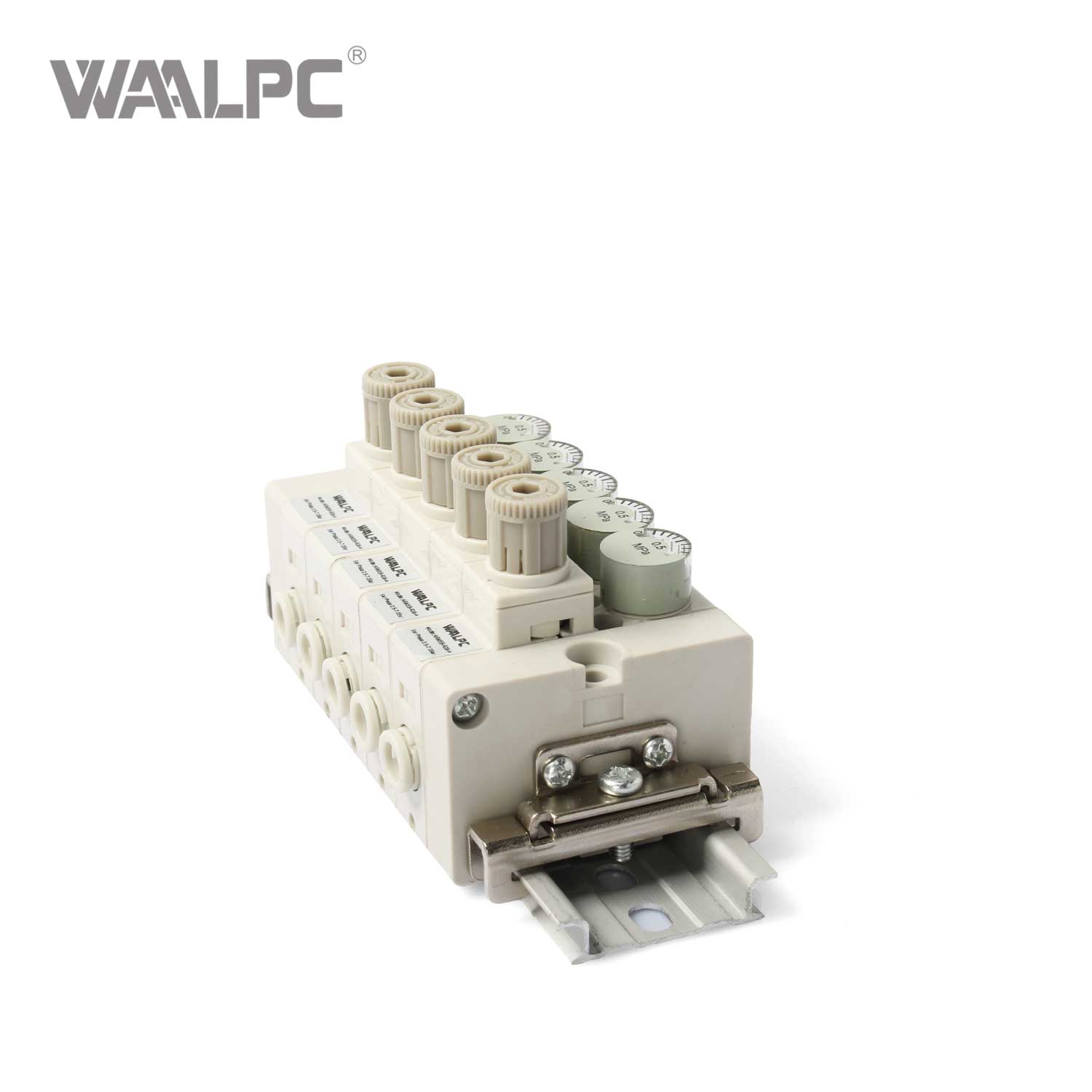

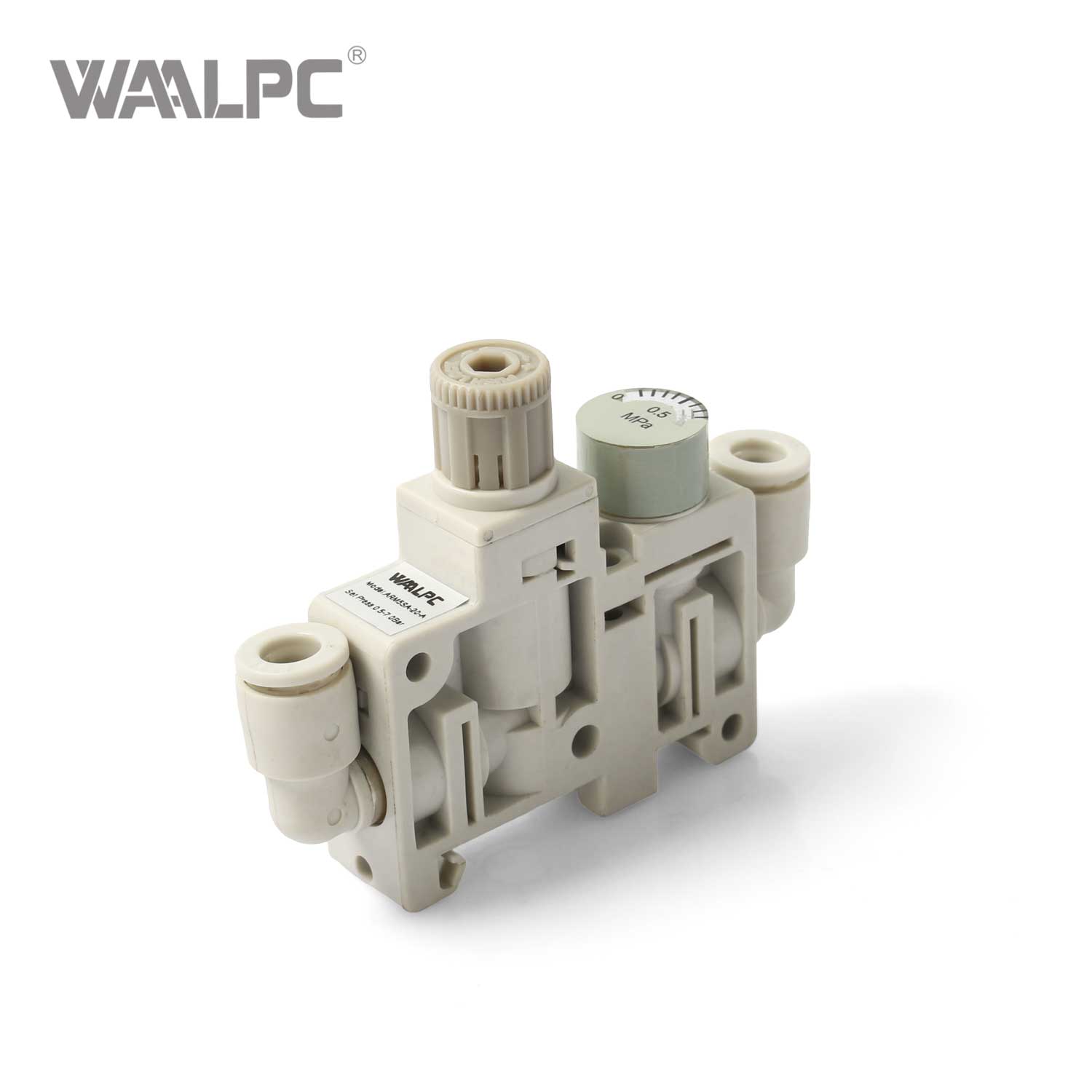

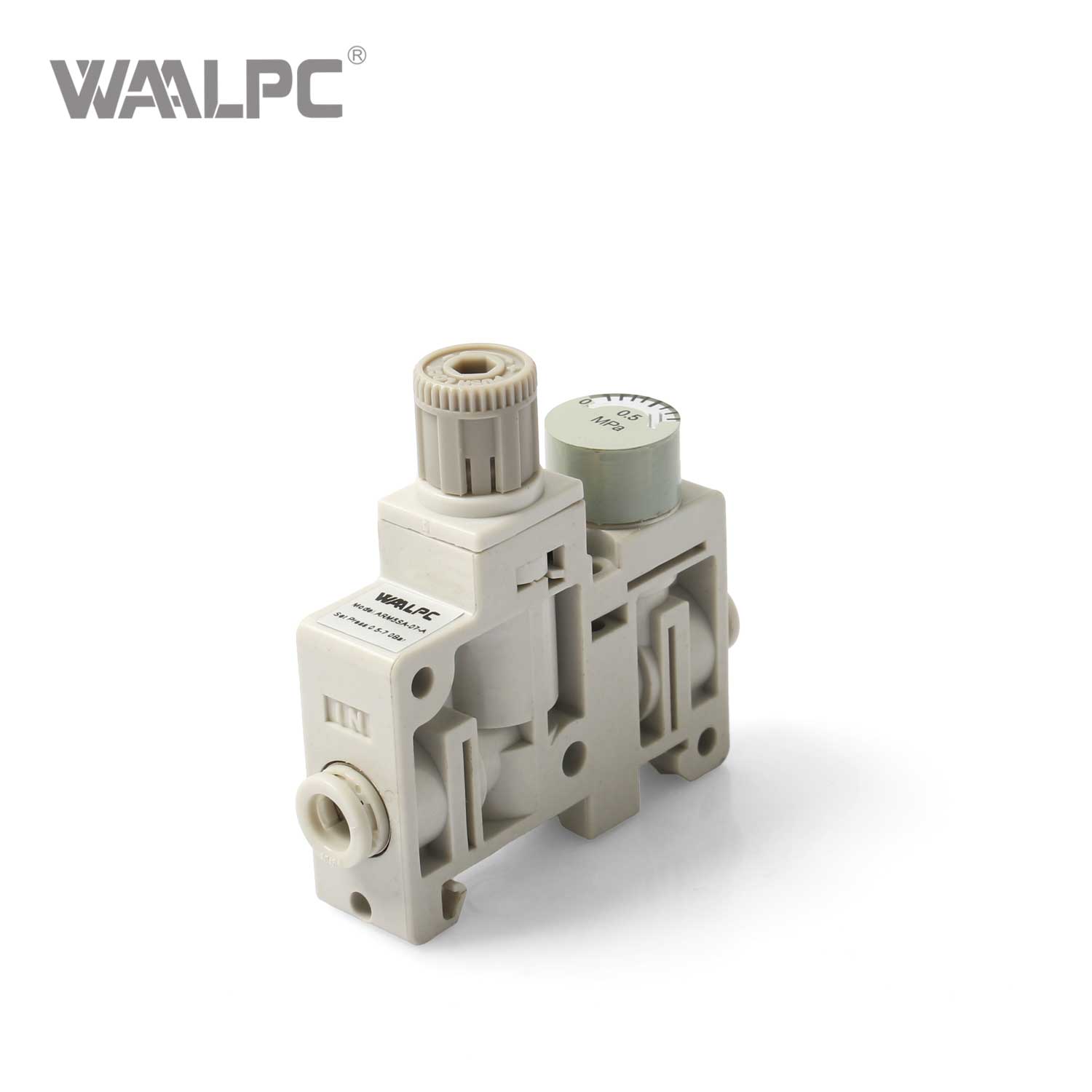

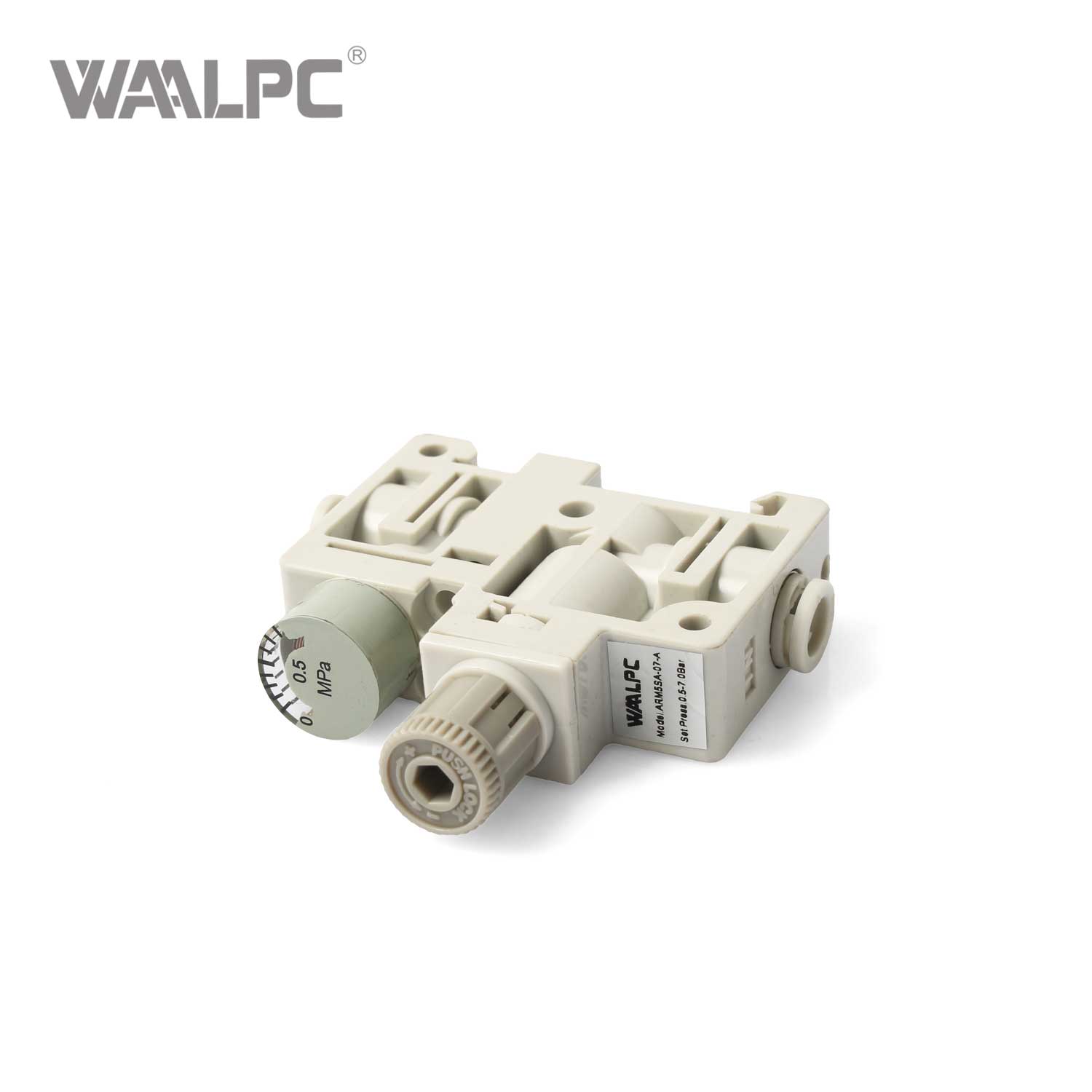

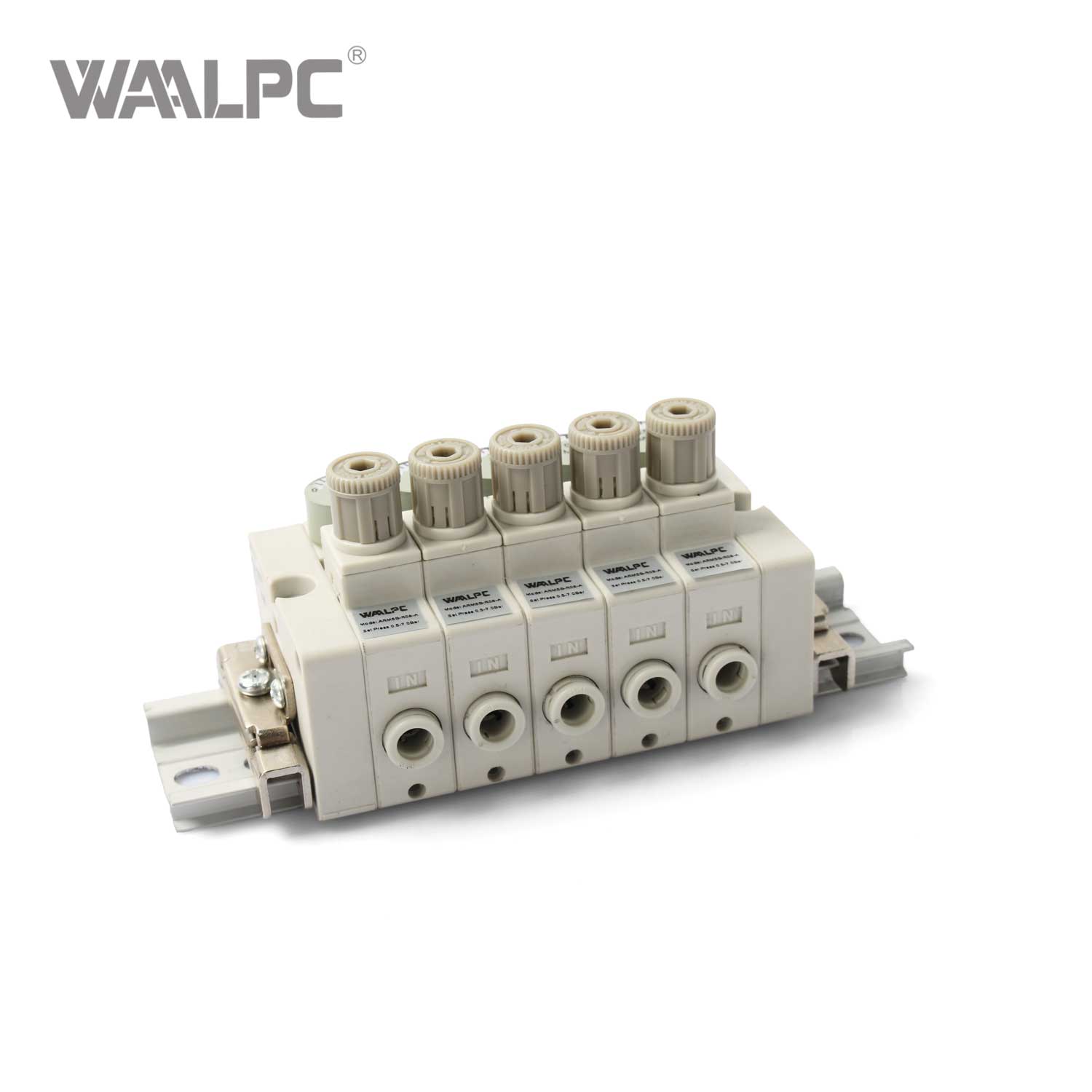

ARM5SA Pressure Reducing Valve, Micro Cartridge Pressure Reducing Valve ARM5SA-06A/07A/08A Pneumatic Control Valve

ARM5SA Pressure Reducing Valve, Micro Cartridge Pressure Reducing Valve ARM5SA-06A/07A/08A Pneumatic Control Valve


Availability:

Quantity:



Inquiry Add to Basket

The SMC ARM Series Pressure Regulators are designed to deliver superior performance and stability in a wide range of industrial applications. Built with SMC's renowned engineering expertise, these regulators offer precise pressure control, ensuring consistent output even under fluctuating input conditions.

Model:
ARM5SA
Brand:
WAALPC
Code:
8481100090

Product Description

1. Exceptional Precision

Achieves ±1% pressure accuracy, minimizing variations in pneumatic systems critical for automotive assembly, pharmaceutical processing, and precision manufacturing.

2. Durable Construction

Crafted from high-grade materials, the ARM Series withstands harsh industrial environments, extreme temperatures, and high vibration, reducing replacement frequency and maintenance costs.

3. Energy Optimization

Integrated with energy-saving technology, these regulators optimize air consumption, helping businesses cut operational costs and meet sustainability goals.

Technical Parameters

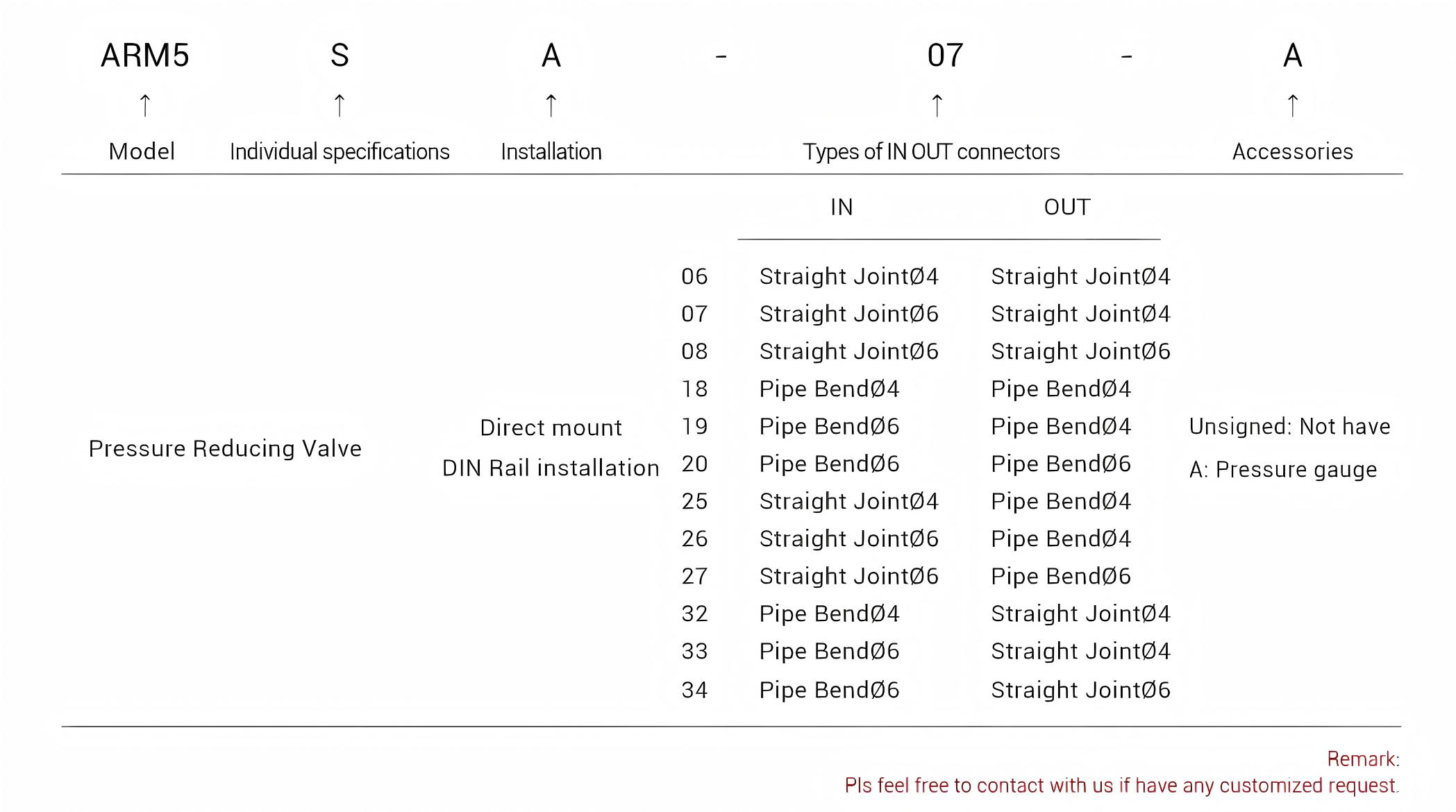

ORDERING CODE

DATA SHEET

Model		ARM5S
Structure of pressure reducing valve		Direct acting type
Compression mode		Piston type
Overflow structure	Standard	Overflow type
	Quasi-standardization	Non overflow type
Reverse flow function		Have(Non-equilibium type)
Outer diameterof IN side tube		⌀4,⌀6,⌀5/32,⌀1/4
Ambient and Fluid Temperature		⌀4,⌀6,⌀5/32,⌀1/4
Proof pressure		1.5MPa
Max.working pressure		1.0MPa
Pressure setting range	Standard	0.05~0.7MPa
	Quasi-standardization	0.05~0.35MPa(Low pressure type)
Working Medium		Air
Environment and fluid temperature		5~60℃
Quality(ARM5SA-08-A)		33g

STRUCTURE

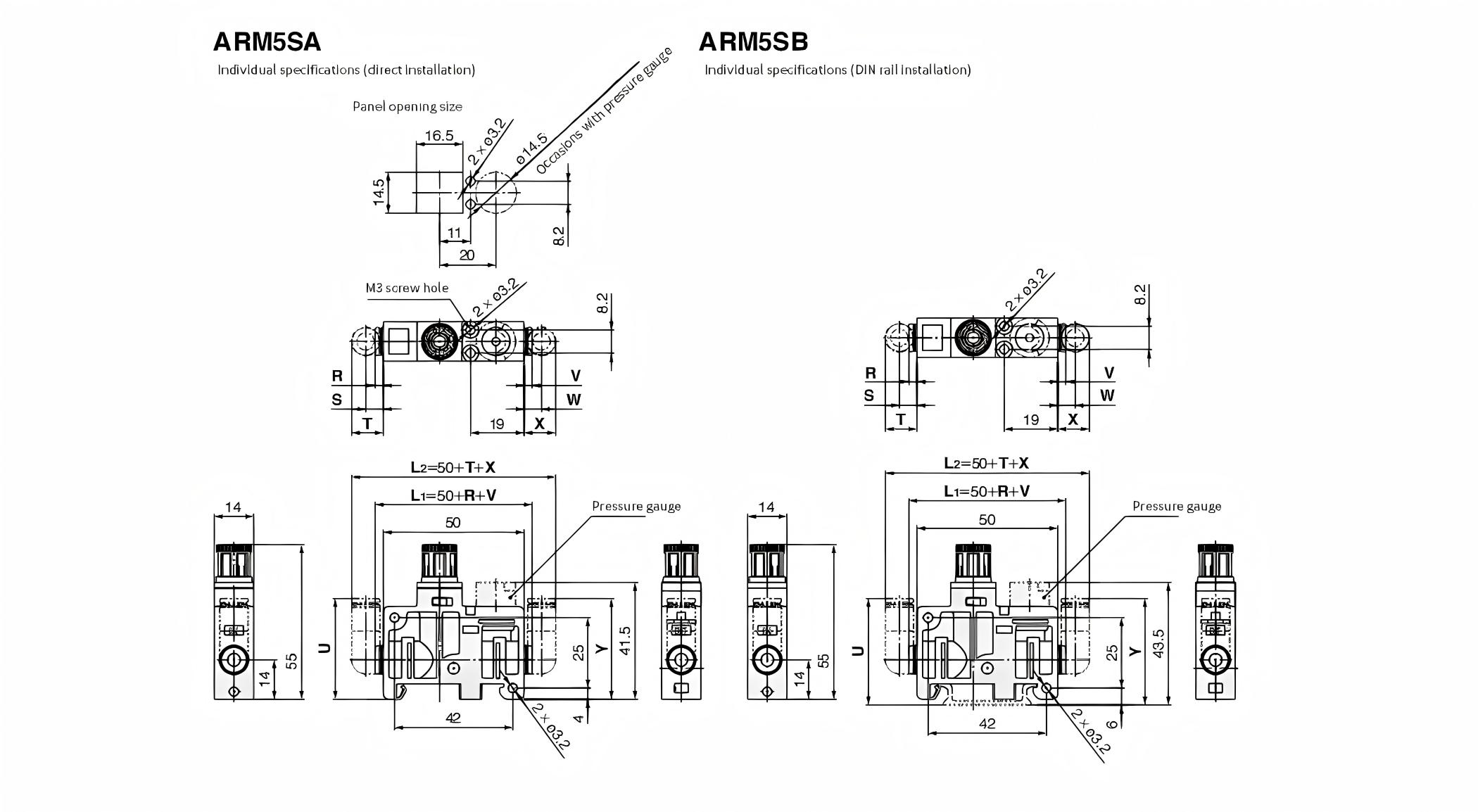

ARM5S Pressure Reducing Valve

Joint dimensions	IN Side				OUT Side
	Cut-Through	Pipe bend	Pipe bend	Pipe bend	Cut-Through	Pipe bend	Pipe bend	Pipe bend
	R	S	T	U	V	W	X	Y
⌀4, ⌀5/32	2.5	6	11	35.5	2.5	6	11	35.5
⌀6	3	6.5	11	36	3	6.5	11	36
⌀1/4	6.5	6	11.5	38.5	6.5	6	11.5	38.5

Joint dimensions	IN Side				OUT Side
	Cut-Through	Pipe bend	Pipe bend	Pipe bend	Cut-Through	Pipe bend	Pipe bend	Pipe bend
	R	S	T	U	V	W	X	Y
⌀4, ⌀5/32	2.5	6	11	37.5	2.5	6	11	37.5
⌀6	3	6.5	11	38	3	6.5	11	38
⌀1/4	6.5	6	11.5	40.5	6.5	6	11.5	40.5
