Airtac G Series Gr600 PT1'' OEM Advanced Alloy Material Air Compressor Pneumatic Air Regulator Pressure Reducing Valve

Airtac Type G Series Gr600 PT1'' OEM Advanced Alloy Material Air Compressor Pneumatic Air Regulator Pressure Reducing Valve


Availability:

Quantity:



Inquiry Add to Basket

The Airtac GR600 Pressure Regulator is a high - performance solution designed to optimize pressure control in pneumatic systems. Engineered for industrial applications ranging from manufacturing and automation to energy and transportation, this regulator offers seamless integration and reliable operation. Its robust build, combined with advanced technical features, makes it a top choice for businesses seeking consistent pressure regulation with minimal maintenance.

Model:
GR600-25
Brand:
WAALPC
Code:
8481100090

Product Description

1. Adopting embedded square pressure gauges to save installation space;
2. Press-in self-locking mechanism, which can prevent the set pressure from external interference;
3. The pressure regulating mechanism adopts a balanced design, which makes pressure regulation more stable, with small drift and good pressure characteristics;
4. In addition to panel installation, fixed brackets can also be selected for installation;
5. In addition to the standard form, there is also a low-pressure type available for selection (with a maximum adjustable pressure of 0.4MPa).

Technical Parameters

Ordering Code

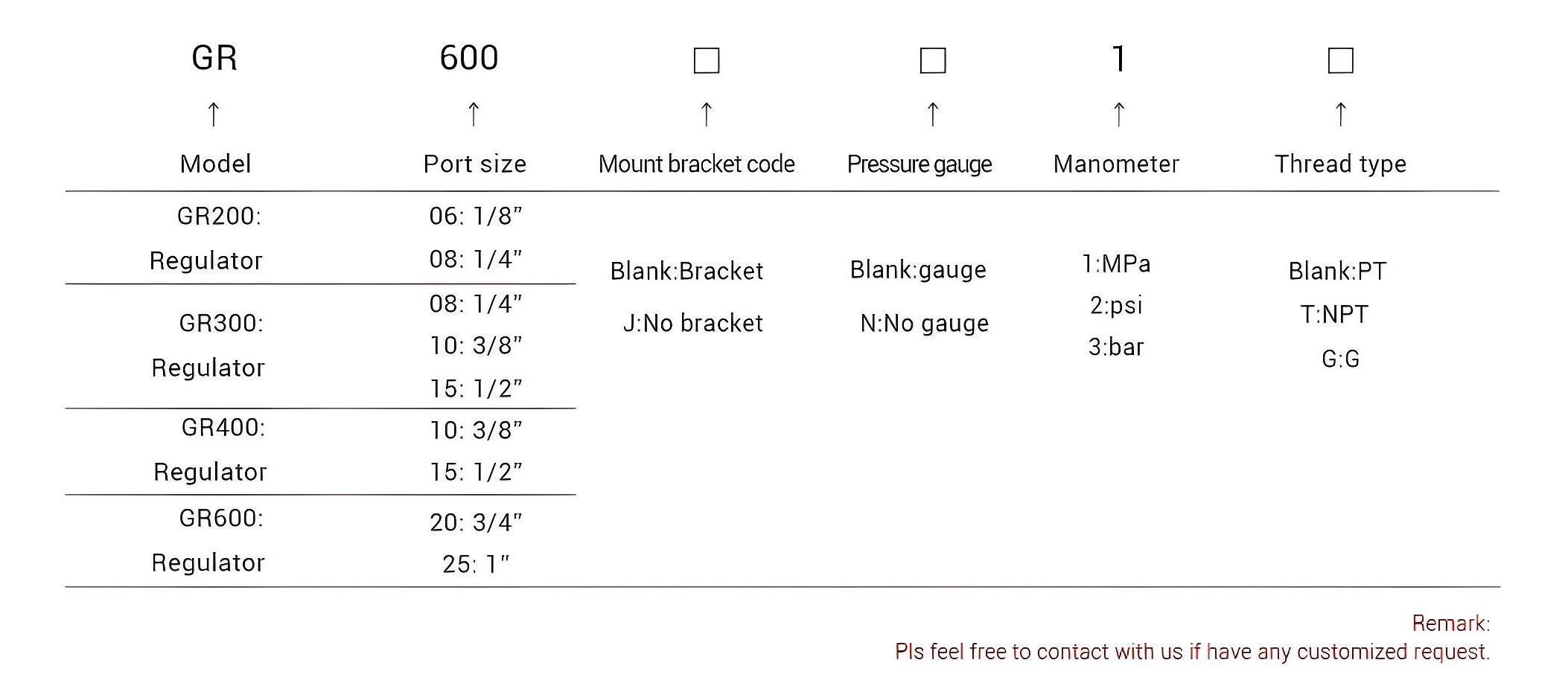

GR600 ordering

DATA SHEET

Model	GR200-06	GR200-08	GR300-08	GR300-10	GR300-15	GR400-10	GR400-15	GR600-20	GR600-25
Port Size(G)	1/8	1/4	1/4	3/8	1/2	3/8	1/2	3/4	1
Working medium	Air
Max. operating pressure	1.0MPa (145Psi)
Pressure Resistance	1.5MPa (215Psi)
Operating temperature range	-20~70℃
Pressure regulating range	0.05~0.9Mpa (7-130Psi)
Weight	160g		350g			720g		1700g

STRUCTURE

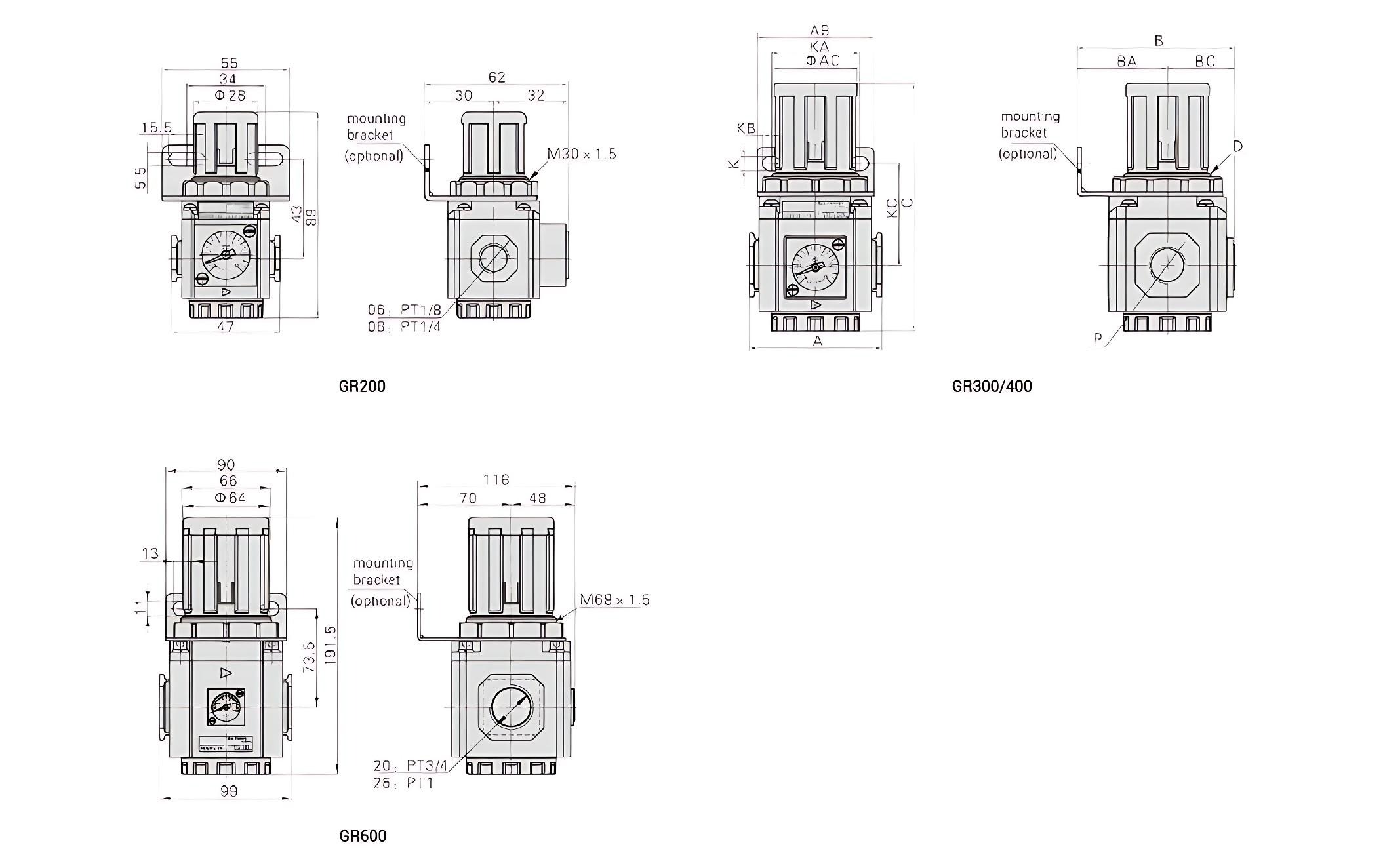

GR600 structure

Model	A		AB	AC	B	BA	BC	C	D	K	KA	KB	KC	P
GR300-08		60	53	38	72	41	31	112.5	M40x1.5	6.5	40	8	46	PT1/4
GR300-10		60	53	38	72	41	31	112.5	M40x1.5	6.5	40	8	46	PT3/8
GR300-15		60	53	38	72	41	31	112.5	M40x1.5	6.5	40	8	46	PT1/2
GR400-10		60	72	52	90	50	40	140.5	M55x2.0	8.5	55	11	53	PT3/8
GR400-15		60	72	52	90	50	40	140.5	M55x2.0	8.5	55	11	53	PT1/2
GR600-20		99	90	64	118	70	48	191.5	M68x1.5	11	66	13	73.5	PT3/4
GR600-25		99	90	64	118	70	48	191.5	M68x1.5	11	66	13	73.5	PT1

Specification Download
