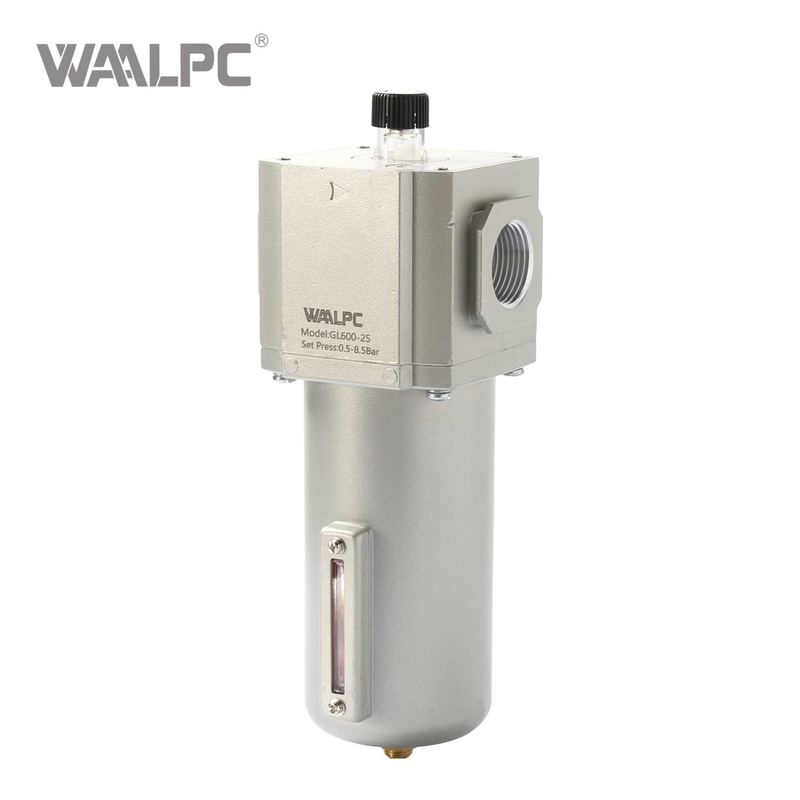

Waalpc Airtac G Series GL600 OEM Pneumatic Air Preparation Treatment Oil Lubricator Frl with RoHS Air Compressor 3/4‘’ 1‘’

Waalpc Airtac Type G Series GL600 OEM Pneumatic Air Preparation Treatment Oil Lubricator Frl with RoHS Air Compressor 3/4‘’ 1‘’


Availability:

Quantity:



Inquiry Add to Basket

The Airtac GL series lubricator is a high - performance air source treatment component designed to meet the demanding requirements of modern industrial applications. It plays a crucial role in ensuring the smooth operation and extended lifespan of pneumatic equipment by providing precise lubrication to moving parts.

Model:
GL600-25
Brand:
WAALPC
Code:
8421299090

Product Description

1. Light and compact structure, easy to install and use.
2. The pressure loss is low and the efficiency of oilmist separating is high.
3. The filter cup is designed to be transparent for observing the volume of oil.
4. Reduce starting resistance: Oil mist can reduce the starting resistance of pneumatic components and improve system efficiency.
Improve sealing performance: Oil mist can improve the lubrication of seals and improve sealing performance.
5. Good lubrication effect: oil mist can evenly adhere to the surface of pneumatic components, forming an oil film, which plays the role of lubrication, rust prevention and wear prevention.
6. Save lubricating oil: Compared with the traditional dripping lubrication method, oil mist lubrication can greatly reduce the consumption of lubricating oil and reduce production costs.
7. Extend the service life of equipment: Through effective lubrication, the service life of pneumatic equipment can be extended.
8. Improved equipment efficiency: Clean air improves the efficiency of equipment operation.

Technical Parameters

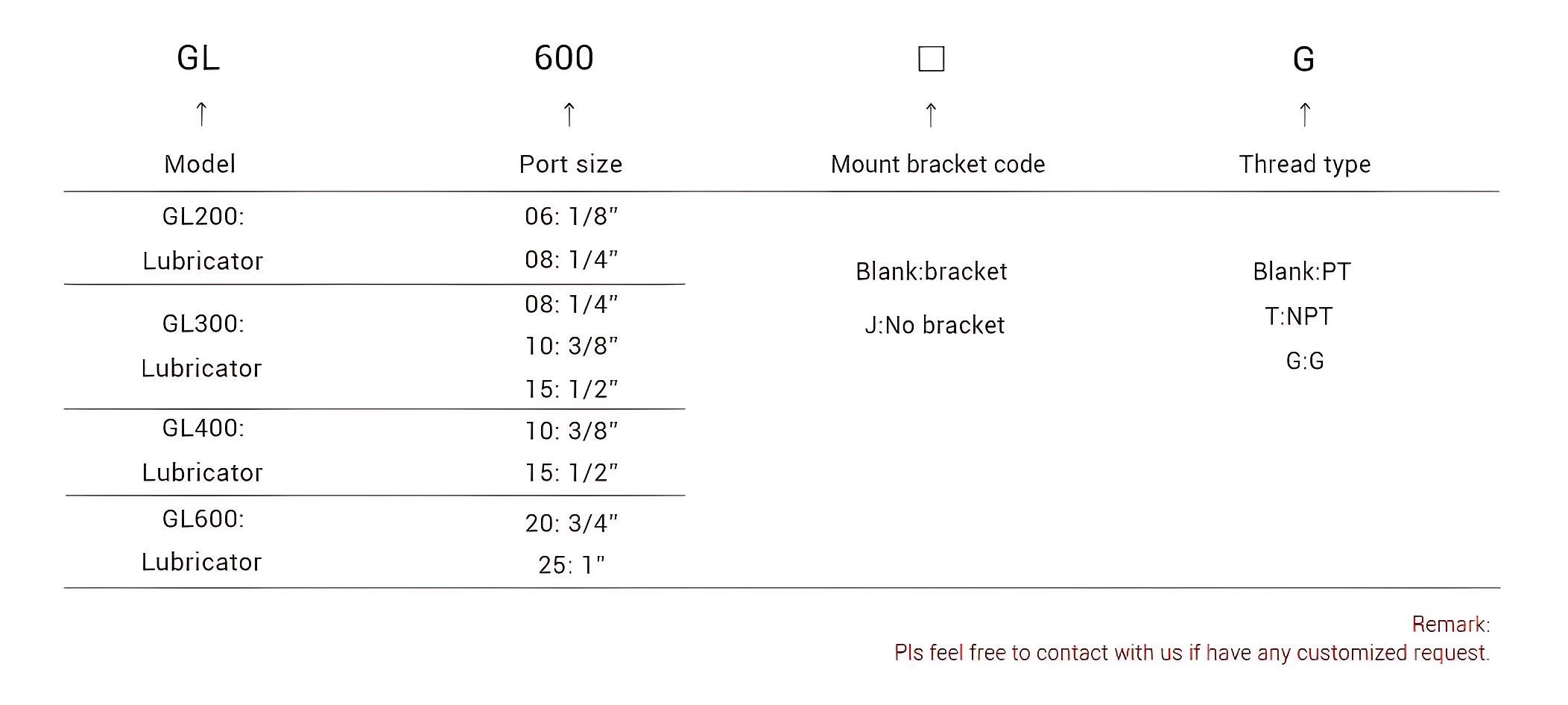

Ordering Code

DATA SHEET

Model	GL200-06	GL200-08	GL300-08	GL300-10	GL300-15	GL400-10	GL400-15	GL600-20	GL600-25
Port Size(G)	1/8	1/4	1/4	3/8	1/2	3/8	1/2	3/4	1
Working medium	Air
Pressure regulating range	0.05~1.0MPa(7~145Psi)
Pressure Resistance	1.5MPa (215Psi)
Operating temperature range	-5~70℃
Recommended Oil	ISO VG32/equivalent oil
Weight	130g		360g			670g		1300g
Lubricator Cup Capaciry	25CC		75CC			160CC		380CC

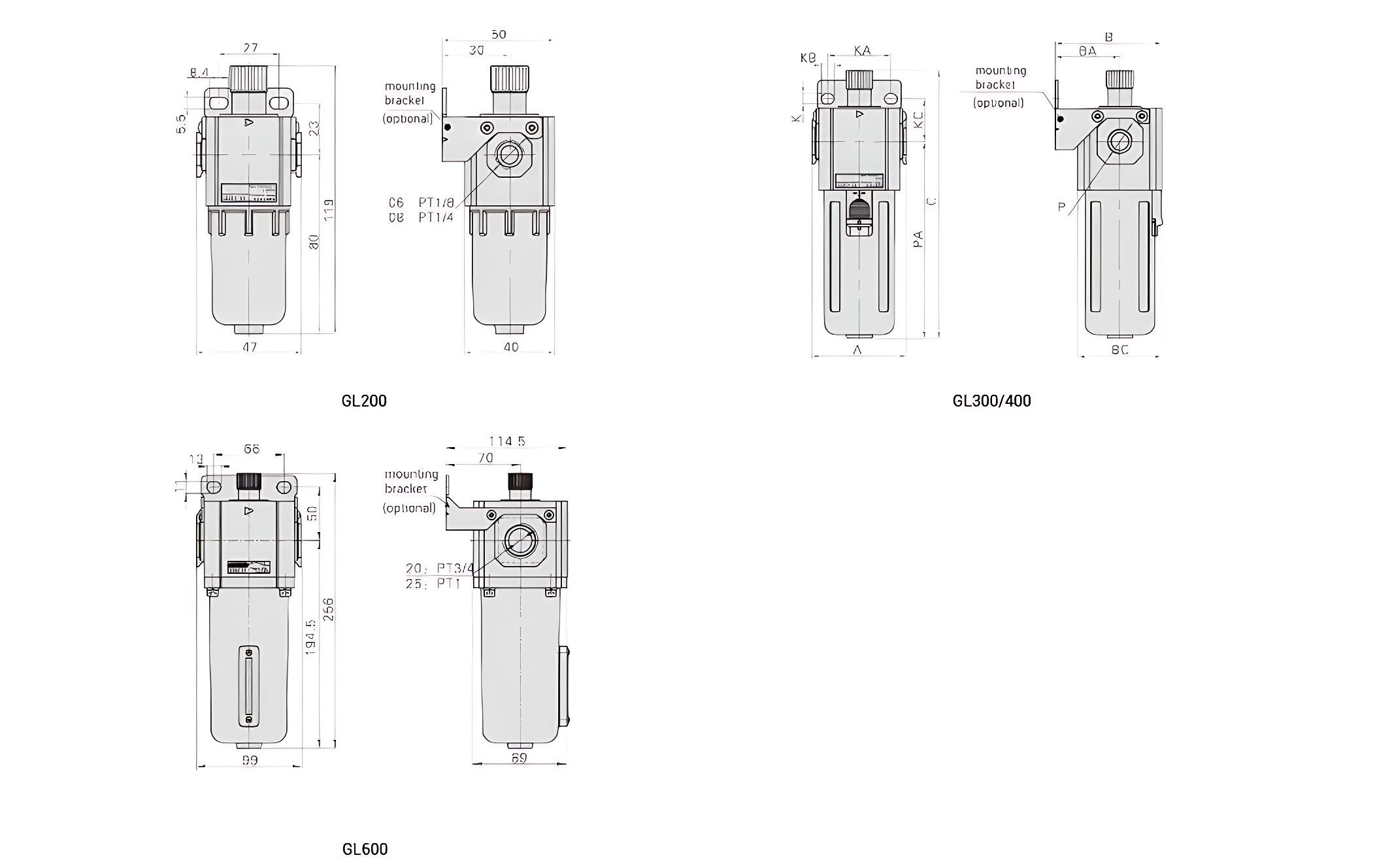

STRUCTURE

Airtac Lubricator

Model	A		B	BA	BC	C	K	KA	KB	KC	P	PA
GL300-08		60	68	41	53.5	169	6.5	40	8	27	PT1/4	125
GL300-10		60	68	41	53.5	169	6.5	40	8	27	PT3/8	125
GL300-15		60	68	41	53.5	169	6.5	40	8	27	PT1/2	125
GL400-10		80	85.5	50	71	190	8.5	55	11	33.5	PT3/8	142
GL400-15		80	85.5	50	71	190	8.5	55	11	33.5	PT1/2	142
GL600-20		99	114.5	70	89	256	11	66	13	50	PT3/4	194.5
GL600-25		99	114.5	70	89	256	11	66	13	50	PT1	194.5

Specification Download
