Waalpc Airtac G Series GF600 3/4 1′′oem Industrial Pneumatic Compressor Pressure Reducing Valve Air Filter Manual Drain

Waalpc Airtac Type G Series GF600 3/4 1′′oem Industrial Pneumatic Compressor Pressure Reducing Valve Air Filter Manual Drain


Availability:

Quantity:



Inquiry Add to Basket

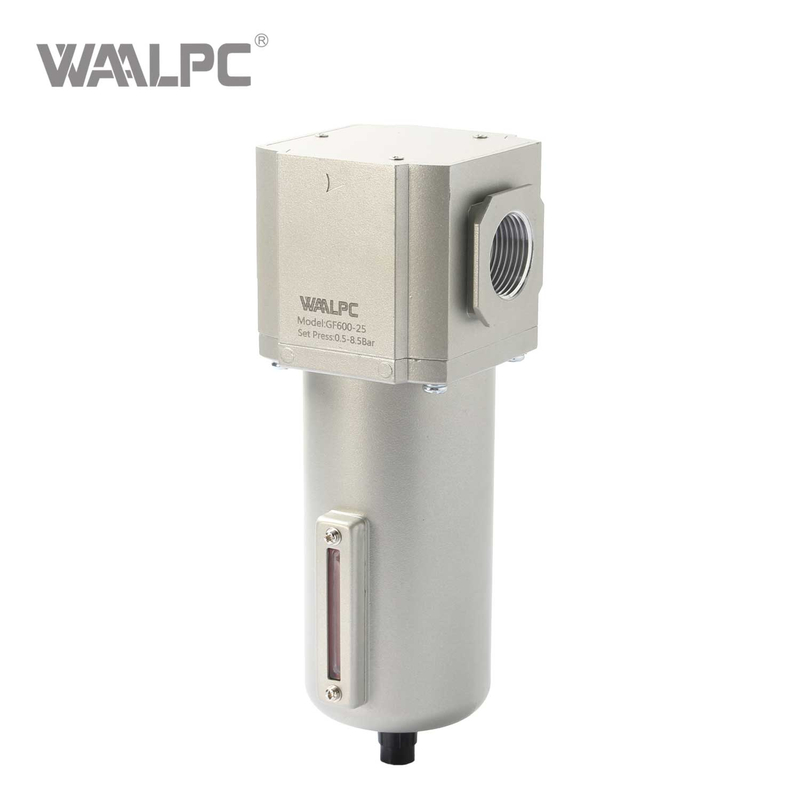

The GF600 Series Air Filter by Airtac is a high-performance pneumatic filter designed to ensure clean and reliable compressed air for industrial applications. As part of Airtac's G Series (air preparation units), the GF600 combines advanced filtration technology with user-friendly design to meet rigorous industry demands. Below is a detailed overview of its features, technical specifications, and applications.

Model:
GF600-25
Brand:
WAALPC
Code:
8421299090

Product Description

1. The unique flow guiding structure generates appropriate rotation of the flowing gas,

thereby more effectively separating liquids in the gas and reliably filtering solid particles
2. Low pressure loss, high water separation efciency, and large water cup capacity
3. Grade of Filtration:5um,40um
4. There are three drainage forms to choose from: manual, differential pressure,
and automatic drainage
5. Optional fixed bracket installation
6. Port size optional: Thread G, PT or NPT 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''.

Technical Parameters

DATA SHEET

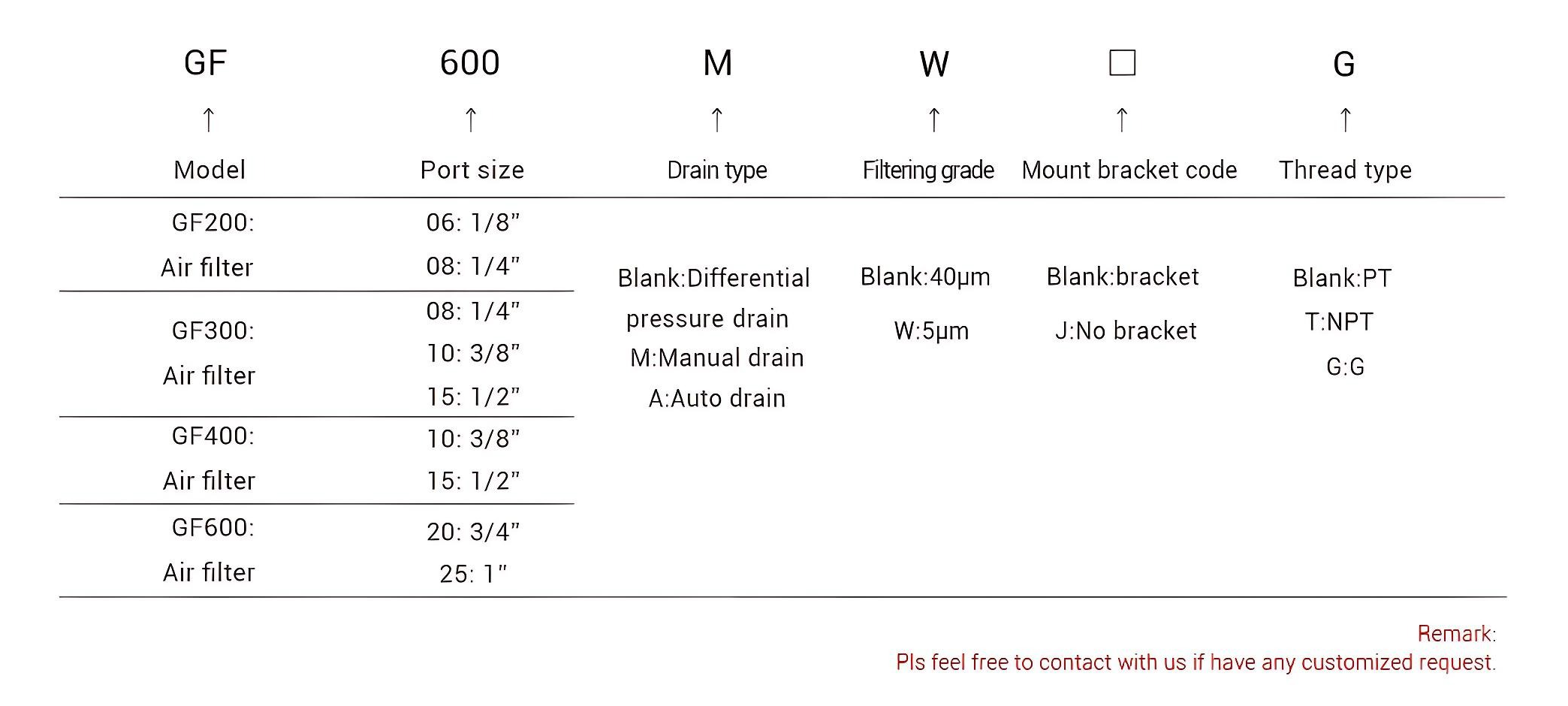

Model	GF200-06	GF200-08	GF300-08	GF300-10	GF300-15	GF400-10	GF400-15	GF600-20	GF600-25
Port Size	PT1/8	PT1/4	PT1/4	PT3/8	PT1/2	PT3/8	PT1/2	PT3/4	PT1
Grade of Filtration	40um or 5um
pressure regulating range	Automatic and different pressure drain: 0.15~1.0Mpa; Manual drain: 0~0.9Mpa(0~145psi)
Pressure Resistance	1.5MPa (215Psi)
Operating temperature range	-5~70℃
Pressure regulating range	0.05~0.9Mpa (7-130Psi)
Filter Cup Capacity	10CC		40CC			80CC		230CC
Weight	135g		360g			680g		1440g

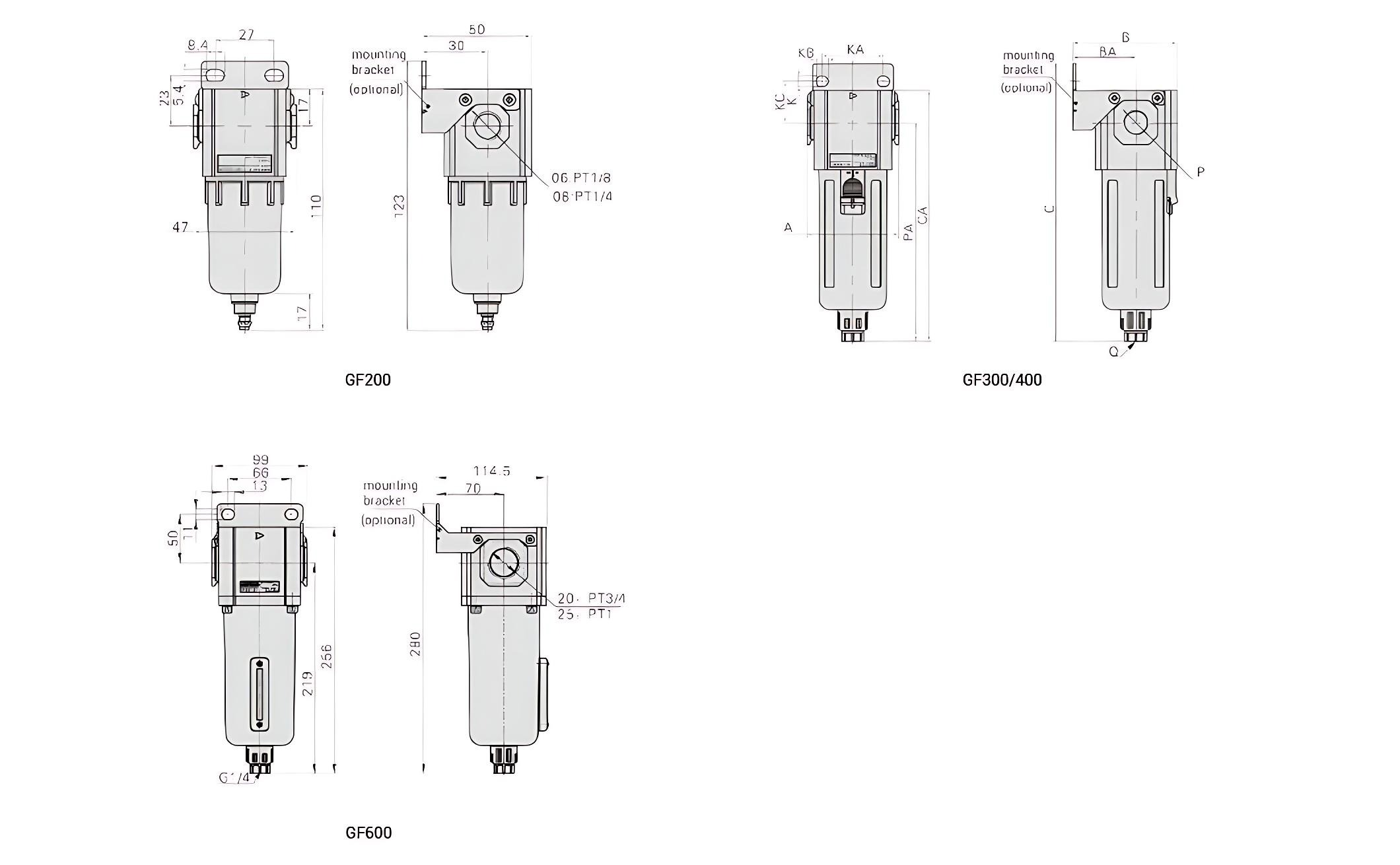

STRUCTURE

The Airtac GF Serie Air Filter

Model	A		B	BA	C	CA	K	KA	KB	KC	P	PA	Q
GF300-08		60	67.5	41	182	164	6.5	40	8	27	PT1/4	143	G1/8
GF300-10		60	67.5	41	182	164	6.5	40	8	27	PT3/8	143	G1/8
GF300-15		60	67.5	41	182	164	6.5	40	8	27	PT1/2	143	G1/8
GF400-10		80	85.5	50	208	191.5	8.5	55	11	33.5	PT3/8	166.5	G1/4
GF400-15		80	85.5	50	208	191.5	8.5	55	11	33.5	PT1/2	166.5	G1/4
GF600-20		99	114.5	70	280	256	11	66	13	50	PT3/4	219	G1/4
GF600-25		99	114.5	70	280	256	11	66	13	50	PT1	219	G1/4
