SMC Bracket
WAALPC
7325991000
| 1. Unmatched Material DurabilityCorrosion-Resistant Materials: Stainless Steel (304/316): Ideal for harsh environments (chemical plants, food processing) with FDA-compliant options (HY series) for hygienic applications . Aluminum Alloy: Lightweight yet robust for high-speed automation (e.g., semiconductor cleanrooms), reducing energy consumption by up to 20% . Nickel-Plated Steel: Enhanced resistance to humidity and dust, ensuring longevity in industrial settings. 2. Rapid Installation & MaintenanceTool-Free Quick-Release: CG3 series brackets feature a snap-fit mechanism, slashing downtime by 30% during system reconfiguration . Pre-drilled alignment holes and standardized thread types (NPT/BSP/metric) enable plug-and-play integration. Low Maintenance: Corrosion-resistant finishes and self-lubricating materials reduce annual maintenance costs by 25% compared to traditional metal brackets . |
Industrial Production
Automation Equipment
Mechanical Equipment
Food Industry
Medical and Health Care
Electronic Industry
Textile Machinery
Packaging Machinery

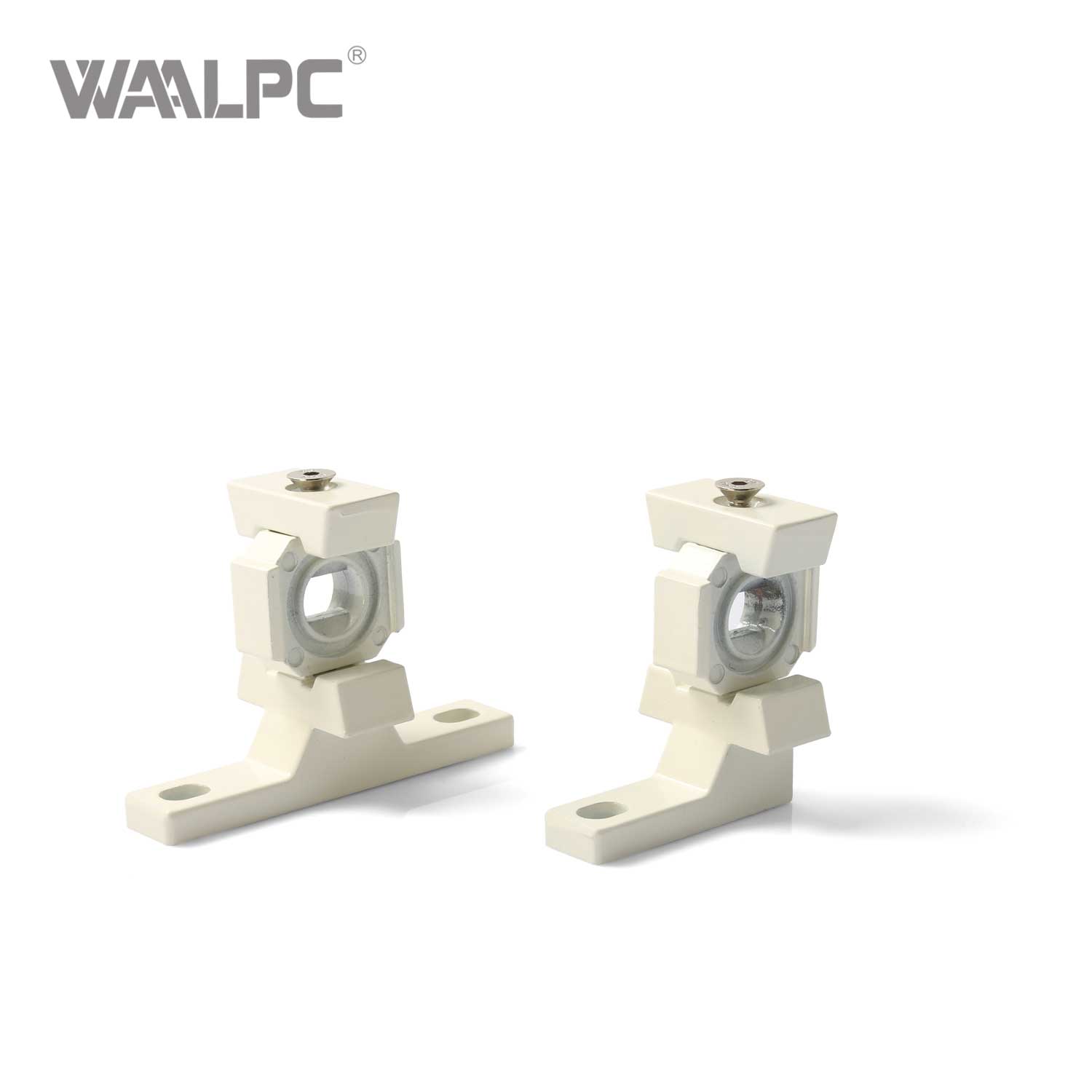

A Series of Bracket

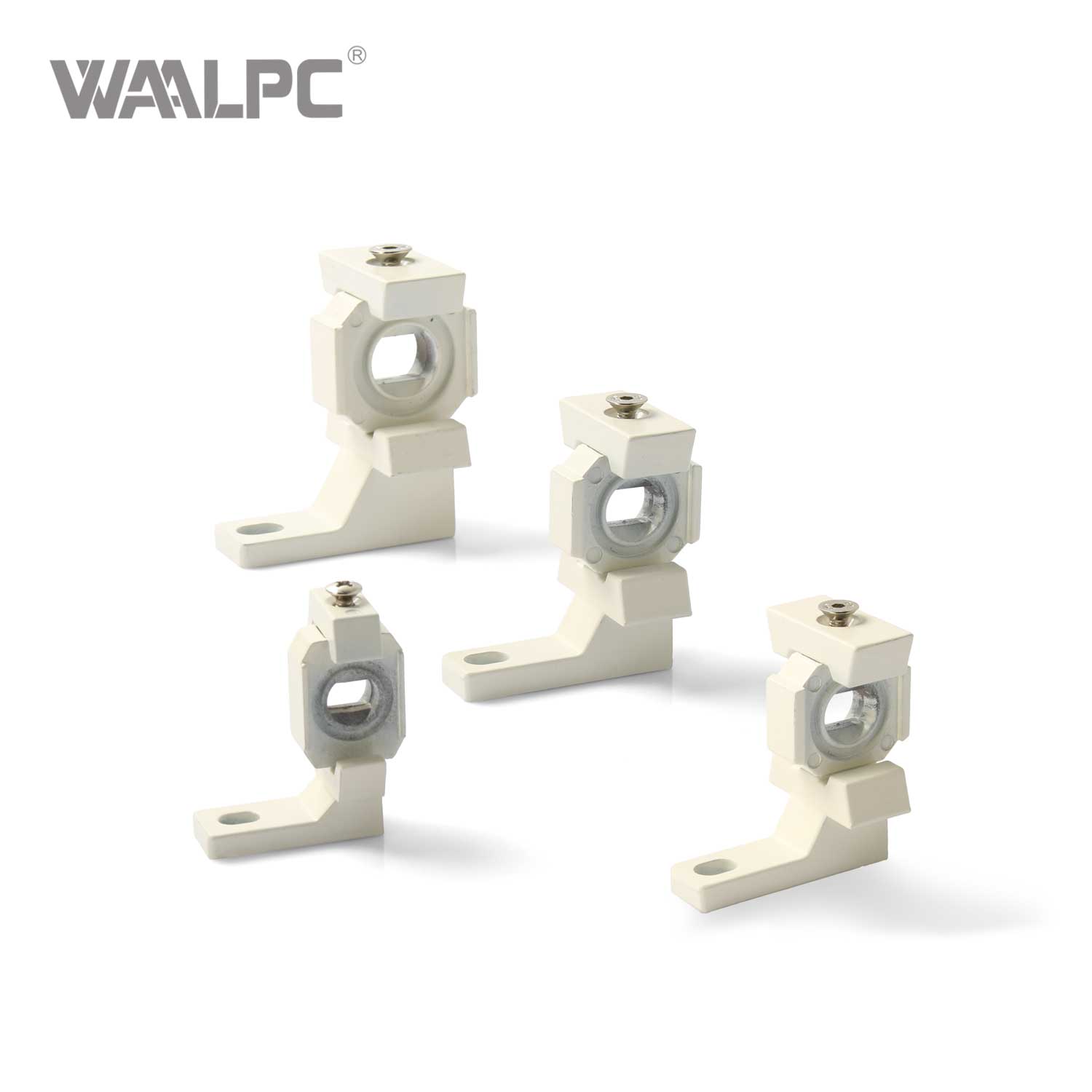

L-Type
Model | A | B | C | D | E | F | G | R | L | Applicable type |
| AC20L | 24 | 15 | 5.5 | 3 | 30 | 5 | 9 | 2.75 | 33 | AC2000 |
| AC30L | 35 | 16 | 7 | 4 | 40.25 | 6.8 | 10.5 | 3.5 | 45 | AC3000 |
| AC40L | 40 | 22.5 | 8 | 3.5 | 48 | 7 | 13.8 | 4.5 | 50 | AC4000 |
| AC50L | 49.7 | 24 | 12 | 4 | 70 | 10.5 | 15 | 6.0 | 62.5 | AC5000 |

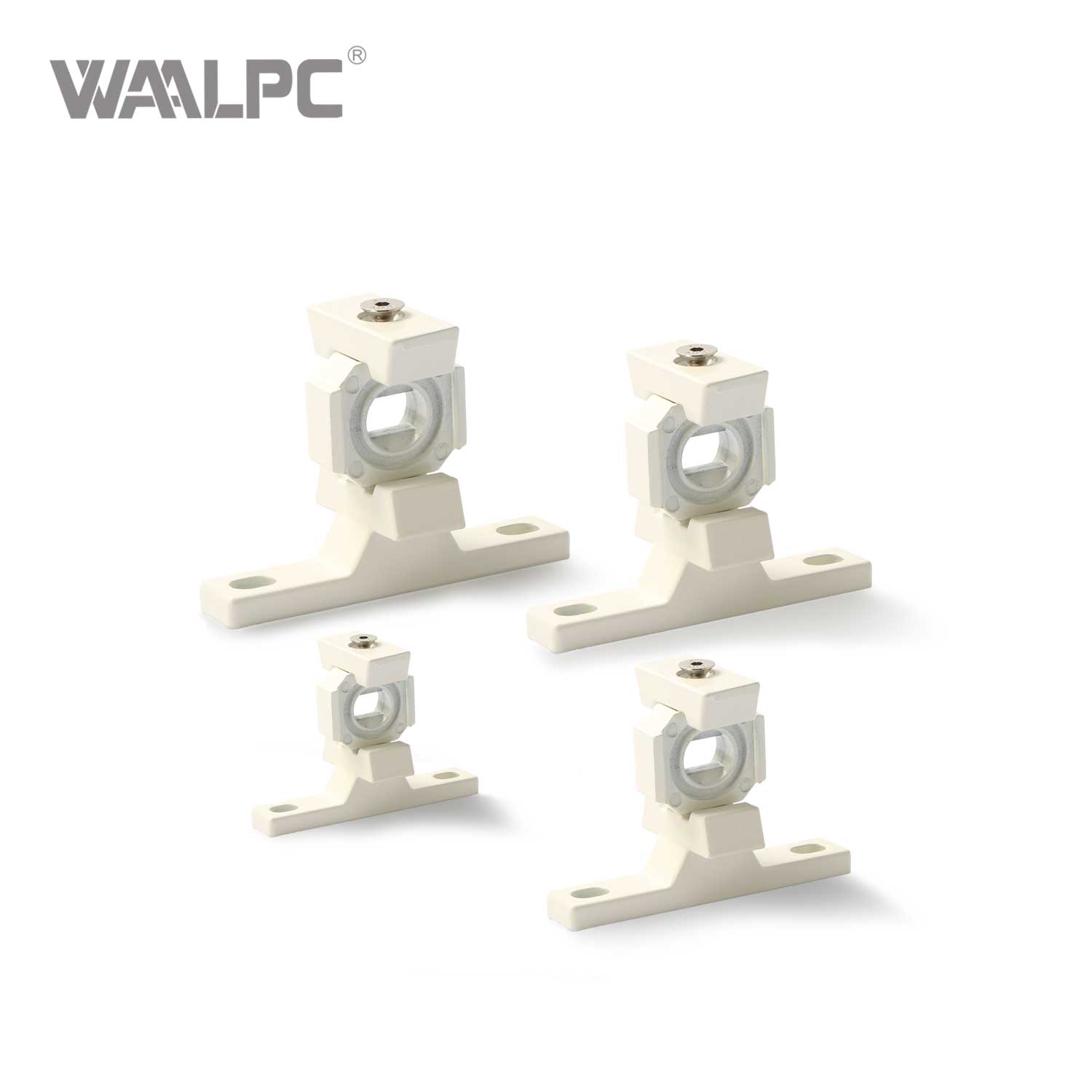

T-Type
Model | A | B | C | D | E | F | G | H | R | L | Applicable type |
| AC20T | 24 | 15 | 5.5 | 3 | 30 | 5 | 9 | 48 | 2.75 | 33 | AC2010 |
| AC30T | 35 | 16 | 7 | 4 | 40.25 | 7 | 10.5 | 70 | 3.5 | 45 | AC3010 |
| AC40T | 40 | 22.5 | 8 | 3.5 | 48 | 7 | 13.8 | 81.2 | 4.5 | 50 | AC4010 |
| AC50T | 49.7 | 24 | 12 | 4 | 70 | 10 | 15 | 99.5 | 6.0 | 62.5 | AC5010 |
