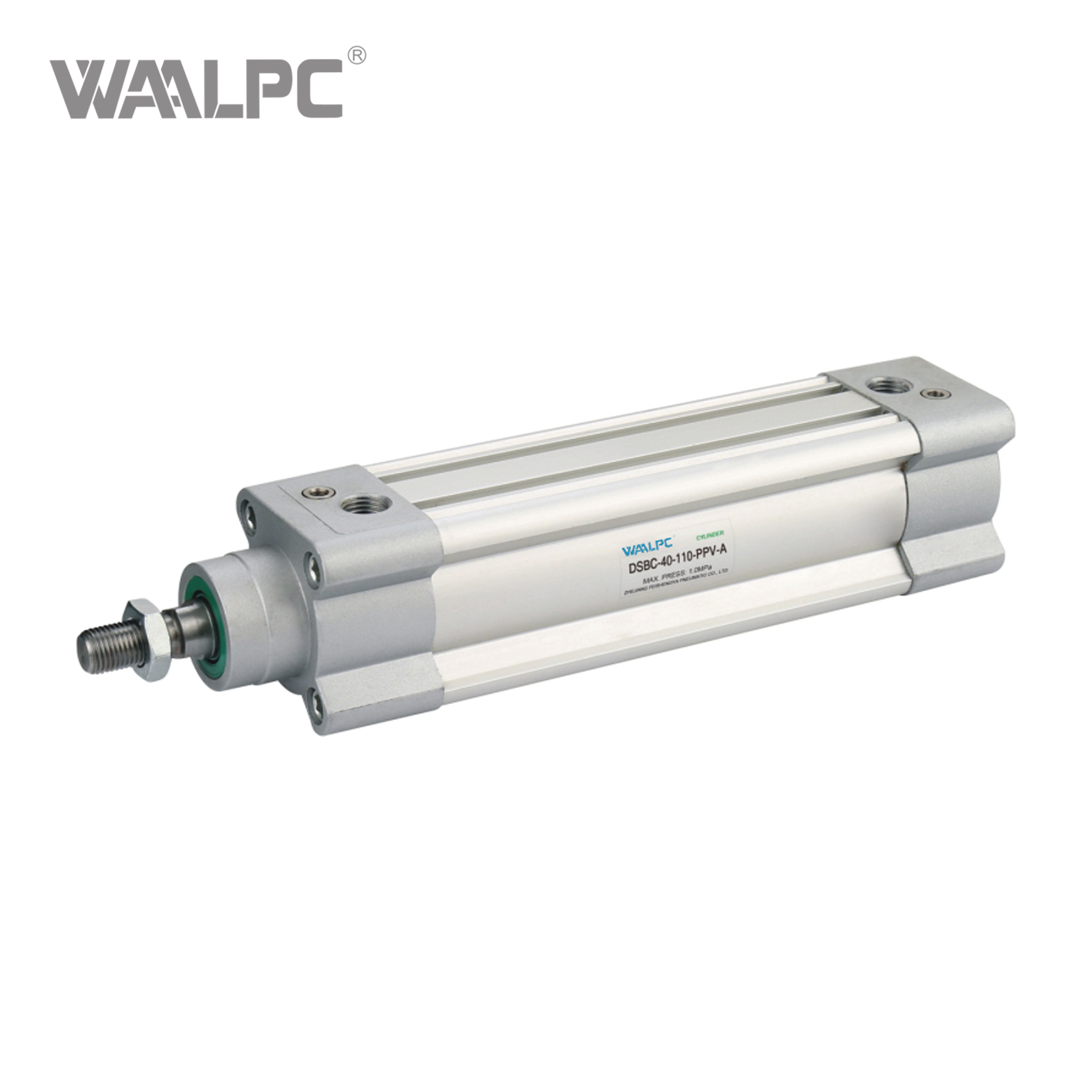

DSBC
WAALPC
8409919990
1. Standardization & Ease of Integration: As a cylinder that conforms to ISO 15552, it ensures easy replacement and interchangeability in systems designed to this international standard. The modular product system with a wide range of accessories and variants allows for flexible configuration to meet specific needs.
2. Smooth Operation & Enhanced Control: The adjustable pneumatic cushioning (PPV) effectively absorbs kinetic energy at the end positions, ensuring smooth operation, reduced noise, and longer service life, especially under medium to heavy loads and high speeds . The optional self-adjusting cushioning (PPS) saves time by eliminating the need for manual adjustment.
3. Installation Versatility & Flexibility: The cylinder can be installed in any position . A wide selection of mounting accessories (like foot mounts, flanges, and trunnions) enables installation in almost any location . The standardized mounting dimensions further simplify this process.
4. Robustness & Reliability: Key components like the piston rod made from high-alloy steel and the cylinder tube made from precision aluminum alloy contribute to its corrosion resistance (CRC level 2) and long service life, making it suitable for demanding industrial environments.

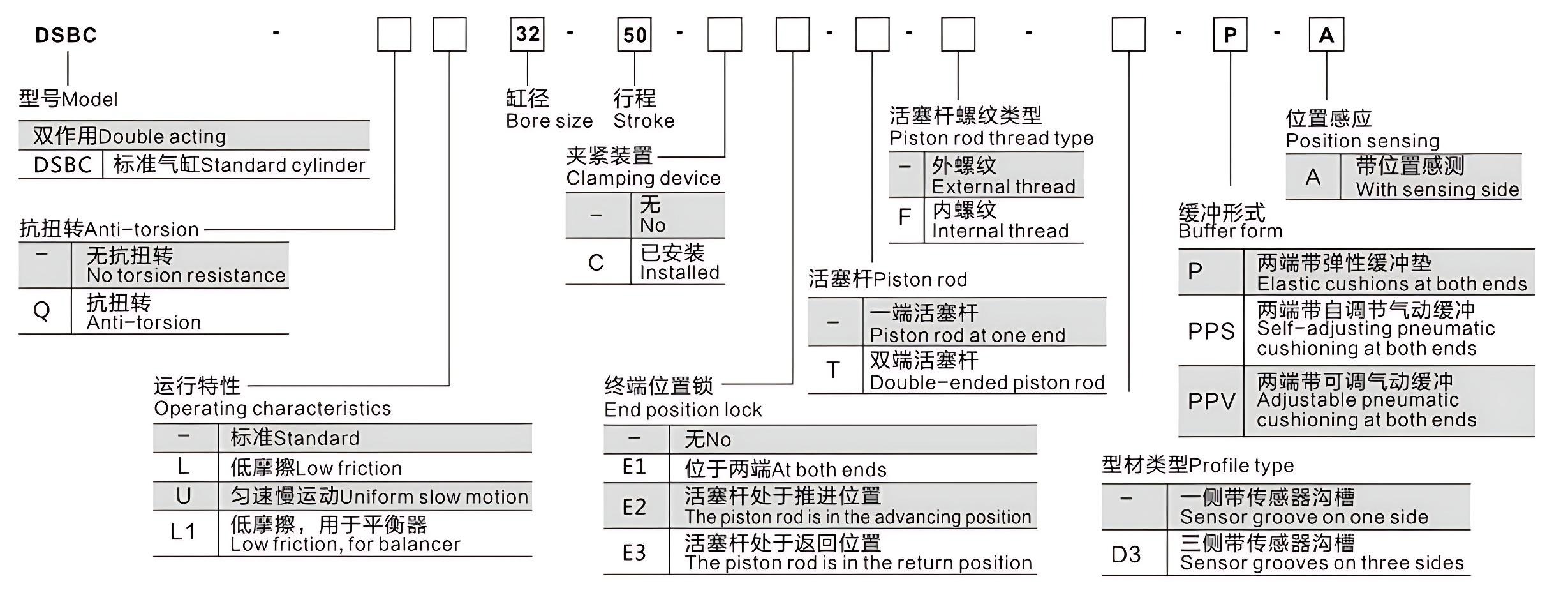

ORDERING CODE
SPECIFICATION
Bore size | 32 | 40 | 50 | 63 | 80 | 100 | 125 | |
Constructional design | Piston/Pistonrod/Profile barrel | |||||||
Action type | Double acting | |||||||
Pneumatic connection | DSBC-... | G1/8 | G1/4 | G1/4 | G3/8 | G3/8 | G1/2 | G1/2 |
DSBC-...-C | M5 | G1/8 | G1/8 | G1/8 | G1/8 | G1/8 | G1/8 | |
Piston rod thread | M10x1.25 | M12x1.25 | M16x1.5 | M16x1.5 | M20x1.5 | M20x1.5 | M27x2 | |
Stroke | DSBC-...[mm] | 1...2800 | ||||||
DSBC-...-Q[mm] | 1...1500 | |||||||
DSBC-...L1[mm] | 10...1000 | |||||||
DSBC-...-C[mm] | 10...2000 | |||||||
DSBC-...-E1/E2/E3[mm] | 1...2000 | |||||||
DSBC-...-P2 | 10...500 | |||||||
DSBC-...-...E | 1...2000 | |||||||
DSBC-...-...L | 1...2000 | |||||||
Cushioning | DSBC-...-P | Elastic cushions at both ends | ||||||
DSBC-...-PPB | Adjusting pneumatic cushioning at both ends | |||||||
DSBC-...-PPS | Self-adjusting pneumatic cushioning at both ends | |||||||
Cushionong length | DSBC-...-PPV | 17 | 19 | 22 | 22 | 31 | 31 | 45 |
DSBC-...-E1/E2/E3 | 17 | 19 | 15 | 15 | 15 | 15 | - | |
Position sensing | Sensing via proximity switch | |||||||
Type of mounting | Via internal thread/attachment | |||||||
Mounting position | Arbitrary |

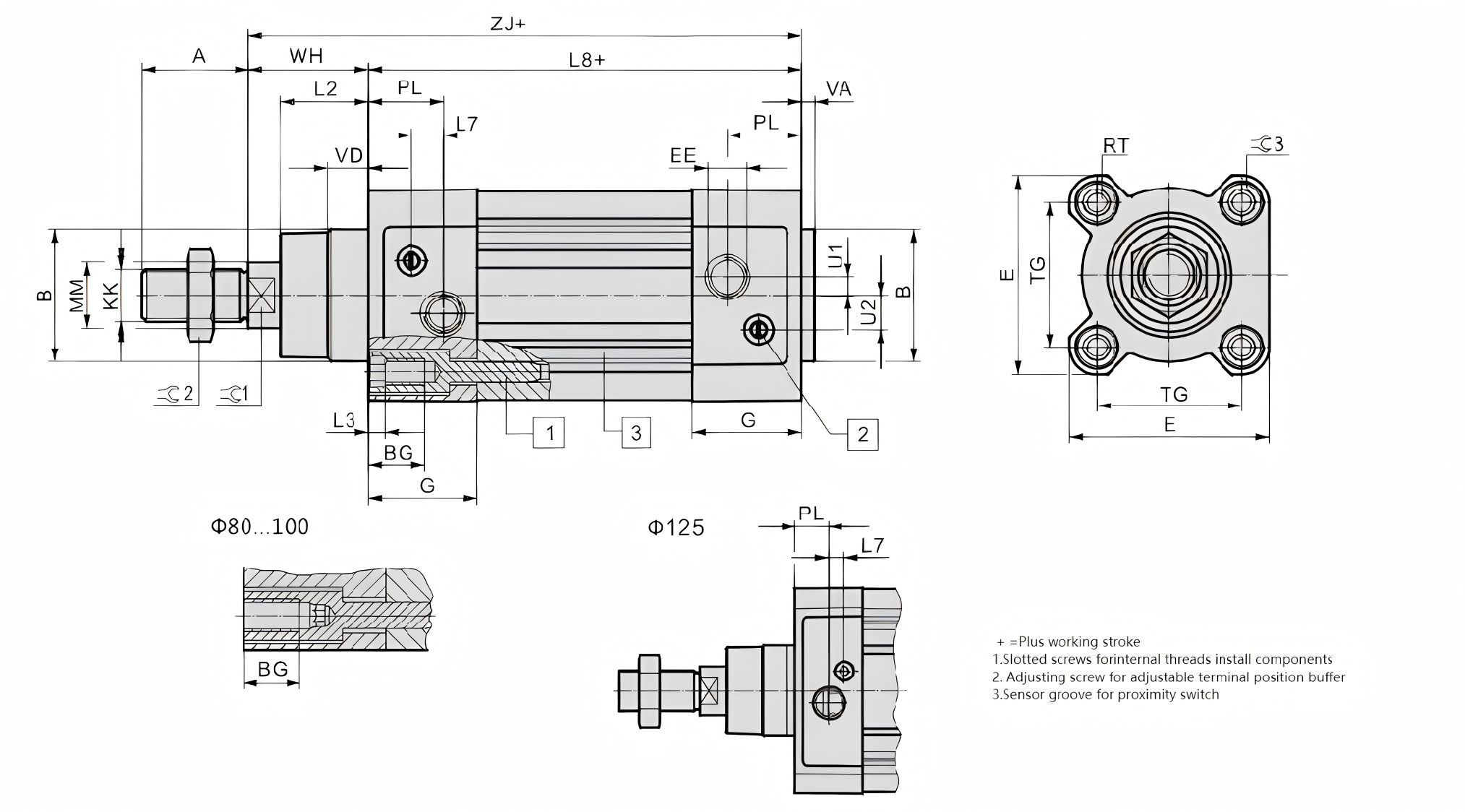

OVERALLDIMENSION&STRUCTURE
Deimensions(mm)

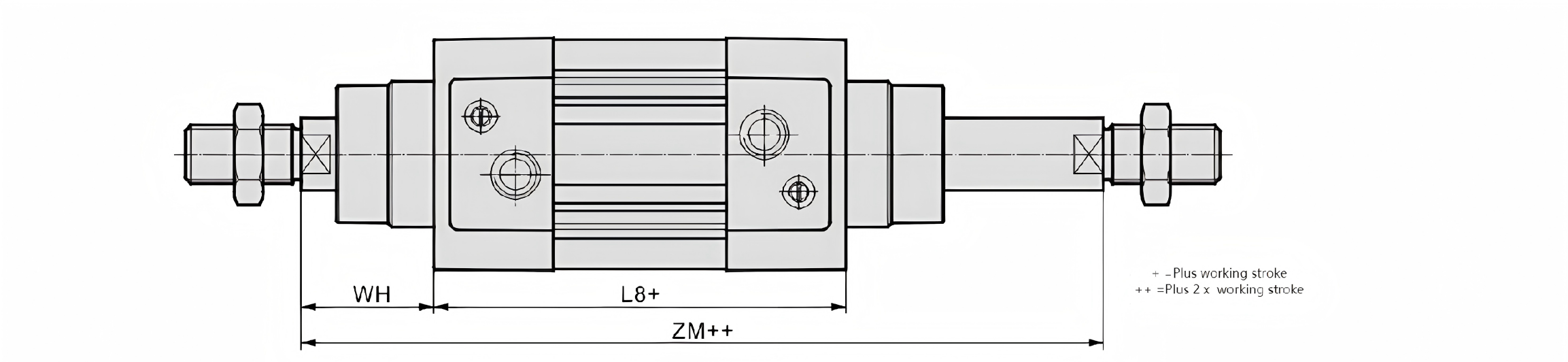

Double ended pision rod
Φ(mm) | A -0.5 | B Φ d11 | BG Min. | E +0.5 | EE | G -0.2 | U2 ±0.1 | U1 ±0.1 | KK | L2 | L3 Max. | L7 ±0.4 | L8 |
32 | 22 | 30 | 16 | 45 | G1/8 | 28 | 5.7 | 5.25 | M10x1.25 | 18-0.2 | 5 | 6.5 | 94 |
40 | 24 | 35 | 16 | 54 | G1/4 | 33 | 8 | 4 | M12x1.25 | 21.3-0.2 | 5 | 7.5 | 105 |
50 | 32 | 40 | 16 | 64 | G1/4 | 33 | 10.4 | 5.5 | M16x1.5 | 26.8-0.2 | 5 | 9.5 | 106 |
63 | 32 | 45 | 16 | 75 | G3/8 | 40.5 | 12.75 | 6.25 | M16x1.5 | 27-0.2 | 5 | 9 | 121 |
80 | 40 | 45 | 17 | 93 | G3/8 | 43 | 12.5 | 8 | M20x1.5 | 34.2-0.2 | - | 11 | 128 |
100 | 40 | 55 | 17 | 110 | G1/2 | 48 | 13.5 | 10 | M20x1.5 | 38-0.2 | - | 7.5 | 138 |
125 | 54 | 60 | 20 | 136 | G1/2 | 44.7 | 13 | 8 | M27x2 | 45.5-0.3 | - | 10 | 160 |
Φ(mm) | MM Φ | PL ±0.1 | RT | TG ±0.3 | VA | VD +0.5 | WH +2.2 | ZJ +1.8 | ZM +1 | ![]() | ![]() | ![]() |
32 | 12 | 19.5 | M6 | 32.5 | 4-0.2 | 10 | 25 | 119.1 | 146.1 | 10 | 16 | 6 |
40 | 16 | 22.5 | M6 | 38 | 4-0.2 | 10.5 | 28.7 | 133.9 | 164.8 | 13 | 18 | 6 |
50 | 20 | 22.5 | M8 | 46.5 | 4-0.2 | 10.5 | 28.7 | 133.9 | 164.8 | 13 | 18 | 6 |
63 | 20 | 27.5 | M8 | 56.5 | 4-0.2 | 15 | 35.9 | 157.1 | 195.4 | 17 | 24 | 8 |
80 | 25 | 30 | M10 | 72 | 4-0.2 | 15.7 | 45.4 | 173.6 | 221 | 22 | 30 | 6 |
100 | 25 | 31.5 | M10 | 89 | 4-0.2 | 19.2 | 49.3 | 187.5 | 238.8 | 22 | 30 | 6 |
125 | 32 | 22.5 | M12 | 110 | 6-0.3 | 20.5 | 64.1 | 225 | 290 | 27 | 41 | 8 |
