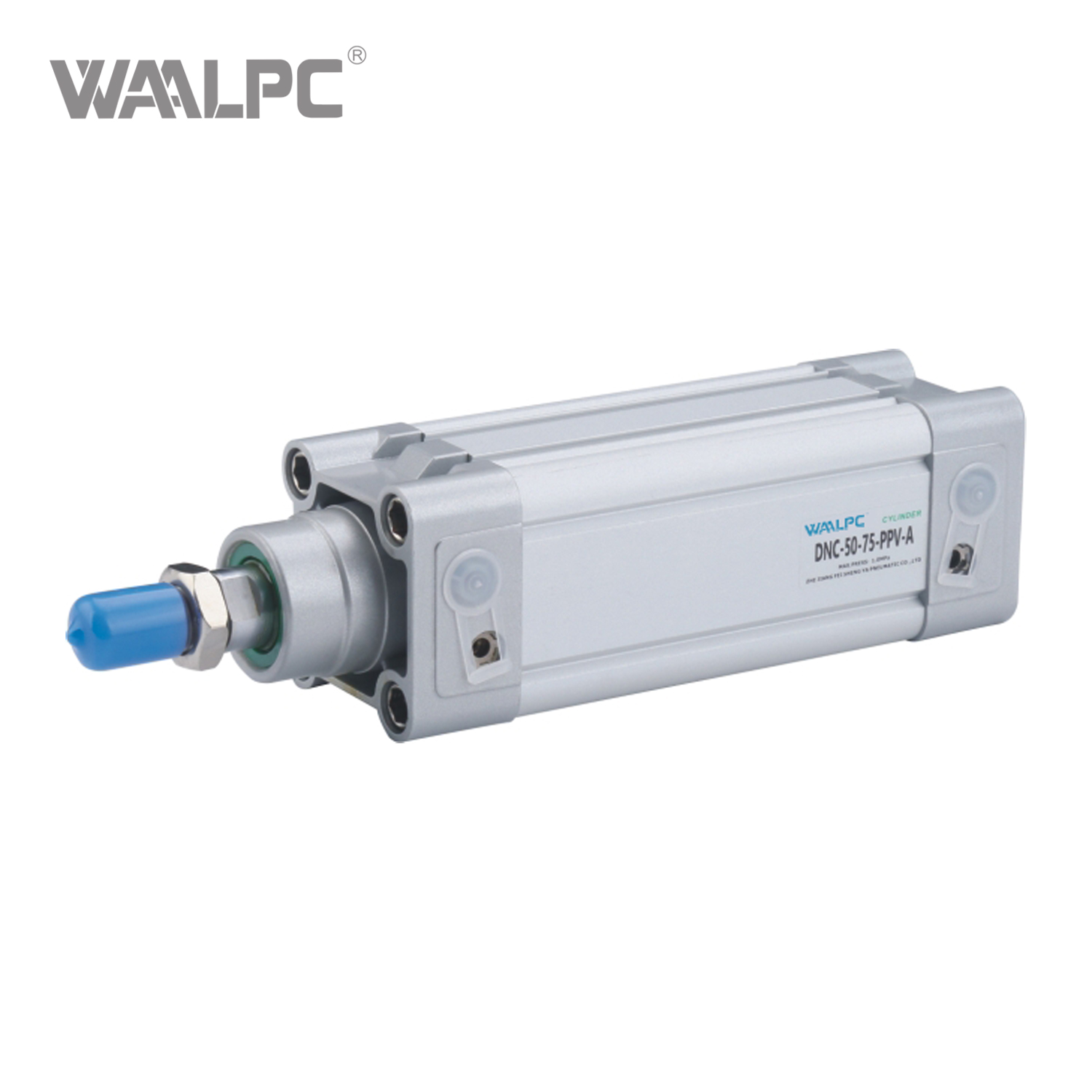

DNC cylinders, a core category of standard pneumatic cylinders, are widely recognized as essential actuators in industrial automation systems. Designed to convert compressed air energy into linear mechanical motion, they play a pivotal role in driving, pushing, pulling, or positioning loads across diverse industrial scenarios—making them a foundational component for optimizing mechanical workflow efficiency and precision.

Model:
DNC
Brand:
WAALPC
Code:
8409919990

Product Description

1. Bore Sizes: Available in a range from 32 mm to 125 mm to suit various force requirements .

2. Standard Strokes: Standard strokes range from 25 mm to 500 mm, with options extending up to 2000 mm for long-stroke applications .

3. Dual-Acting design, suitable for use with lubricated or non-lubricated compressed air .

4. Features sensor grooves on three sides of the cylinder barrel for easy integration of non-contact proximity sensors for position detection .

5. Constructed with a robust aluminum alloy profile tube and a high-alloy steel piston rod for durability .

Technical Parameters

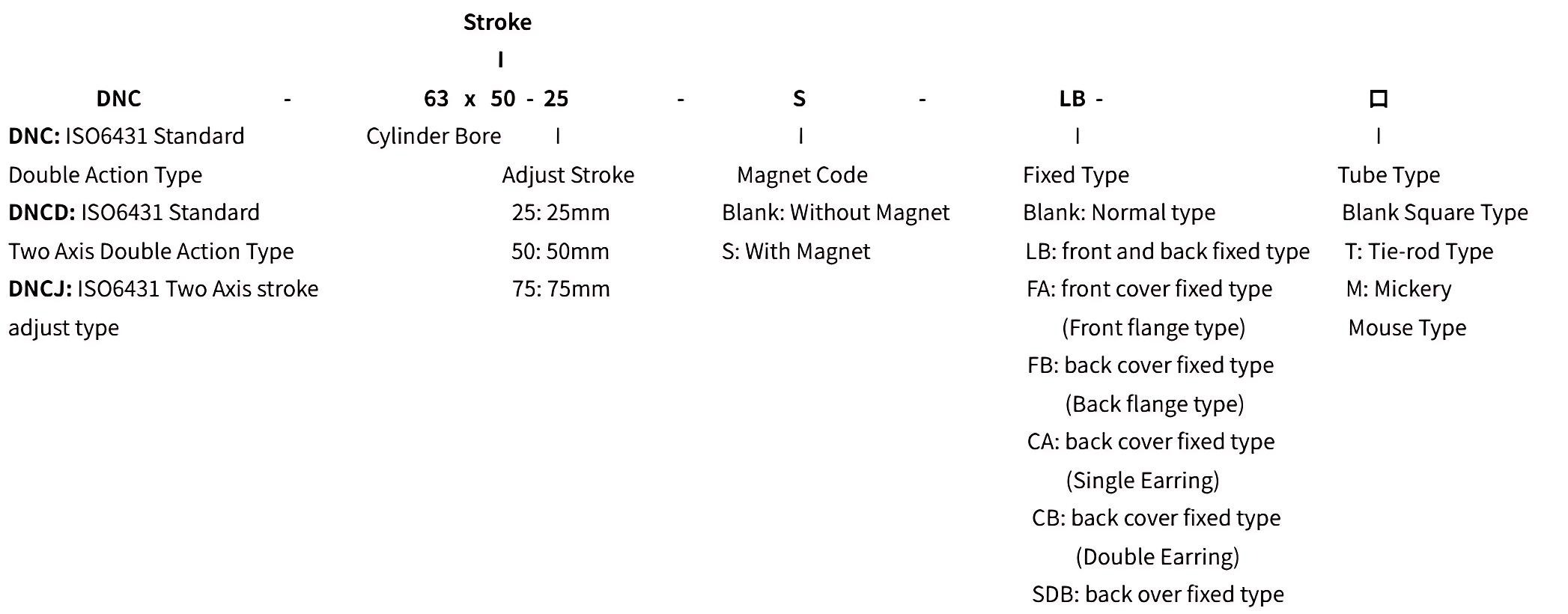

ORDERING CODE

DNC standard cylinder

SPECIFICATION

Bore(mm)	32	40	50	63	80	100	125
Motion Pattern	Filtered Air
Working Medium	Double Action
Compression Pressure	1.5MPa
Max. Operating Pressure	1.0MPa
Min. Operating Pressure	0.1MPa
Buffer	Air Buffer(Standard)
Condition Temperature	-5-70℃
Operating Speed	50-800mm/s
Port Size	G1/8''	G1/4''		G3/8''		G1/2''

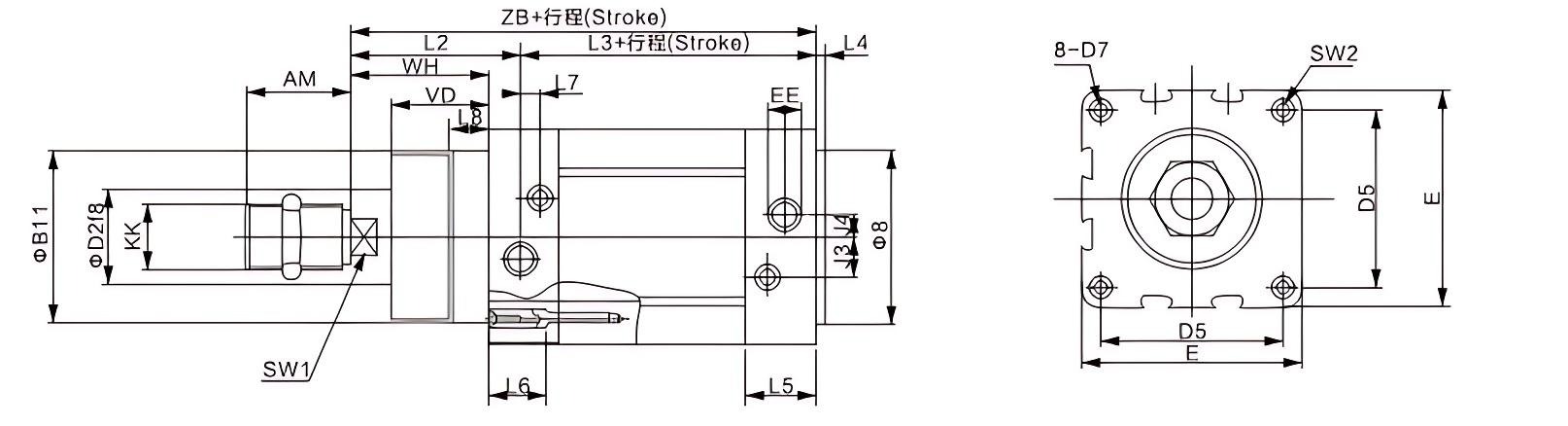

OVERALLDIMENSION&STRUCTURE

Normal type DNC-D-S

DNC standard cylinder

Bore	AM	B	D2	D5	D7	E	EE(G)	J3	J4	KK	L2	L3	L4	L5	L6	L7	L8	SW1	SW2	VD	WH	ZB
32	22	30	12	32.5	M6	45	1/8	6	5.2	M10x1.25	41.6	62.8	4	26	16	3.3	10	10	6	16	26	120
40	24	35	16	38	M6	54	1/4	8	6	M12x1.25	44	77	4	29.6	16	3.6	10.5	13	6	20	30	135
50	32	40	20	46.5	M8	64	1/4	10	8.5	M16x1.5	51	78	4	30	17	5.1	11.5	17	8	27	37	143
63	32	45	20	56.5	M8	75	3/8	12.4	10	M16x1.5	54	87	4	35.6	17	6.6	15	17	8	27	37	158
80	40	45	25	72	M10	93	3/8	12.5	8	M20x1.5	62.4	95.2	4	35.9	17	10.5	15.7	22	10	34.7	46	174
100	40	55	25	89	M10	110	1/2	11.8	10	M20x1.5	69.8	100.	4	39	17	8	19.2	22	10	38.2	51	189
125	54	60	32	110	M12	134	1/2	13	8	M27x2	83	124	6	44.7	22	14	20.5	27	12	46	65	225

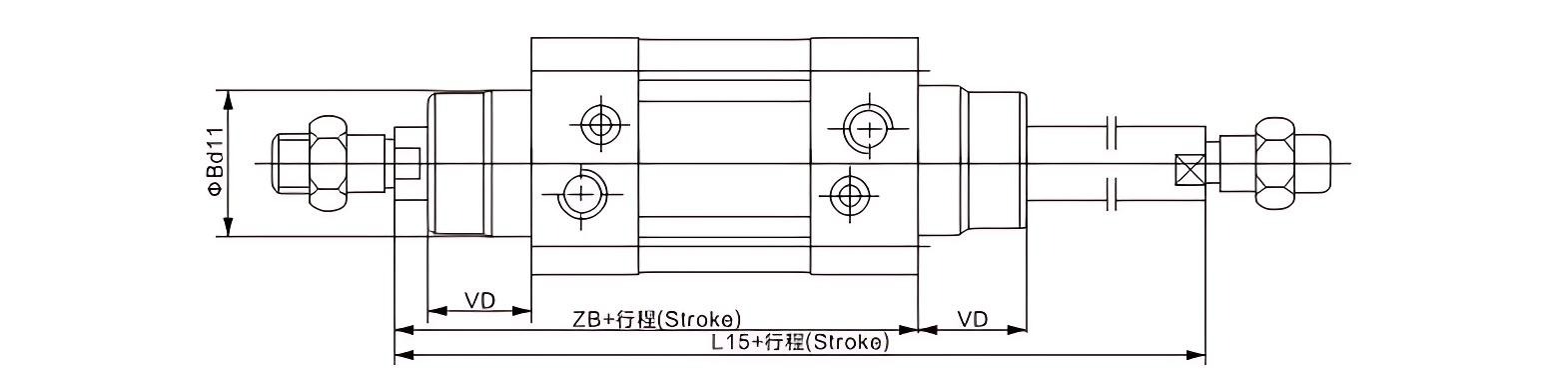

Double Piston Rod Type DNC-D-S

DNC Double piston rod type

Bore	32	40	50	63	80	100
B	30	35	40	45	45	55
L15	46	165	180	195	220	240
VD	16	20	27	27	34.7	38.2
ZB	120	135	143	158	174	189
