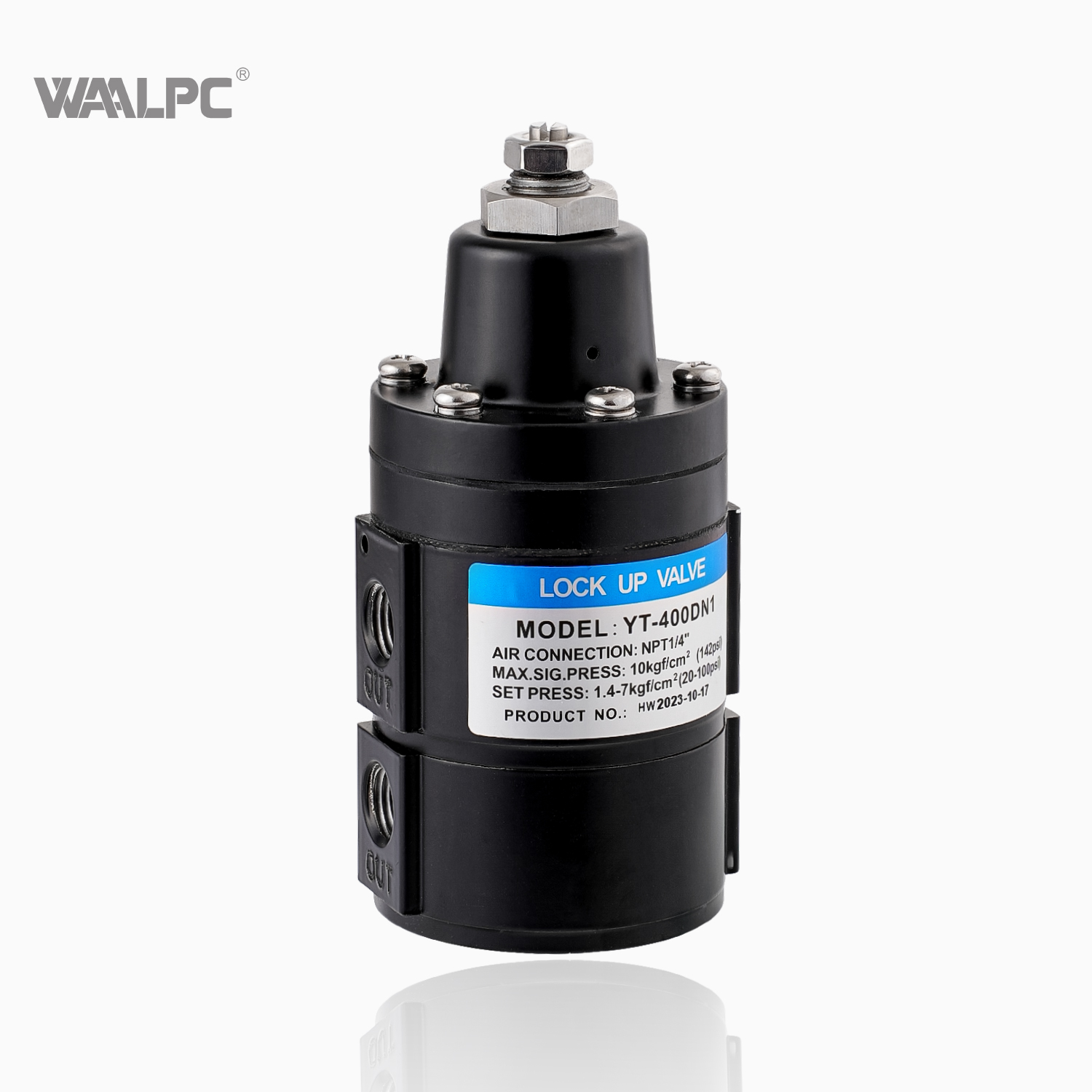

Double Acting Air Lock Valves Dual Pressure Operation for Enhanced Gas System Flexibility


Size:	1 2
Availability:

Quantity:



Inquiry Add to Basket

The double - acting air lock up valve is a sophisticated gas - control device that operates through a dual - pressure mechanism. Unlike single - acting valves, it utilizes air pressure from two directions to drive its opening and closing operations. When air pressure is applied to one side, the valve opens to allow gas flow; by switching the air pressure to the opposite side, the valve can be precisely closed. This bidirectional actuation enables more accurate and flexible control over gas flow, making it an ideal choice for complex industrial processes, high - precision pneumatic systems, and applications that demand rapid and reliable gas isolation. With its robust construction and advanced design, the double - acting air lock valve ensures stable performance under various working conditions.

Model:
YT420S
Brand:
WAALPC
Code:
8481901000

Product Description

The double - acting air lock up valve Advantages

Double acting air lock up valve

1. Precise and Flexible Control

The double - acting air lock valve offers unparalleled precision in gas flow regulation. Its dual - pressure operation allows for fine - tuned adjustments, enabling operators to control the gas flow rate and pressure with high accuracy. Whether it’s for maintaining a stable gas supply in a chemical reaction process or precisely regulating the gas flow in a scientific experiment, this valve can adapt to different requirements with ease. The ability to switch between opening and closing directions quickly also provides enhanced flexibility, making it suitable for dynamic systems where immediate changes in gas flow are necessary.

2. Rapid Response

Thanks to its bi - directional air - pressure actuation, the double - acting air lock valve features an extremely fast response time. It can rapidly switch between the open and closed states, ensuring that gas flow can be adjusted or stopped promptly as needed. In applications where split - second reactions are crucial, such as in emergency shutdown systems or high - speed automated production lines, this quick response capability helps prevent potential hazards and improves overall system efficiency

The double - acting air lock up valve Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

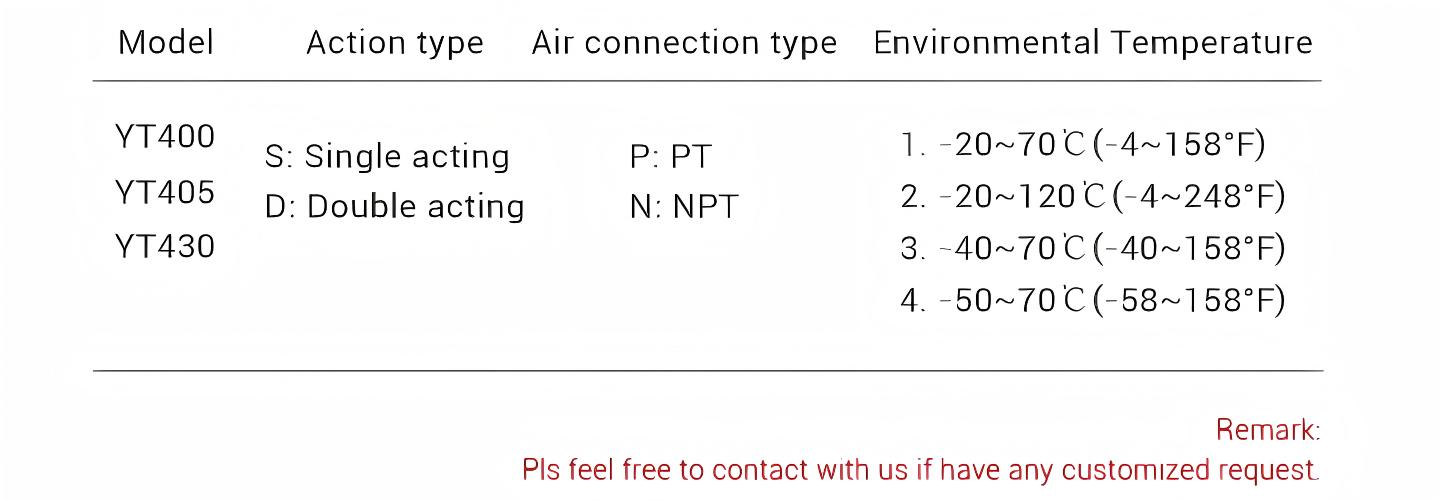

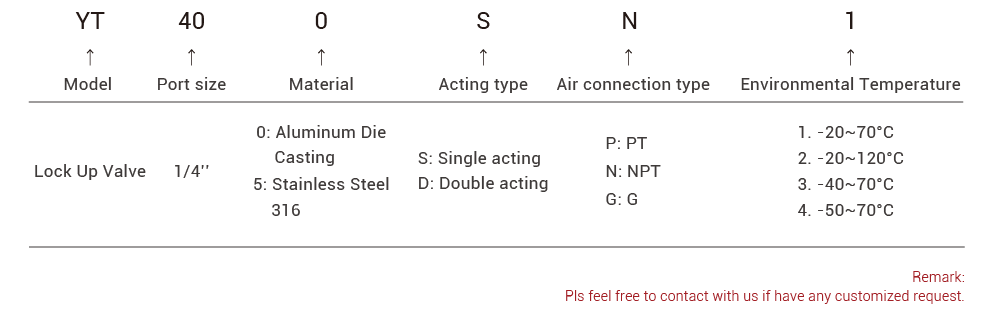

Data sheet

Type-Name	Pressure Regulating Air Lock Up Valve
Model	YT-400S	YT-400D	YT-405S	YT-405D	YT-420S	YT-420D	YT-430S	YT-430D
Max. input/output pressure	Max. 1.0MPa(10bar)
Max. signal pressure	Max.0.7MPa(7bar)
Pressure setting range	0.14MPa~0.7MPa(1.4~7bar)
Flow coefficient	0.9				2.6		1.8
Port size	PT(NPT)1/4		NPT1/4		NPT1/2		NPT3/8
Signal pressure port size	PT(NPT)1/4		NPT1/4		NPT1/4
Action differential pressure	Lower than 0.1kgf/cm(1.4psi)				Lower than 0.01MPa(0.1bar)
Hysteresis	1%
Temperature range	-20~70℃				-20~70℃(standard), -20~120℃(low temperature), -40~70℃(low temperature)
Material	Die-cast aluminum		316 stainless steel		Aluminum alloy
Weight	0.45kg	0.7kg	1.1kg	1.5kg	1.3kg	2.3kg	1.3kg	2.3kg

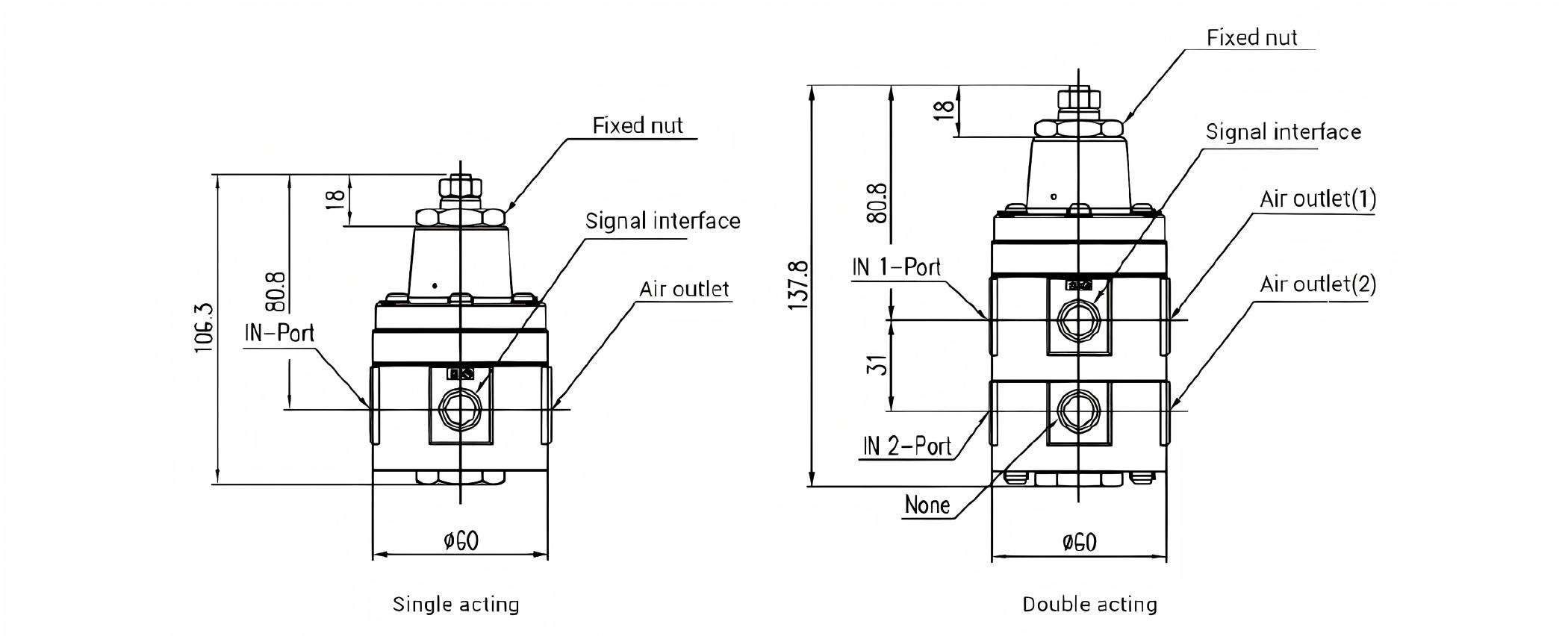

Overalldimension & Structure

The double-acting air lock up valve

Specification Download

WAALPC Pressure Regulating Air Lock Valve .pdf.pdf
