Fluid Air Control Valve Pneumatic Brass Body Valve Normally Closed 5/2 Way


Availability:

Quantity:



Inquiry Add to Basket

The Q22HD series is a versatile and robust fluid control valve designed for industrial automation. It operates on compressed air to control the flow of various media, featuring a compact design, high sealing performance, and reliable operation.

Model:
Q22HD
Brand:
WAALPC
Code:
8481804090

Product Description

Cost-Effective Operation: Low energy requirement for actuation translates to direct savings.

One Valve for Multiple Fluids: Reduces inventory complexity.

Built to Last for Harsh Conditions: Corrosion-resistant materials ensure reliability.

Easy to Integrate and Maintain: Saves time during installation and servicing.

Technical Parameters

DATA SHEET

Model	Q22HD-15	Q22HD-20	Q22HD-25	Q22HD-32	Q22HD-40	Q22HD-50
Flow Path	13mm	16mm	22mm	28mm	35mm	45mm
Medium	Compressed air, water, oil, etc.
Working Pressure	0~1.0MPa
Control Pressure	0.4~1.0MPa
Temperature Range	-5~60℃
Kv(m3/k)	4	5	10	18	25	40

OVERALLDIMENSION&STRUCTURE

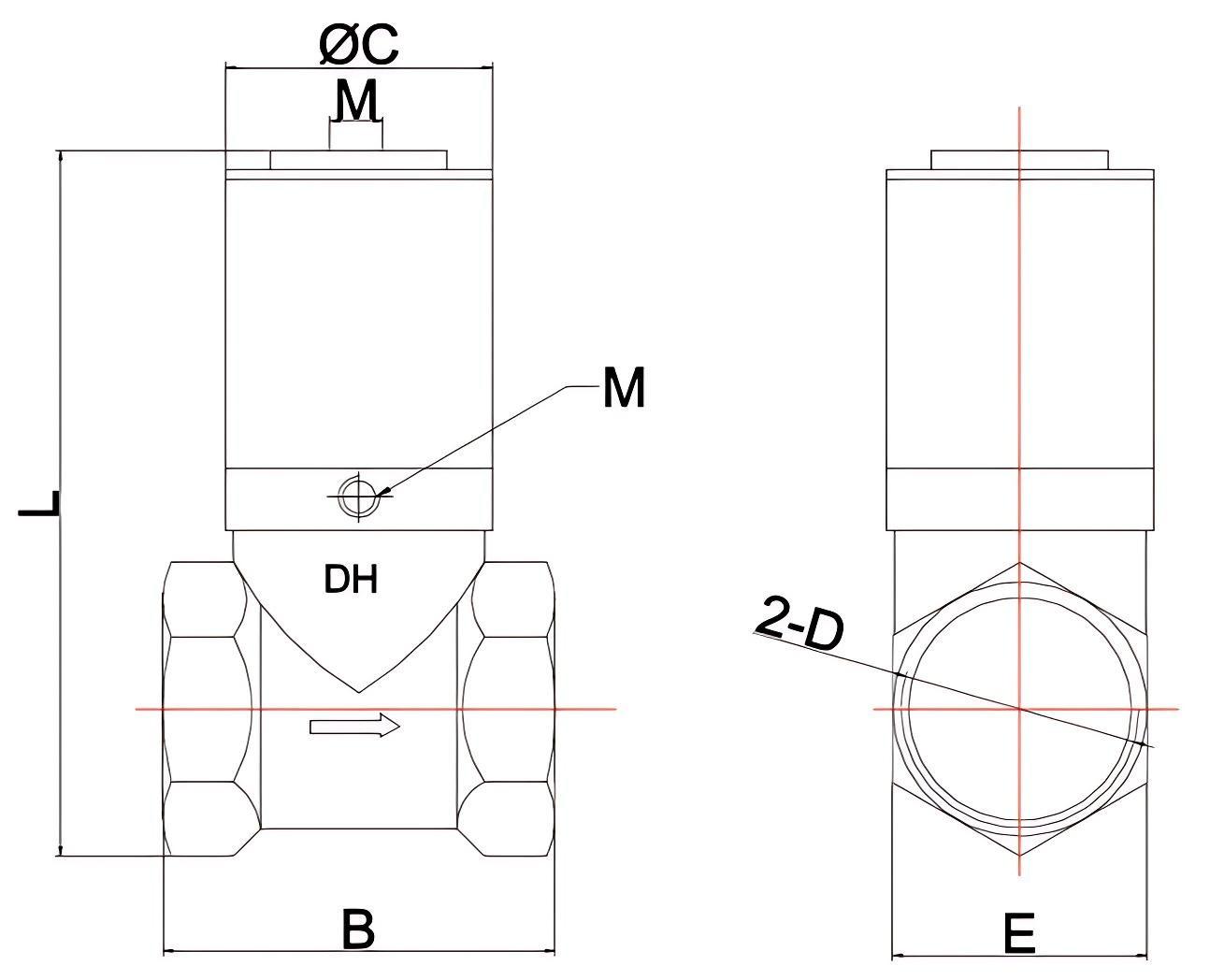

Q22HD Fluid Air Control Valve structure

Model	L(mm)	B(mm)	C(mm)	D	E(mm)	M
Q22HD-15	95	45	30	G1/2	26	G1/8
Q22HD-20	110	54	38	G3/4	32	G1/8
Q22HD-25	120	65	38	G1	38	G1/8
Q22HD-32	144	76	45	G1-1/4	49	G1/8
Q22HD-40	160	82	55	G1-1/2	53	G1/8
Q22HD-50	180	100	68	G2	66	G1/8

Specification Download

Q22HD Series Fluid Air Control Valve.png

Superiority

Why choose us? What can we do for you?

♦ Founded in 2011 and professional experienced in the field of producing pneumatic products for over 13+ years.
♦ We have strong production capacity, over 100000 pcs/month.
♦We have rich experience for offering OEM/ODM service
♦ We have strict quality control process with quick response of after sales service.
♦ Management system certification : ISO9001,CE, ROHS
♦ We have 10+ technical experts for researching and developing.
♦ Sales network expands from domestic sales to all over the world.
