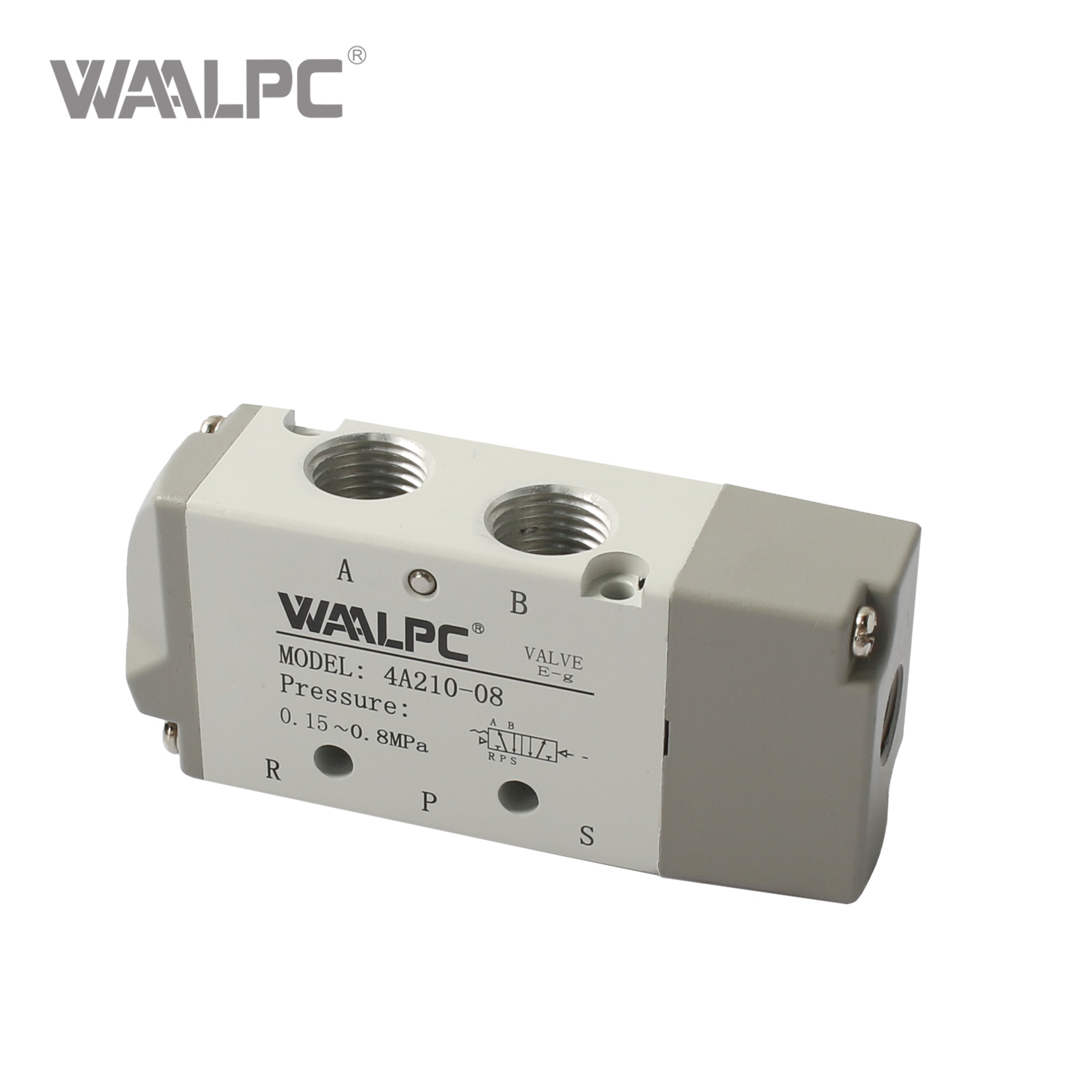

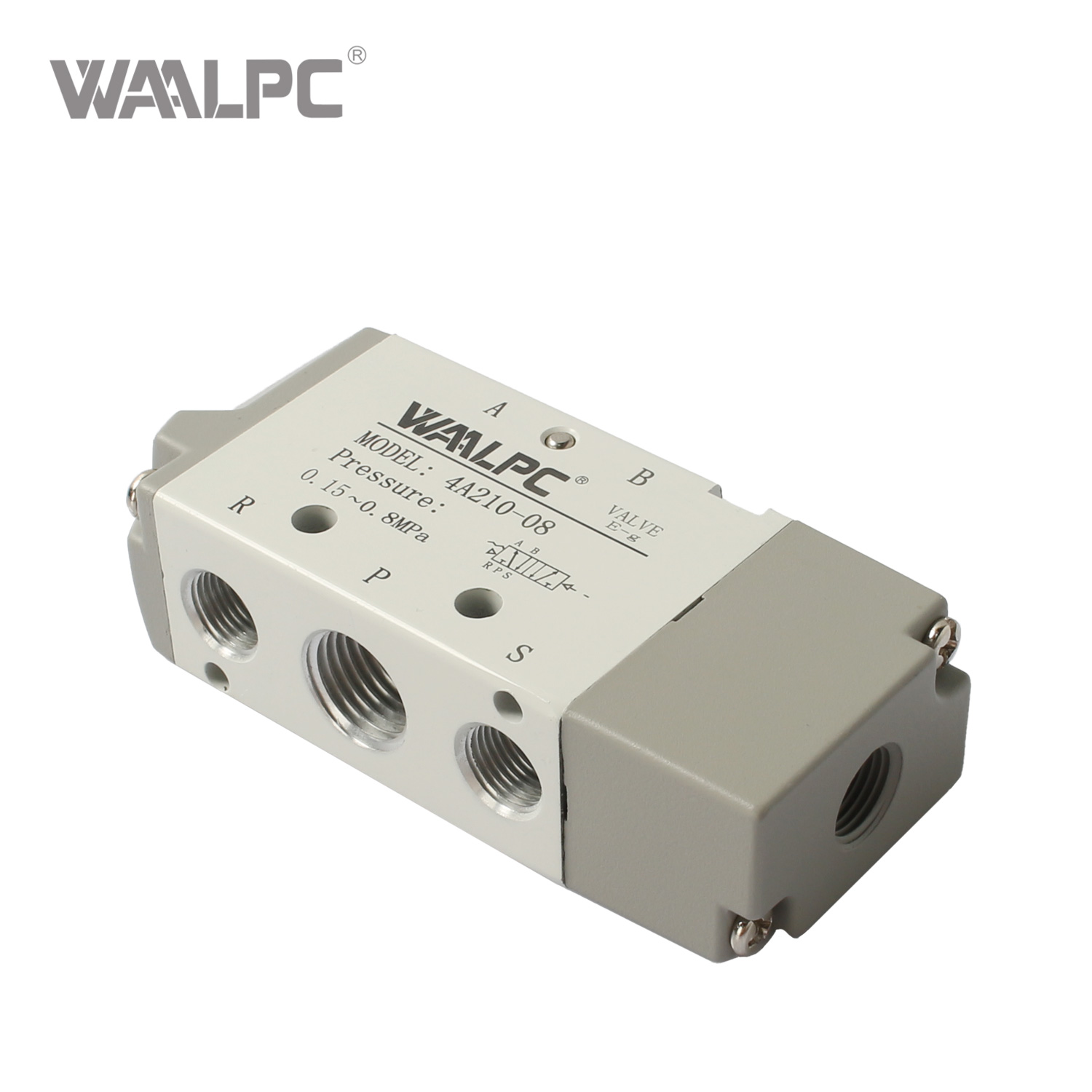

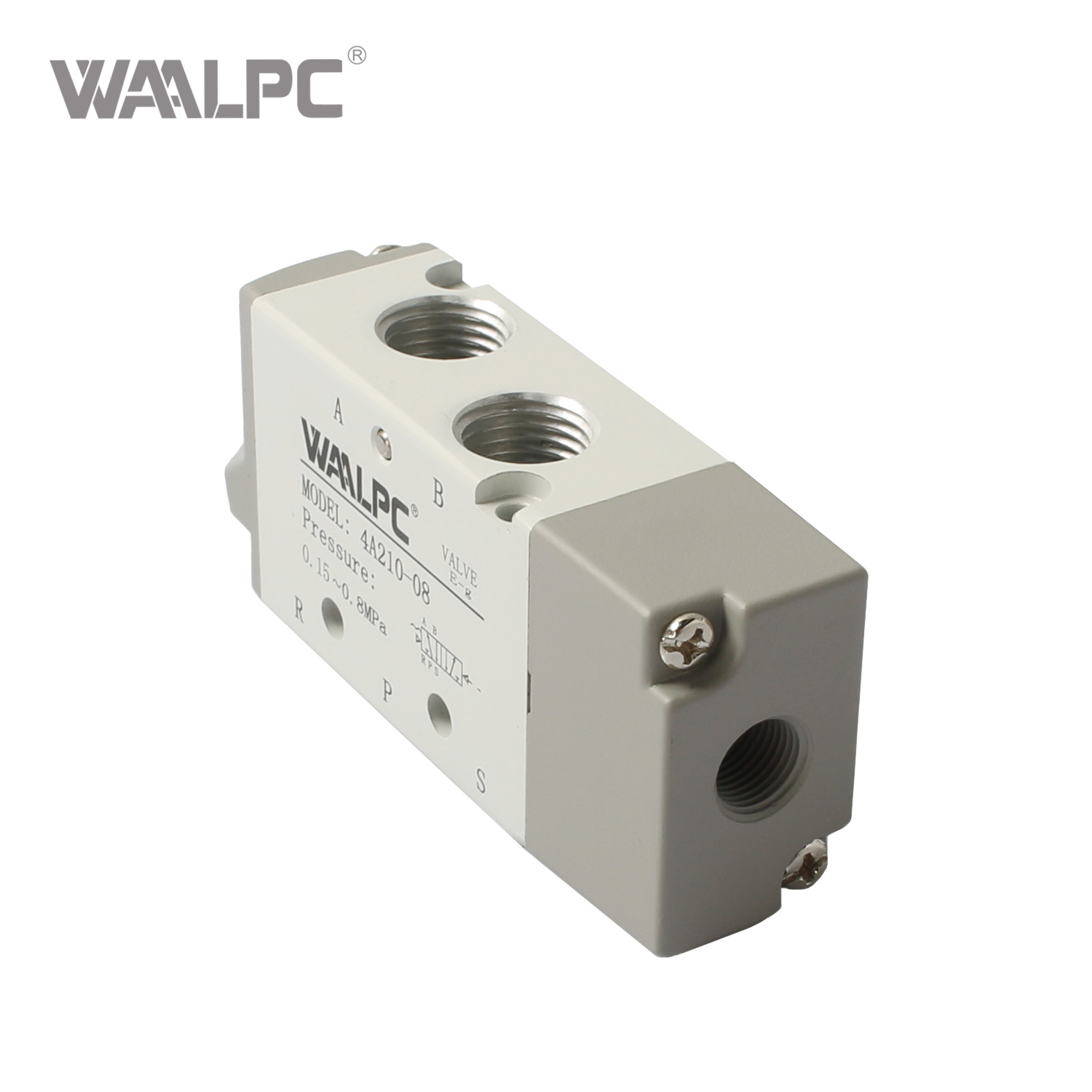

4A210-08
WAALPC
8481804090

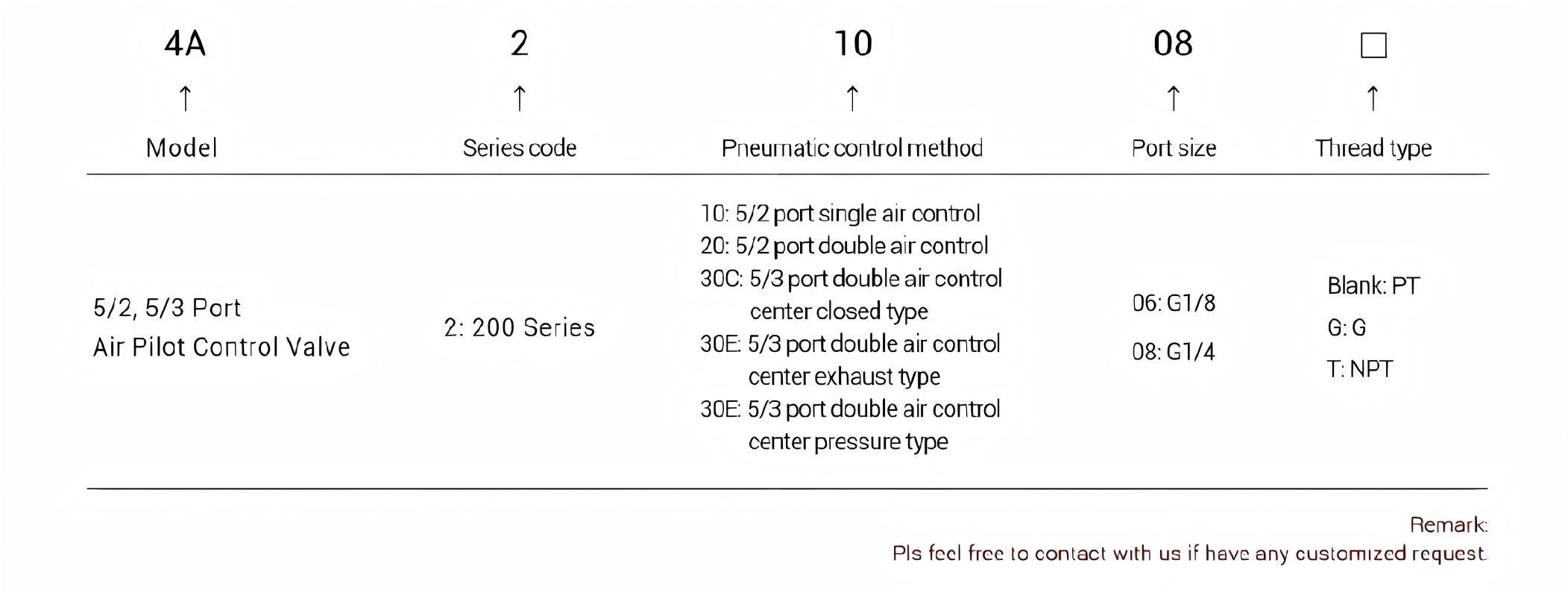

ORDERING CODE
DATA SHEET
Model | 4A210-06 | 4A230C-06 | 4A210-08 | 4A230C-08 4A230E-08 4A230P-08 |
Fluid | Air(to be filtered by 40um filter element) | |||
Acting | External pilot | |||
Port size [Note]] | In=Out=Exhaust=PT1/8 | In=Out=PT1/4 Exhaust=PT1/8 | ||
Orifice size(Cv) [Note4] | 4A210-08,4A220-08:17.0mm2(Cv=1.0) 4A230C-08:13.6mm2(Cv=0.8) | |||
Valve type | 5 port 2 position | 5 port 3 position | 5 port 2 position | 5 port 3 position |
Operating pressure | 0.15~0.8MPa(21~114psi) | |||
Proof pressure | 1.2MPa(175psi) | |||
Temperature | -20~70℃ | |||
Material of body | Aluminum alloy | |||
Lubrication [Note2] | Not required | |||
Max.frequency [Note3] | 5 cycle/sec | 3 cycle/sec | 5 cycle/sec | 3 cycle/sec |
Weight(g) | 4A210-06:185 4A220-06:285 | 365 | 4A210-08:185 4A220-08:285 | 365 |
[Note1]PT thread, G thread and NPT thread are available
[Note2]Once lubricated air is used, continue with same medium to optimise valve life span. Lubricants like ISO VG32 or equivalent are recommended
[Note3]The maximum actuation frequency is in the no-load state
[Note4]Equivalent orifice Sand Cv are all calculated from the flow rate data

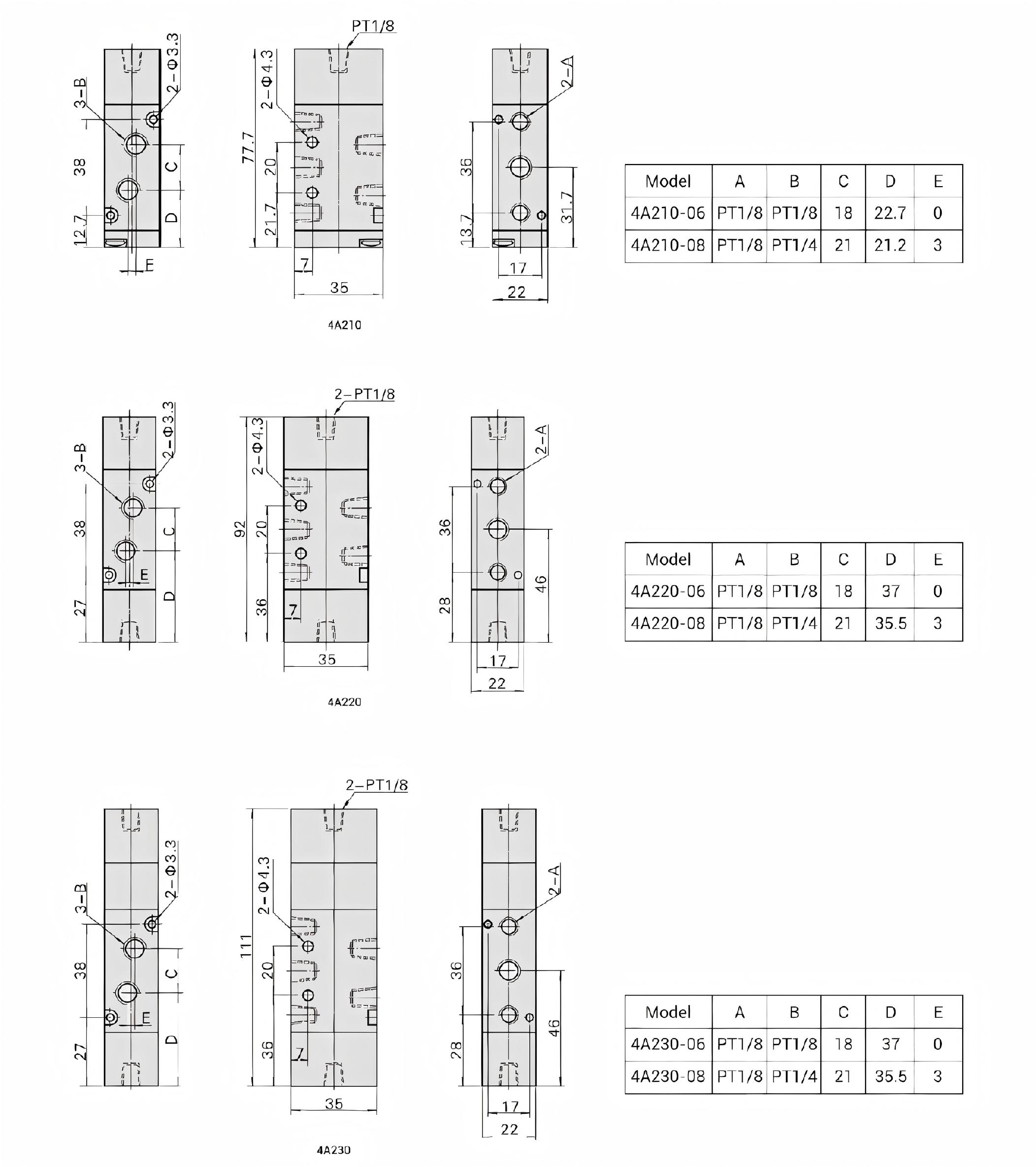

OVERALLDIMENSION&STRUCTURE
