Gas Source Pneumatic Manifold Block Multi-Line Air Distribution Exhaust Manifold

Gas Source Pneumatic Manifold Block Multi-Line Air Distribution Exhaust Manifold


Availability:

Quantity:



Inquiry Add to Basket

WAALPC Air Distribution Manifold / Multi-line Gas Manifold Block: Precision CNC machined, multi-port, leak-proof, high-pressure resistant, used for centralized gas supply in pneumatic and industrial systems.

Model:
Manifold
Brand:
WAALPC
Code:
8481901000

Product Description

1. Space Optimization

Unified valve block replaces individual valve mounting
80% reduced footprint vs. discrete valve setups
Ideal for confined machinery (e.g., robotics, assembly cells)

2. Plug-and-Play Efficiency

Integrated air supply/distribution galleries
DIN-standard electrical connectors (IP65 protected)
Tool-free valve cartridge replacement in <3 minutes

3. Performance Reliability

Leak-proof laser-welded aluminum alloy body
Operating pressure: 0.1~0.8 MPa | Temp: -20°C to 70°C

Technical Parameters

OVERALLDIMENSION&STRUCTURE

pneumatic manifold

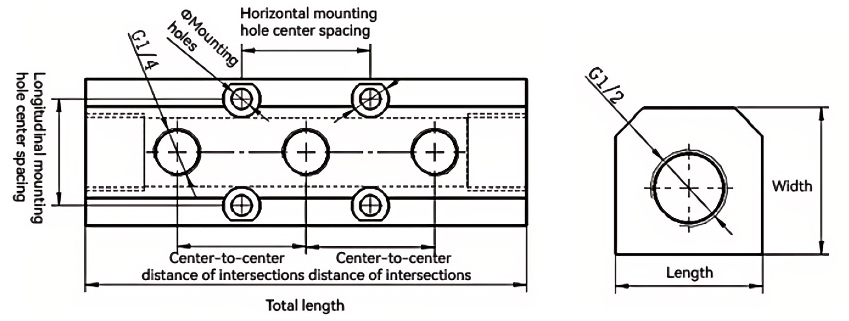

Model	Total Length	Length x Width	Main Airway	Intersection	Center-to center Distance of Intersections	Mounting Holes	Longitudinal Mounting Hole Center Spacing	Horizontal Mounting Hole Center Spacing

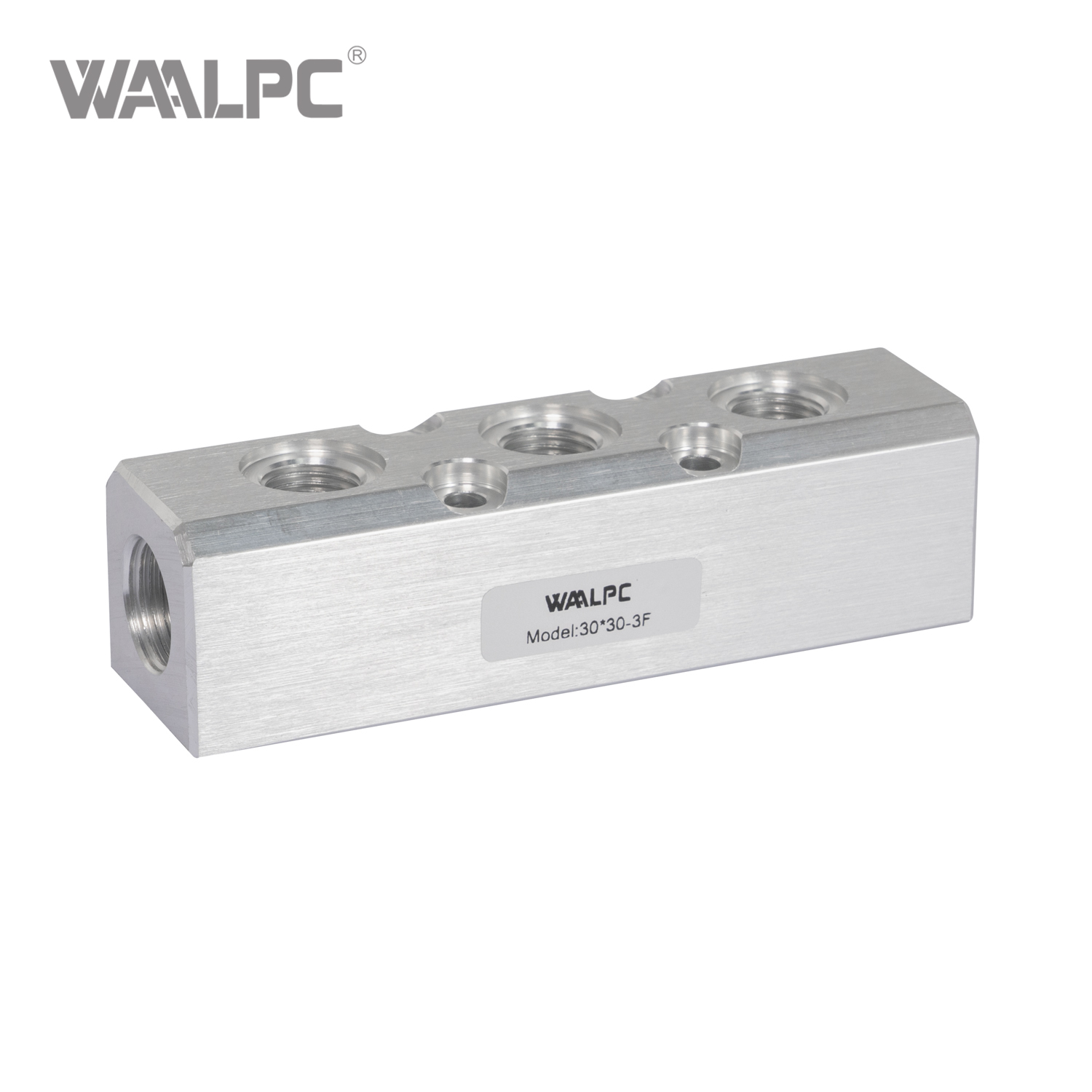

30*30-2F	75mm	30*30mm	G1/2	G1/4	32mm	Φ5.2	20.5mm	-
30*30-3F	107mm							32mm
30*30-4F	139mm							64mm
30*30-5F	171mm							96mm
30*30-6F	203mm							128mm
30*30-7F	235mm							160mm
30*30-8F	267mm							190mm
30*30-9F	299mm							223mm
30*30-10F	331mm							254mm
