Goyen Type Right-Angle Diaphragm Pulse Valves with Solenoid Operator for Dust Collector Manifolds


Size:	1
Availability:

Quantity:



Inquiry Add to Basket

The Goyen type right-angle diaphragm pulse valves features a solenoid operator for precise control in dust collector manifolds. This design provides a direct, high-flow path for compressed air, resulting in a powerful cleaning pulse.

Model:
YDG-ZF
Brand:
WAALPC
Code:
8481802190

Product Description

1. Exceptional Reliability

Heavy-duty diaphragm & spring mechanism withstands >1 million cycles.

IP65-rated solenoid coil resists moisture, dust, and electrical interference.

2. High Energy Efficiency

Low-power solenoid pilot (≤5W) minimizes operational costs.

Optimized air consumption reduces compressed air waste by 15–30%.

3. Superior Flow Performance

Large orifice design (up to 3") enables rapid air release (≤0.1 sec).

Sustained peak pressure ensures deep filter cleaning.

Technical Parameters

ORDERING CODE

YD - G - Z - XX - S - 口

| | | | | |

DingTian Goyen Type Z: Right-angle type; Diaphragm Double Diaphragm Voltage

Y: Submerged type

Remark:

Pls feel free to contact with us if you have any customized request

DATA SHEET

Type-Name	Pulse Valve
Model	YDG-ZF-25	YDG-ZF-45P
Port Size (G)	1	1 1/2
Diaphragm diameter (mm)	ø25	ø45
Working pressure	Z:Right-angle formula: 0.3-0.8MPa; Y: Submerged type: 0.2-0.6MPa
Working medium	Dry and clean compressed air
Voltage	AC220V/DC24V(Special voltages are optional)
Temperature	-5-80°C
Protection grade	IP65
Diaphragm life	Over one million times

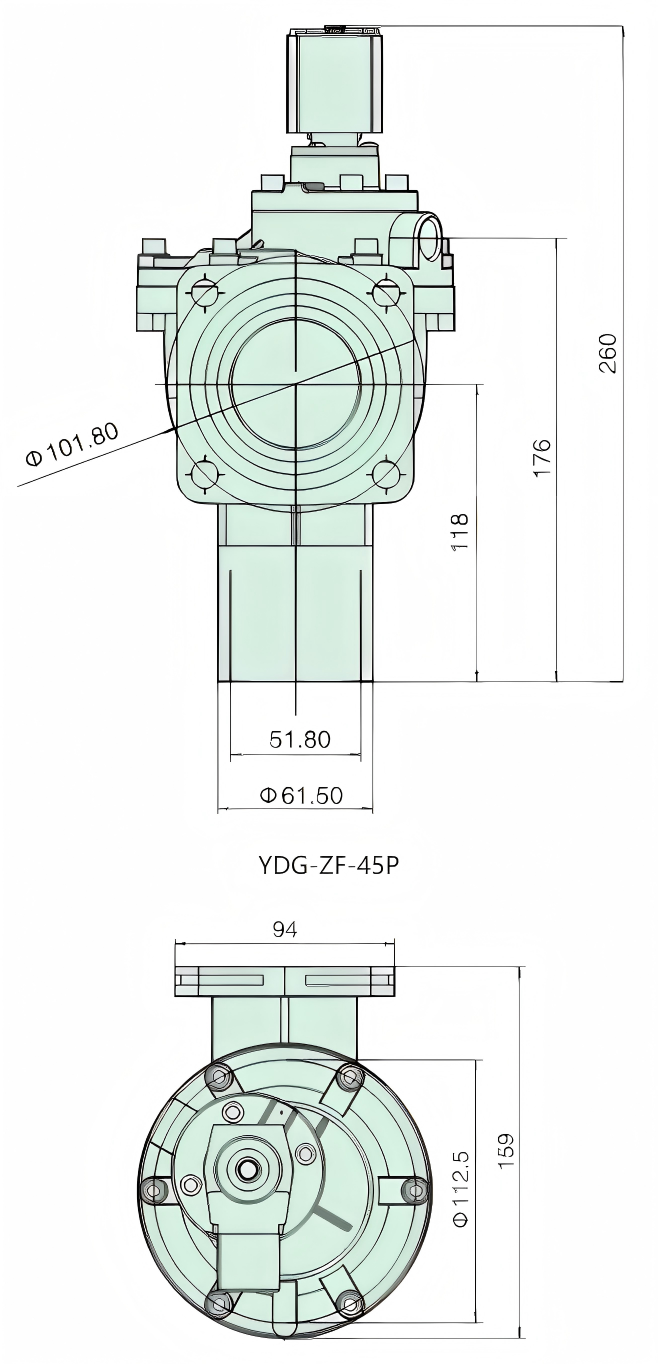

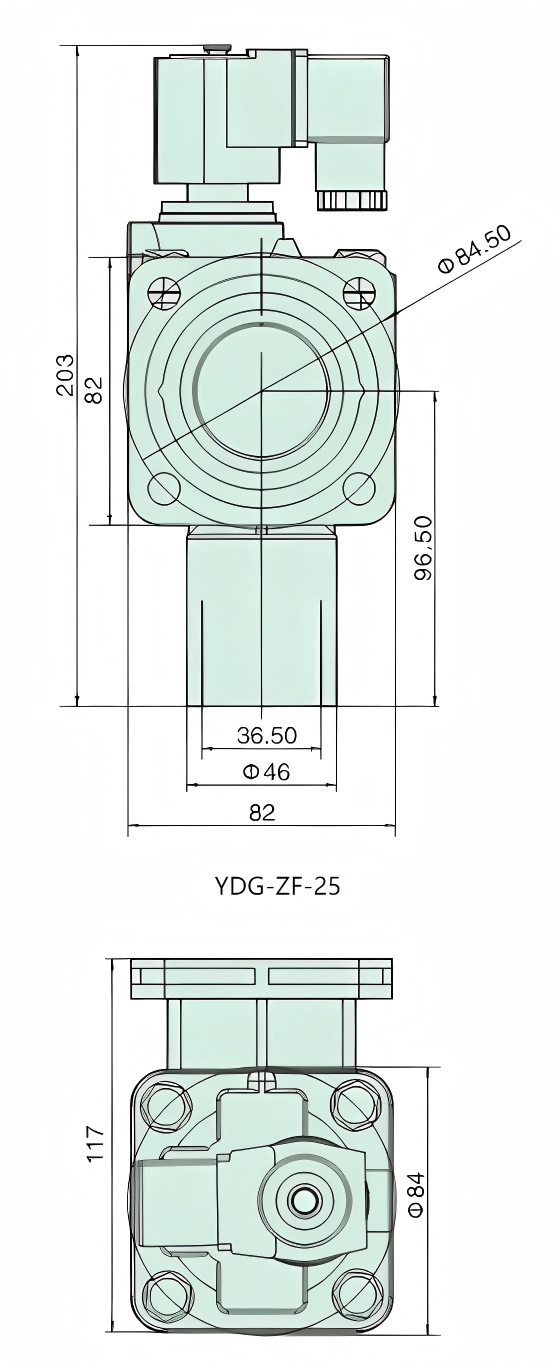

OVERALLDIMENSSION&STRUCTURE

Pulse Valve

Specification Download

YDG-ZF.pdf
