Waal Pneumatic Air High Pressure Reducing Valve QTY-08/10/15 Pressure Regulating Valve Air

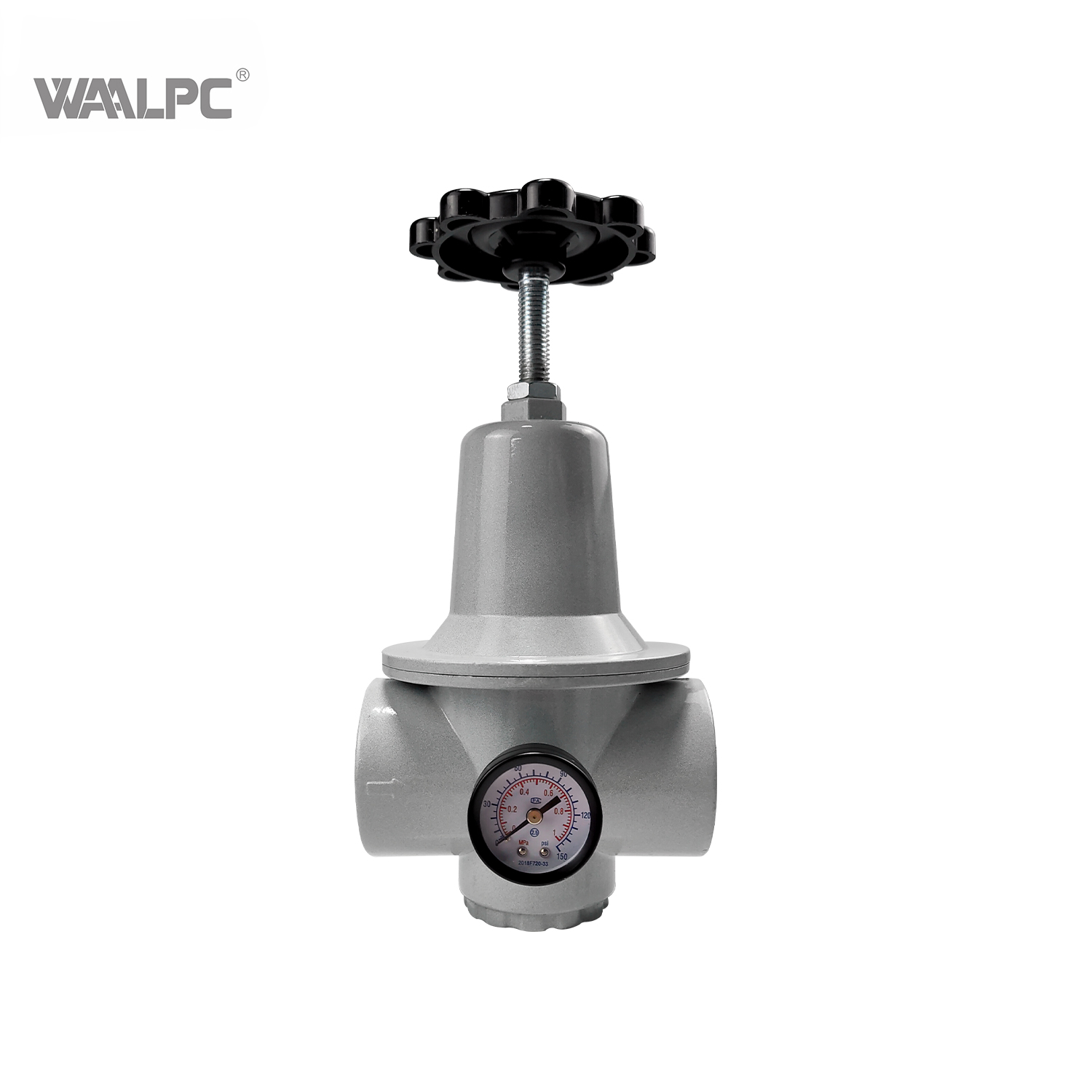

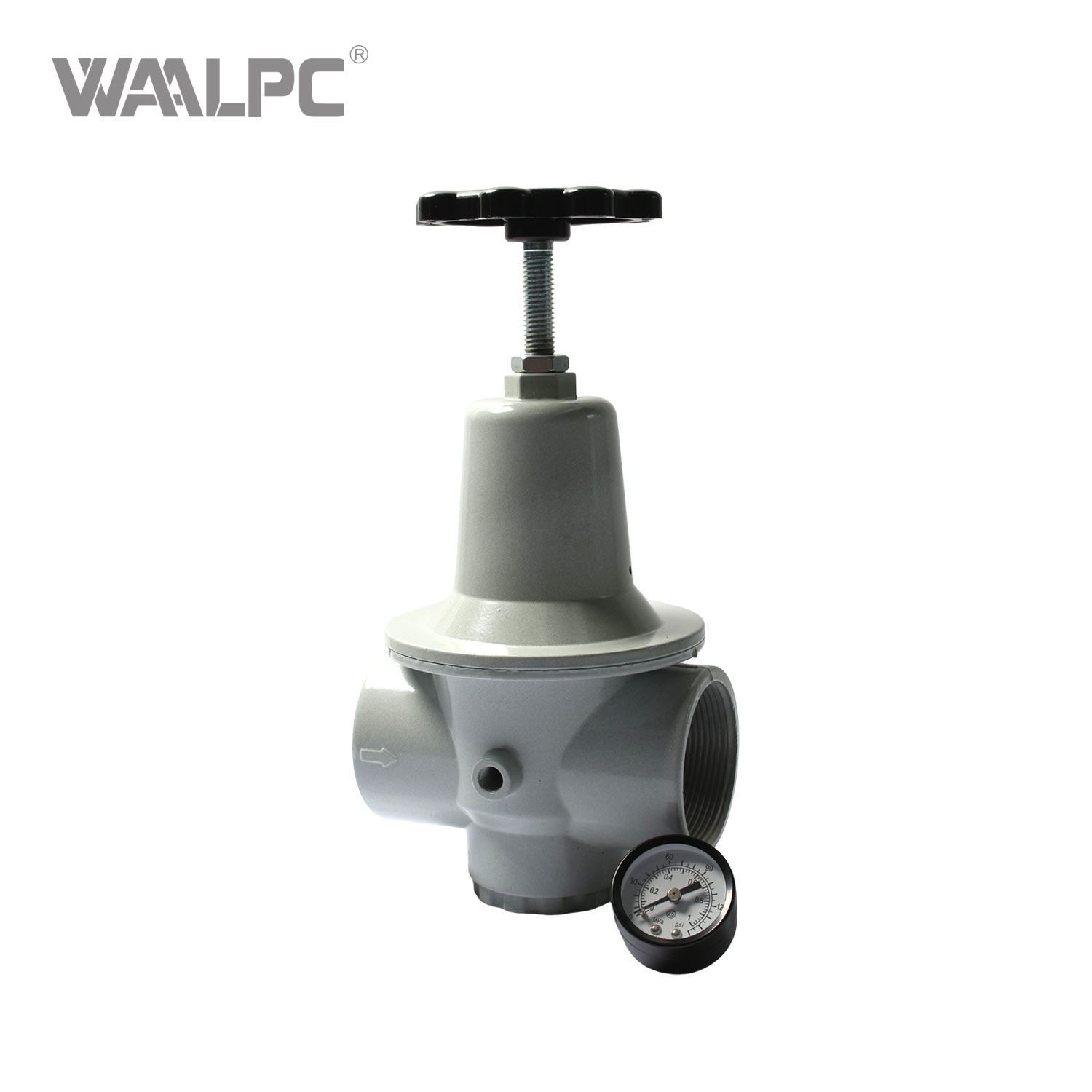

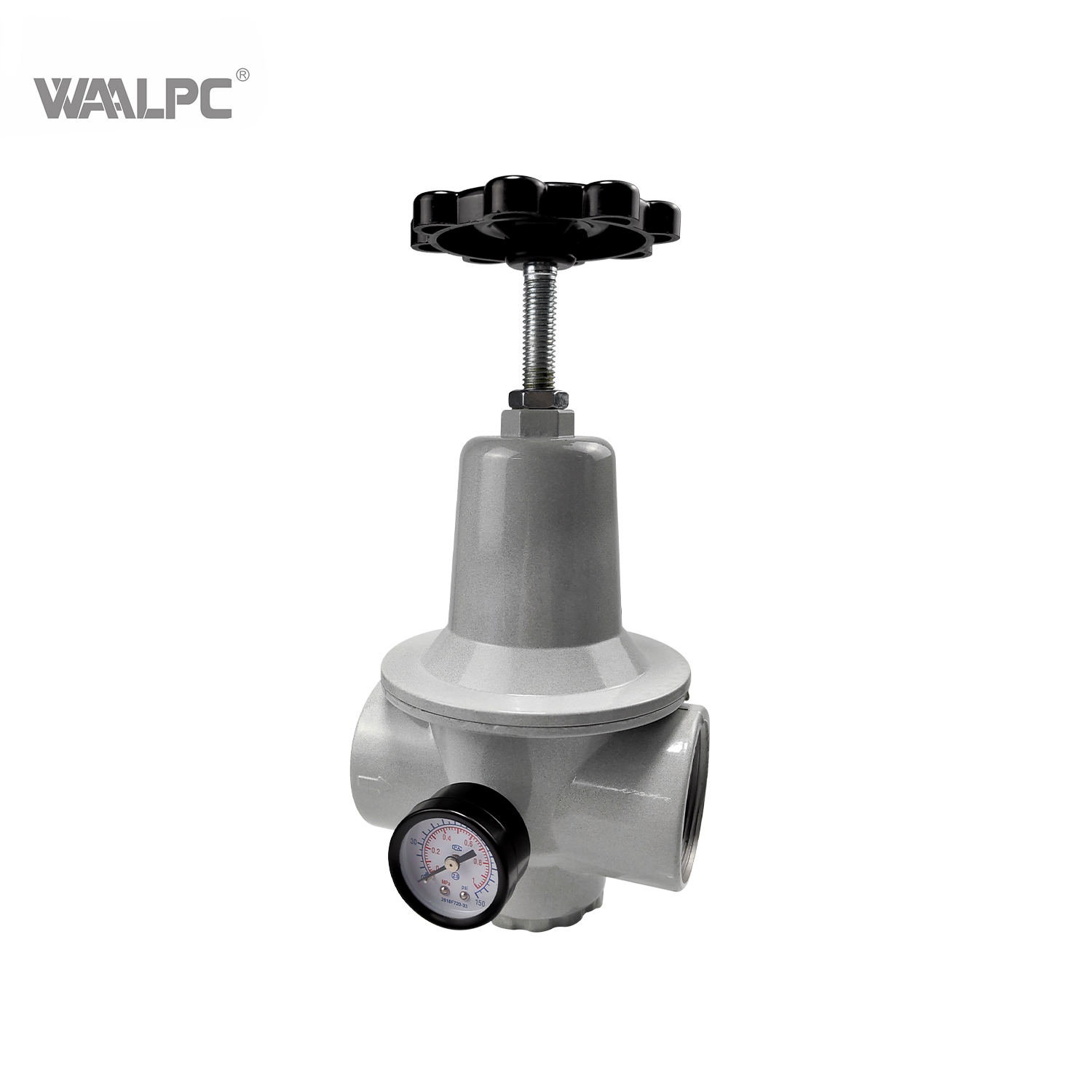

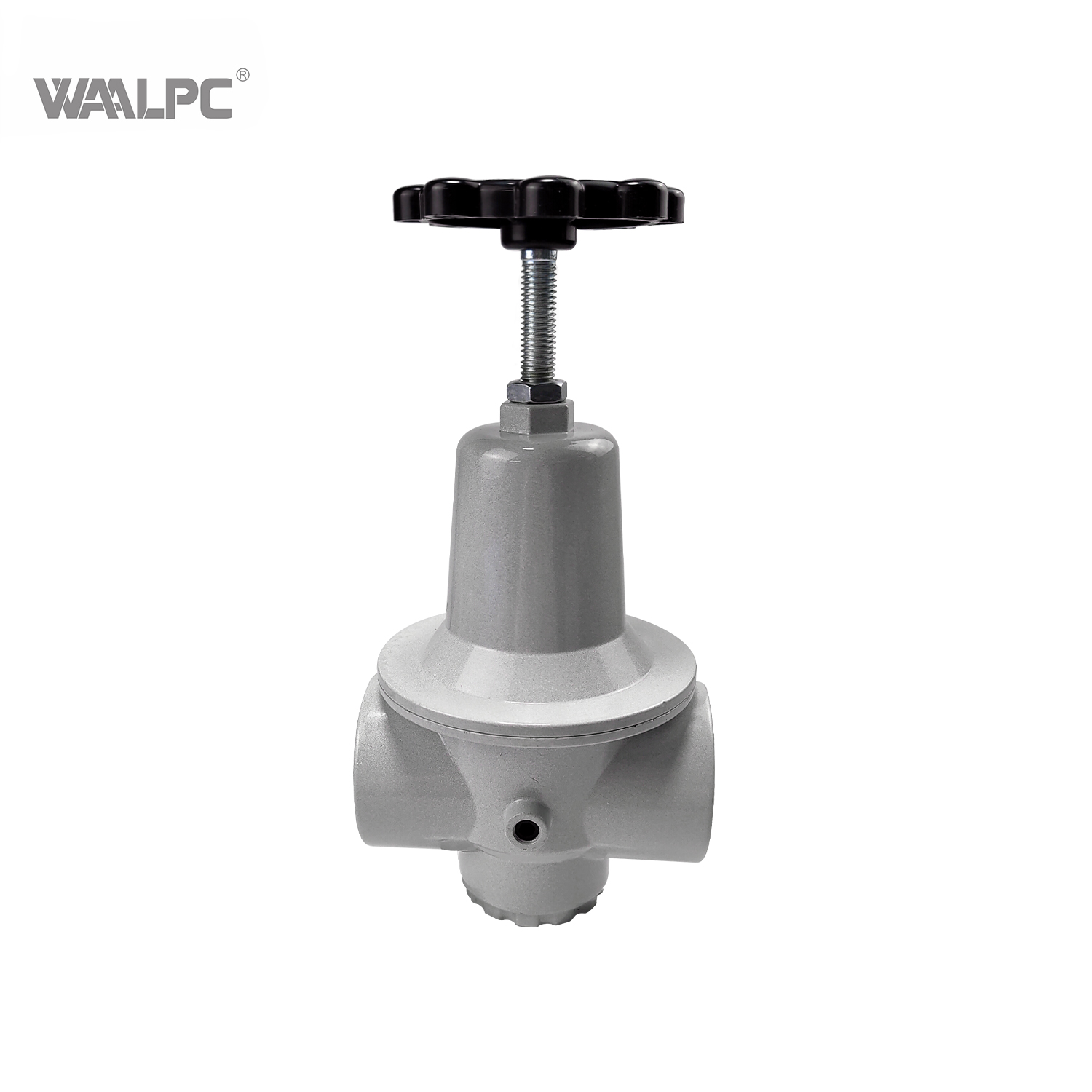

Waal High Flow Rate Pressure Reducing Valve Regulator Pneumatic Components QTY-08/10/15 Pressure Regulator


Size:	QTY-08 QTY-10 QTY-15
Availability:

Quantity:



Inquiry Add to Basket

High-flow pressure regulating valves are designed to manage and stabilize pressure in systems requiring large volumes of fluid or gas. Their primary functions include:

1. Diaphragm intermediate clamping process, diaphragm anti-burst, long life.
2. Fatigue-resistant spring, good elasticity, no breakage.
3. Large diaphragm size, large air flow, stable pressure.
4. Proof pressure with 10bar/16bar optional.
5. High precision pressure regulation.

Model:
QTY-08
Brand:
WAALPC
Code:
8481100090

Product Description

High-flow Pressure Regulating Valves Product Advantages

High-flow pressure regulating valves

1. High Flow Capacity

Handles large volumetric demands efficiently without pressure drop, ideal for systems requiring rapid air/gas delivery (e.g., pneumatic conveyors, large machinery).

2. Stable Pressure Control

Maintains consistent outlet pressure even under fluctuating inlet pressures or varying flow rates, ensuring system reliability.

3. Durability in Harsh Conditions

Constructed with robust materials (e.g., stainless steel, reinforced polymers), resistant to corrosion, high temperatures, and abrasive media.

4. Energy Efficiency

Reduces energy waste by minimizing pressure loss, aligning with sustainability goals in compressed air systems.

5. Versatility

Compatible with multiple media (air, gases, liquids) and adaptable to industries like manufacturing, oil & gas, and automotive.

6. Low Maintenance Design

Self-cleaning mechanisms and easy-access components extend service intervals, lowering operational costs.

High-flow Pressure Regulating Valves Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Type name	Air Regulator

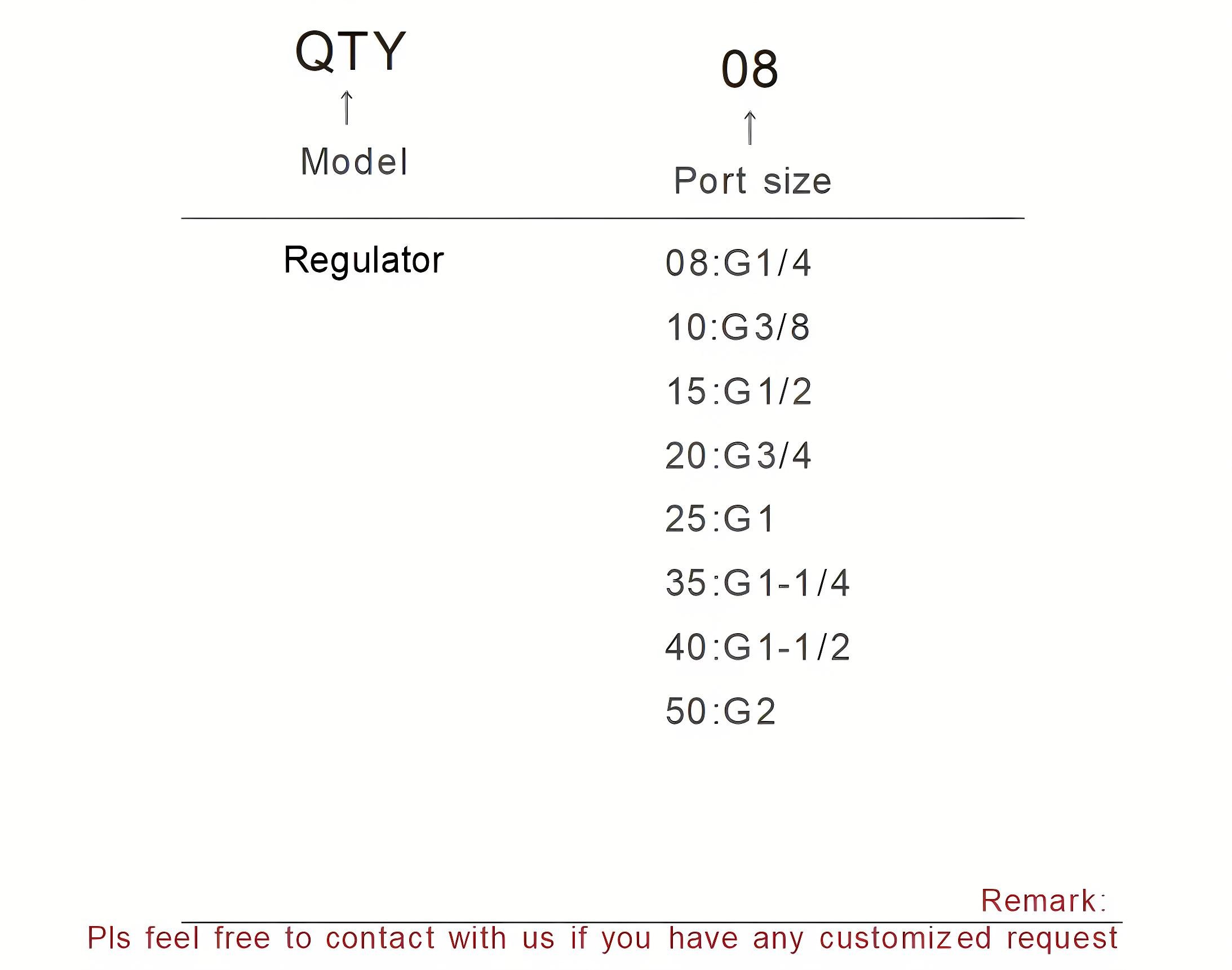

Model	QTY-08	QTY-10	QTY-15	QTY-20	QTY-25	QTY-35	QTY-40	QTY-50
Port Size	1/4	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Working medium	Air
Working pressure	0.05~0.8Mpa
Proof pressure	1.0MPa
Operating temperature range	5-60℃
Grade of Filtration	20~70um
Material	Aluminium alloy
Weight	650g	650g	650g	1500g	1500g	1750g	1750g	1750g

STRUCTURE

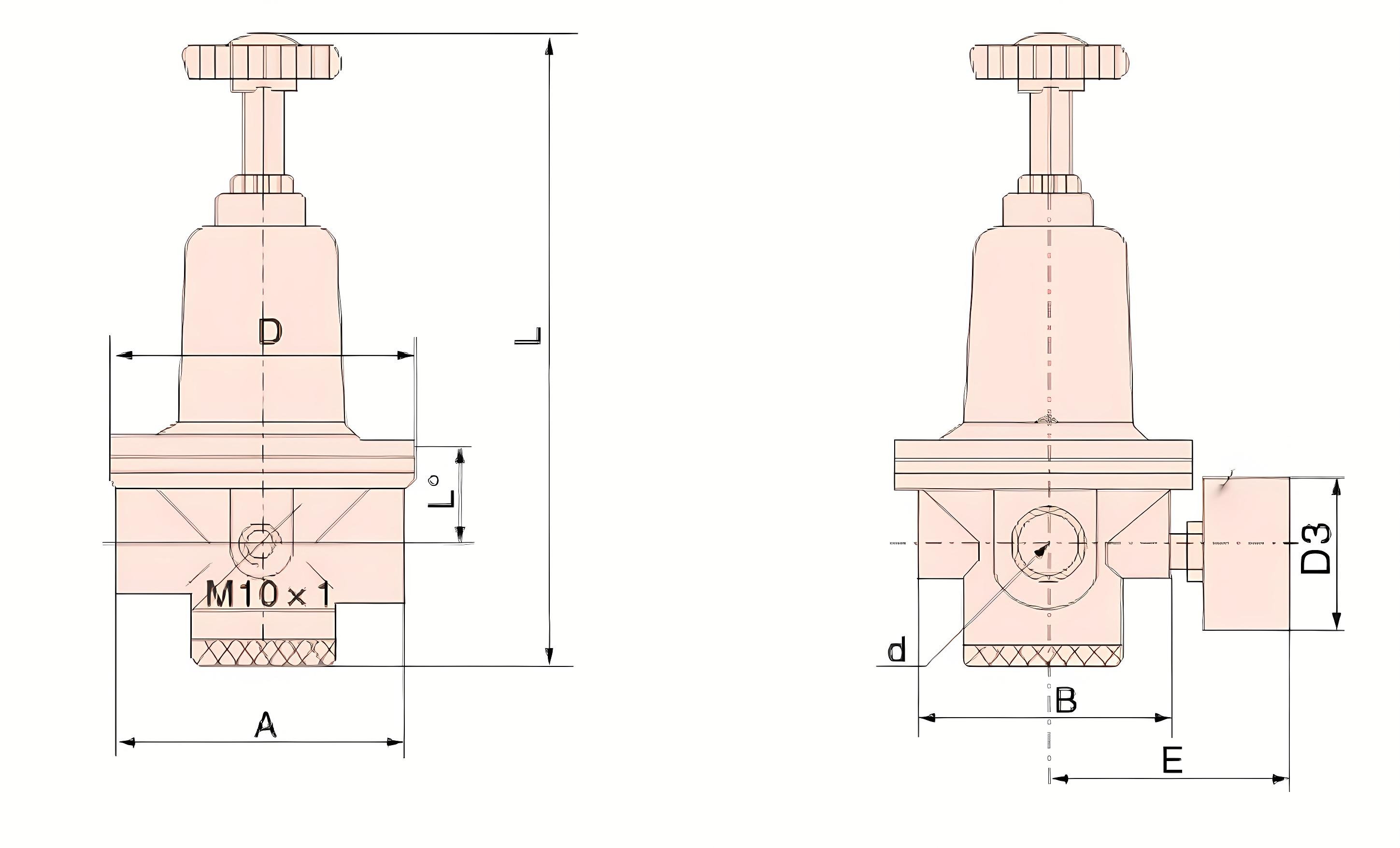

DIMENSION(MM)

Model	Port size	A	B	D	D3	D0	L	E
QTY-08	1/4	74	64	80	58	16	173	80
QTY-10	3/8	74	64	80	58	16	173	80
QTY-15	1/2	74	64	80	58	16	173	80
QTY-20	3/4	109	113	120	58	30	250	100
QTY-25	1	109	113	120	58	30	250	100
QTY-35	1-1/4	120	104	136	58	40	280	100
QTY-40	1-1/2	120	104	136	58	40	280	100
QTY-50	2	120	104	136	58	40	280	100

Specification Download

High Flow Rate QTY Pressure Reducing Valve.pdf
