High-Pressure Air Filter 20μm 40μm Filtration 4.0 MPa Max Pressure Stainless Steel Series Body QSLH Series Equivalent for Industrial Automation

High-Pressure Air Filter 20μm 40μm Filtration 4.0 MPa Max Pressure Die-cast Aluminium Body QSLH Series Equivalent for Industrial Automation

High-Pressure Air Filter 20μm 40μm Filtration 4.0 MPa Max Pressure Die-cast Aluminium Body QSLH Series Equivalent for Industrial Automation


Size:	QSLH-08 QSLH-10 QSLH-15
Availability:

Quantity:



Inquiry Add to Basket

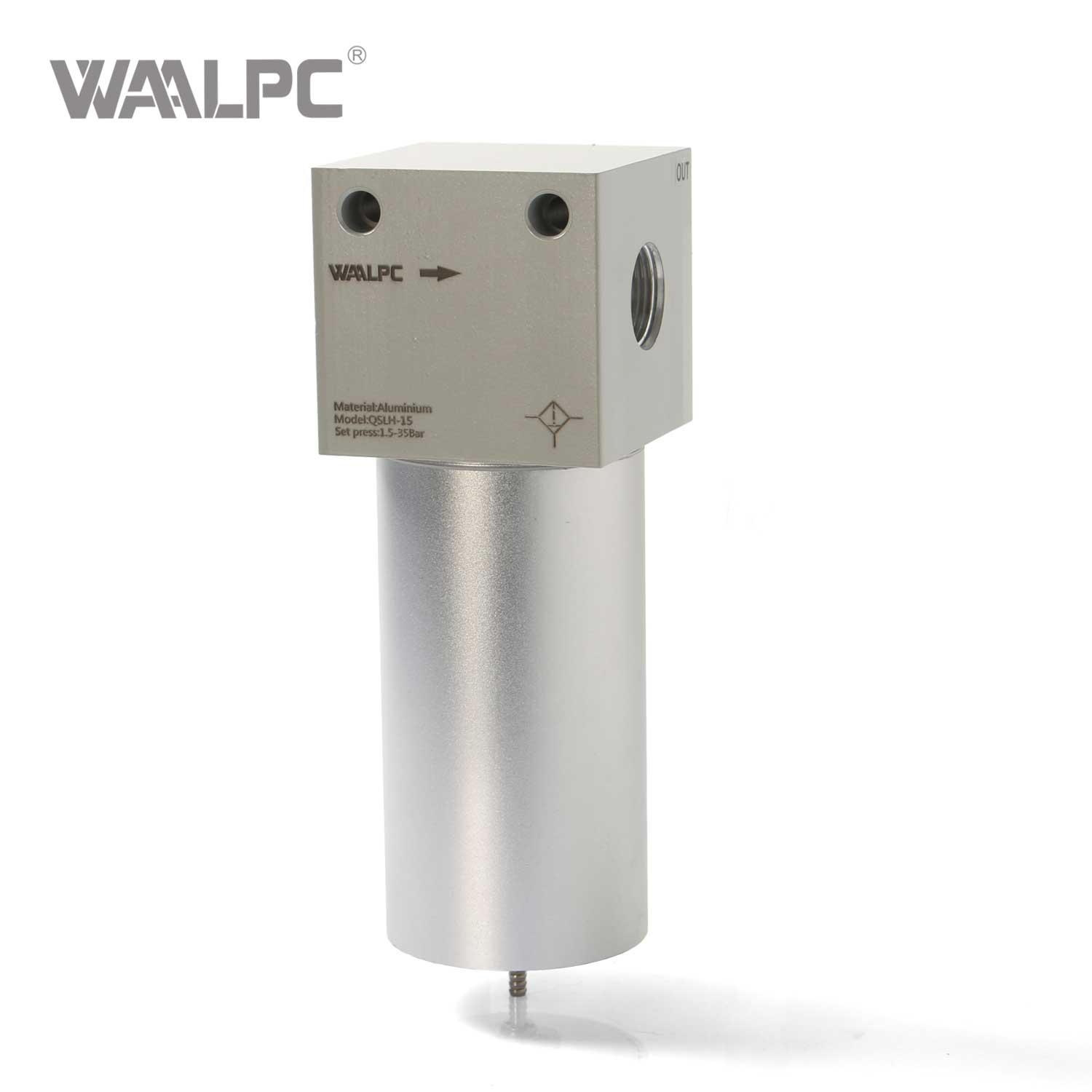

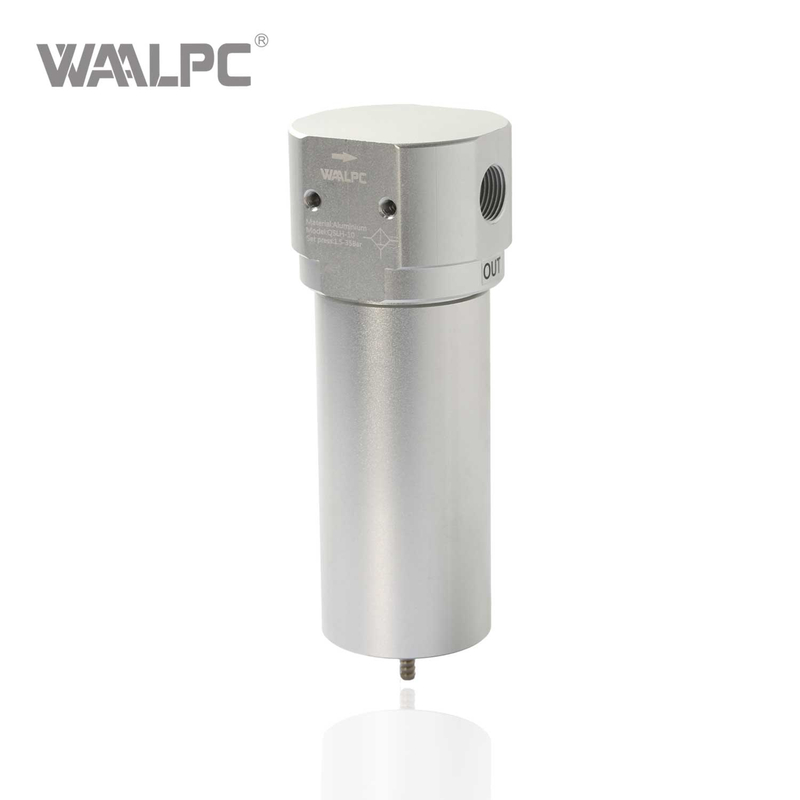

High-Pressure Air Filter QSLH Series is a rugged pneumatic component engineered to deliver clean, contaminant-free compressed air in high-pressure industrial systems. Designed for applications up to 4.0 MPa (58 psi), this series combines advanced filtration technology with robust construction to protect downstream equipment (e.g., valves, actuators, and tools) from damage caused by particulate matter and moisture. Ideal for demanding environments, the QSLH Series offers customizable configurations to meet diverse industry requirements.

Model:
QSLH-08/10/15
Brand:
WAALPC
Code:
8421299090

Product Description

High-Pressure Air Filter QSLH Series Advantages

1. Cost-Effective Performance

Extended filter element lifespan (up to 2,000 hours) minimizes replacement frequency.

2. Versatile Adaptability

Compatible with compressed air, nitrogen, and inert gases.
Customizable configurations (e.g., special threads, integrated pressure gauges) for unique applications.

3. Reliable Support

Dedicated technical teams provide assistance with model selection, installation, and troubleshooting.

4. User-Friendly Design

Quick-Connect Ports: Threaded in G1/4, G3/8, G1/2, NPT 1/4", and larger sizes for easy installation in existing pipelines .
Vertical Mounting: Must be installed vertically with the drain port at the bottom to ensure proper condensate removal .

High-Pressure Air Filter QSLH Series Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Model	QSLH-08	QSLH-10	QSLH-15	QSLH-20	QSLH-25
Working Medium	Air
Port Size	G1/4	G3/8	G1/2	G3/4	G1
Filtering Eliment Roughness	20μm or 40μm
Pressure Regulating Range	1.5~35Bar
Max. Input Pressure	4MPa
Operating Temperature Range	5~80℃

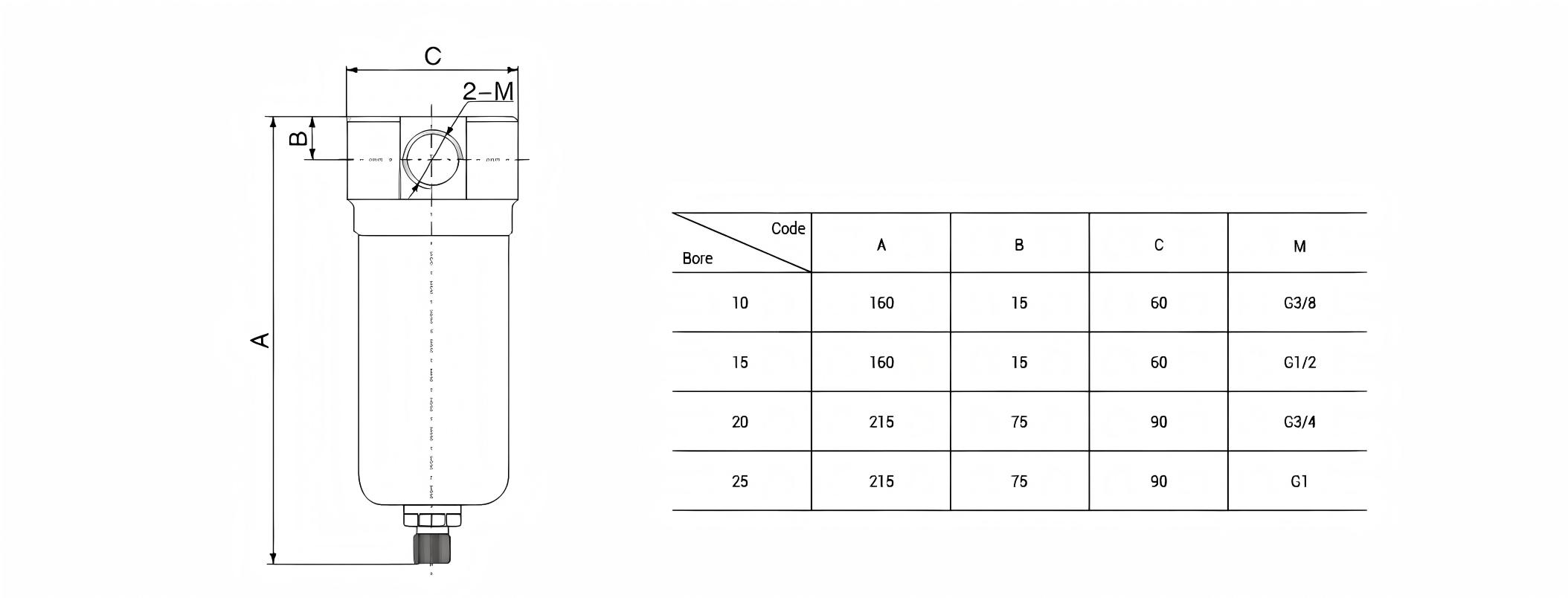

DIMENSION

High-Pressure Air Filter QSLH Series

Specification Download


Production Process

Air source treatment supplier

Packing∇ivery

FAQs

How do you ensure your product and service quality?

Provide customers with "high precision, high efficiency, high-quality" products is our mission. Every product is carefully tested before packing and shipping. Our team is always here for you to contact and discuss, any questions, just feel free to let us know.
What is your sample policy?

We can offer some models sample for free, it depends on the different product type, and freight cost charge by your side. Let's get chat if have any sample comments.
How can l make payment?

We accept T/T bank transfer, Western Union, L/C, Paypal etc.
What is your minimum order quantity?

All MOQ depends on the product. Please feel free to check with us for specific items.
What about delivery time?

It depends on the product and quantities, Normal model 3-5days, as we have ability to do in stock. It need about 10-15days for big order qty.
Do you accept OEM business?

Sure. we have done rich OEM/ODM service for many domestic and international market.
What about shipping?

We accept shipment by air or express, railway and sea shipping. It depends on your order qty or any requirement. We will help give support to provide applicable shipping way for you.
What's your main products?

We produce pneumatic components, air source processing devices, pneumatic control components, pneumatic actuators, solenoid valves, pneumatic accessories and other products.
How does your factory do quality control?

We always observe high quality control system strictly, base on ISO9001 quality control procedures, we observe international AQL standard inspection, from raw material inspection-semi finished product inspection-finished products inspection-testing inspection-packing inspection.
What to do if there is a problem with the product?

We will give quick response and analyse reason of any customer complaint,we usually make replacement to customers. And we can discuss more detail depend on different requirement.
