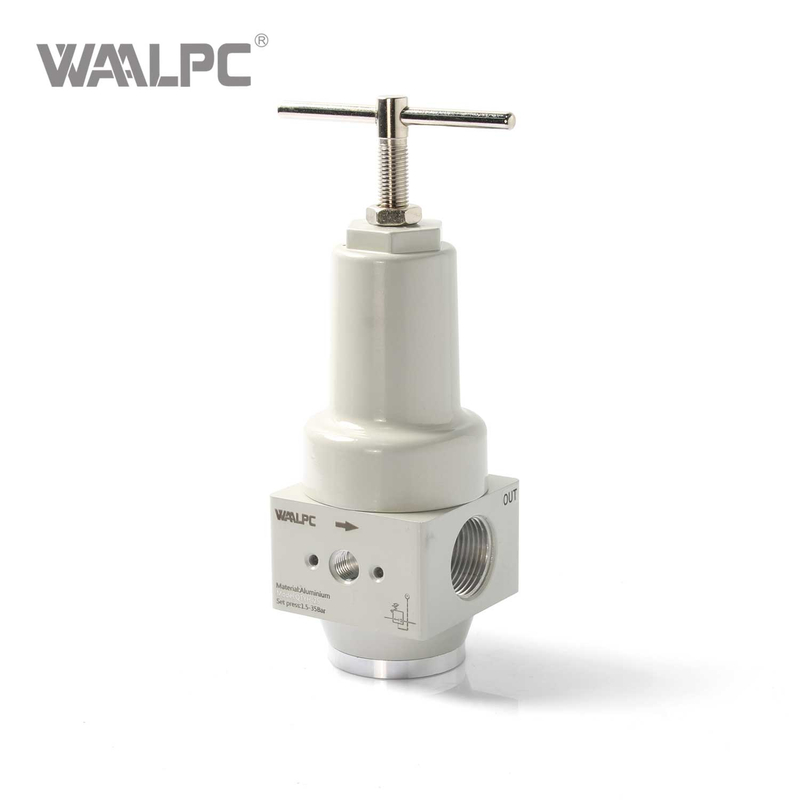

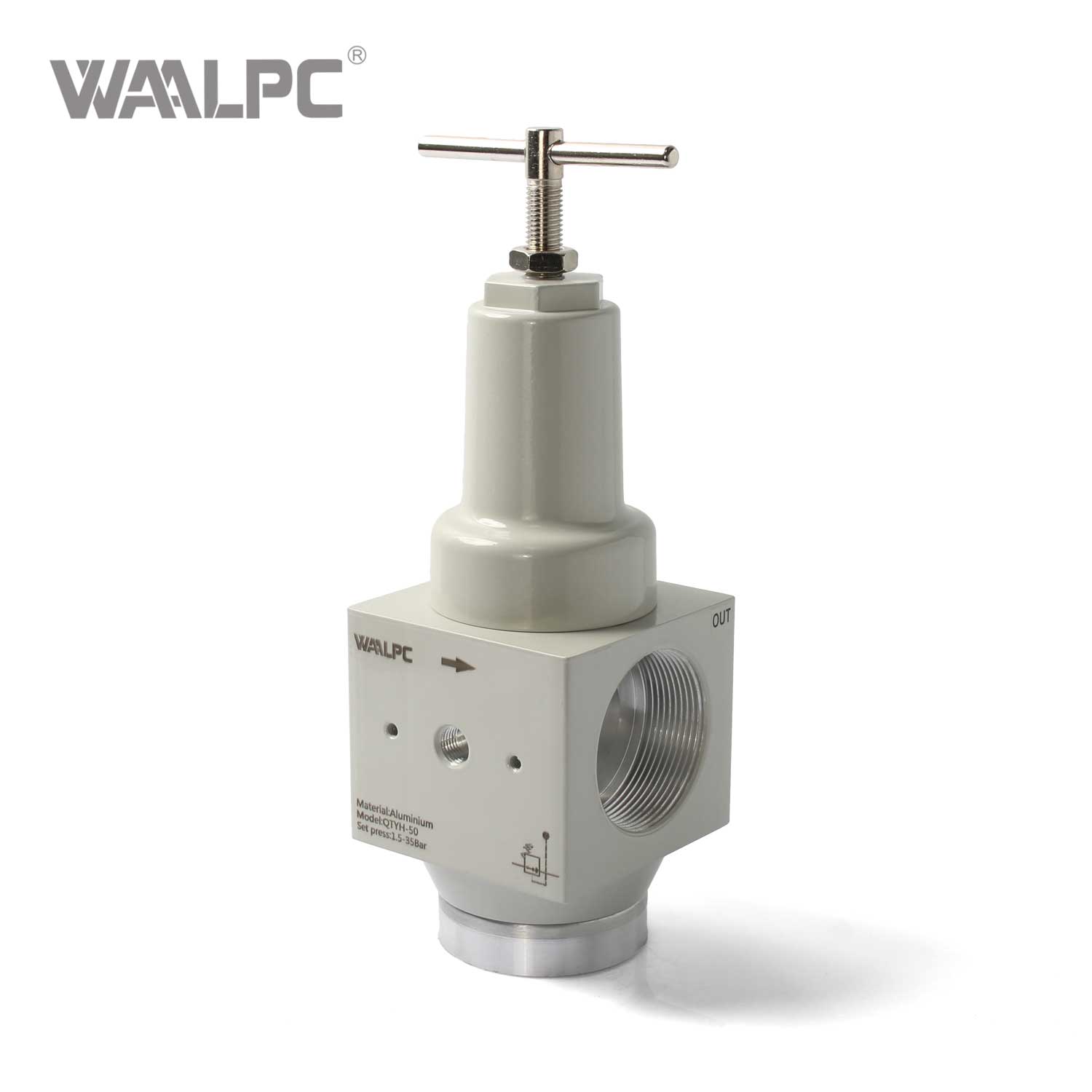

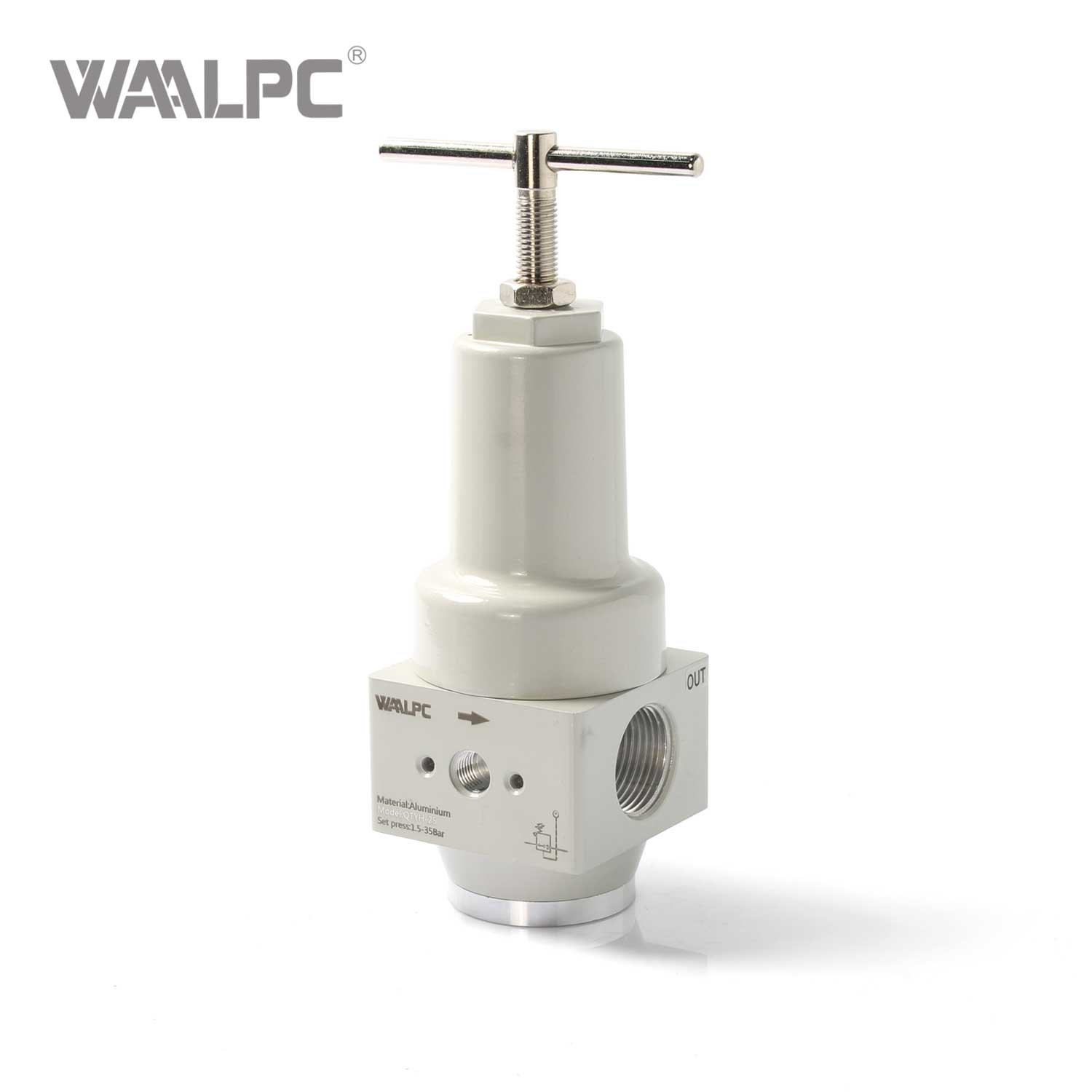

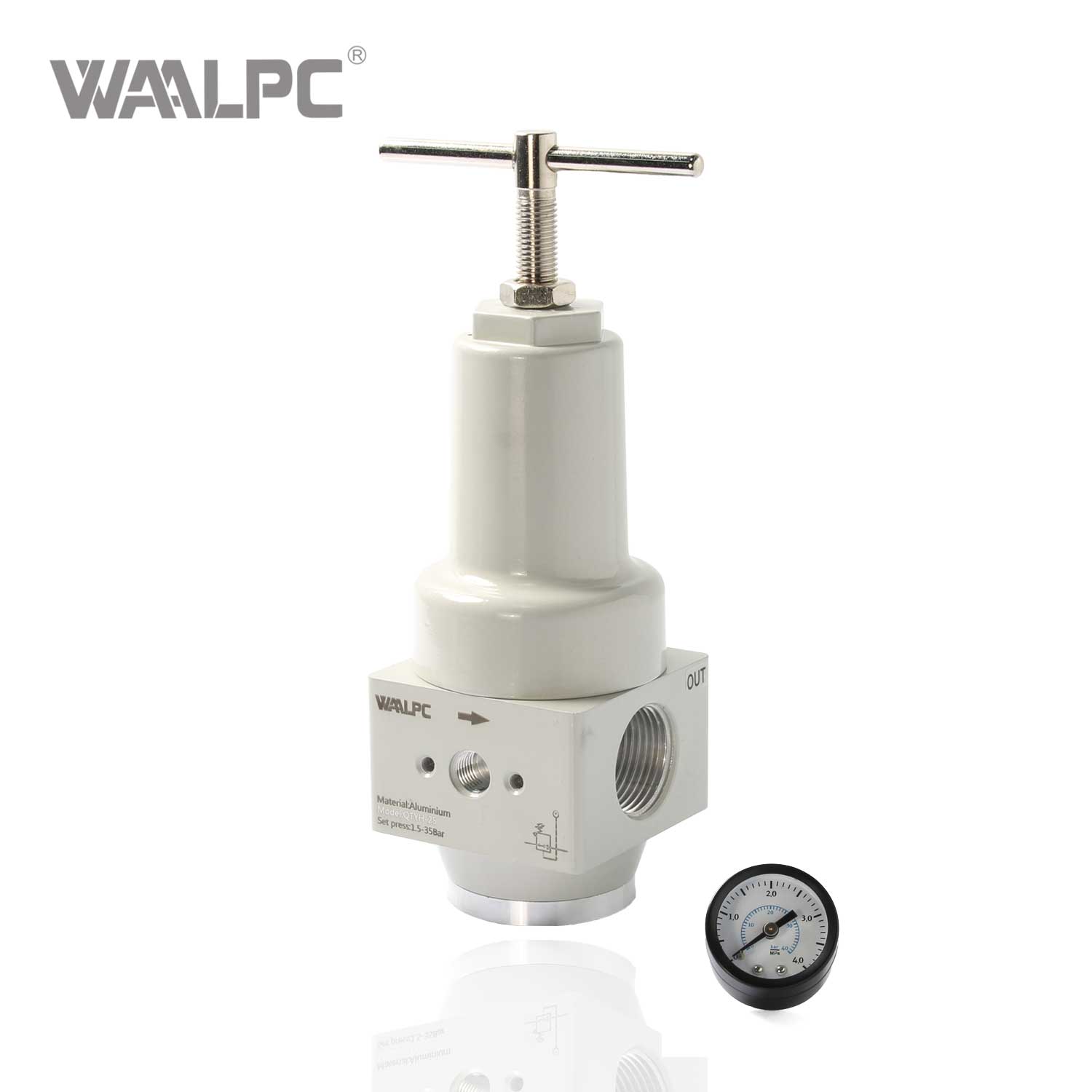

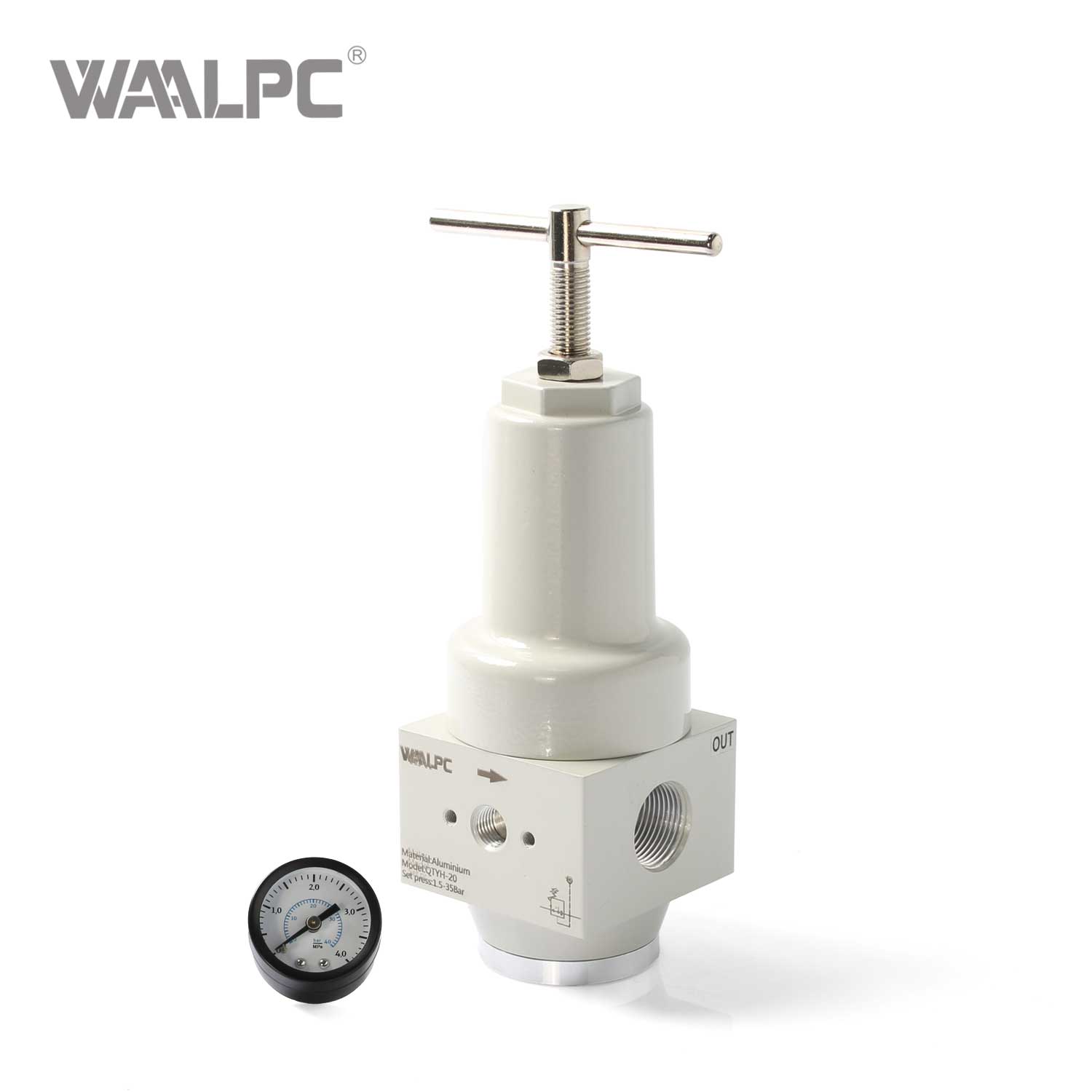

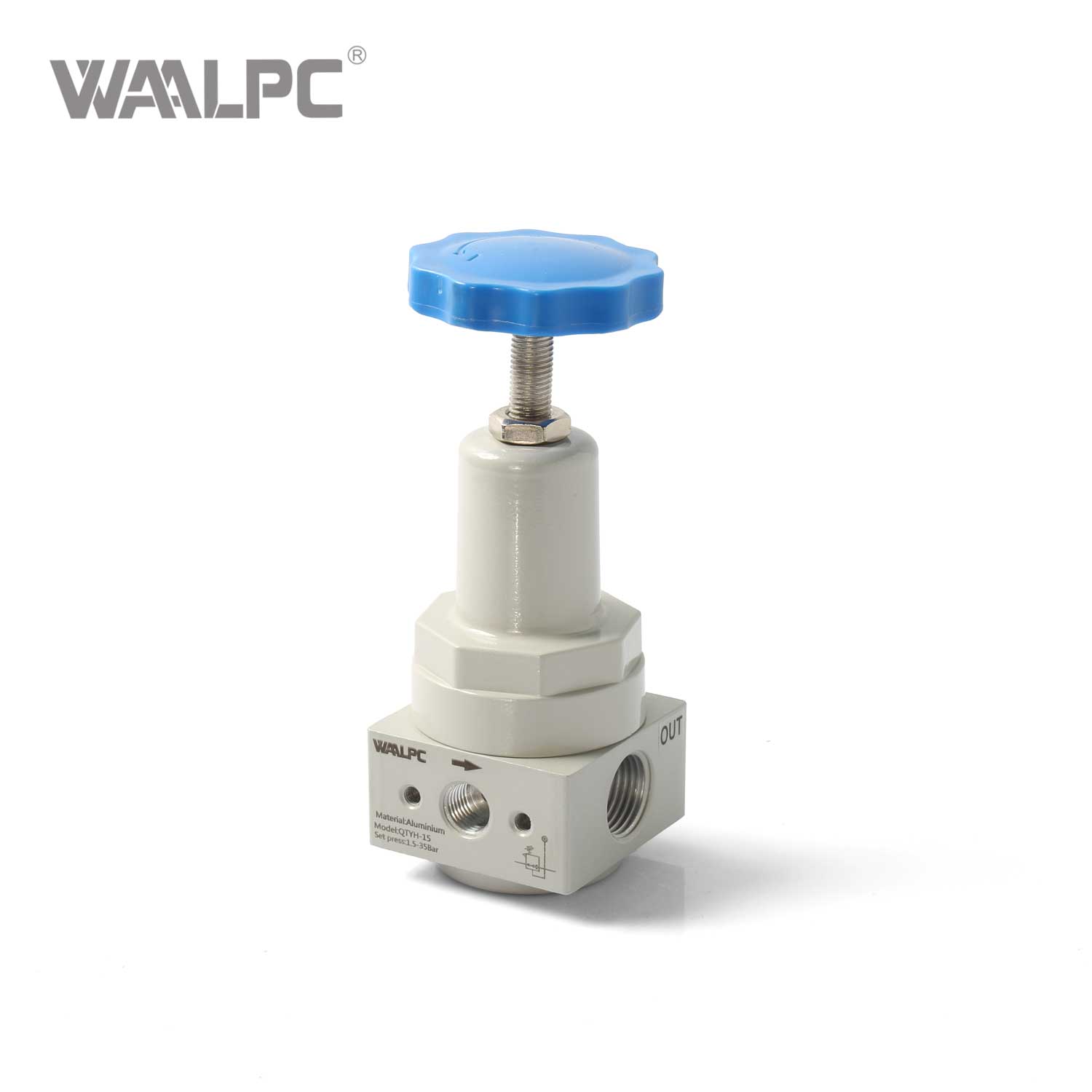

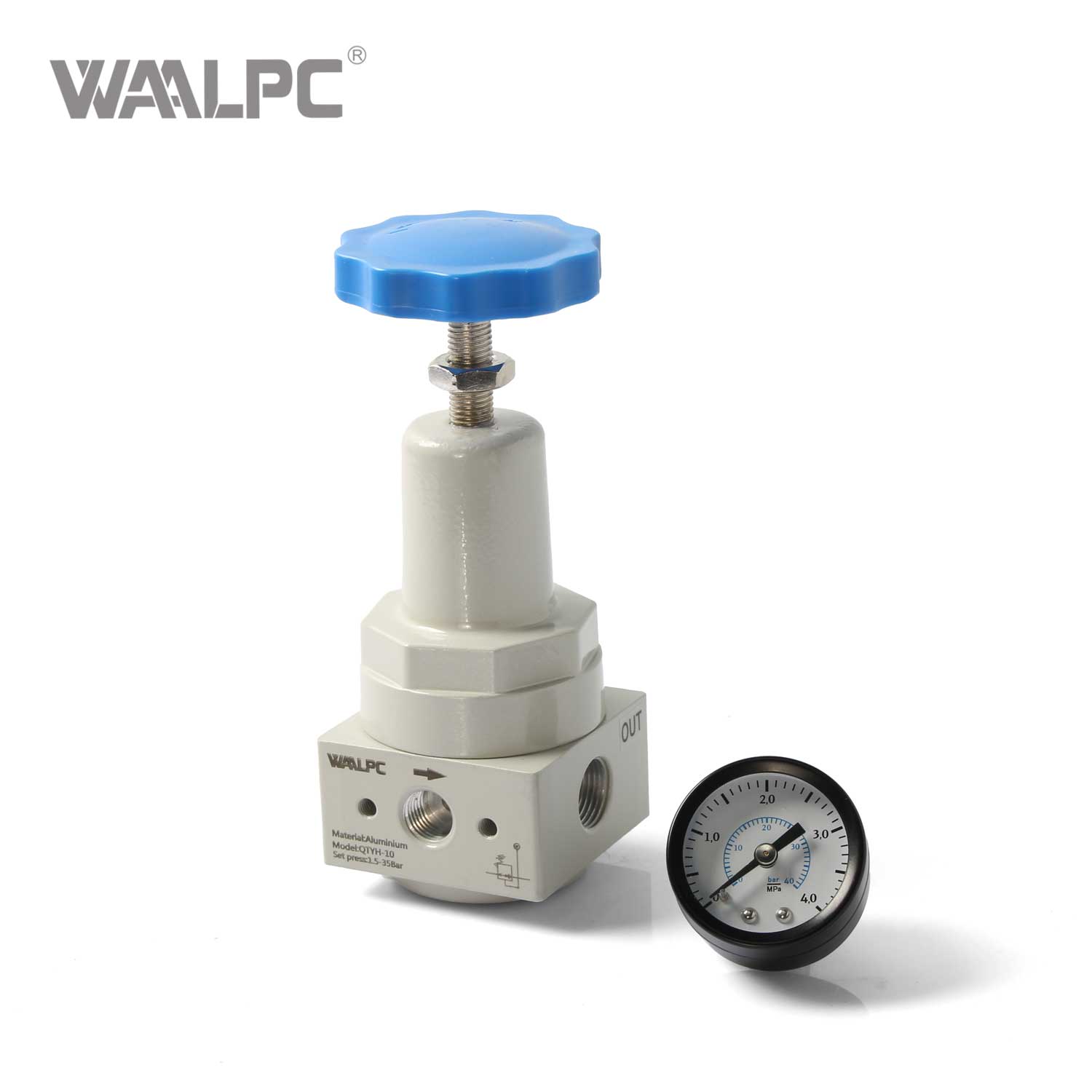

High Pressure Regulator with Pressure Gauge Industrial Valve with Quick Response & Low Pressure Drop Die-cast Aluminium Series

High Pressure Regulator with Pressure Gauge Industrial Valve with Quick Response & Low Pressure Drop Die-cast Aluminium Series


Size:	QTYH-10 QTYH-25
Availability:

Quantity:



Inquiry Add to Basket

Pressure Reducing Valve QTYH Series is a critical component in industrial pneumatic systems, designed to regulate and stabilize output pressure from compressed air sources. It ensures consistent, safe pressure levels for downstream equipment (e.g., actuators, valves, and tools), protecting against overpressure damage while optimizing system efficiency.

Model:
QTYH-20/25
Brand:
WAALPC
Code:
8481100090

Product Description

1. Easy to adjust, just adjust the adjusting screw of the pilot valve to get a stable outlet pressure.

2. The pressure reduction effect is reliable, and the outlet pressure is not affected by the inlet pressure and flow rate. It reduces both dynamic pressure and static pressure, and can keep the set outlest pressure constant.

3. The high pressure reducing valve is a component of the pneumatic control valve. Its main function is to reduce the pressure of the gas source and stabilize it to a fixed value so that the control valve can obtain a stable gas source power for regulation and control.

4. Long service life, important parts are made of special materials, basically maintenance-free.

Technical Parameters

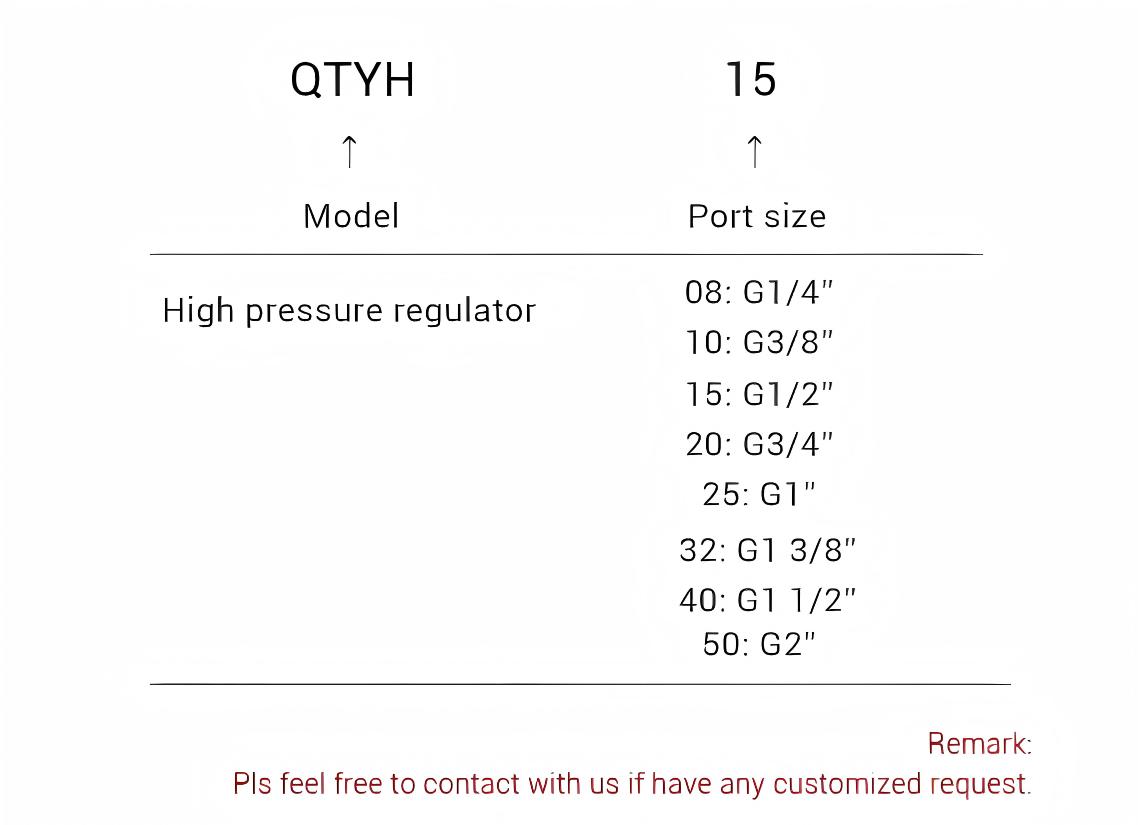

ORDERING CODE

DATA SHEET

Model	QTYH-08	QTYH-10	QTYH-15	QTYH-20	QTYH-25	QTYH-32	QTYH-40	QTYH-50
Working Medium	Compressed air, nitrogen, inert gas
Port Size	G1/4	G3/8	G1/2	G3/4	G1	G1 3/8	G1 1/2	G2
Pressure Regulating Range	1.5~35Bar
Max. Input Pressure	4MPa
Operating Temperature Range	-5~60℃

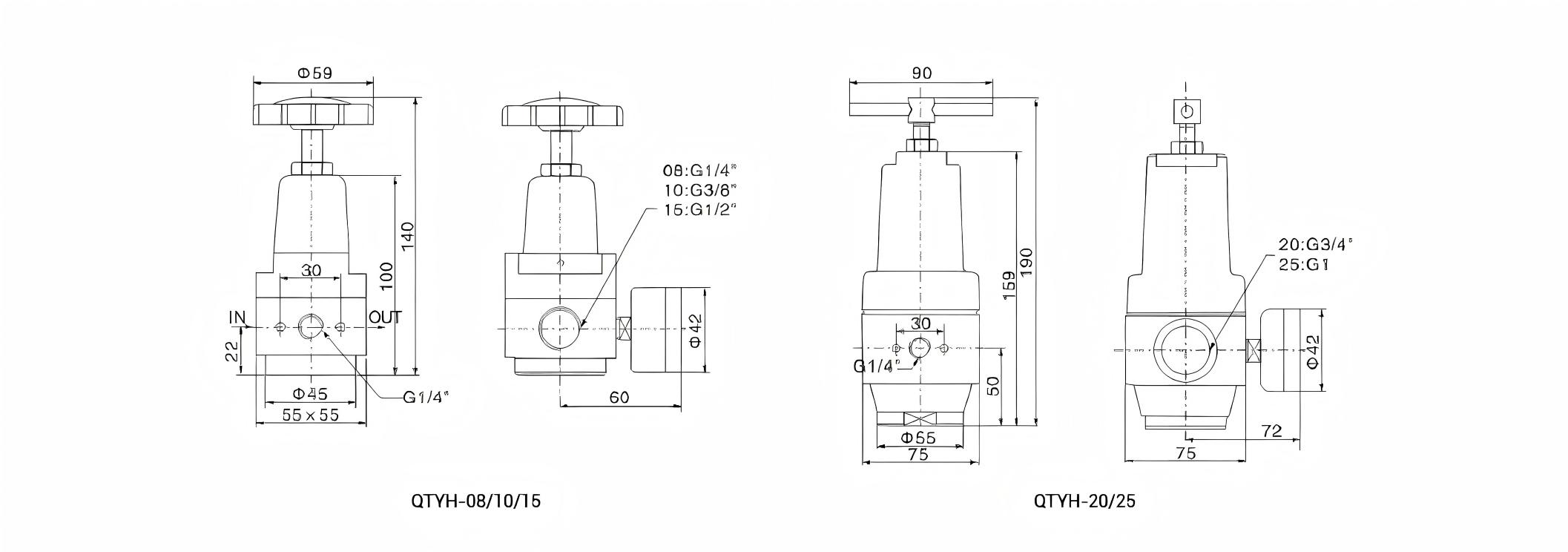

DIMENSION

Regulating Valve

Specification Download


Superiority

Why choose us? What can we do for you?

♦ Founded in 2011 and professional experienced in the field of producing pneumatic products for over 13+ years.
♦ We have strong production capacity, over 100000 pcs/month.
♦We have rich experience for offering OEM/ODM service
♦ We have strict quality control process with quick response of after sales service.
♦ Management system certification : ISO9001,CE, ROHS
♦ We have 10+ technical experts for researching and developing.
♦ Sales network expands from domestic sales to all over the world.

Related Products

High-Pressure Air Filter 20μm 40μm Filtration 4.0 MPa Max Pressure Stainless Steel Series Body QSLH Series Equivalent for Industrial Automation

High-Pressure Air Filter 20μm 40μm Filtration 4.0 MPa Max Pressure Die-cast Aluminium Body QSLH Series Equivalent for Industrial Automation

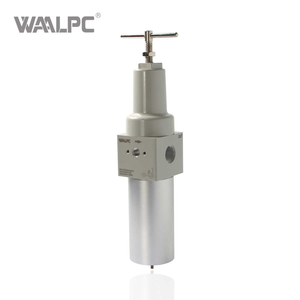

Industrial High Pressure Filter Regulating Valve with Pressure Gauge Precision Pressure Control & Filtration With Die-cast Aluminium Material
