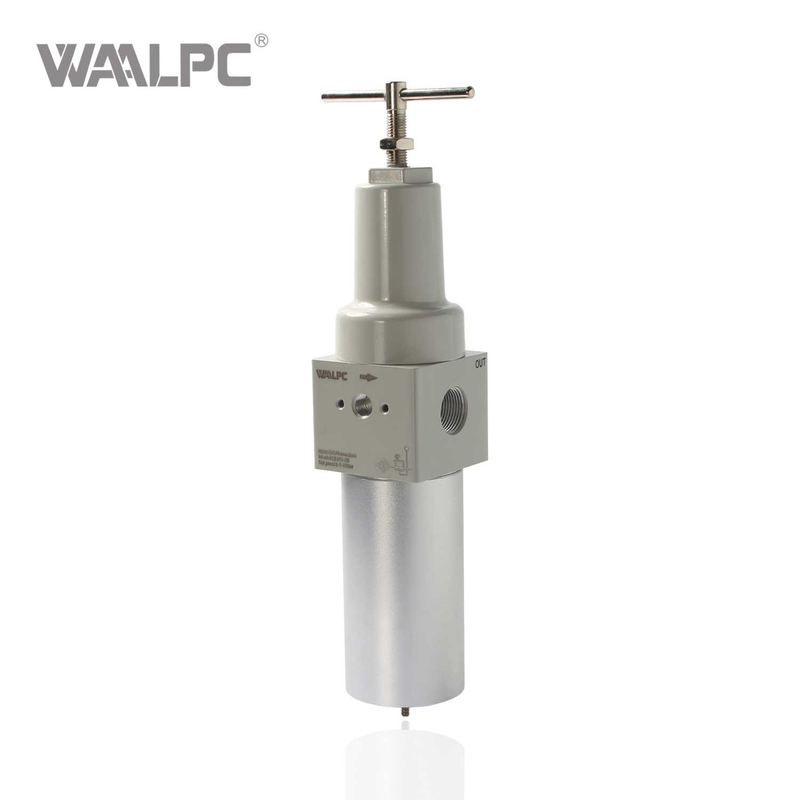

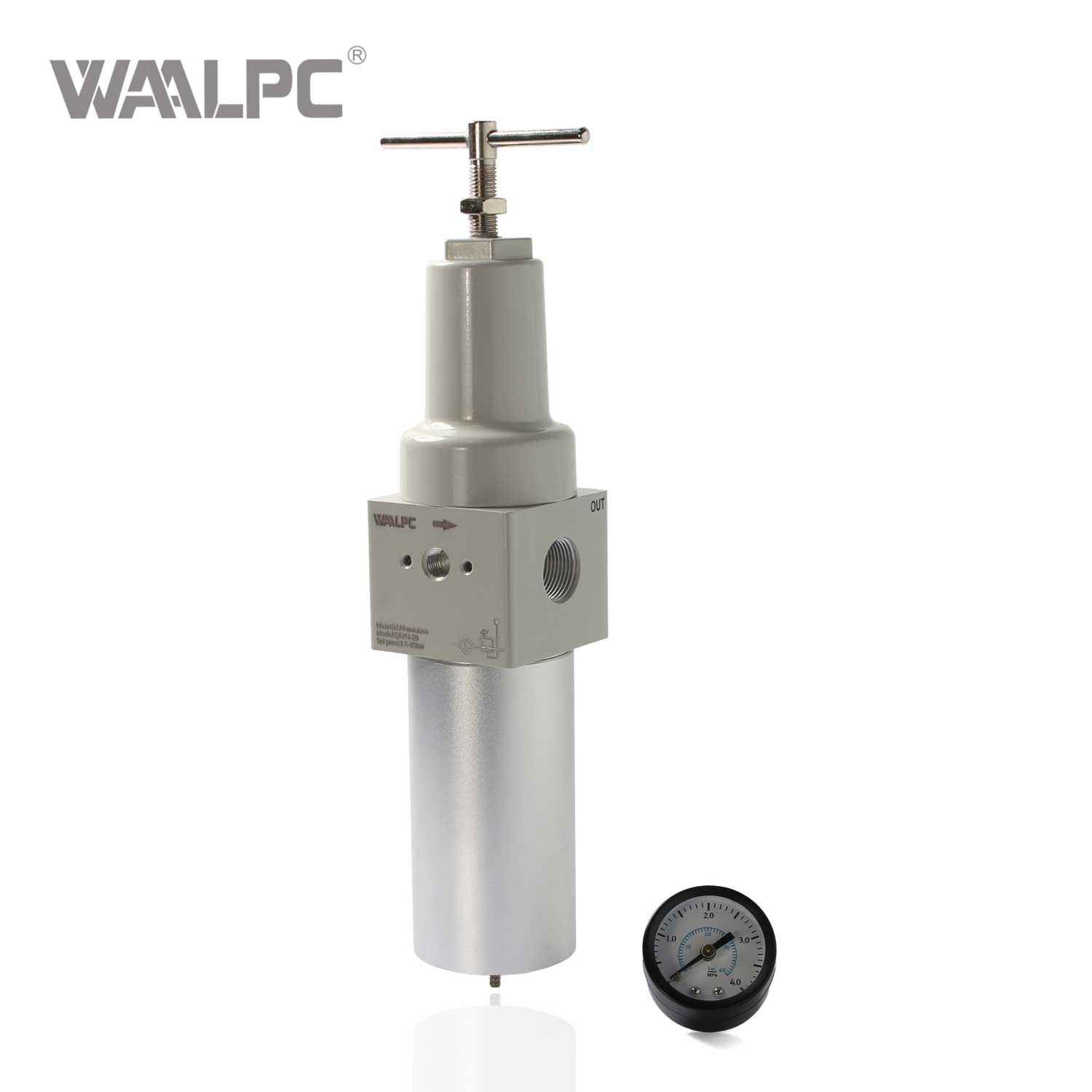

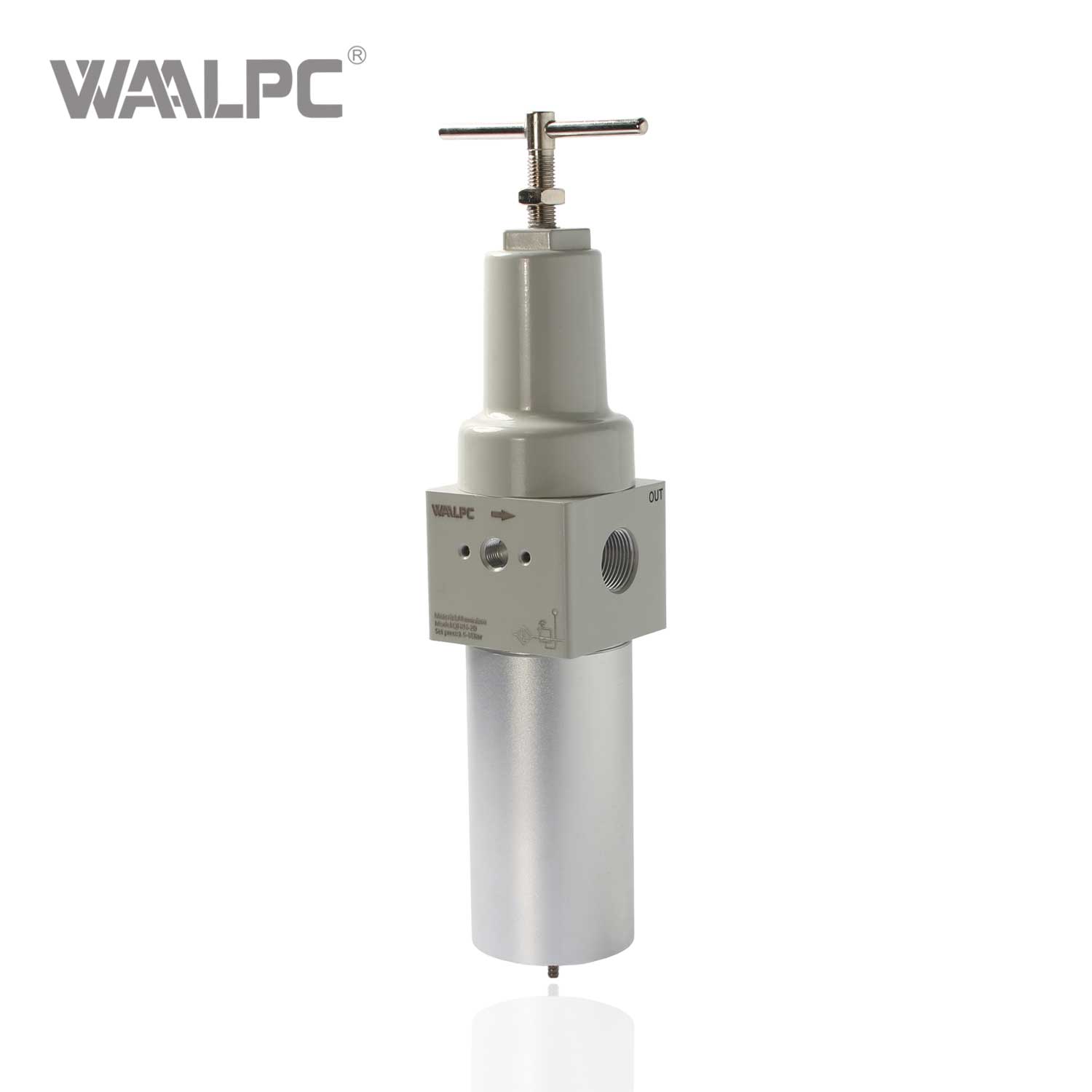

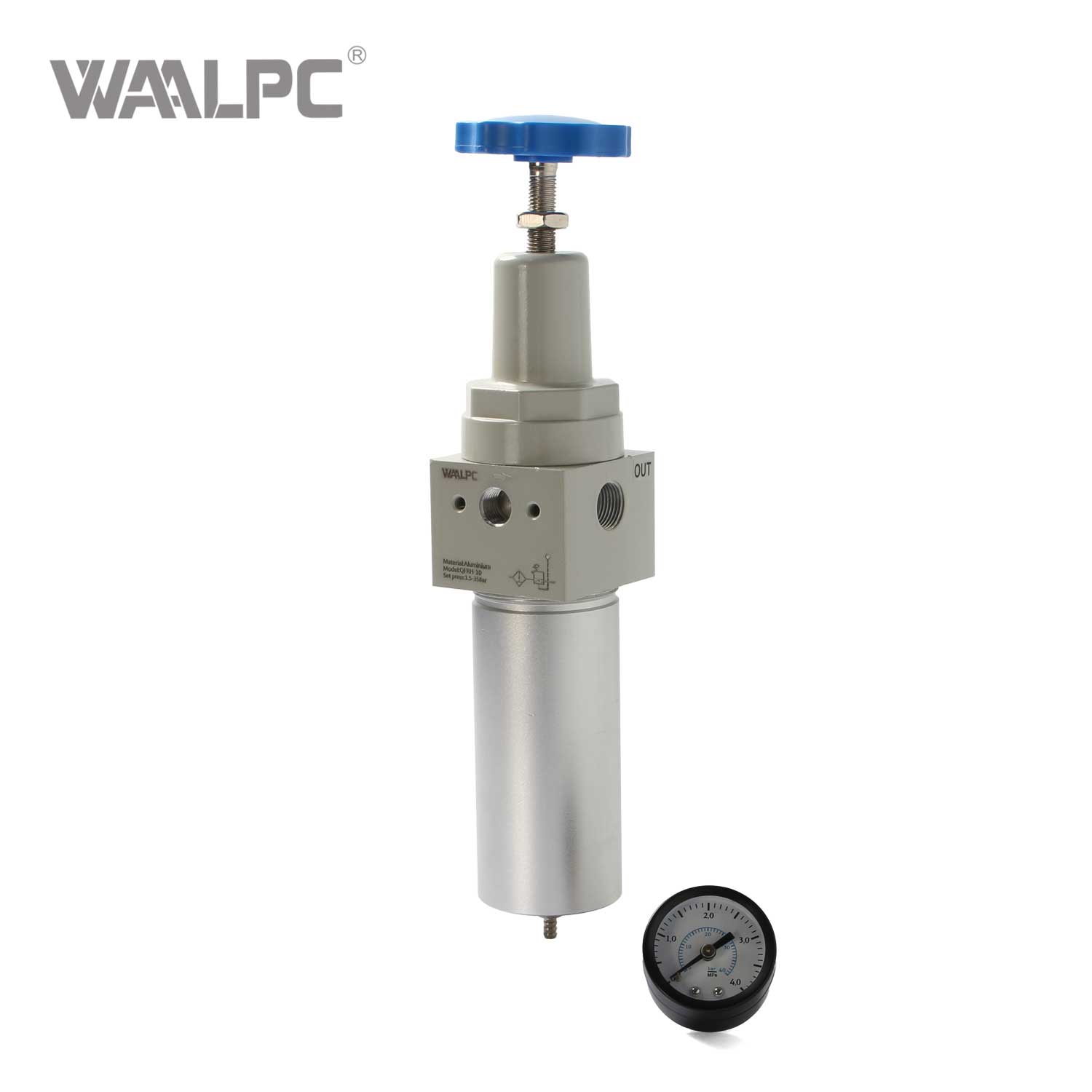

Industrial High Pressure Filter Regulating Valve with Pressure Gauge Precision Pressure Control & Filtration With Die-cast Aluminium Material

Industrial High Pressure Filter Regulating Valve with Pressure Gauge Precision Pressure Control & Filtration With Die-cast Aluminium Material


Size:	QFRH-10 QFRH-20
Availability:

Quantity:



Inquiry Add to Basket

Filter Regulator QFRH Series are high-performance pneumatic components designed to ensure clean, stable compressed air for industrial systems. Combining precision filtration and pressure regulation, it safeguards downstream equipment (e.g., valves, actuators, and tools) from contaminants and pressure fluctuations. Ideal for harsh environments, this series offers customizable configurations to meet diverse industry needs.

Model:
QFRH
Brand:
WAALPC
Code:
8481804090

Product Description

1. Cost Efficiency

Compatible with compressed air, nitrogen, and inert gases.
Customizable options (e.g., special threads, integrated sensors) for unique applications.

2. Low pressure drop reduces energy consumption by up to 25%, lowering long-term operational costs.

Minimal maintenance requirements extend service life.

3. Technical Support

Dedicated engineering teams assist with model selection, installation, and troubleshooting.

Compatible with compressed air, nitrogen, and inert gases.

Customizable options (e.g., special threads, integrated sensors) for unique applications.

Technical Parameters

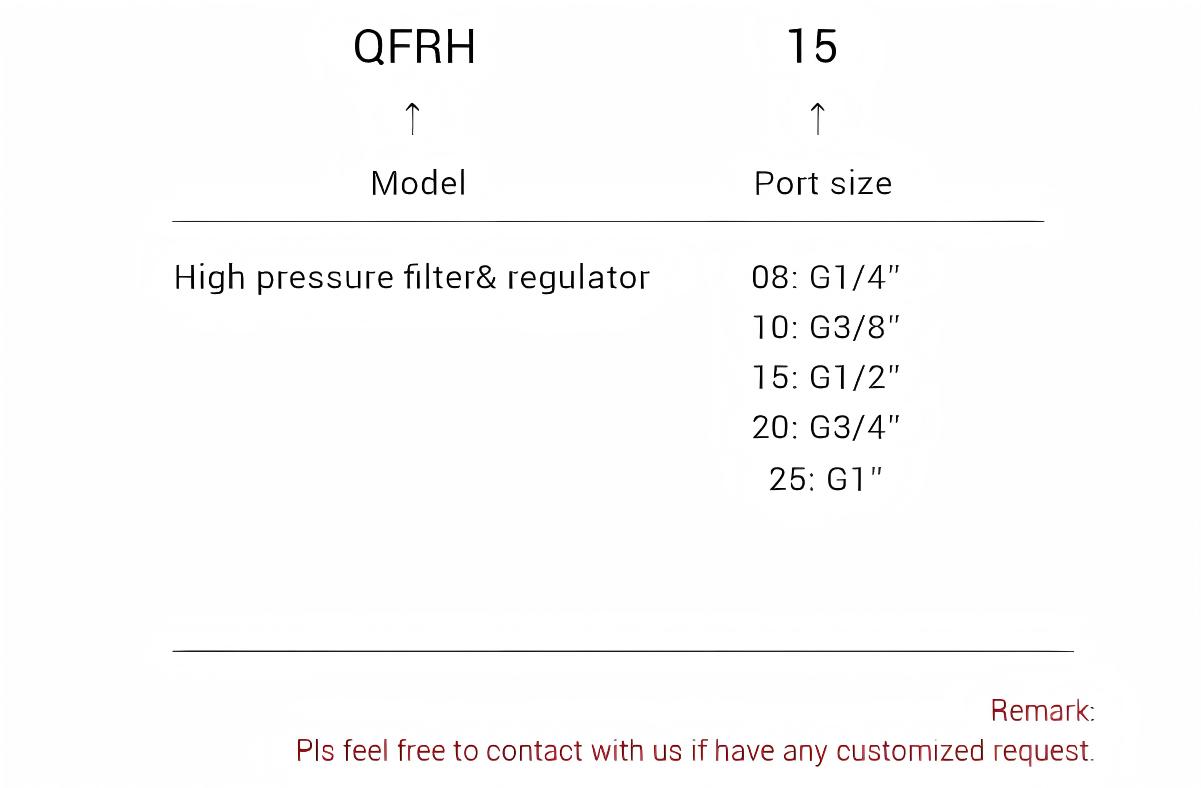

ORDERING CODE

High Pressure Filter Regulator

DATA SHEET

Model	QFRH-08	QFRH-10	QFRH-15	QFRH-20	QFRH-25
Working Medium	Air
Port Size	G1/4	G3/8	G1/2	G3/4	G1
Filtering Eliment Roughness	20μm or 40μm
Pressure Regulating Range	1.5~35Bar
Max. Input Pressure	4MPa
Operating Temperature Range	5~80℃

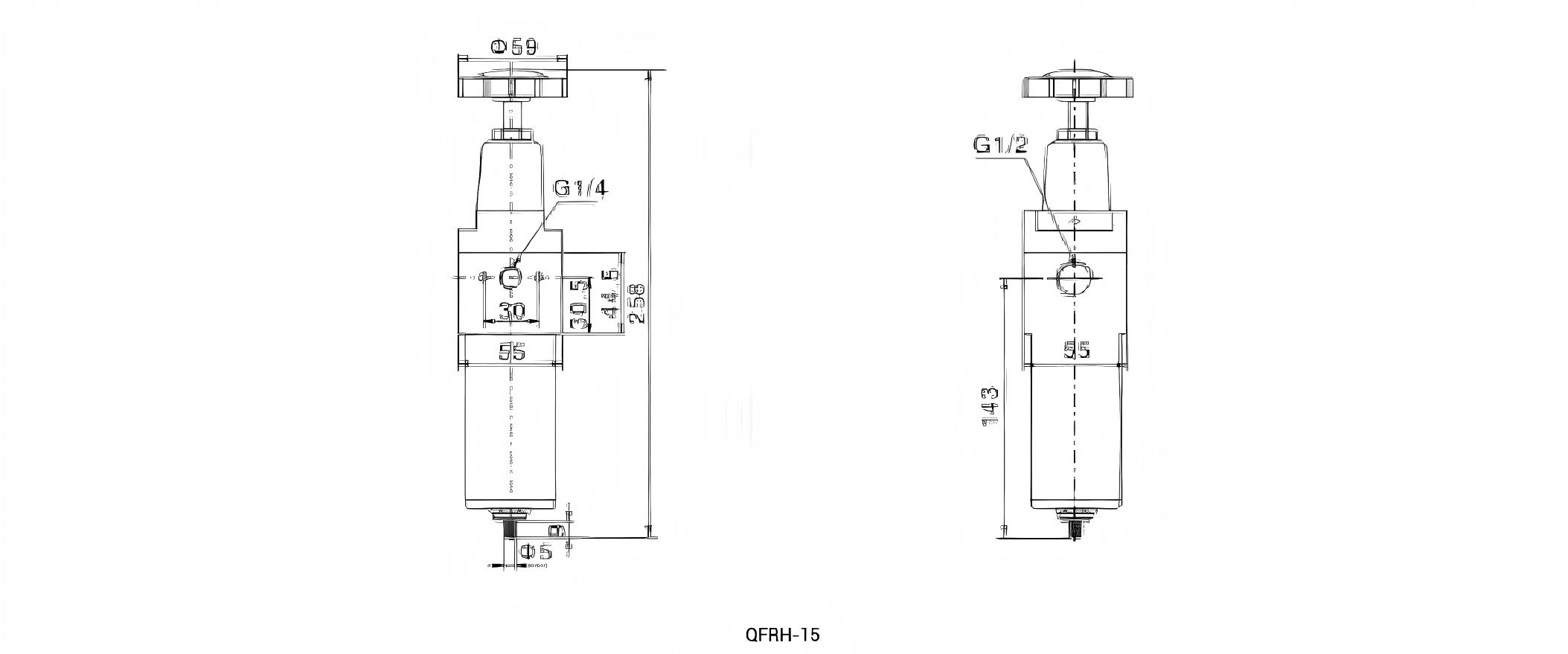

DIMENSION

High Pressure Filter Regulator

Specification Download
