You are here: Home » Products » Pneumatic Accessories » Other » Industrial Pneumatic Vibrator Cylinder Type Piston Reciprocating Impact Air Hammer

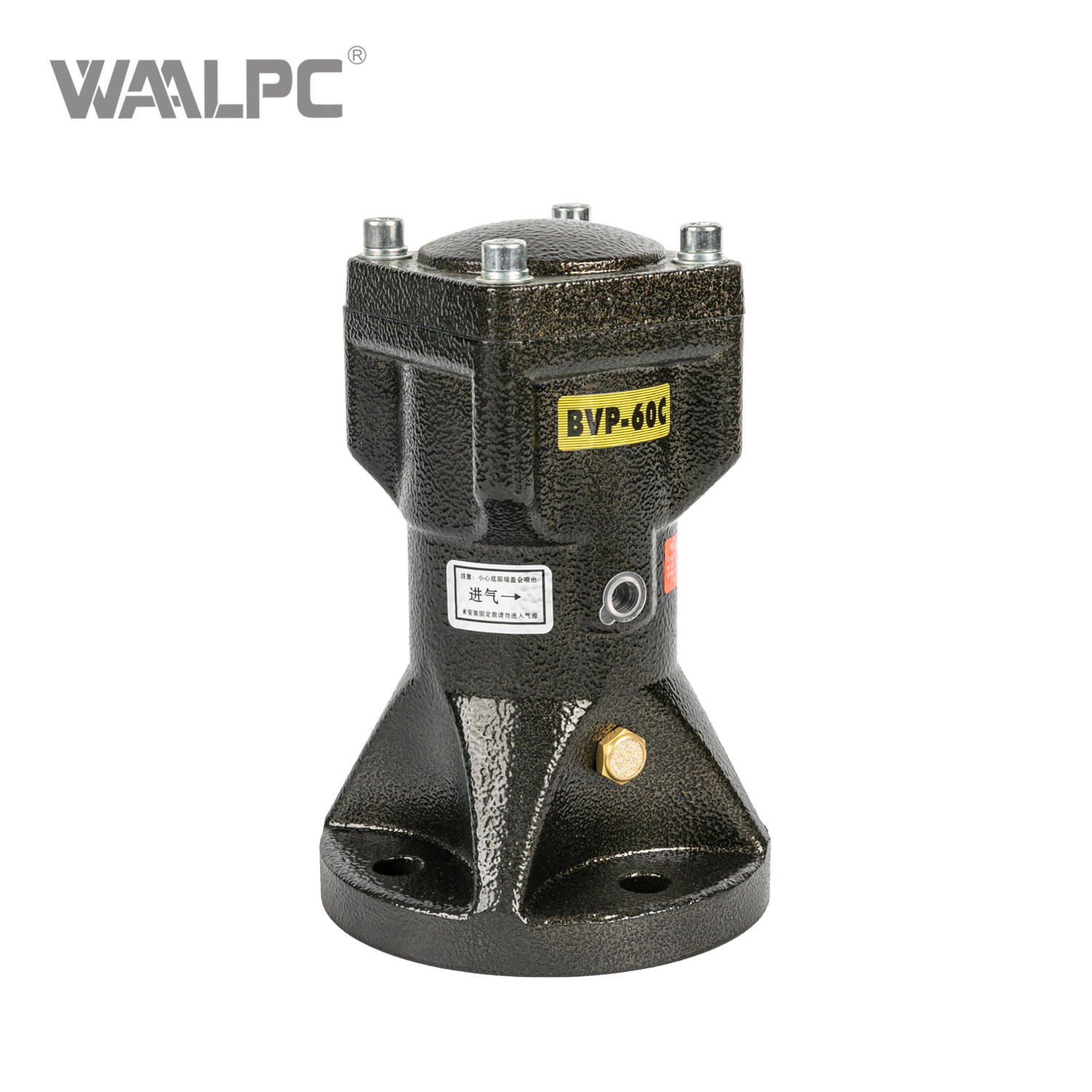

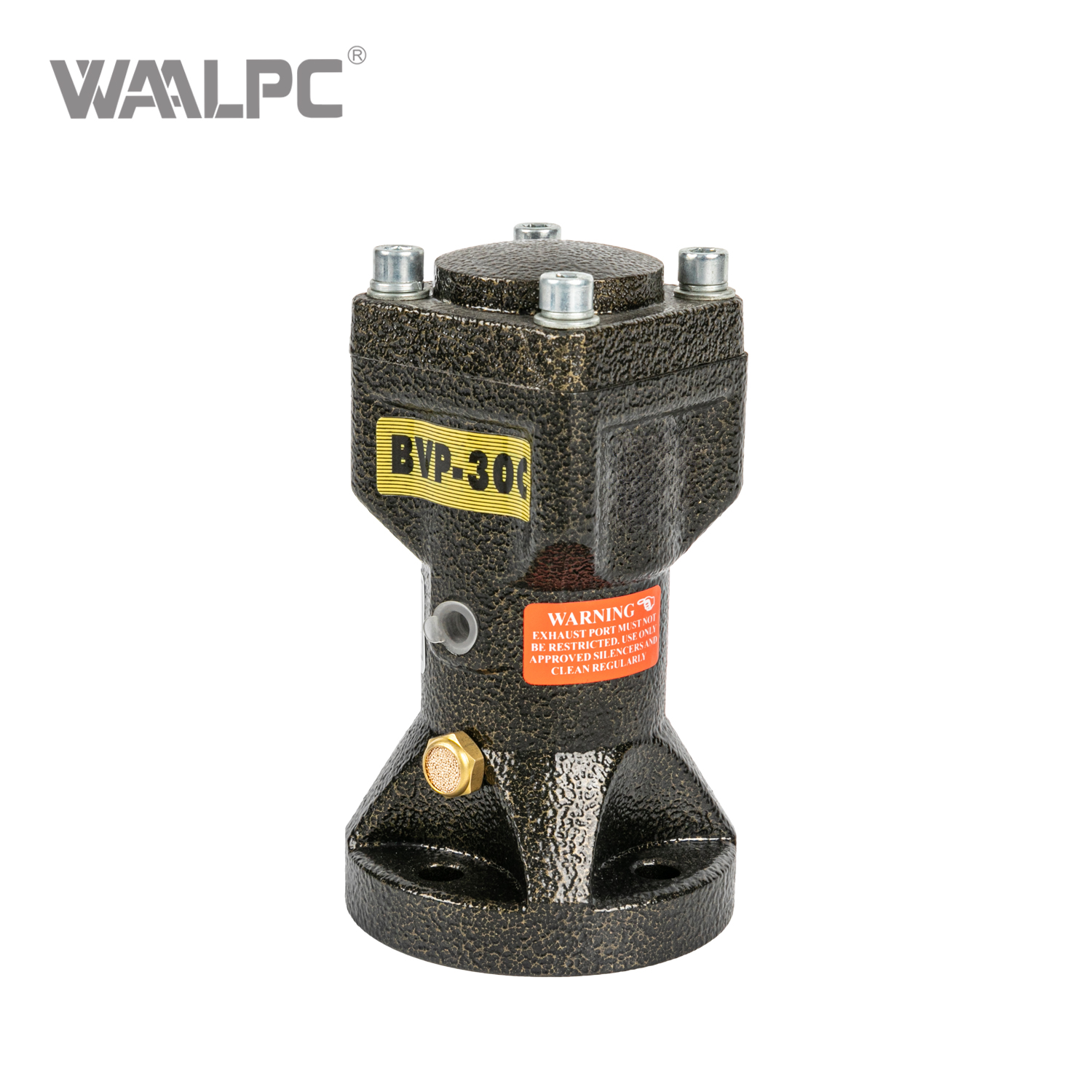

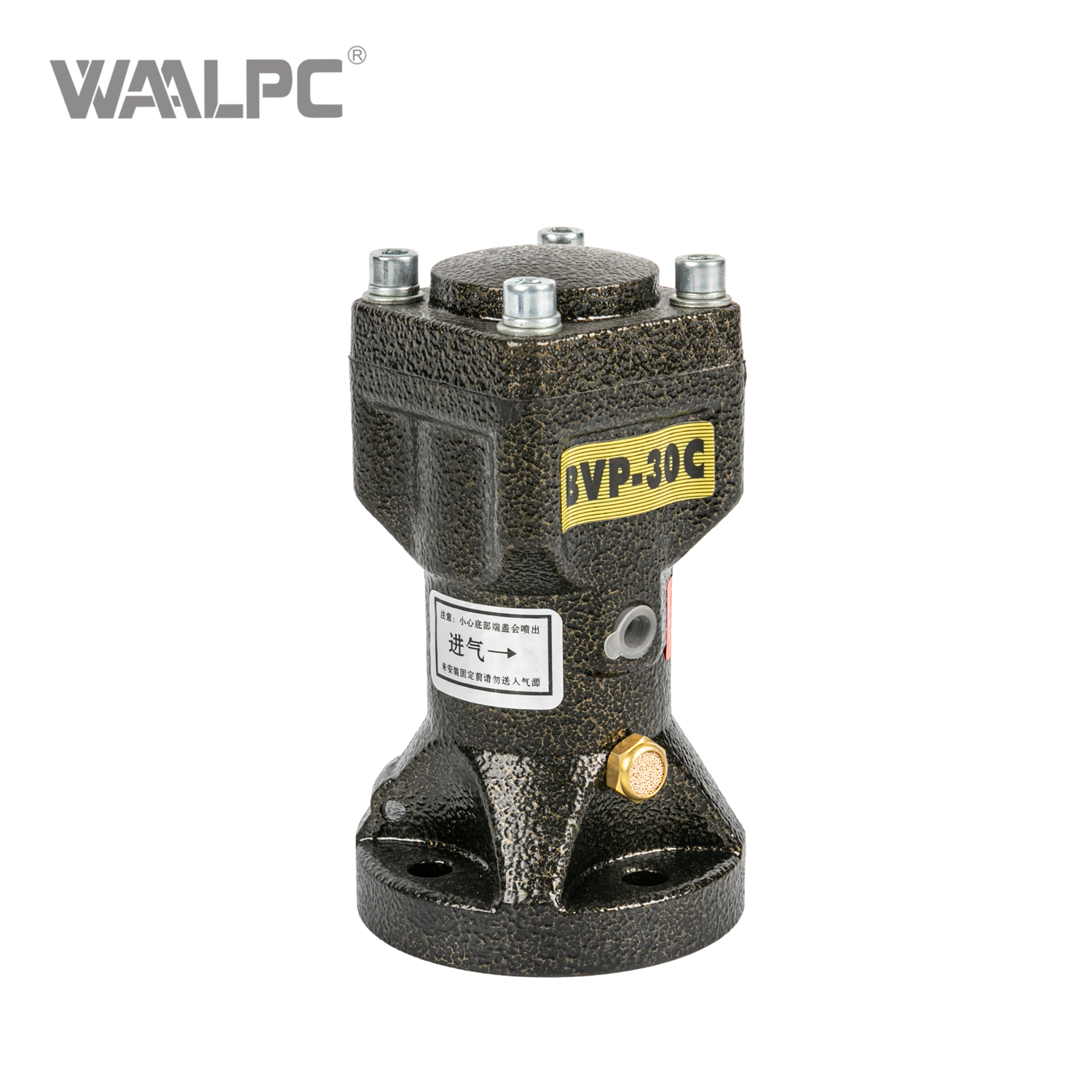

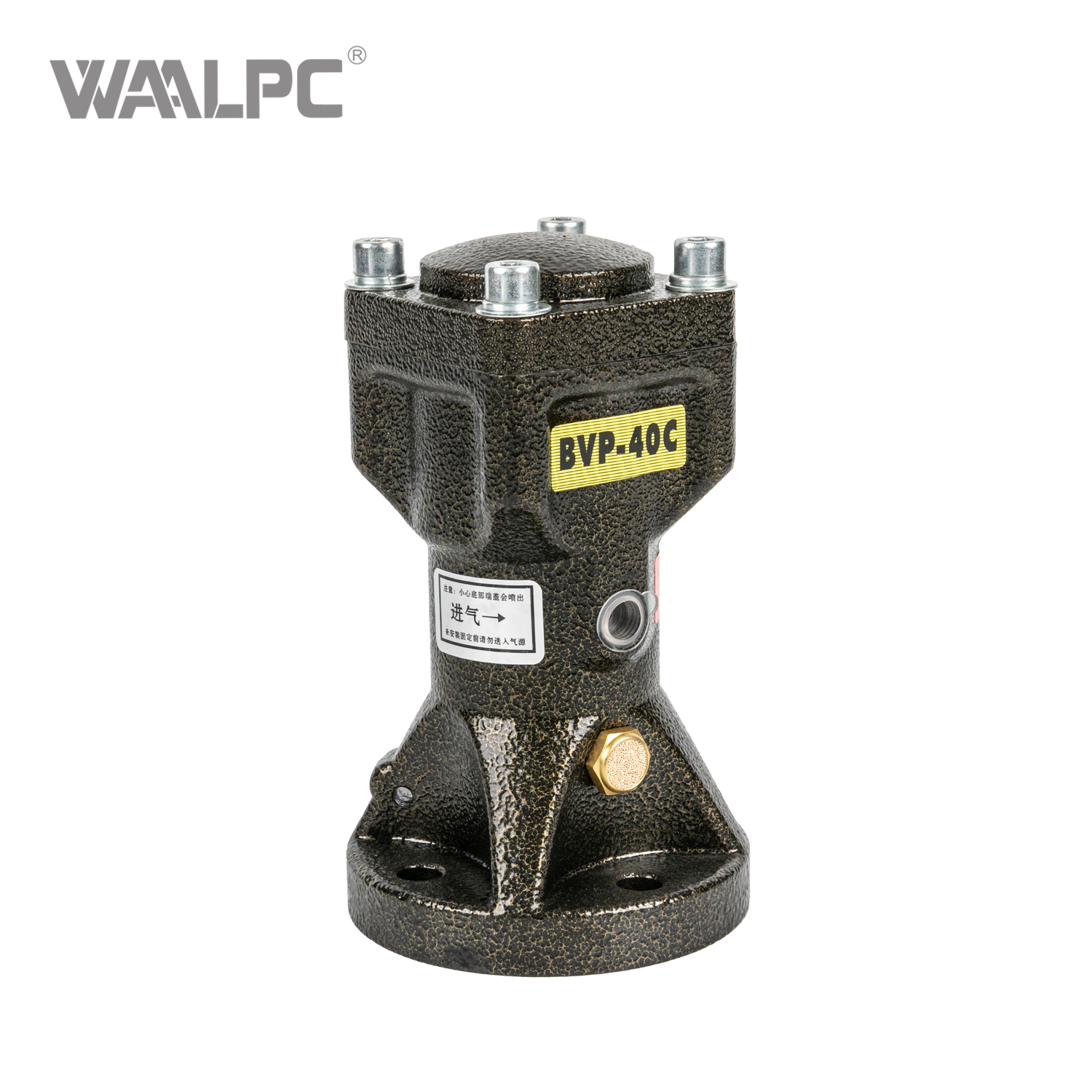

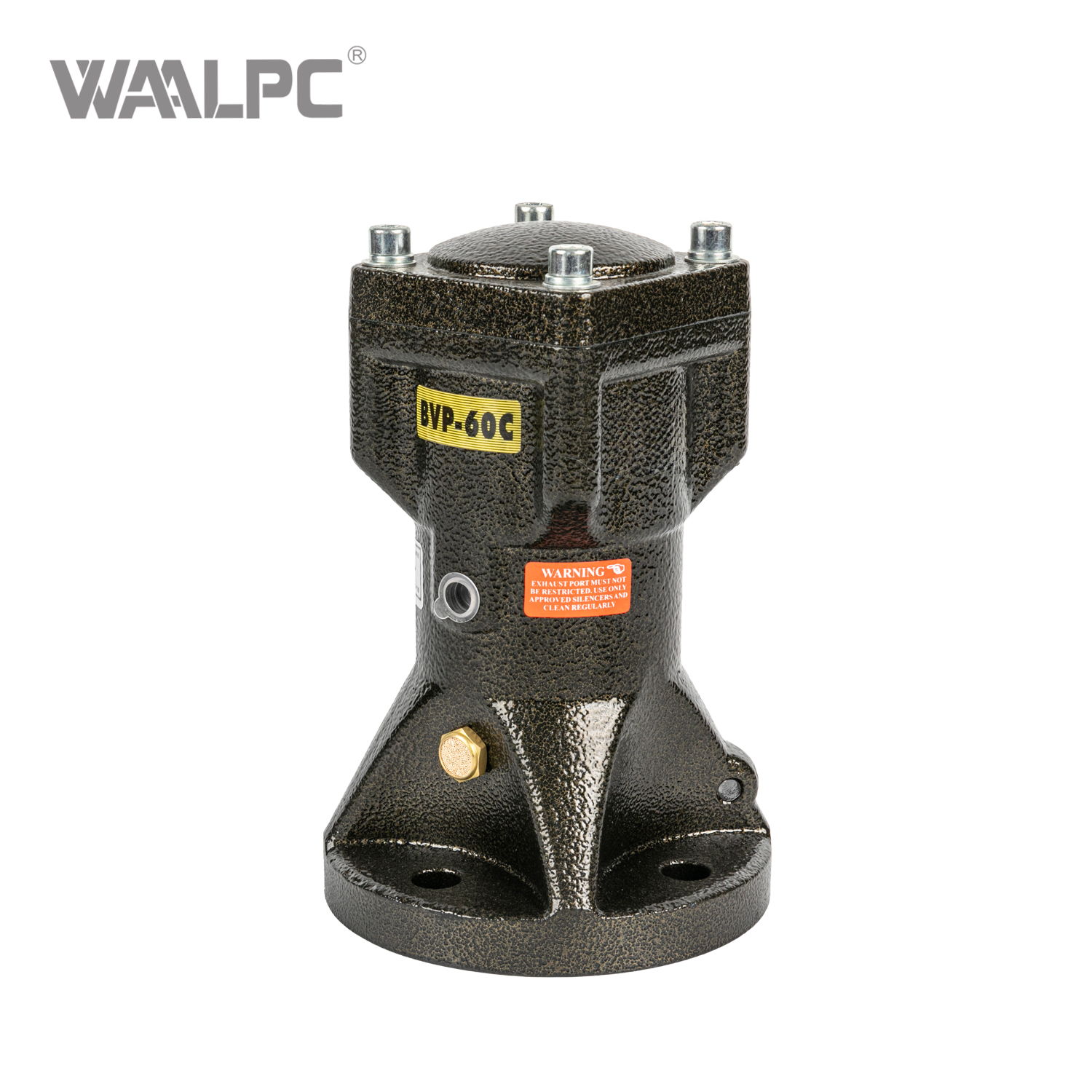

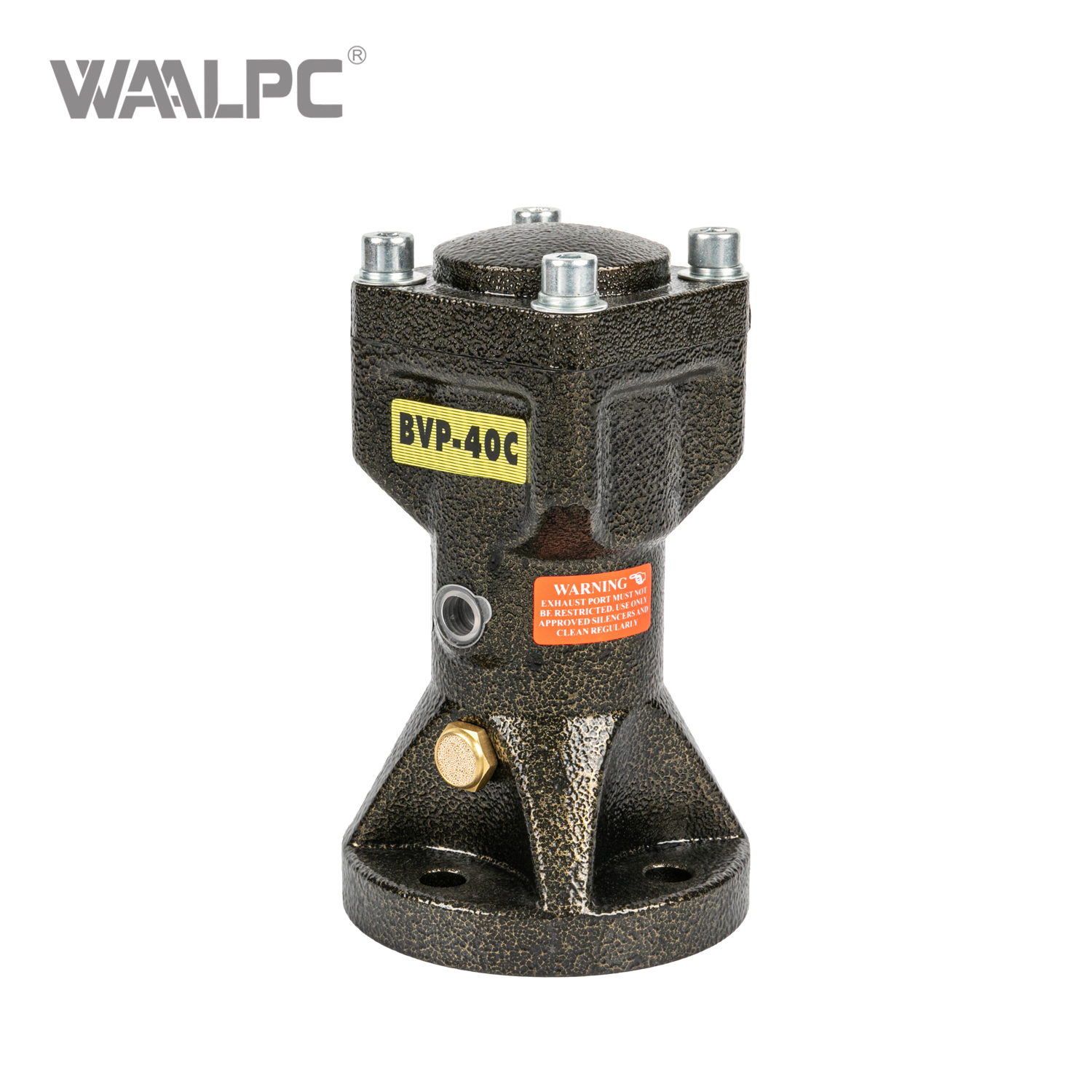

Industrial Pneumatic Vibrator Cylinder Type Piston Reciprocating Impact Air Hammer


Availability:

Quantity:



Inquiry Add to Basket

The BVP Series comprises robust, pneumatically driven reciprocating piston vibrators designed to generate powerful, low-frequency vibrations ideal for promoting material flow in industrial applications. They are particularly effective at breaking down material bridging and ratholing in silos, hoppers, and chutes, ensuring consistent discharge of bulk solids.

Model:
BVP-30C
Brand:
WAALPC
Code:
8501109990

Product Description

High-Impact Force: Generates powerful, low-frequency vibrations ideal for stubborn, compacted materials.

Precise Control: Force and frequency are easily adjustable via air pressure for optimal performance.

Robust & Durable: Heavy-duty construction ensures reliability in the most demanding environments.

Low Maintenance: Simple piston mechanism requires minimal upkeep and offers long service life.

Versatile Application: Effective on large silos, hoppers, and chutes where high impact is needed.

Technical Parameters

DATA SHEET

Model	Frequency/minute			Measured centrifugal force			Air consumption/minute	Weight
	0.2MPa	0.4MPa	0.6MPa	0.2MPa	0.4MPa	0.6MPa
	0.2MPa	0.4MPa	0.6MPa	0.2MPa	0.4MPa	0.6MPa
BVP-30C	1765	2308	2857	195	380	560	230	0.9kg
BVP-40C	1333	1677	1875	275	531	715	249	1.9kg
BVP-60C	1000	1200	1340	404	780	1030	269	4.5kg
BVP-30S	1900	2800	3500	3600	5400	6200	250	1.0kg
BVP-40S	1700	2400	3000	6450	8750	9400	270	2.1kg
BVP-60S	1200	1800	1900	6900	12850	13850	300	4.8kg

[Note]The data in this table was taken from a Kistler 3-axis dynamometer on a heavy-duty experimental platform. When the installation rigidity is poor, the frequency and force values will decrease.

OVERALLDIMENSION&STRUCTURE

BVP Series structure_

Model	A	øB	øC	D	H	IN	OUT
BVP-30C	135	79	60	14	9	1/8''PT	1/8''PT
BVP-30S
BVP-40C	165	99	75	16	11	1/4''PT	1/4''PT
BVP-40S
BVP-60C	208	138	105	19	15	1/4''PT	1/4''PT
BVP-60S

Specification Download

Piston reciprocating vibrator.pdf

Superiority

Why choose us? What can we do for you?

♦ Founded in 2011 and professional experienced in the field of producing pneumatic products for over 13+ years.
♦ We have strong production capacity, over 100000 pcs/month.
♦We have rich experience for offering OEM/ODM service
♦ We have strict quality control process with quick response of after sales service.
♦ Management system certification : ISO9001,CE, ROHS
♦ We have 10+ technical experts for researching and developing.
♦ Sales network expands from domestic sales to all over the world.
