Pneumatic Roller Vibrator Air Oscillator Pneumatic Hammer Industrial Material Conveying


Availability:

Quantity:



Inquiry Add to Basket

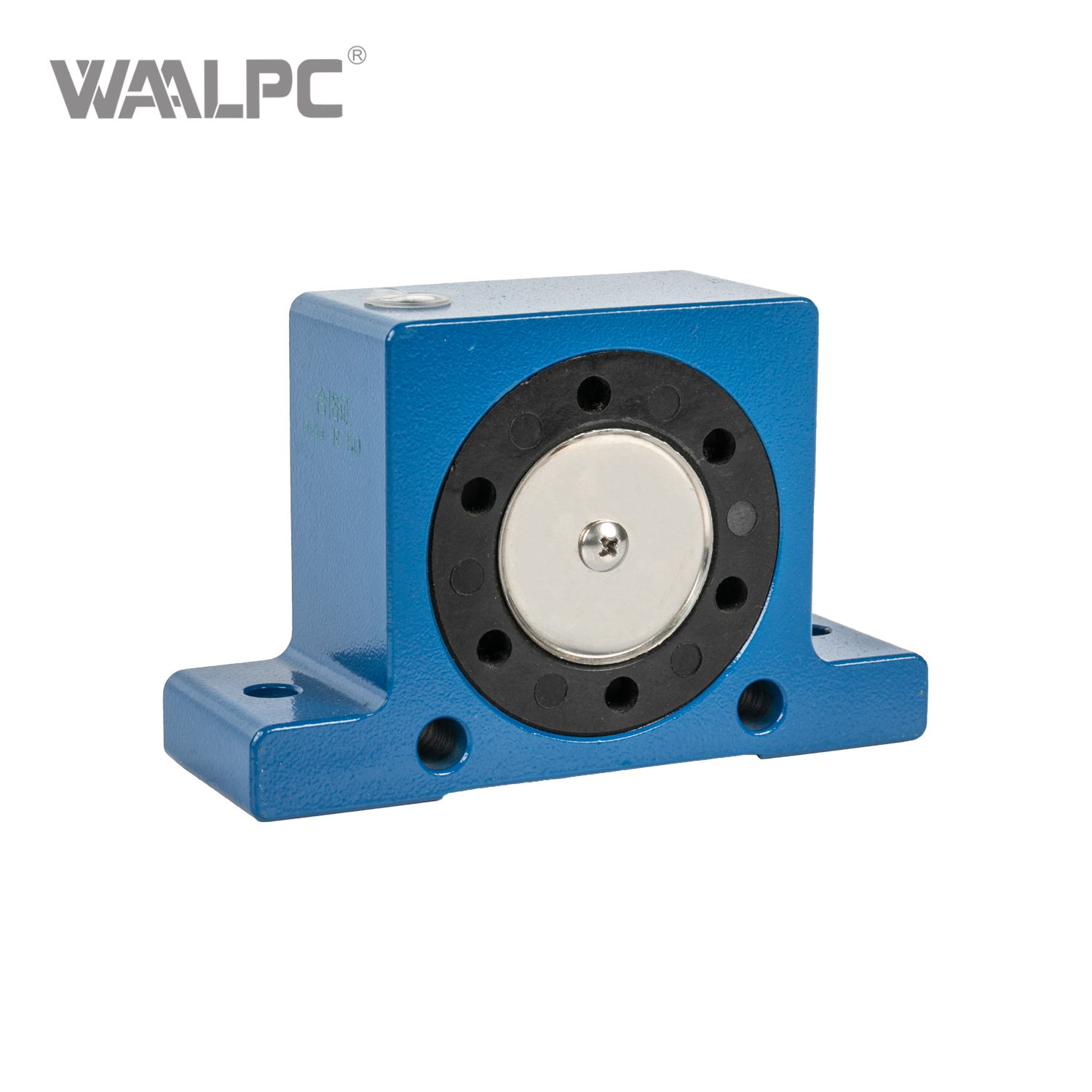

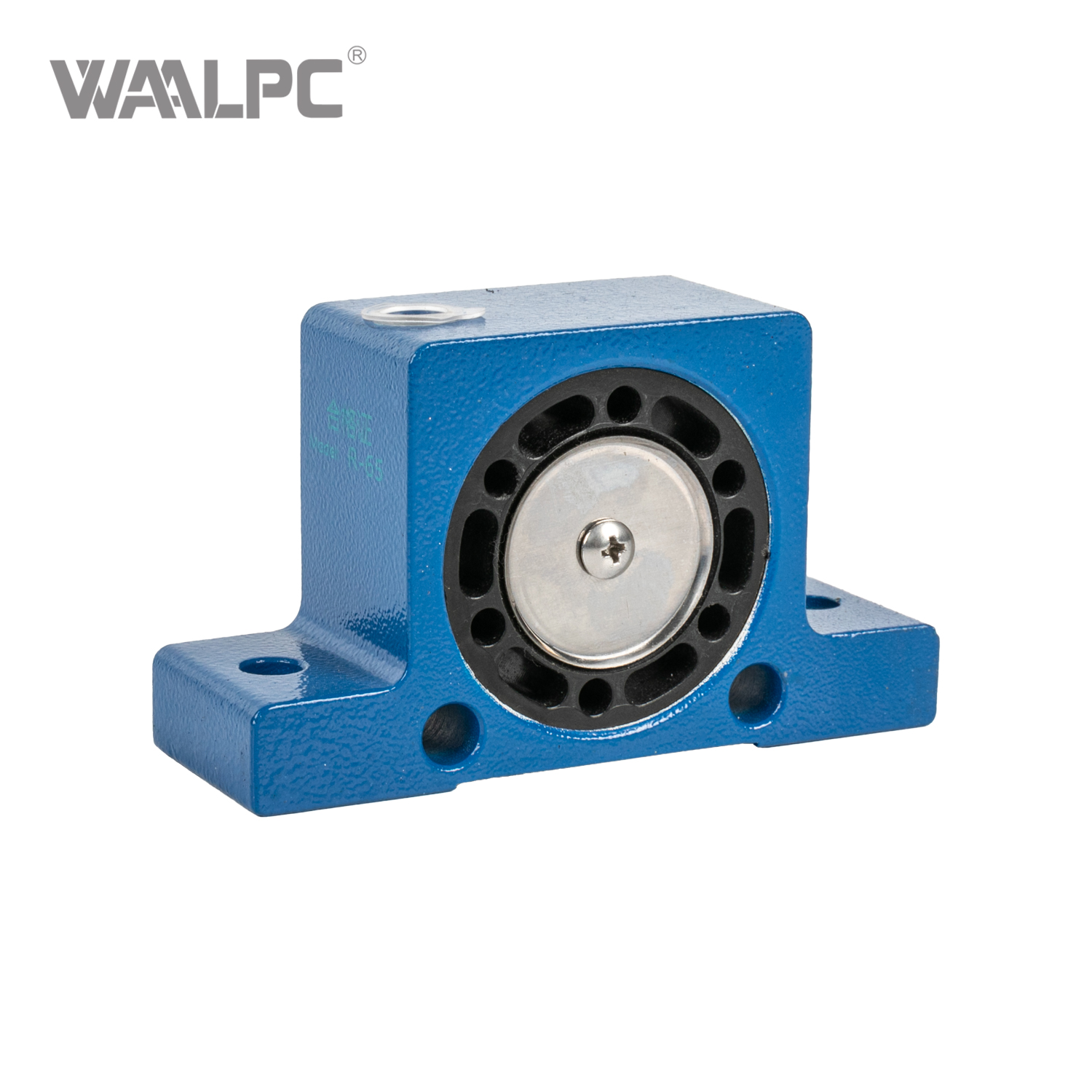

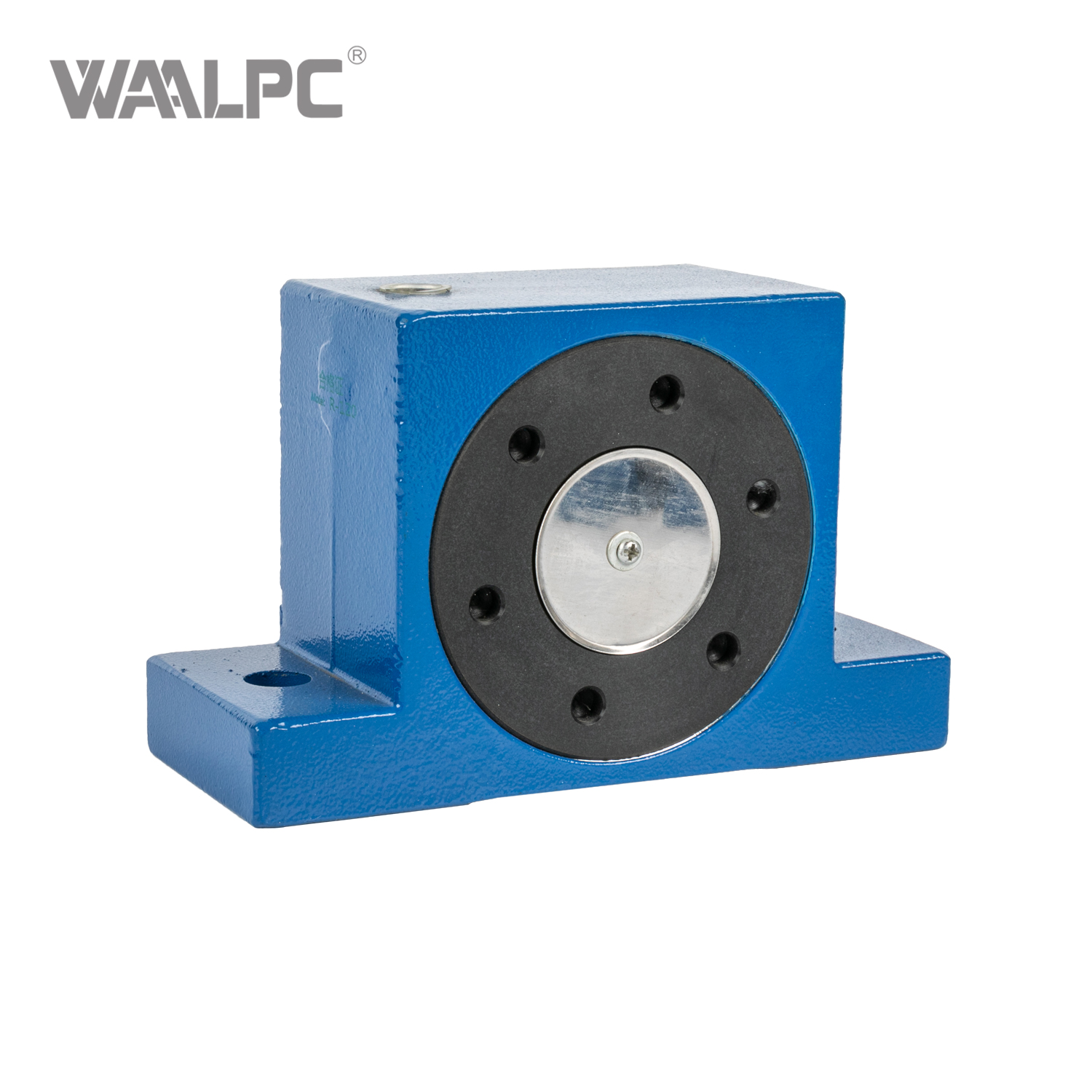

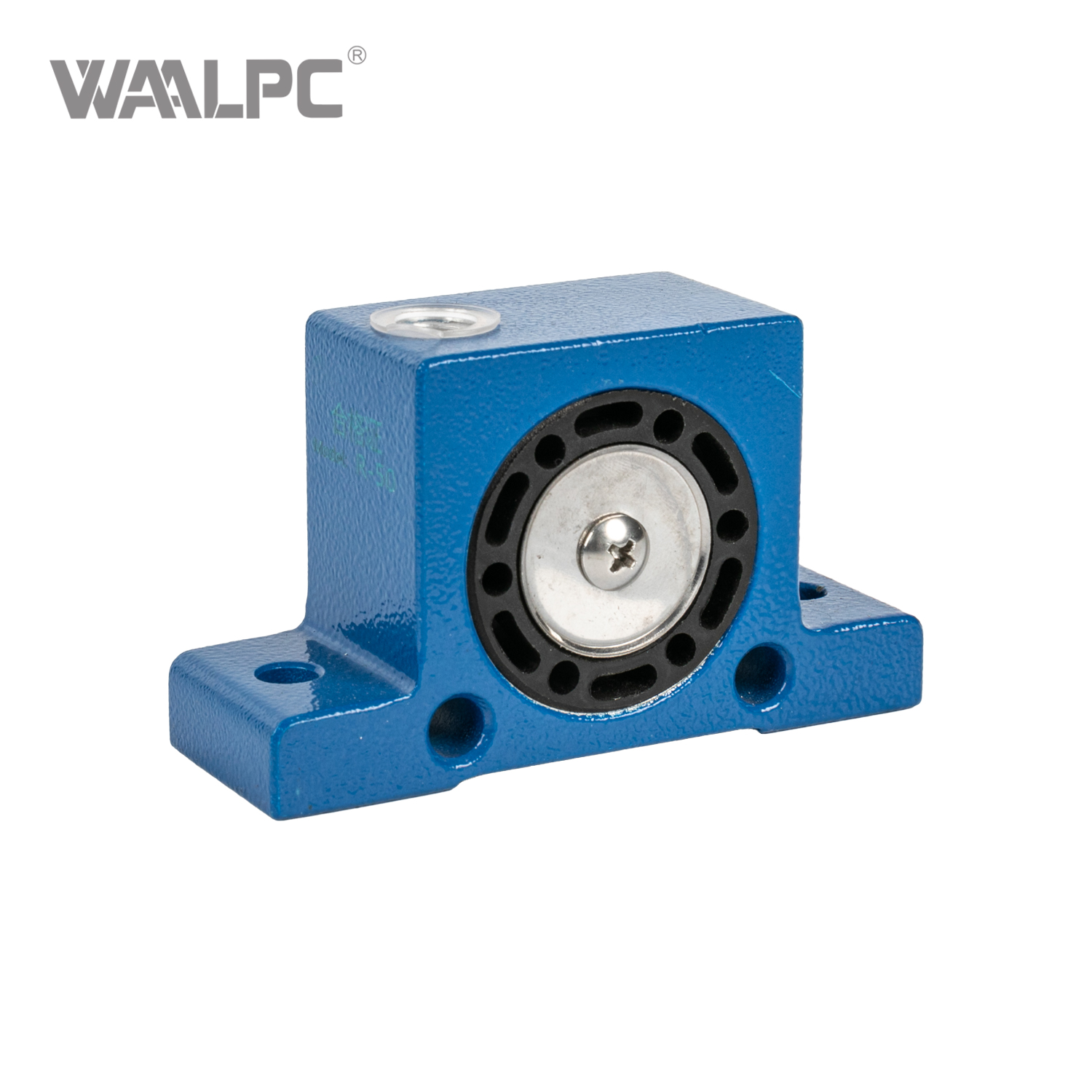

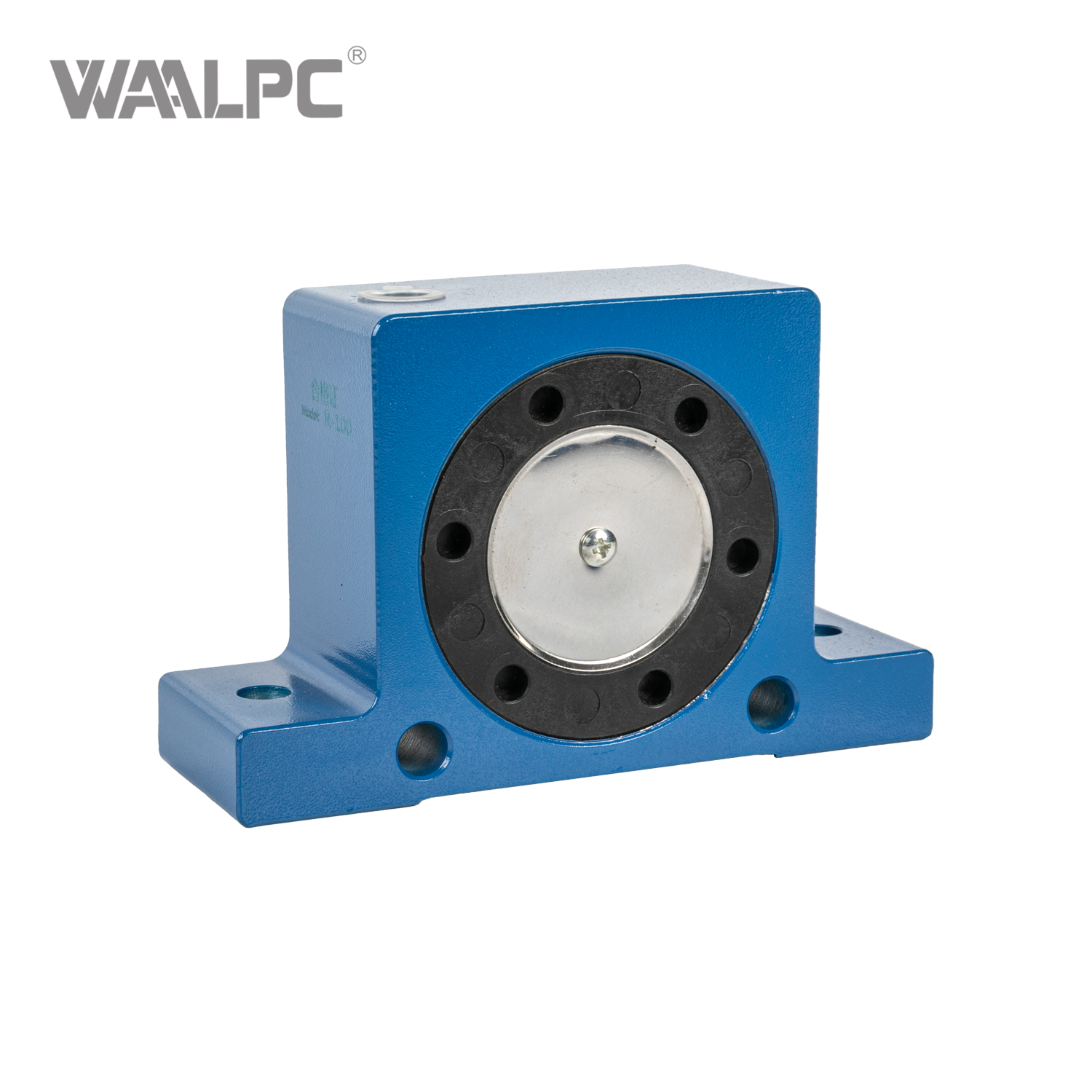

The R-Series Roller-Type Air Vibrator is a pneumatic rotary vibrator designed for a wide range of industrial applications. Its simple yet robust construction generates high centrifugal force, making it ideal for material flow promotion and compaction

Model:
R-50
Brand:
WAALPC
Code:
8501109990

Product Description

High Frequency & Adjustable Force: Offers very high rotational speeds and centrifugal force, which can be smoothly adjusted by regulating the air pressure.

Robust Construction: Features a special aluminum alloy housing, making it lightweight yet durable.

Instant Control: Can be started and stopped almost instantly.

Low Noise & Energy Efficiency: Designed for relatively quiet operation and efficient air consumption.

Explosion-Proof & Suitable for Harsh Environments: As a pneumatic device, it is inherently safe for use in explosive, dusty, or damp atmospheres.

Multiple Installation Options: Equipped with various mounting holes (base and side) for flexible installation.

High-Temperature Capability: Some models can operate continuously in environments with temperatures up to 140°C.

Technical Parameters

DATA SHEET

Model	Frequency/minute			Measured centrifugal force						Air consumption/minute
	0.2MPa	0.4MPa	0.6MPa	0.2MPa		0.4MPa		0.6MPa		0.2MPa	0.4MPa	0.6MPa
	0.2MPa	0.4MPa	0.6MPa	N	KG	N	KG	N	KG	L	L	L
R-50	25100	35100	36100	1170	119	2950	301	4250	434	100	150	198
R-65	19100	21100	26100	2750	280	4850	495	6150	628	210	305	410
R-80	15600	18600	19100	3100	316	6120	625	7400	755	290	435	570
R-100	11100	14100	16100	3760	384	6700	684	8950	883	370	535	730
R-120	10100	11600	12600	8100	827	10100	1031	12510	1277	500	730	970

[Note]The data in this table was taken from a Kistler 3-axis dynamometer on a heavy-duty experimental platform. When the installation rigidity is poor, the frequency and force values will decrease.

OVERALLDIMENSION&STRUCTURE

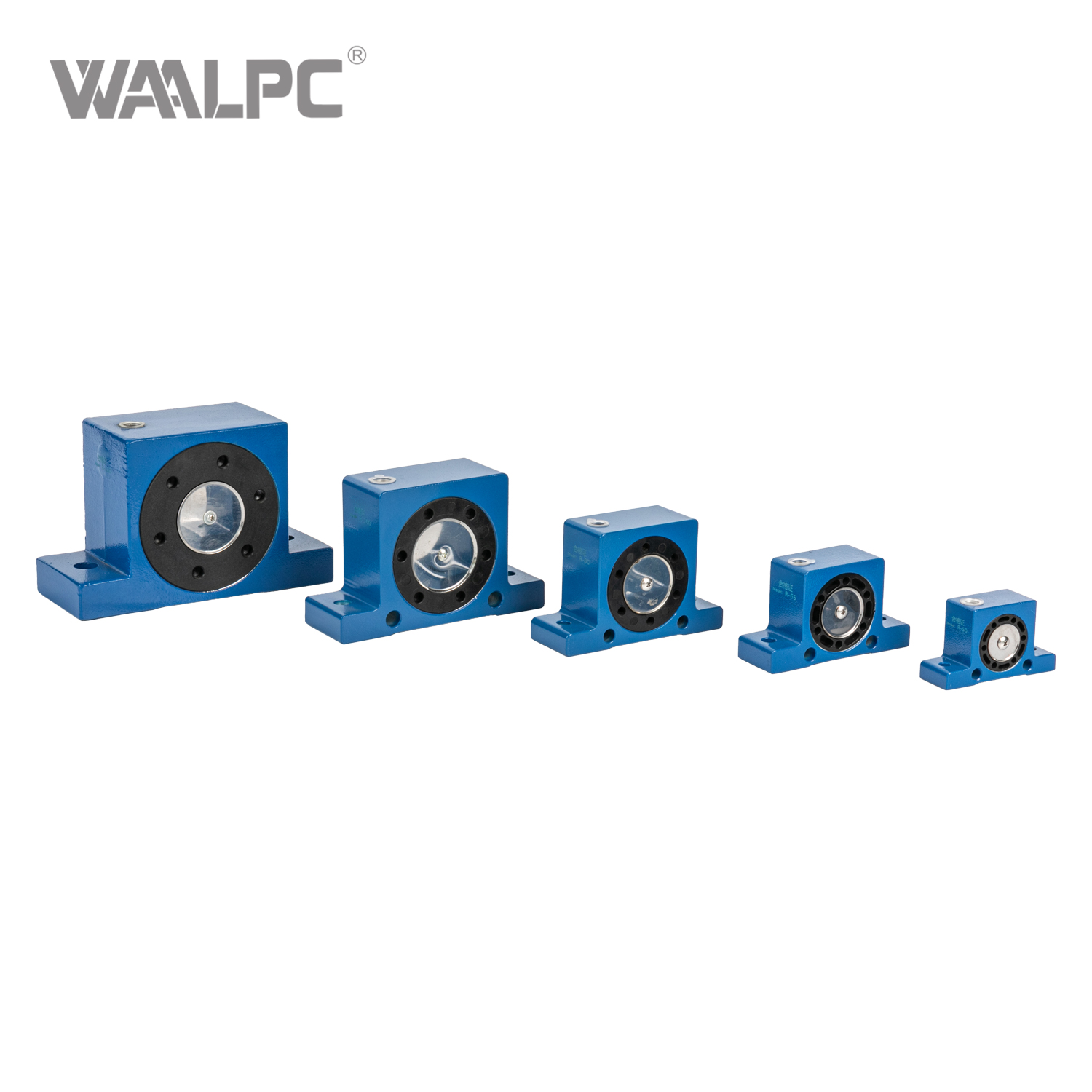

R-Series Vibrator

Model	A	Width	C	D	E	F	G	H	Weight
Model	mm	mm	mm	mm	mm	mm	mm	IN/OUT	KG
R-50	50	29	86	68	12	7	40	G1/8	0.245
R-65	65	37	113	90	16	9	50	G1/4	0.540
R-80	80	43	128	104	16	9	60	G1/4	0.955
R-100	100	52	160	130	20	11	80	G3/8	1.815
R-120	120	77	194	152	24	17		G3/8	4.265

Specification Download

R-Series Vibrator.pdf
