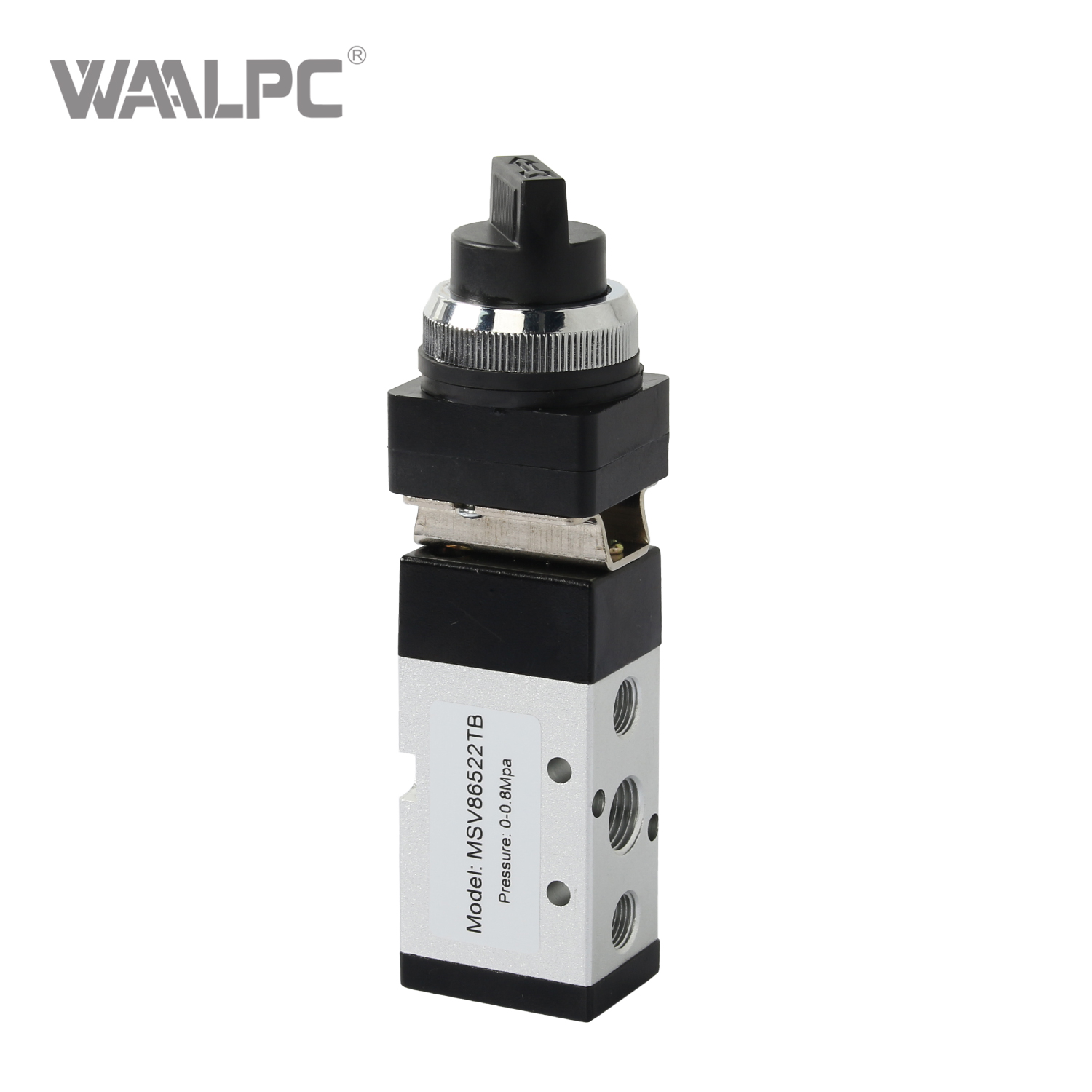

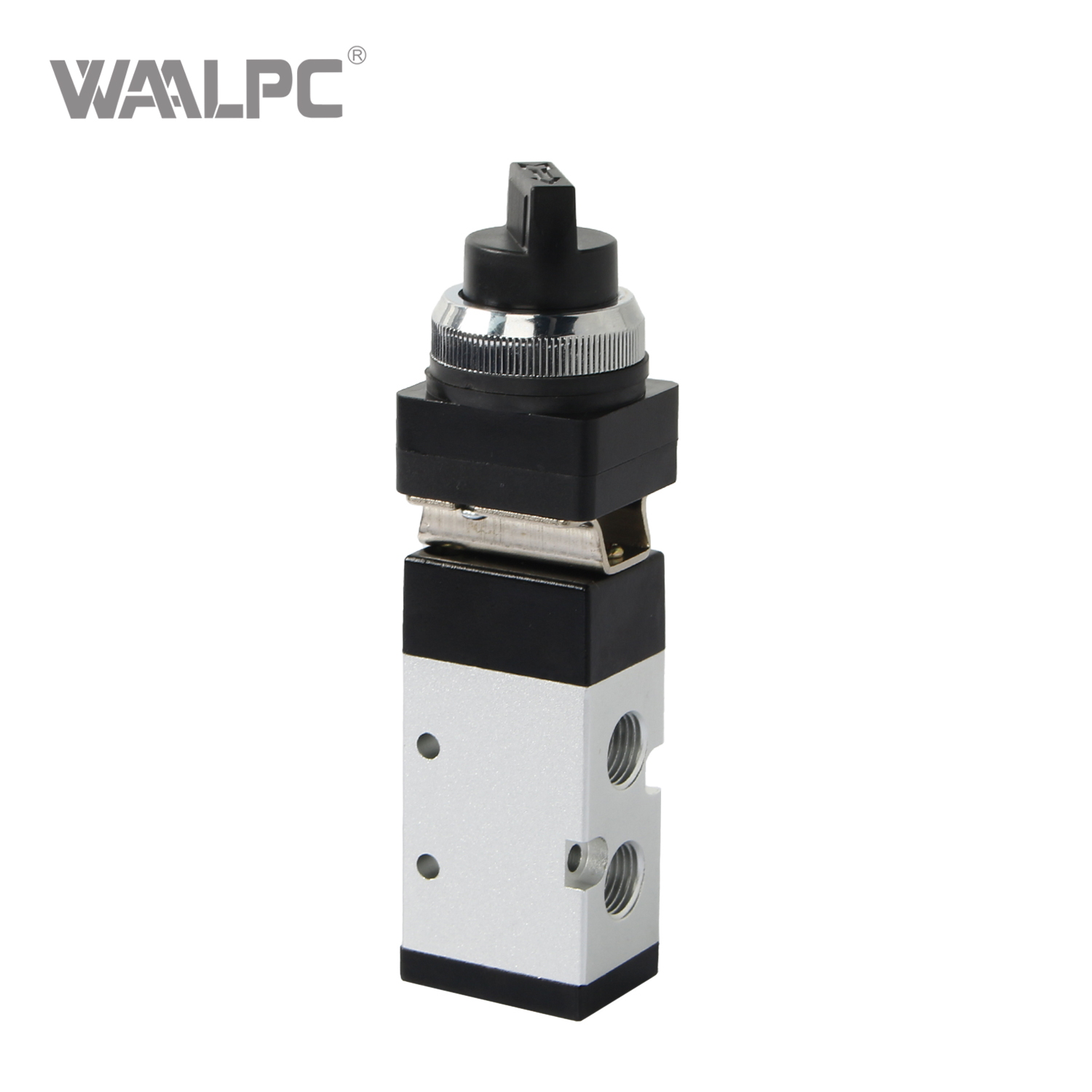

MSV
WAALPC
8481804090
Robust Construction: Featuring a sturdy brass body, the MSV series valves resist corrosion and withstand high system pressures, ensuring long service life in harsh industrial environments.
Excellent Seal & Smooth Operation: Precision-machined components with high-quality sealing materials (e.g., PTFE) offer reliable leak-tight shut-off and low-torque, quarter-turn operation for easy and quick control.
Wide Compatibility: Suitable for a broad range of applications including industrial machinery, plant piping, compressed air systems, water supply lines, OEM equipment, and general facility maintenance.
Versatile Configuration: Available in various sizes (e.g., 1/4" to 2" NPT) and port types (standard or full port), the series offers flexibility to meet specific flow capacity and pressure drop requirements.
Simple & Maintenance-Friendly Design: The two-piece or three-piece design facilitates easy installation, inspection, and service when required, minimizing downtime.
ORDERING CODE

SPECIFICATION
| Model | MSV86321 | MSV86522 | MSV98322 |
| Working Medium | 40 Micron filtered air | ||
| Position And Way Number | Two-position Three-way | Two-position Five-way | Two-position Three-way |
Pressure Range | 0~0.8MPa | ||
| Operating Temperature | 0~60℃ | ||
| Effective Section Area | 12mm2(Cv=0.67) | 16mm2(Cv=0.89 | 16mm2(Cv=0.89) |
| Joint Pipe Bore | G1/8 | G1/ | G1/4 |

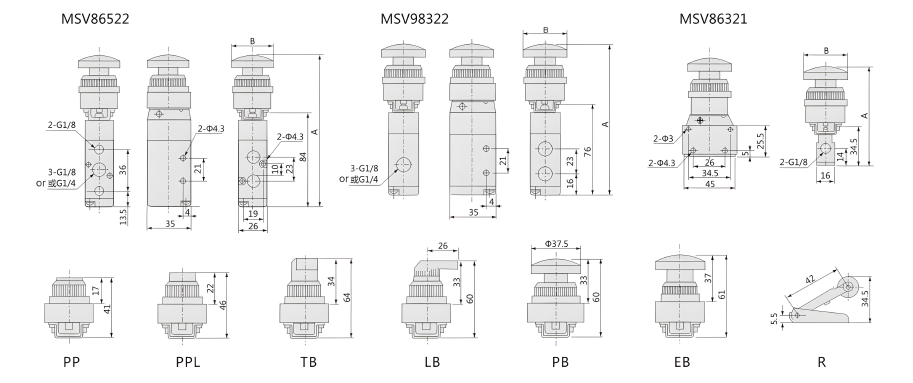

OVERALLDIMENSION&STRUCTURE

| Series | Model | PP | PPL | LB | TB | EB | PB | R |
| MSV86522 | A | 114 | 119 | 133 | 136.5 | 134 | 131 | 107.5 |
| B | 39.5 | 24.5 | 26.5 | 36.5 | 39.5 | 37.5 | 42.5 | |
| MSV98322 | A | 106 | 111 | 125 | 129.5 | 126 | 123 | 99.5 |
| B | 39.5 | 24.5 | 26.5 | 36.5 | 39.5 | 37.5 | 42.5 | |
| MSV86321 | A | 66 | 71 | 85 | 88.5 | 86 | 83 | 59.5 |
| B | 39.5 | 24.5 | 26.5 | 36.5 | 39.5 | 37.5 | 42.5 |
