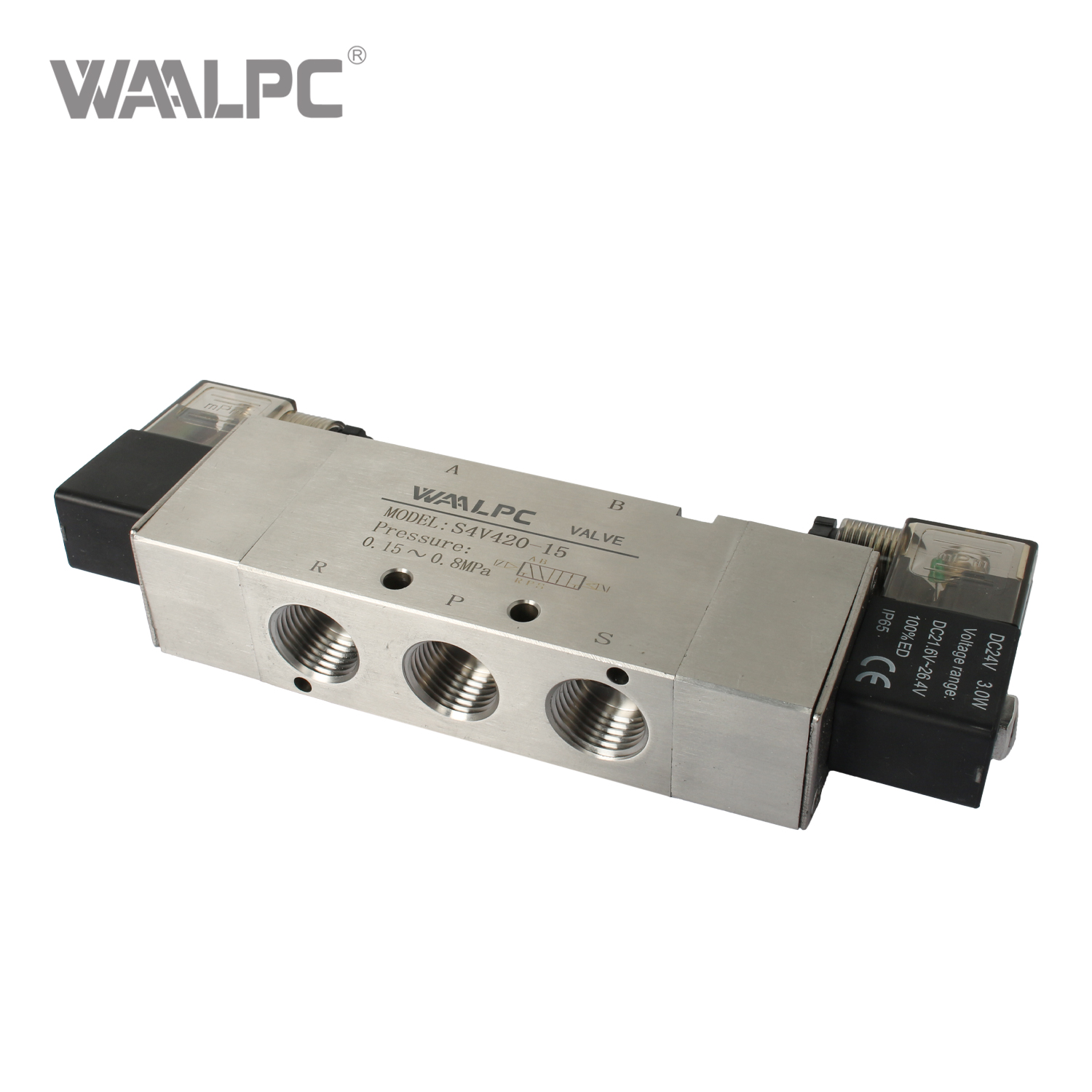

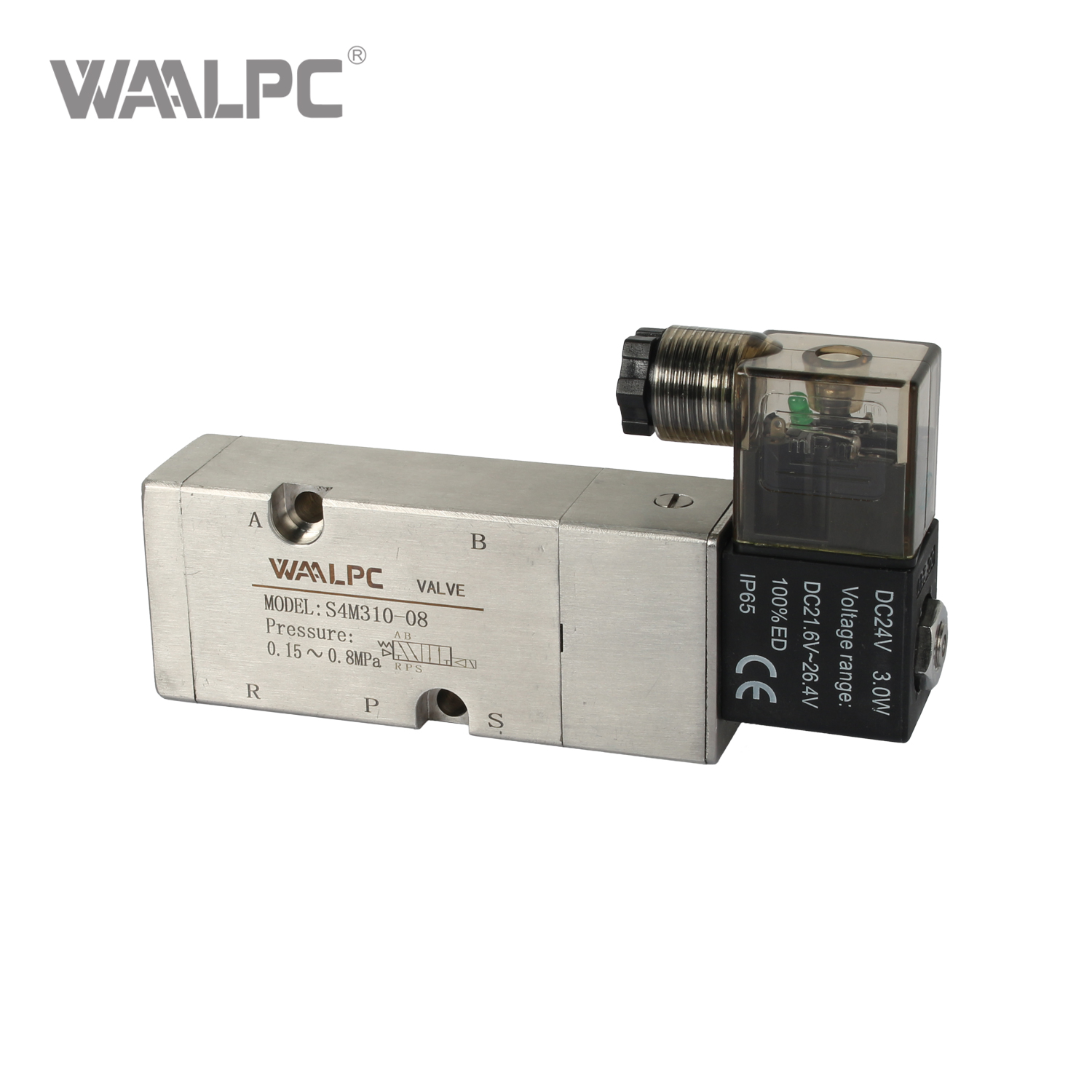

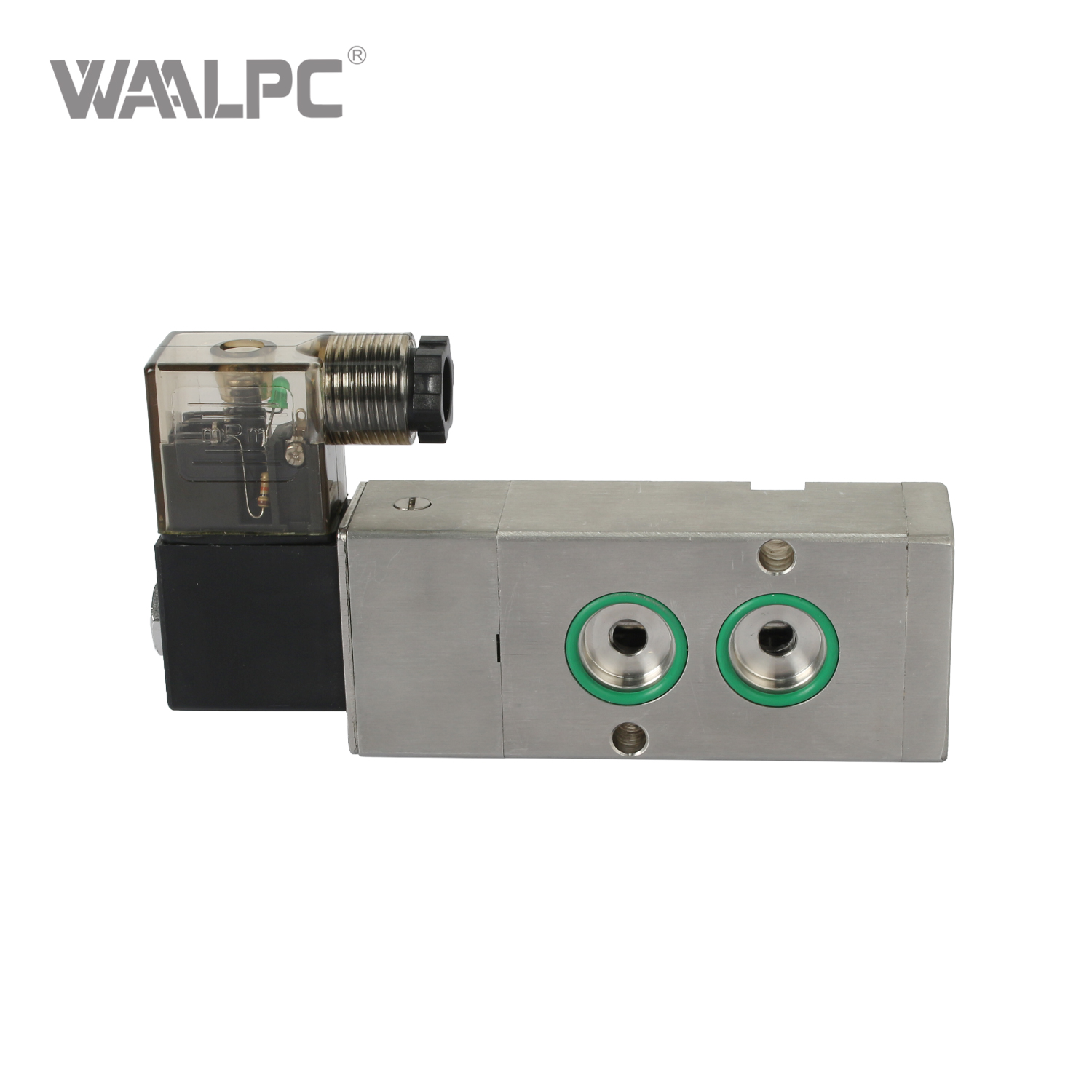

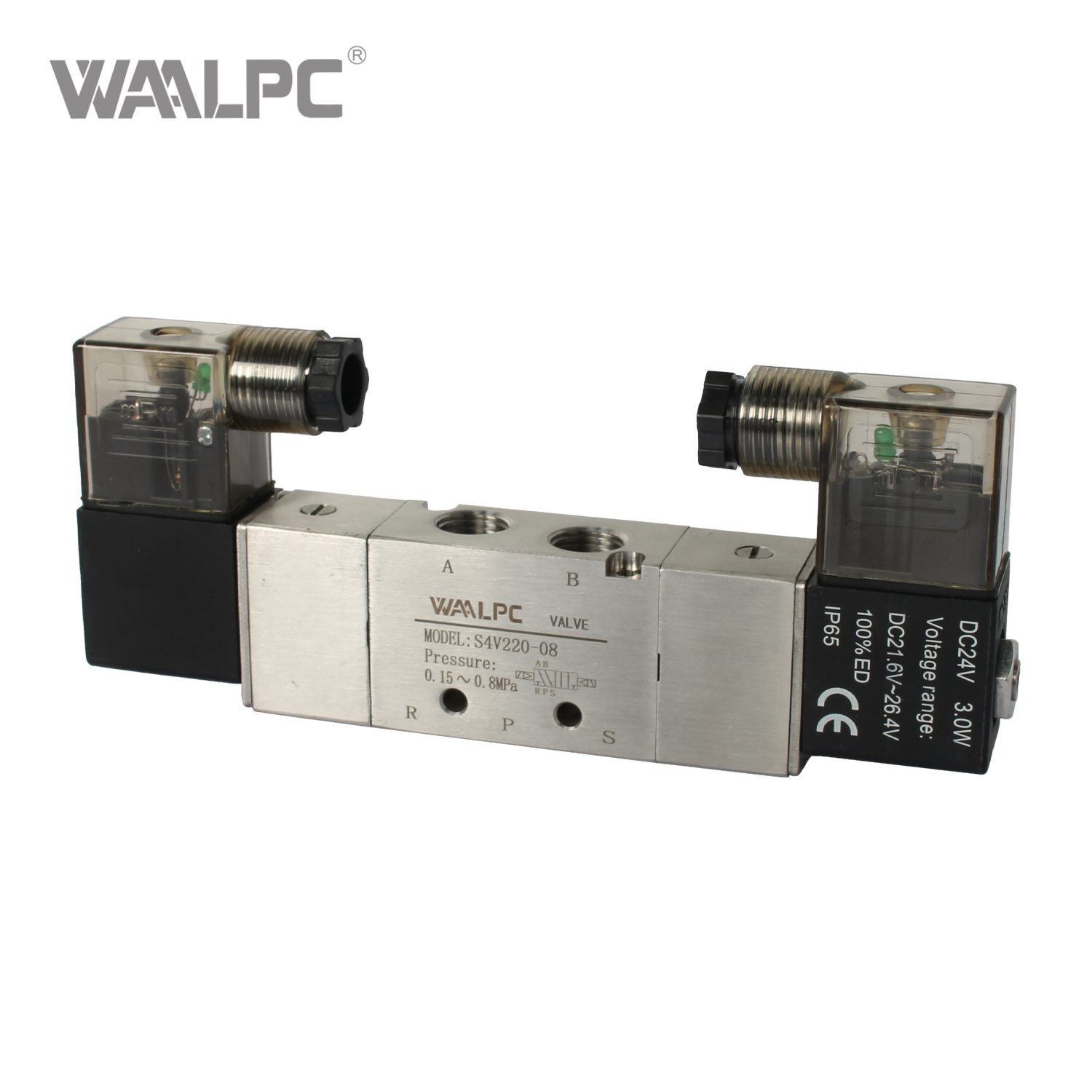

Full Stainless Steel Construction: Body, core tube, and internal core components are made of corrosion-resistant stainless steel (304 or 316), ensuring excellent durability and hygiene.
Exceptional Reliability: Robust design provides consistent performance and long operational life, even with frequent cycling.
Wide Media & Industry Compatibility: Safely handles compressed air, water, light oils, steam, and certain chemicals. Ideal for food & beverage, pharmaceutical, chemical processing, marine, irrigation, and outdoor industrial applications.
Multiple Options: Choose from a range of standard voltages (AC/DC), port sizes (e.g., 1/4", 3/8", 1/2"), and functions (Normally Closed, Normally Open, Universal).
Compact & Efficient Design: Saves space and offers fast response times for efficient system control.
DATA SHEET

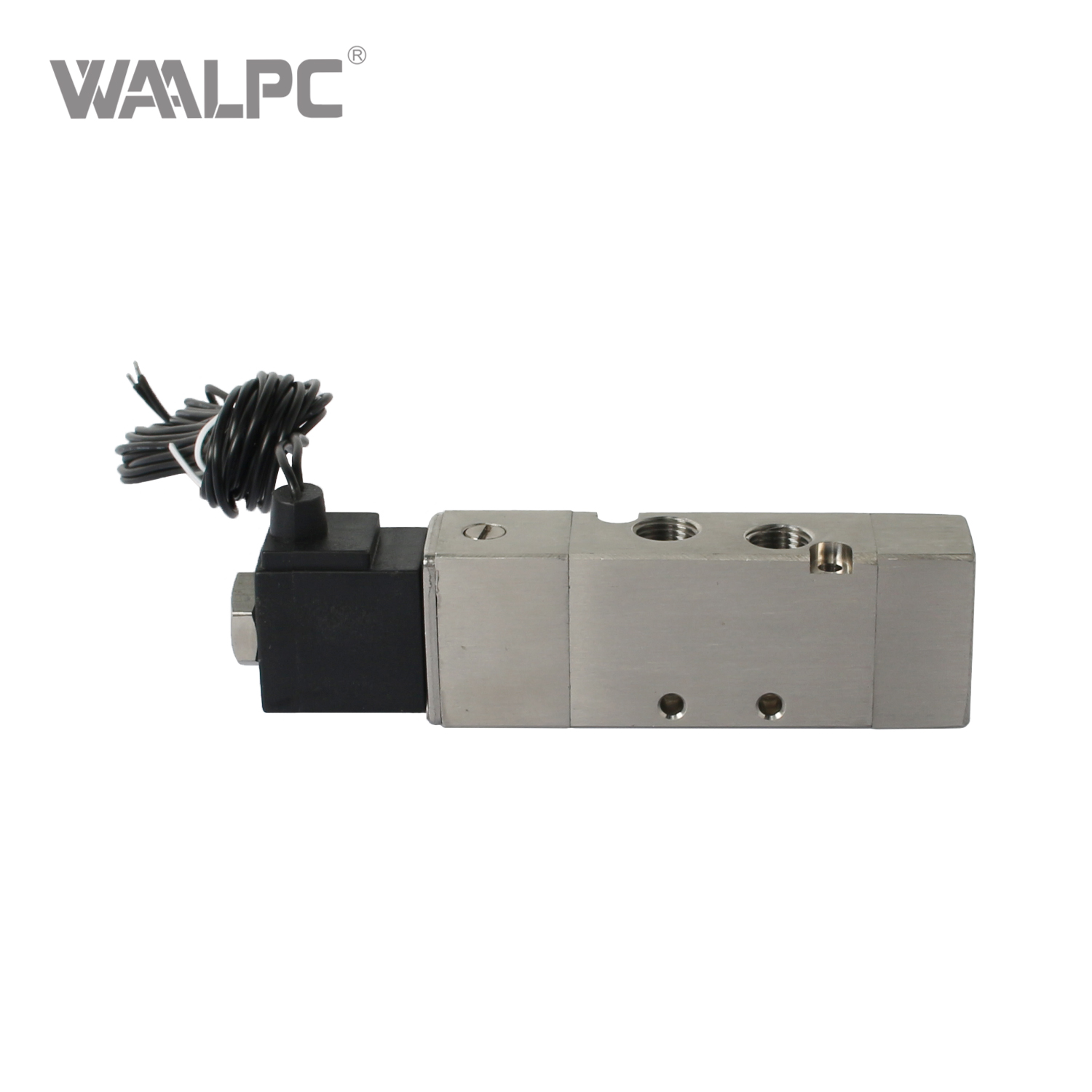

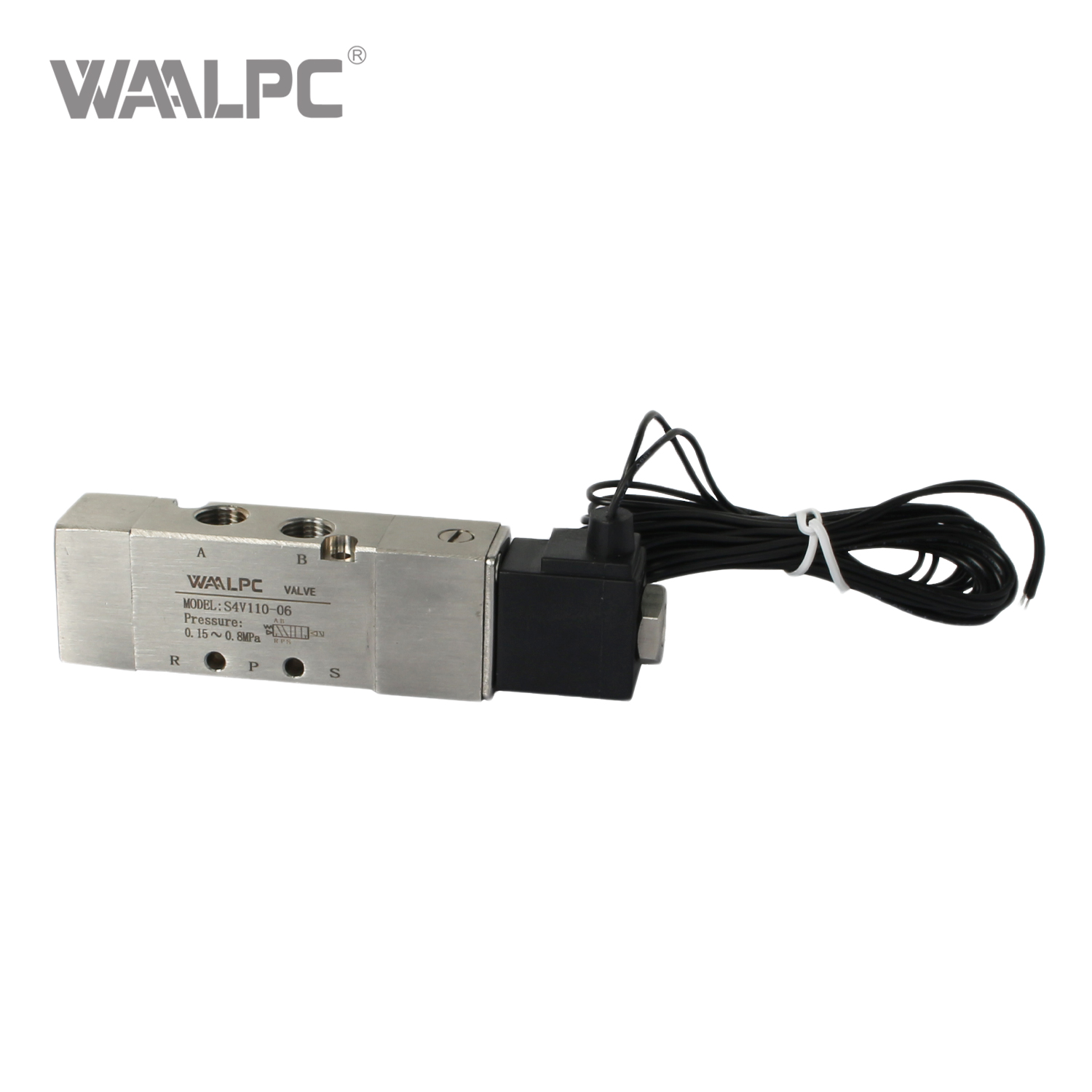

Model | S4V110-06 S4V120-06 | S4V130C-06 S4V130E-06 S4V130P-06 |
Fluid | Air(to be filtered by 40um filter element) | |
Acting | Internal pilot or external pilot | |
Port size [Note1] | In=Out=G1/8 | |
Orifice size(Cv) [Note4] | S4V110-06, S4V120-06: 10.2mm2(Cv=0.6) S4V130C-06: 8.6mm2(Cv=0.51) | |
Valve type | 5 port 2 position | 5 port 3 position |
Operating pressure | 0.15~0.8MPa(21~114psi) | |
| Proof pressure | 1.2MPa(175psi) | |
Temperature | -20~70°℃ | |
Material of body | Stainless steel | |
Lubrication [Note2] | Not required | |
| Max.frequency [Note3] | 5 cycle/sec | 3 cycle/sec |
[Note1]PT thread, G thread and NPT thread are available
[Note2]Once lubricated air is used,continue with same medium to optimise valve life span. Lubricants like ISO VG32 or equivalent are recommended
[Note3]Equivalent orifice Sand Cv are all calculated from the flow rate data

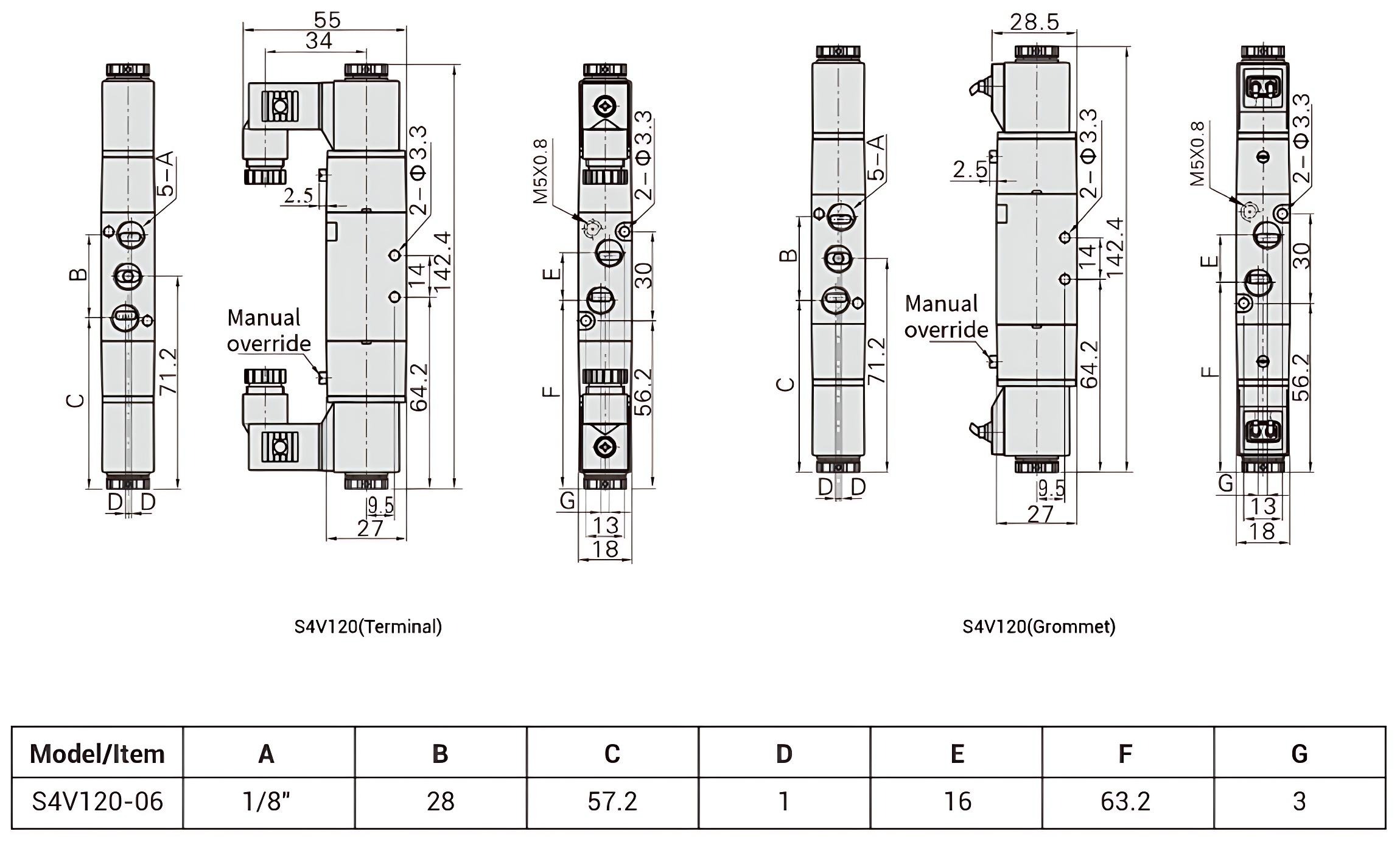

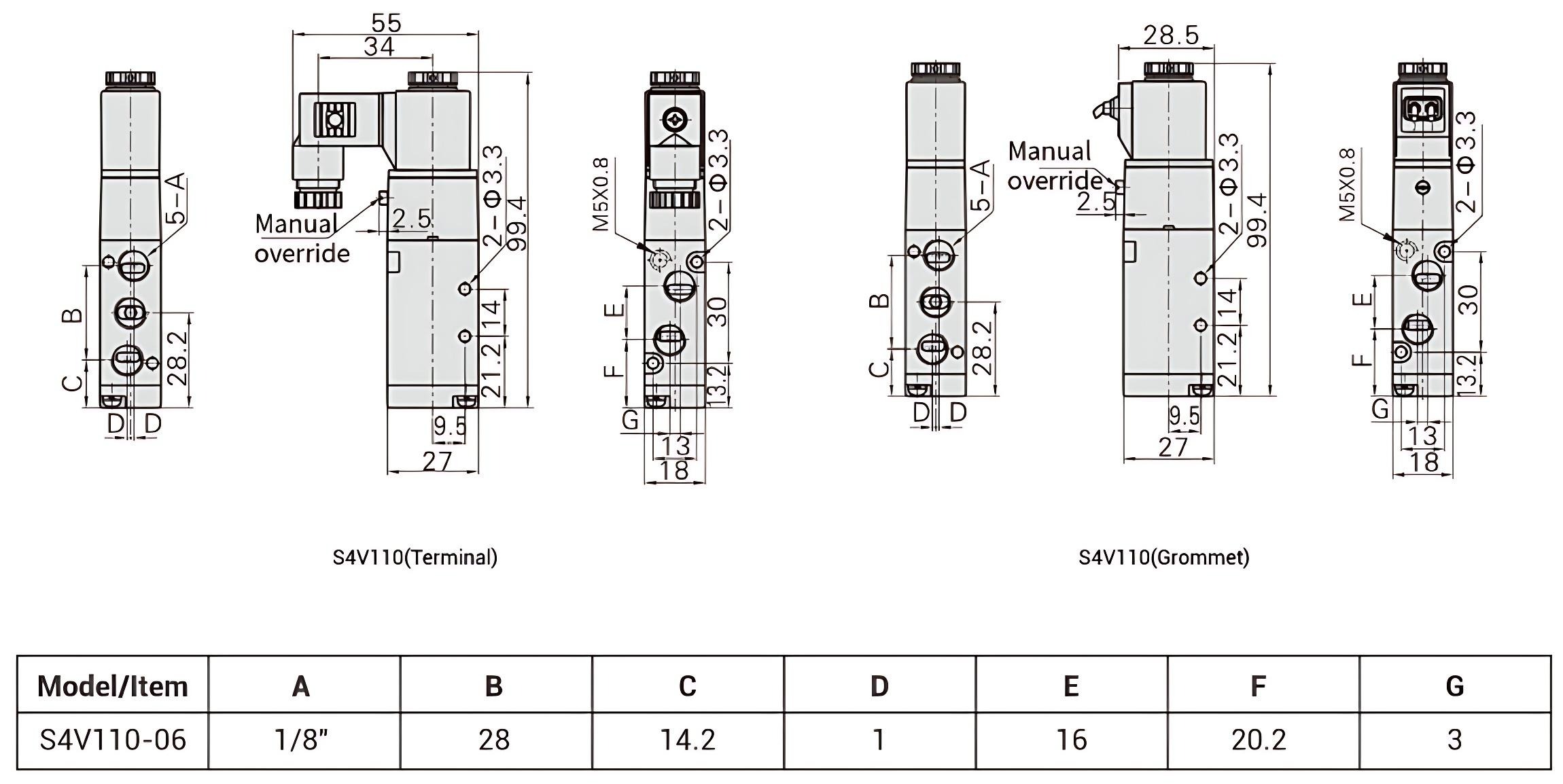

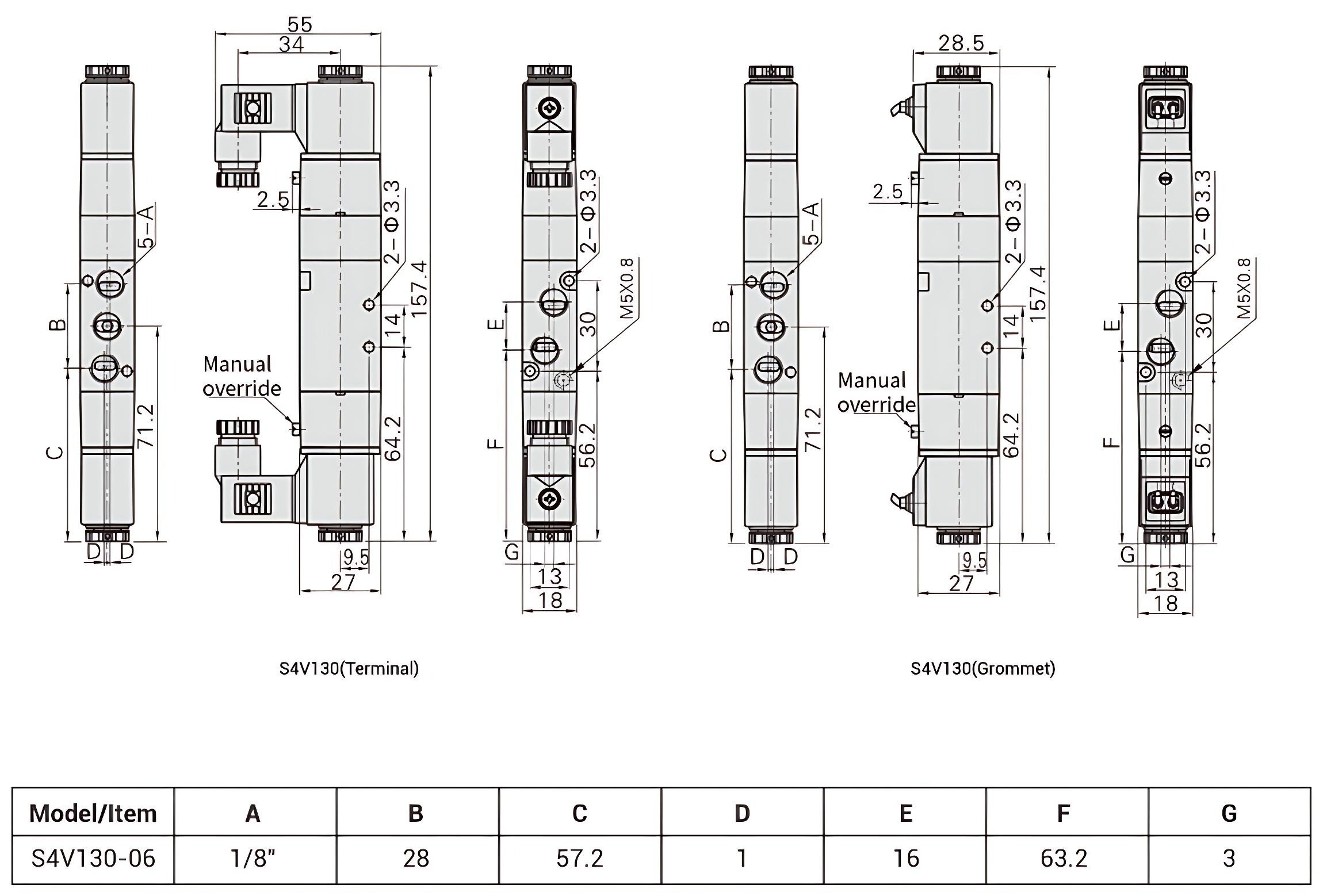

STRUCTURE&DIMENSION(MM)
