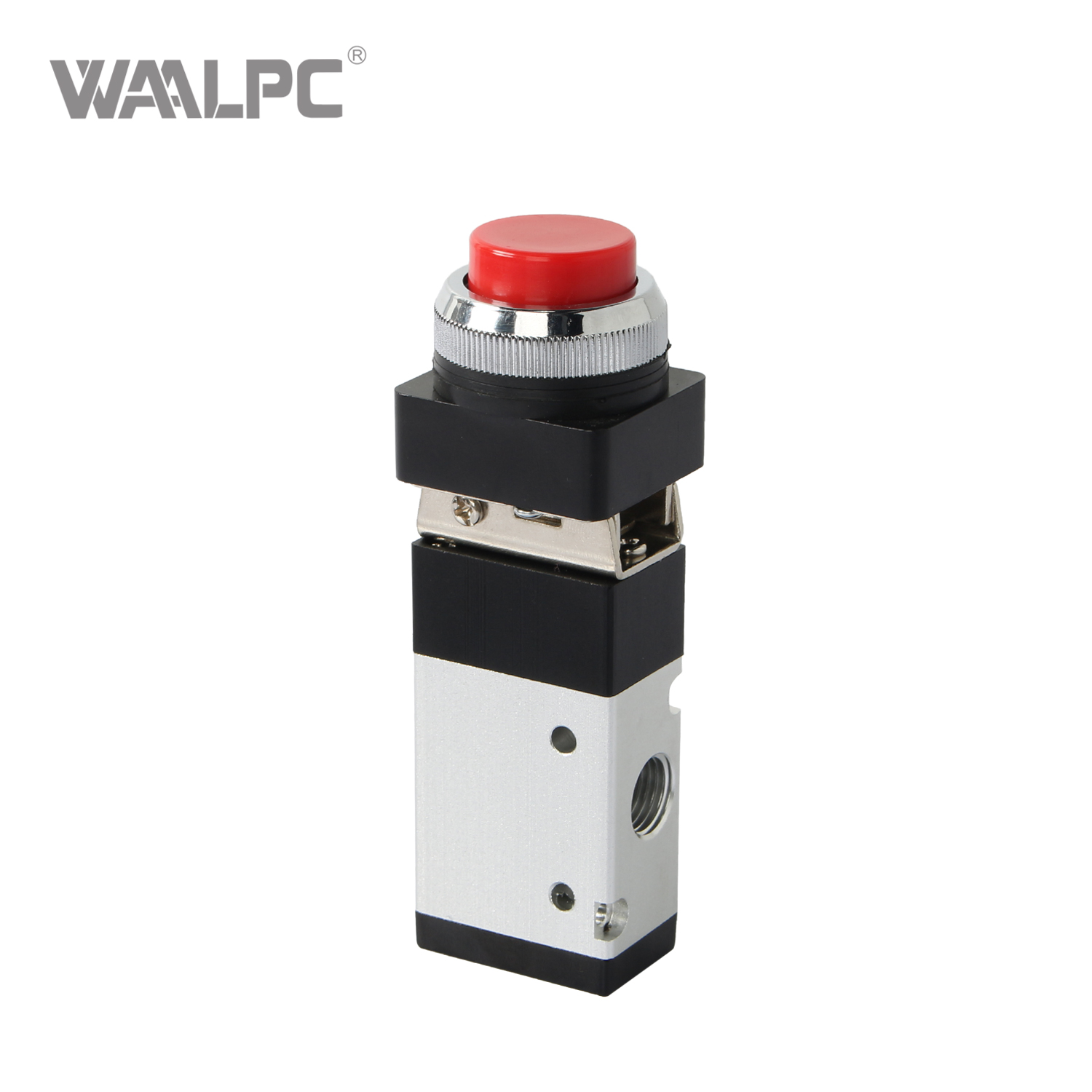

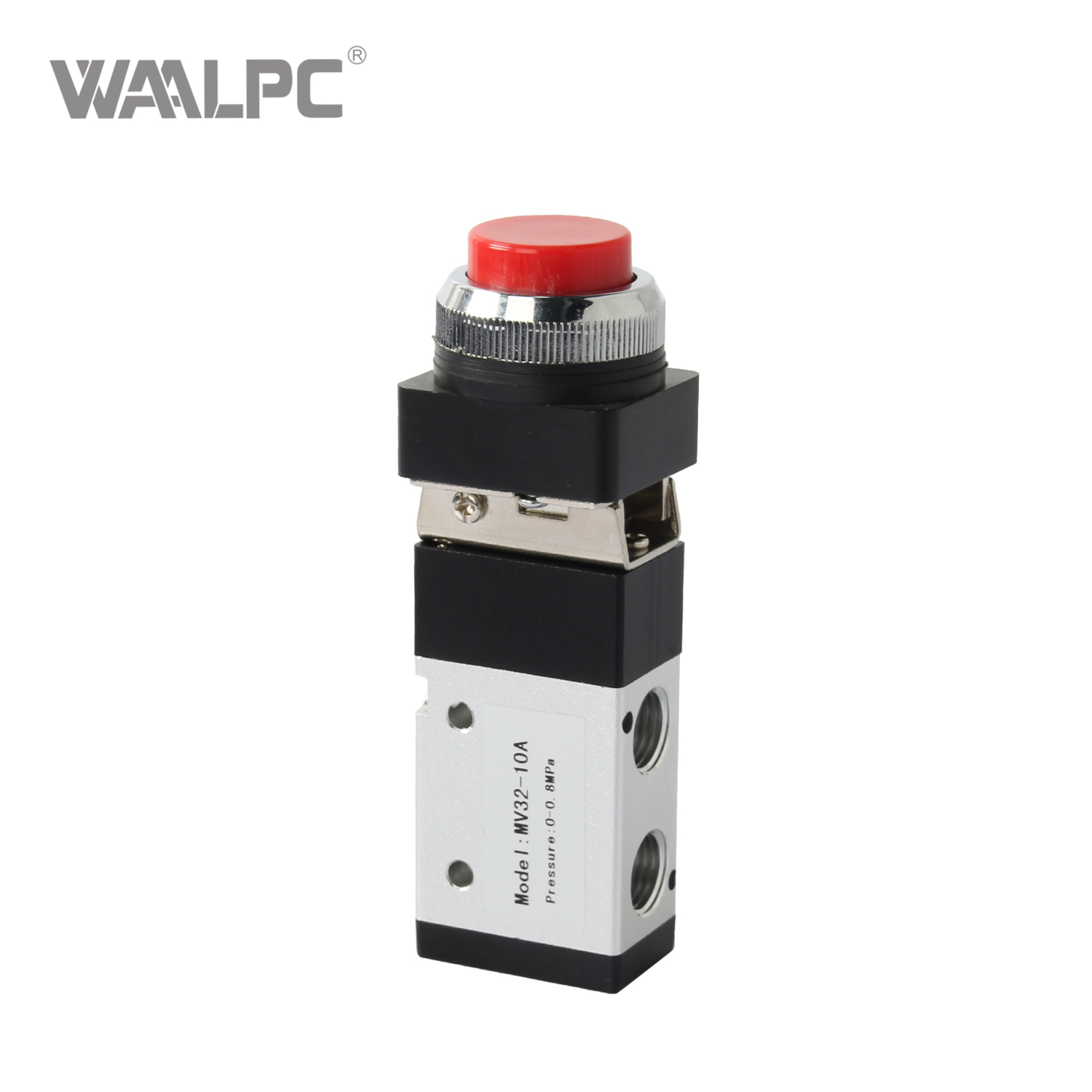

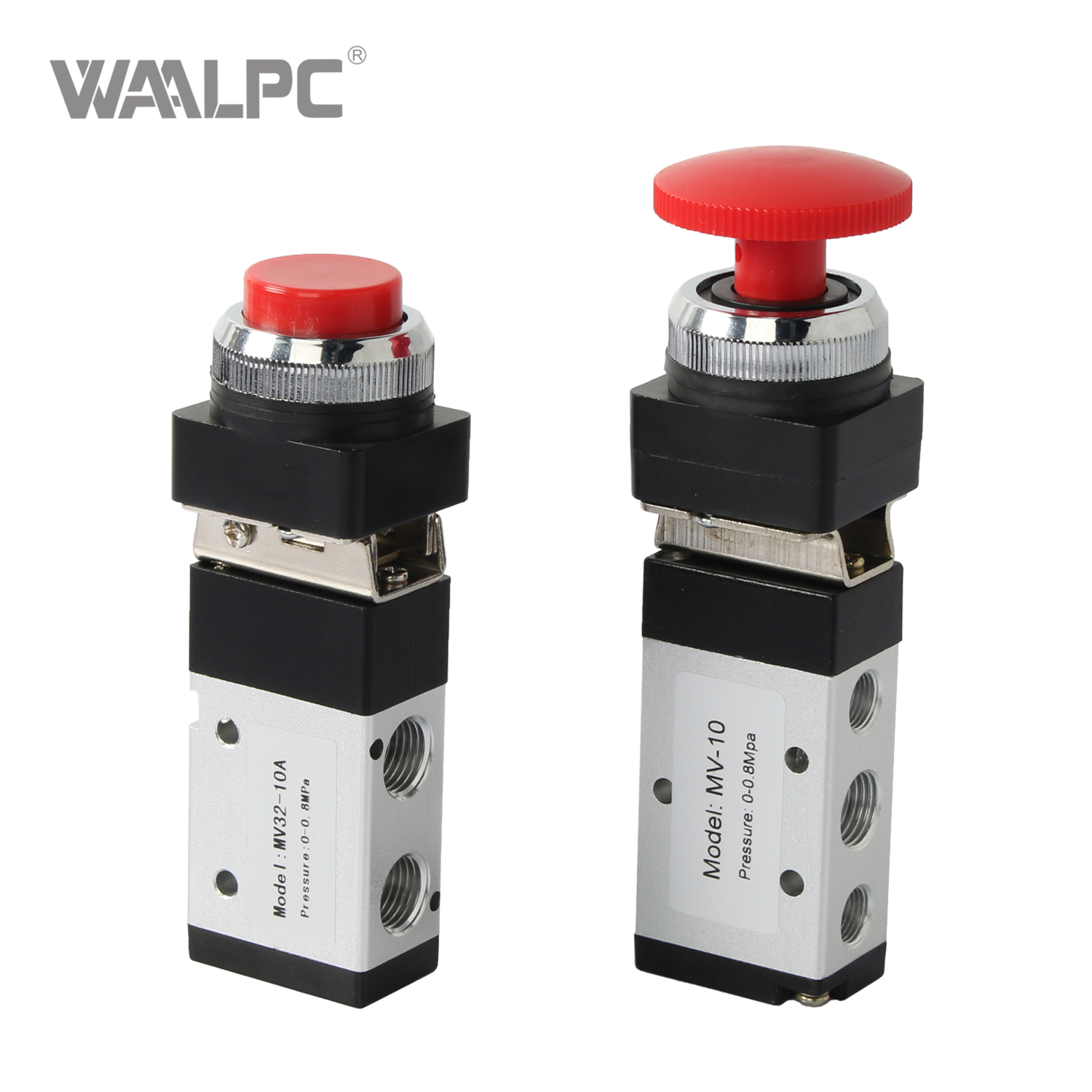

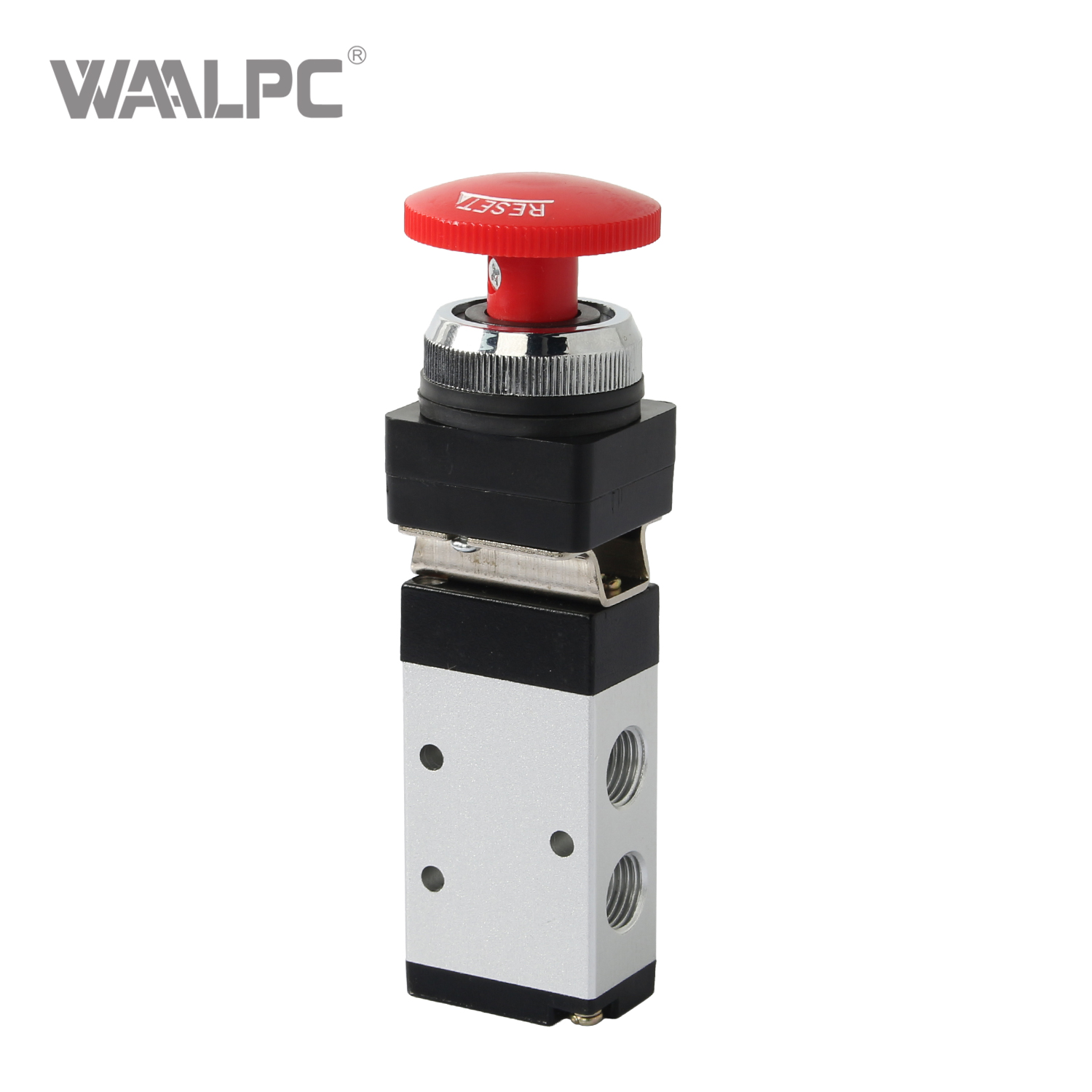

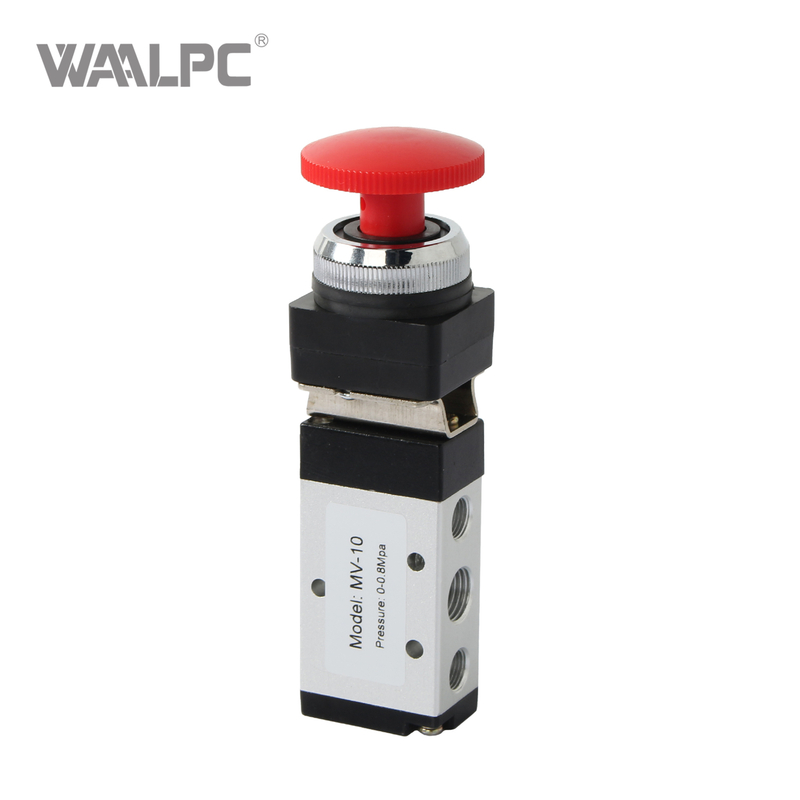

MV-08 Pneumatic Mechanical Valve


Availability:

Quantity:



Inquiry Add to Basket

The MV series is a durable and versatile 2-position, 3-port manual pneumatic valve designed for precise airflow control in various industrial applications. It operates by rotating the manual switch to reliably direct compressed air in automation equipment, manufacturing machinery, and pneumatic control systems.

Model:
MV
Brand:
WAALPC
Code:
8481804090

Product Description

Robust & Lightweight: Constructed with an aluminum alloy body for strength and corrosion resistance, weighing only about 0.5 kg .
Reliable Sealing: Features NBR (Nitrile Rubber) seals that provide excellent sealing and flexible reversing, requiring no lubrication.
Easy Integration: Standard G1/4 port size allows for straightforward installation and connection to most pneumatic setups.
Durable Operation: Surface oxidation treatment enhances durability, making it suitable for demanding environments.

Technical Parameters

ORDERING CODE

MV ordering

SPECIFICATION

Model		MV-08	MV-09	MV-10	MV-10A
Working Medium		Compressed air
Max.Use Pressure		0~8.0kgf/cm²
Pipe Caliber		G1/4
Operating Temperature		0~70°℃
Number of Places		2/3 way
Main Accessories Material	Ontology	Aluminum alloy
	SealingRing	NBR

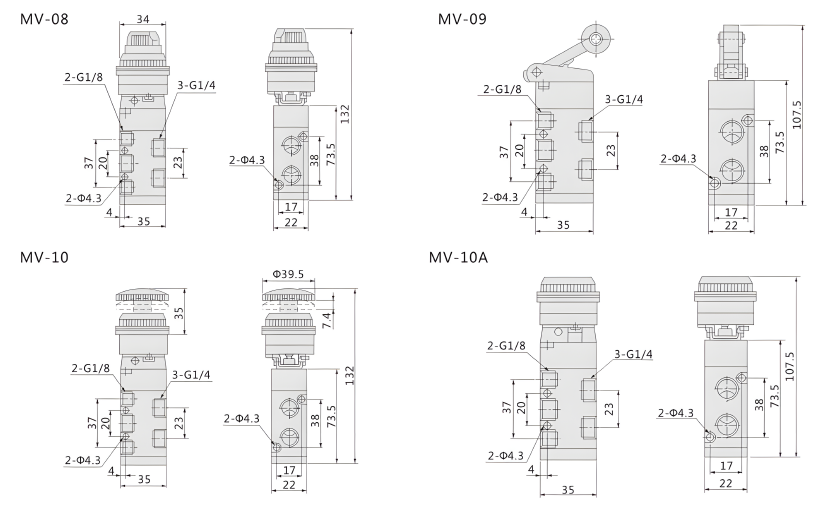

OVERALLDIMENSION&STRUCTURE

MV mechanical valve

Specification Download

MV Series Mechanical Valve.png
