OPT Series Automatic Drain Valve | Electronic Drain Valve for Compressed Air Systems


Availability:

Quantity:



Inquiry Add to Basket

The OPT Series Electronic Automatic Drain Valve is designed for the automatic removal of condensed water, oil and other accumulated liquids from compressed air systems. It helps prevent moisture buildup and protects air compressors, air tanks, filters and other pneumatic components. With reliable automatic drainage and easy installation, the OPT Series is suitable for industrial compressed air and pneumatic applications.

Model:
OPT Drain Valve
Brand:
WAALPC
Code:
8481400000

Product Description

Automatic Condensate Removal – Automatically drains accumulated condensate without manual operation.
Reliable Electronic Control – Adjustable drain intervals help ensure efficient and consistent drainage.
Efficient & Convenient – Reduces manual maintenance and improves compressed-air system efficiency.
Wide Application – Suitable for air compressors, air receivers, filters, dryers and compressed-air pipelines.

Technical Parameters

ORDERING CODE

automatic drain valve

SPECIFICATION

Model	OPT-A	OPT-B
Type	Two position two way direct drive type
Port Size	G1/2
Working Pressure	16bar
Environment Temperature	0~55℃
Max.Ambient Temperature	90℃
Material of Body	Brass
Insulation	H class
Protect Class	IP65
Voltage	AC220V/DC24V
Operating Voltage Tolerance	±10%
Weight(kg)	0.725	0.69

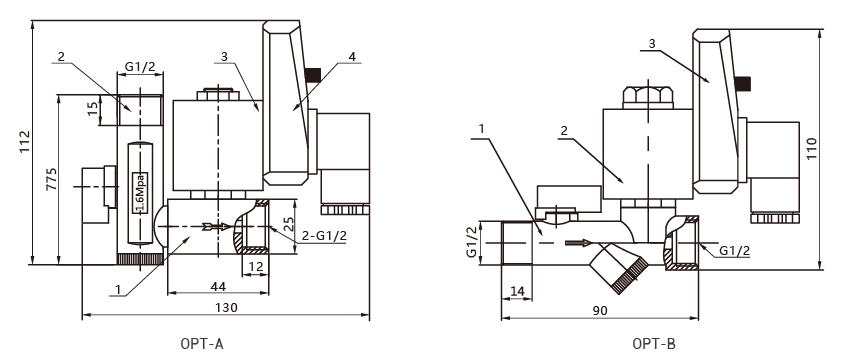

OVERALLDIMENSION&STRUCTURE

OPT automatic drain valve

Specification Download

OPT.pdf
