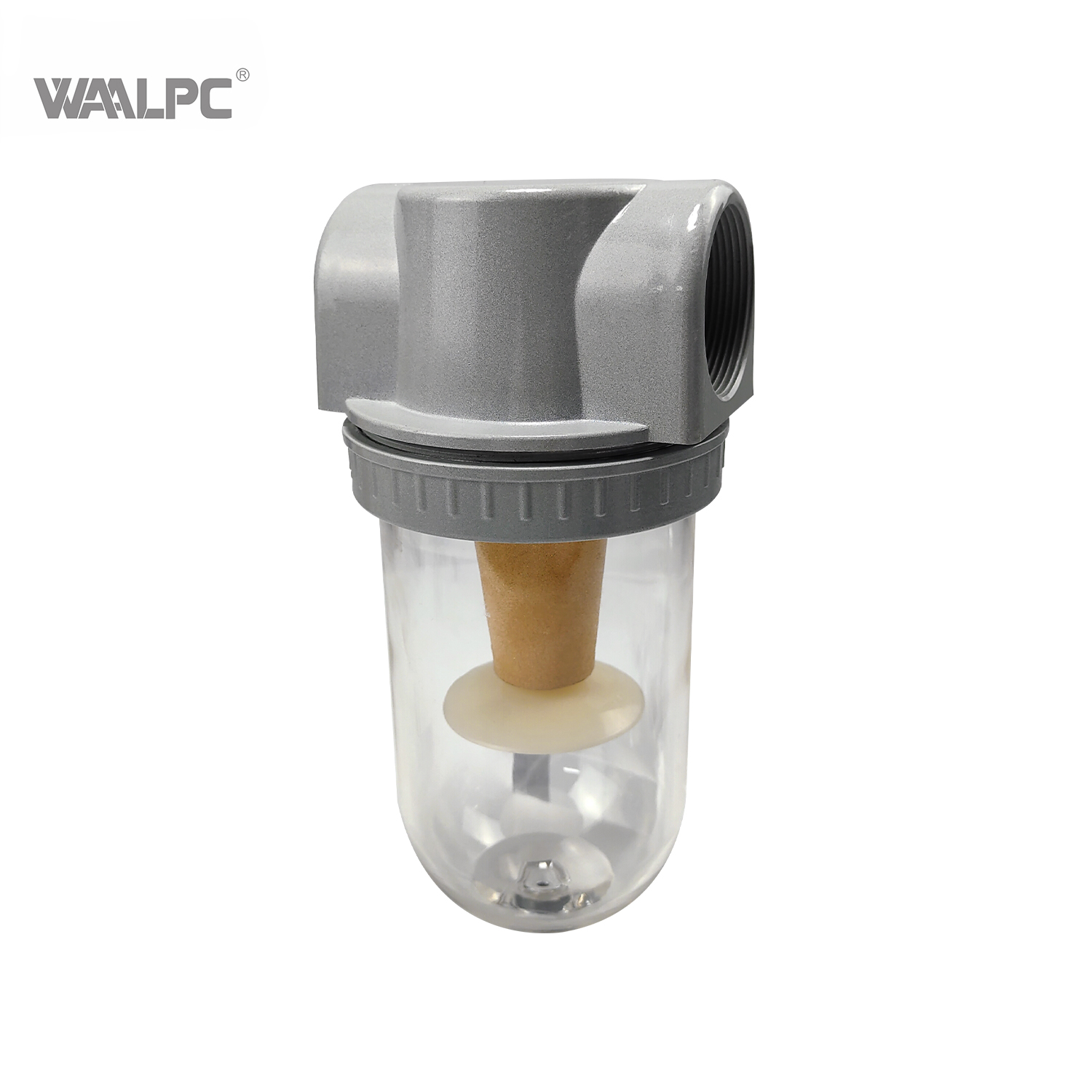

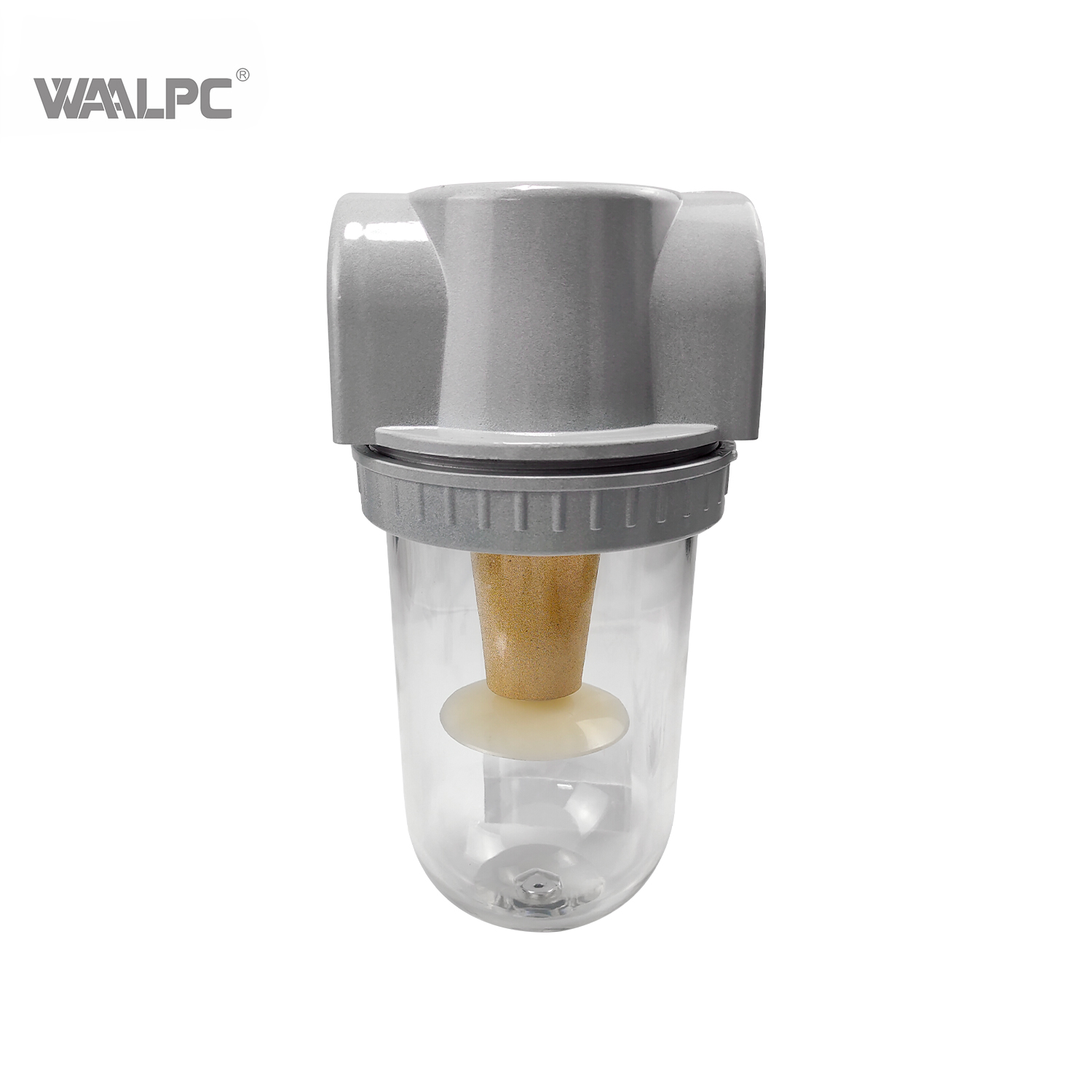

QSL Line Oil-Water Separator & Water Trap Filter QSL-08/10/15, 1/4

Oil-Water Separator & Water Trap Filter 1/4" 3/8" 1/2" Port Sizes Heavy-Duty Moisture/Oil Removal for Pneumatic/Compressed Air Systems


Size:	QSL-08 QSL-10 QSL-15
Availability:

Quantity:



Inquiry Add to Basket

The Oil Mist Lubricator QSL series is a precision-engineered component designed for efficient lubrication in pneumatic systems. It atomizes oil into fine droplets, ensuring optimal lubrication of air-driven tools, cylinders, valves, and actuators, while maintaining smooth operation and extending equipment lifespan.

Applications:
Pneumatic tools (grinders, drills, impact wrenches).
Automated production lines.
CNC machinery and robotic systems.
Industrial air compressors and actuators.

Model:
QSL-08
Brand:
WAALPC
Code:
8421299090

Product Description

The Oil Mist Lubricator QSL Series Advantages

The Oil Mist Lubricator QSL series

1. Precision Lubrication Control

Adjustable oil feed mechanism ensures optimal droplet size for consistent lubrication, reducing wear on pneumatic components.

2. High Efficiency & Energy Savings

Generates a fine, uniform oil mist for maximum coverage with minimal oil consumption, lowering operational costs.

3. Durable & Corrosion-Resistant Design

Constructed with robust materials (e.g., aluminum/stainless steel) for longevity in harsh industrial environments.

4. Easy Maintenance & Visibility

Transparent oil bowl allows quick visual inspection of oil levels, simplifying refills and reducing downtime.

5. Broad Compatibility

Works seamlessly with ISO-standard pneumatic oils (VG32, VG68) and synthetic lubricants for versatile applications.

6. Compact & Space-Saving

Streamlined design integrates easily into existing pneumatic systems without requiring additional space.

7. Reduced Downtime

Extends equipment lifespan by preventing dry operation and minimizing friction-related failures.

The Oil Mist Lubricator QSL Series Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Type name	Air Filter
Model	QSL-08	QSL-10	QSL-15	QSL-20	QSL-25	QSL-35	QSL-40	QSL-50
Port Size (G)	1/4	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Working medium	Air
Working Pressure	0~1.0Mpa
Operating temperature range	5~60℃
Material	Aluminium alloy+PC
Grade of Filtration	20~70um
WaterCup Capacity (ml)	400	400	400	700	700	700	700	700
Weight	700g	700g	700g	1400g	1400g	1700g	1700g	1700g

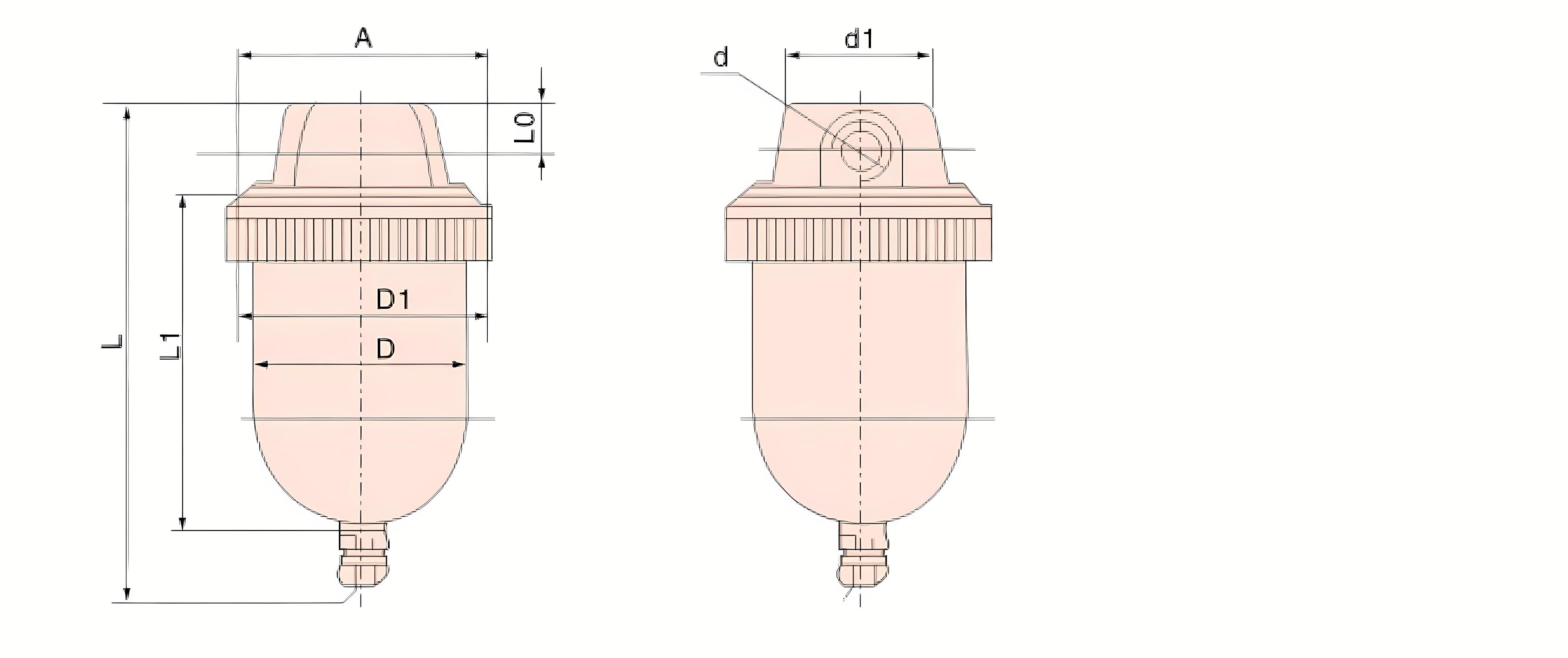

STRUCTURE

QSL filter

DIMENSION(MM)

Model	Port size	A	D	D1	L0	L1	L
QSL-08	1/4	90	70	88	15	114	160
QSL-10	3/8	90	70	88	15	114	160
QSL-15	1/2	90	70	88	15	114	160
QSL-20	3/4	115	90	110	23	151	234
QSL-25	1	115	90	110	23	151	234
QSL-35	1-1/4	130	90	130	34	228	305
QSL-40	1-1/2	130	90	130	34	228	305
QSL-50	2	130	90	130	34	228	305

Specification Download

High-flow QSL filter.pdf
