One-way Throttle Valve Pneumatic Air Flow Speed Control Valve KLA-25

Industrial One Way Restrictive Air Flow Control Valve Adjustable Flow Regulation for Pneumatic Applications

One-way Throttle Valve Pneumatic Air Flow Speed Control Valve KLA Series


Availability:

Quantity:



Inquiry Add to Basket

The One-Way Restrictive Air Flow Control Valve KLA Serie is engineered to meet the diverse needs of modern industrial systems, delivering unparalleled control over fluid flow in a single direction. Designed for seamless integration into pneumatic and hydraulic applications, these valves combine high - performance functionality with robust construction, ensuring reliable operation across a wide range of demanding environments.

Model:
KLA-25
Brand:
WAALPC
Code:
8481300000

Product Description

Adjustable Flow Control

The KLA series features a finely - tuned adjustment mechanism that allows for precise control of fluid flow rates. Whether you need to regulate the speed of a pneumatic cylinder or manage the flow in a hydraulic circuit, these valves enable smooth, accurate adjustments, reducing the risk of jerky movements or system inefficiencies.

One - Way Functionality

The built - in one - way design ensures that fluid flows freely in one direction while providing adjustable resistance in the opposite direction. This unique feature is ideal for applications where controlled deceleration or extension of actuators is required, preventing sudden drops in pressure or unwanted movement.

Technical Parameters

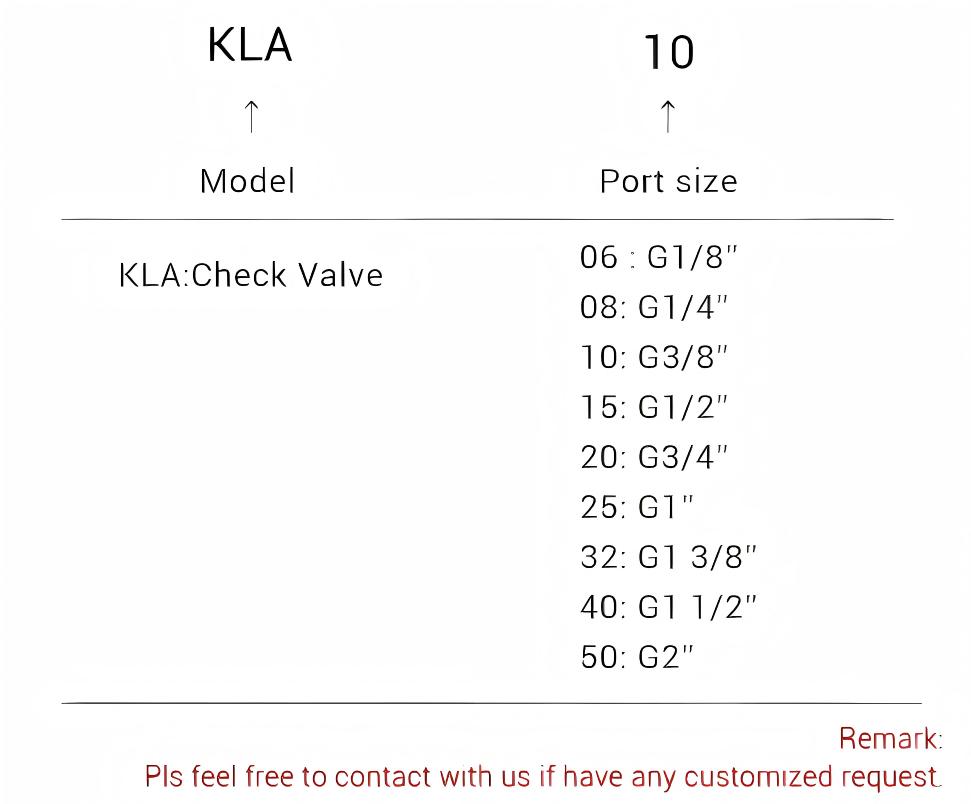

ORDERING CODE

One-Way Restrictive Air Flow Control Valve

DATA SHEET

Model		KLA-06	KLA-08	KLA-10	KLA-15
Working Medium		Air
Working-pressure Range		0.5~9.5Kgf/cm²
Ensured Pressure resistance		15.0Kgf/cm²
Operating Temperature Range		-5~60℃
Body of Material		Aluminum Alloy 6061-T6		Aluminum Alloy ADC-12
Signal pressure port size		PT(NPT)1/4		NPT1/4
Standard Rated Flow (L/min)	Check Valve	200	450	1250	1650
	One-way Valve	400	800	1500	2000

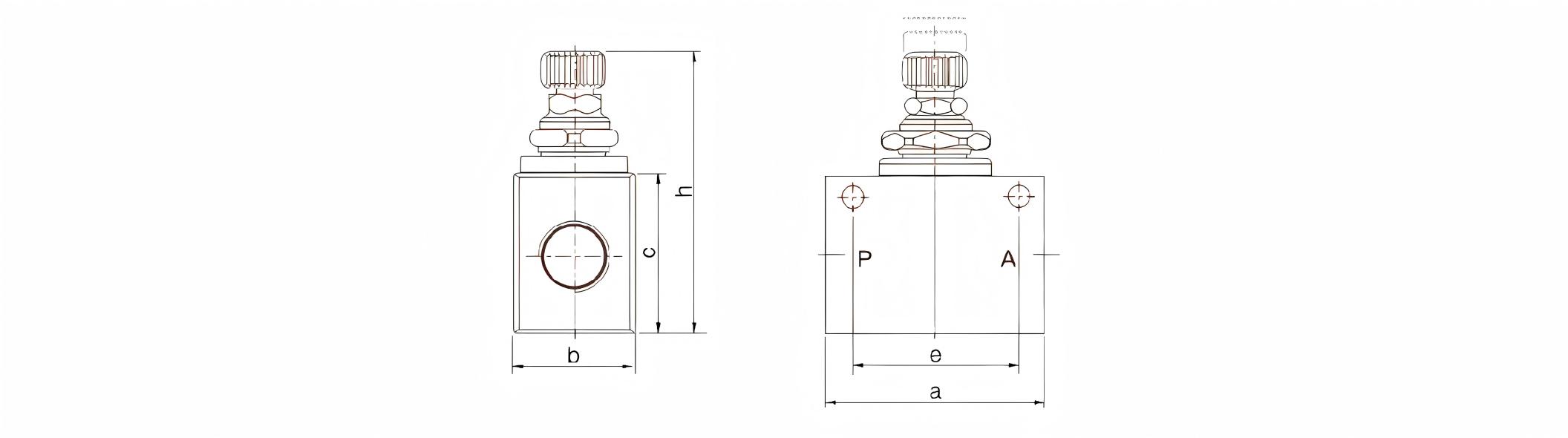

DIMENSION

One-Way Restrictive Air Flow Control Valve

Model	P(A)	a	b	c	e	f	g	h
KLA-06	G1/8	40	20	32	30	5.5	4	62~70
KLA-08	G1/4	40	20	32	30	5.5	4	62~70
KLA-10	G1 1/8	50	25	40	37	6	5	78~86
KLA-15	G1/2	60	28	50	45	7	7	88~98
KLA-20	G3/4	65	35	60	45	8	7	100~112
KLA-25	G1	65	45	60	45	7	7	100~112
KLA-32	G1 1/4	85	55	65	68	10	7	110~125
KLA-40	G1 1/2	95	65	75	82	7	7	125~140
KLA-50	G2	112	70	90	90	7	7	145~160

Specification Download

One-Way Restrictive Air Flow Control Valve.png
