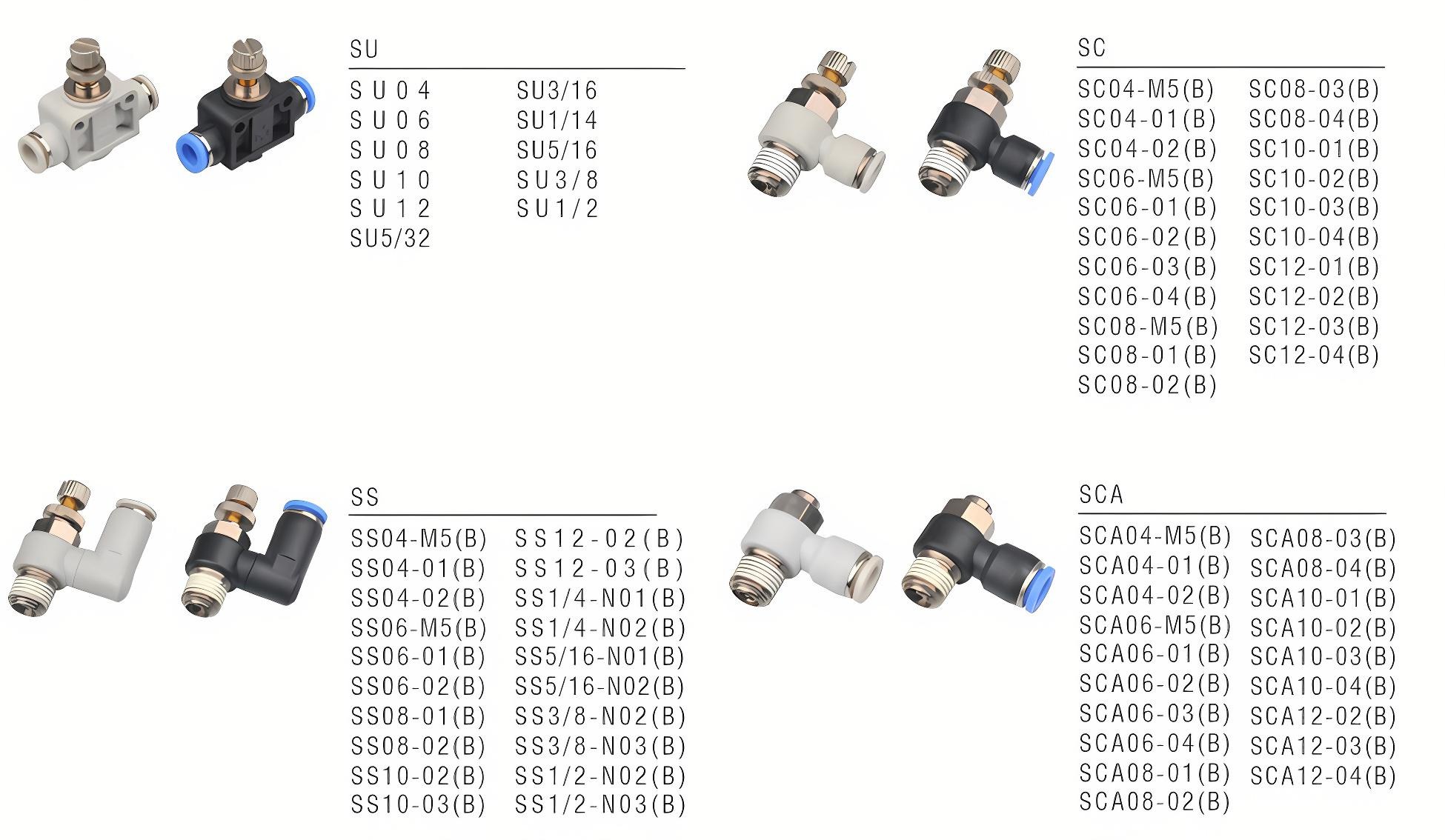

Pneumatic Throttle Valve Connector Hot Sale Professional High Quality, Suitable for Pneumatic Industry Thread


Size:	SU04 SC04-M5 SS04-M5 SCA04-M5
Availability:

Quantity:



Inquiry Add to Basket

The main function of pneumatic fittings is to connect pneumatic components to achieve quick connection and disconnection, thereby improving work efficiency;
Pneumatic fittings are used in various industrial automation equipment, mechanical equipment and process equipment widely . Used to turn compressed air on and off for pneumatic devices.

Model:
SU SC SS SCA
Brand:
WAALPC

Product Description

Product Advantages

Throttle valve connector

1.Used to control the operating spoed of the working equipment

2.Due to the resin body and metal body rotation,the lead to the direction is free

3.The design of a throttle valve can allow for a certain degree of air leakage in a fully sealed environment,so it should not be used in the situation where air leakage is not allowed

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

SPECIFICATIONS

Fluid	Air (No other gases or Liquids）
Operating Pressure Range	0~150Ps	0-9.9 Kgf/cm²(0-990KPa)
Pressure Resistance	7.5Psi	0.5 Kgf/cm²(50KPa)
Operaling Temperature Range	32~140°F	0-60℃
Applicable Tube	PU and Nylon

TUBE OUTER DIAMETER:MM

Metric Size
Code	4	5	6	7	8	9	10	11	12	13	14	15	16
TubeOuterDiameter:mm	Φ4	Φ5	Φ6	Φ7	Φ8	Φ9	Φ10	Φ11	Φ12	Φ13	Φ14	Φ15	Φ16

nch Sze
Code	5/32	3/16	1/4	5/16	3/8	1/2
TubeOulerDiameter:mm	Φ5/32	Φ3/16	Φ1/4	Φ5/16	Φ3/8	Φ1/2

Metric Size
Code	M5	M6	M8	M10	M12	M12A	M14	M16	M20
Thread Size	M5*0.8	M6*01	M8*1	M10*01	M12*1.25	M12*1.5	M14*1.5	H16*1.5	M20*1.5

nch Size	55°Taper Tube Sze					55*StraightTube Size
Code	01	02	03	04	06	G01	G02	G03	G04	G06
ThreadSize	R1/8	R1/4	R3/8	R1/2	R3/4	G1/8	G1/4	G3/8	G1/2	G3/4

AmericanSze	60Taper TubeSz8
Code	U10	N01	N02	N03	N04	N06
Thread Size	10-320NF	NPT1/8	NPT1/4	NPT3/8	NPT1/2	NPT3/4

PLASTIC QUICK FITTINGS

Throttle valve connector

Specification Download

Throttle Fitting.pdf
