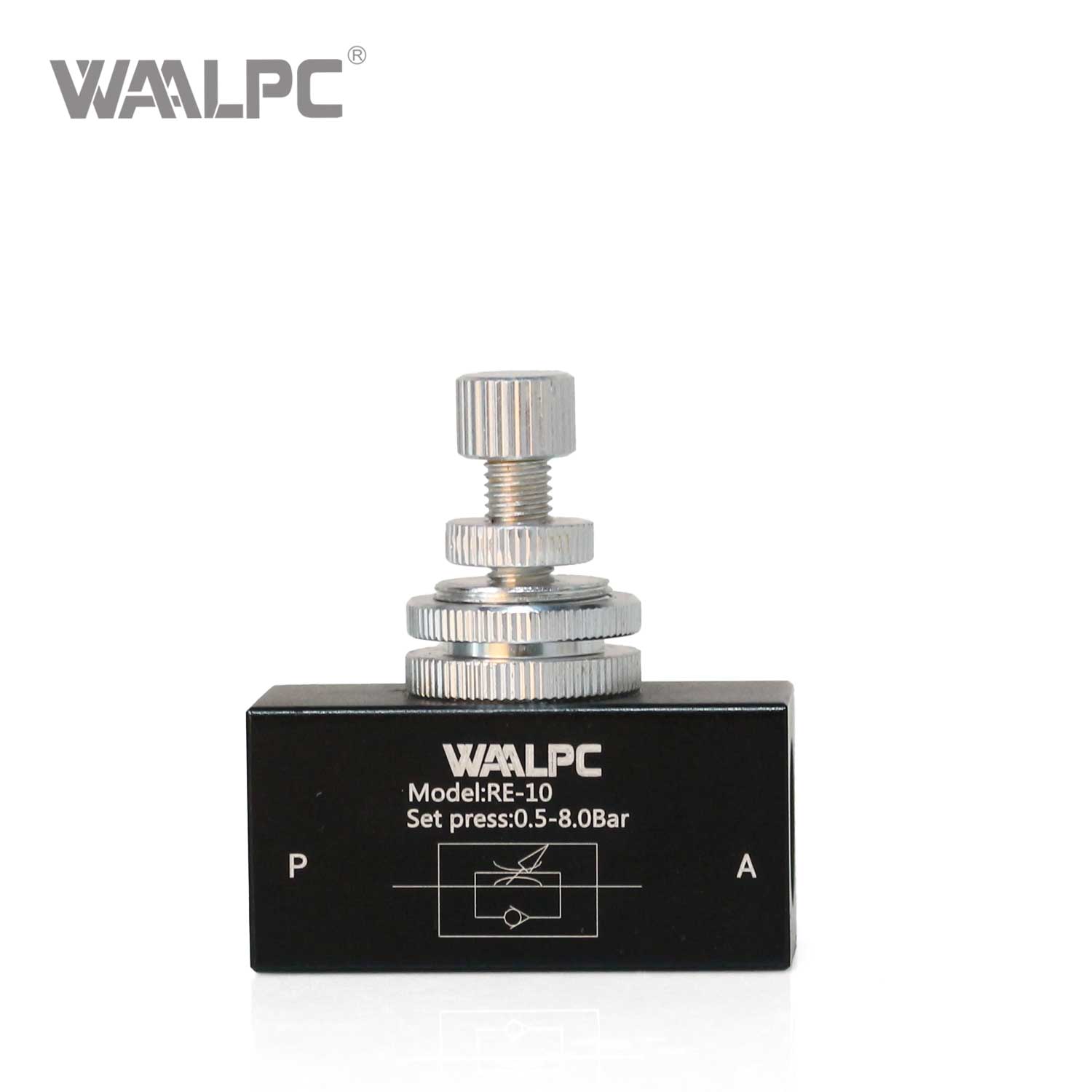

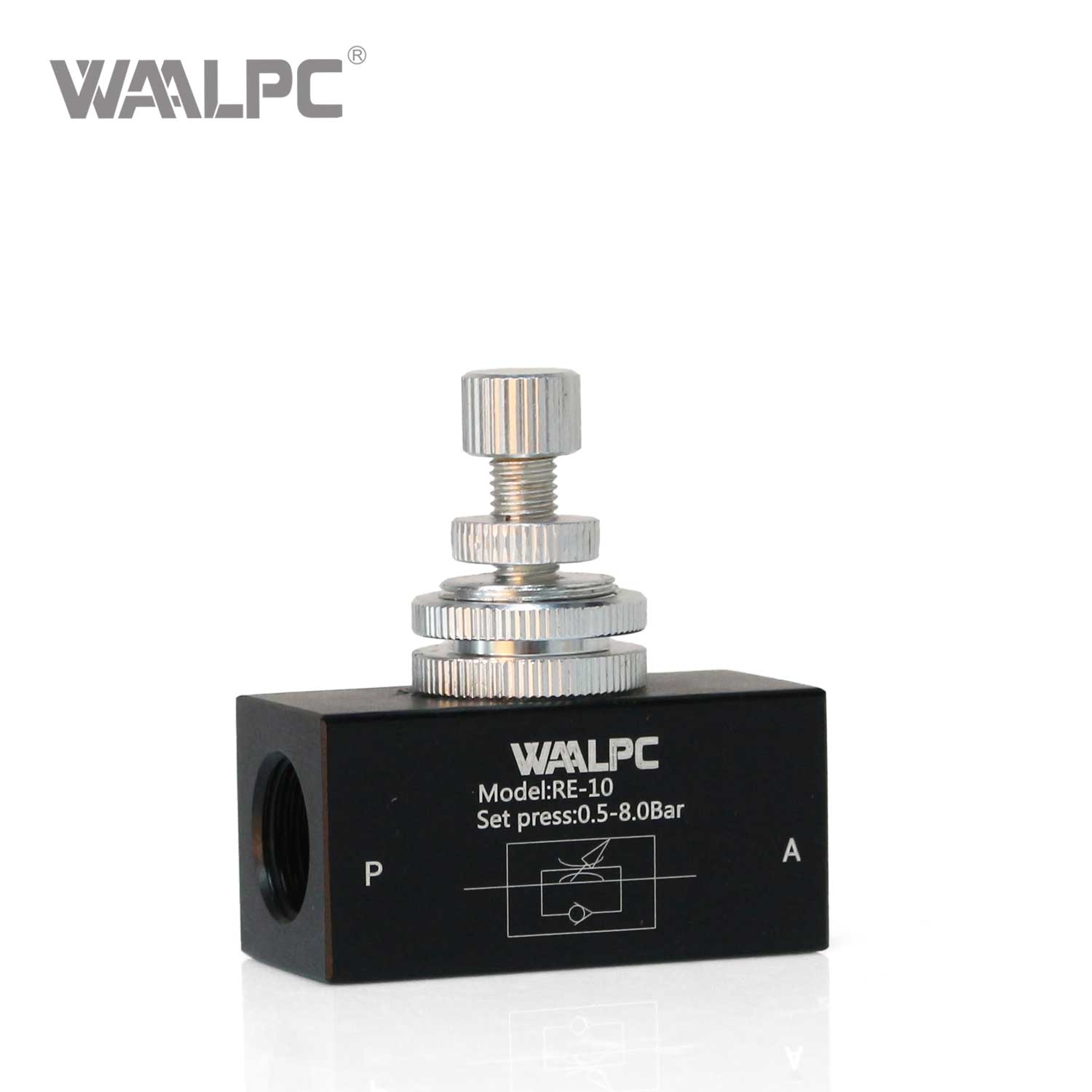

Precision Throttle Valve RE Series ±0.3% Accuracy G3/8'' Port Stainless Steel Body


Availability:

Quantity:



Inquiry Add to Basket

The RE Series One-Way Throttle Valve is a cutting-edge industrial solution designed to deliver precise and reliable flow control in pneumatic and hydraulic systems. Engineered with meticulous attention to detail, these valves allow fluid to flow freely in one direction while offering adjustable resistance in the reverse flow path, enabling users to fine-tune the speed, pressure, and performance of connected actuators and equipment. With a wide range of models available, the RE Series caters to diverse industrial needs, from high-precision automation processes to heavy-duty applications in challenging environments.

Model:
RE-10
Brand:
WAALPC
Code:
8481300000

Product Description

1. Precision Control

±0.3% flow accuracy ensures smooth actuator operation, eliminating jerky movements and boosting system efficiency.

2. Rugged Build

Constructed from corrosion-resistant aluminum alloy or stainless steel, with -30℃~90℃ temperature tolerance and 35MPa pressure resistance for reliable operation in harsh environments.

3. Customizable Solutions

Tailor body materials, ports, connections, and add features like gauges to meet specific industrial requirements.

Technical Parameters

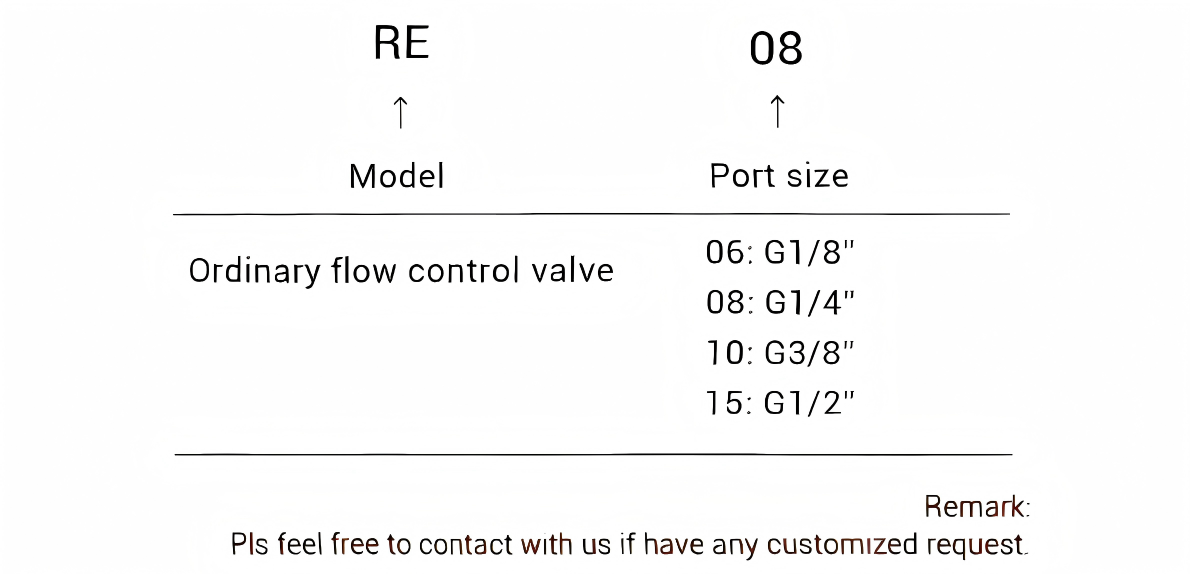

ORDERING CODE

DATA SHEET

Model	RE-06	RE-08	RE-10	RE-15
Port size	G1/8''	G1/4''	G3/8''	G1/2''
Working Medium	Air
Working-pressure Range	0~0.95MPa
Operating Temperature Range	0~60℃

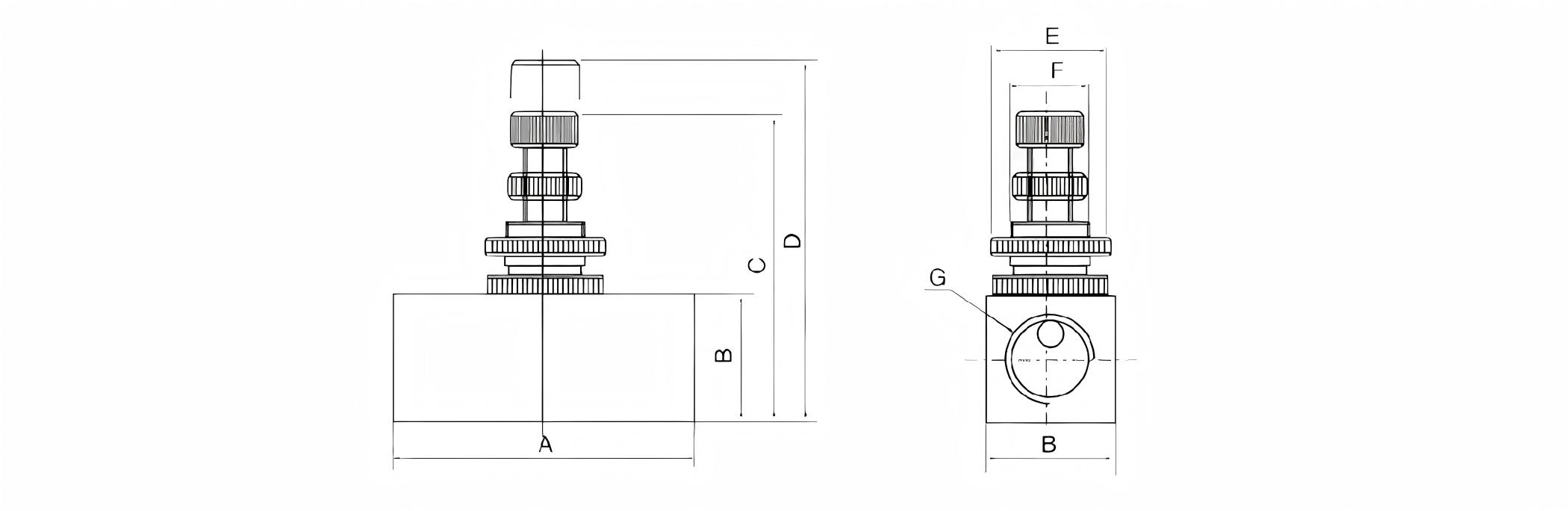

DIMENSION

RE One-way Throttle Valve

Model	A	B	C	D	E	F	G
RE-06	45	19	43	50	⌀19	M14X1	G1/8
RE-08	45	19	43	50	⌀19	M14X1	G1/4
RE-10	55	25	55	62	⌀25	M18X1	G3/8
RE-15	55	25	55	62	⌀25	M18X1	G1/2

Specification Download

RE One-way Throttle Valve.png
