PU225 Series 2/2 Way Brass Solenoid Valve | Normally Closed Solenoid Valve Manufacturer


Availability:

Quantity:



Inquiry Add to Basket

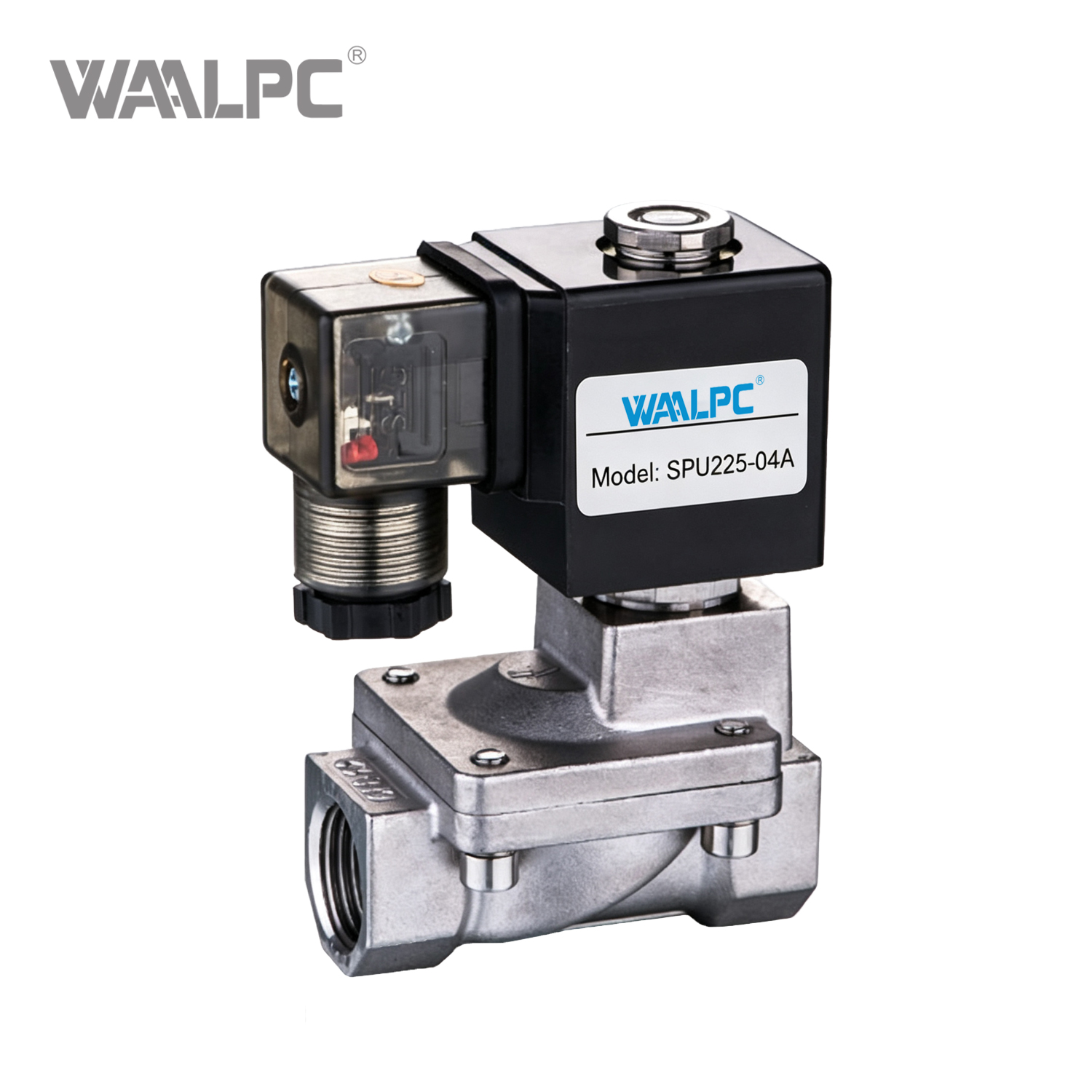

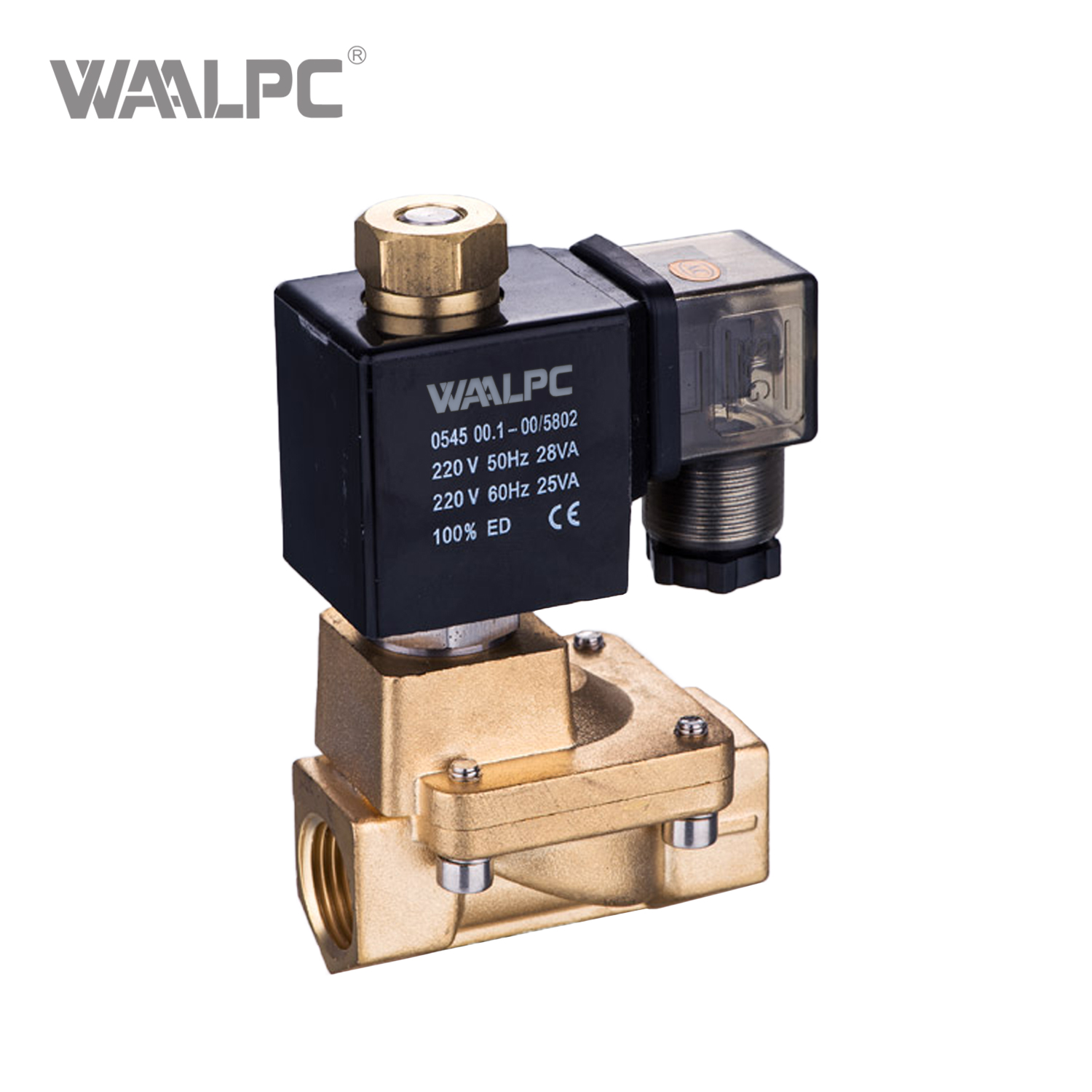

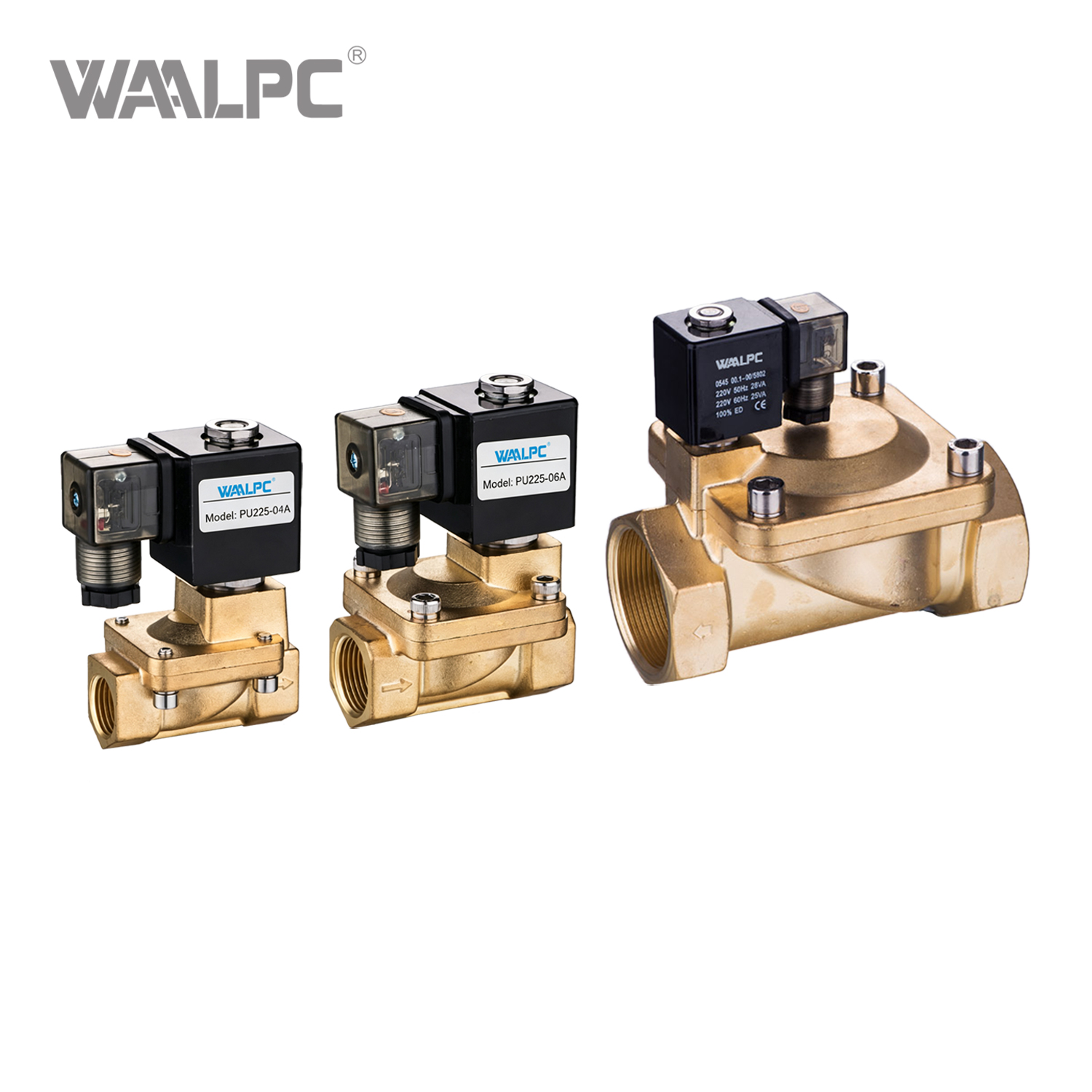

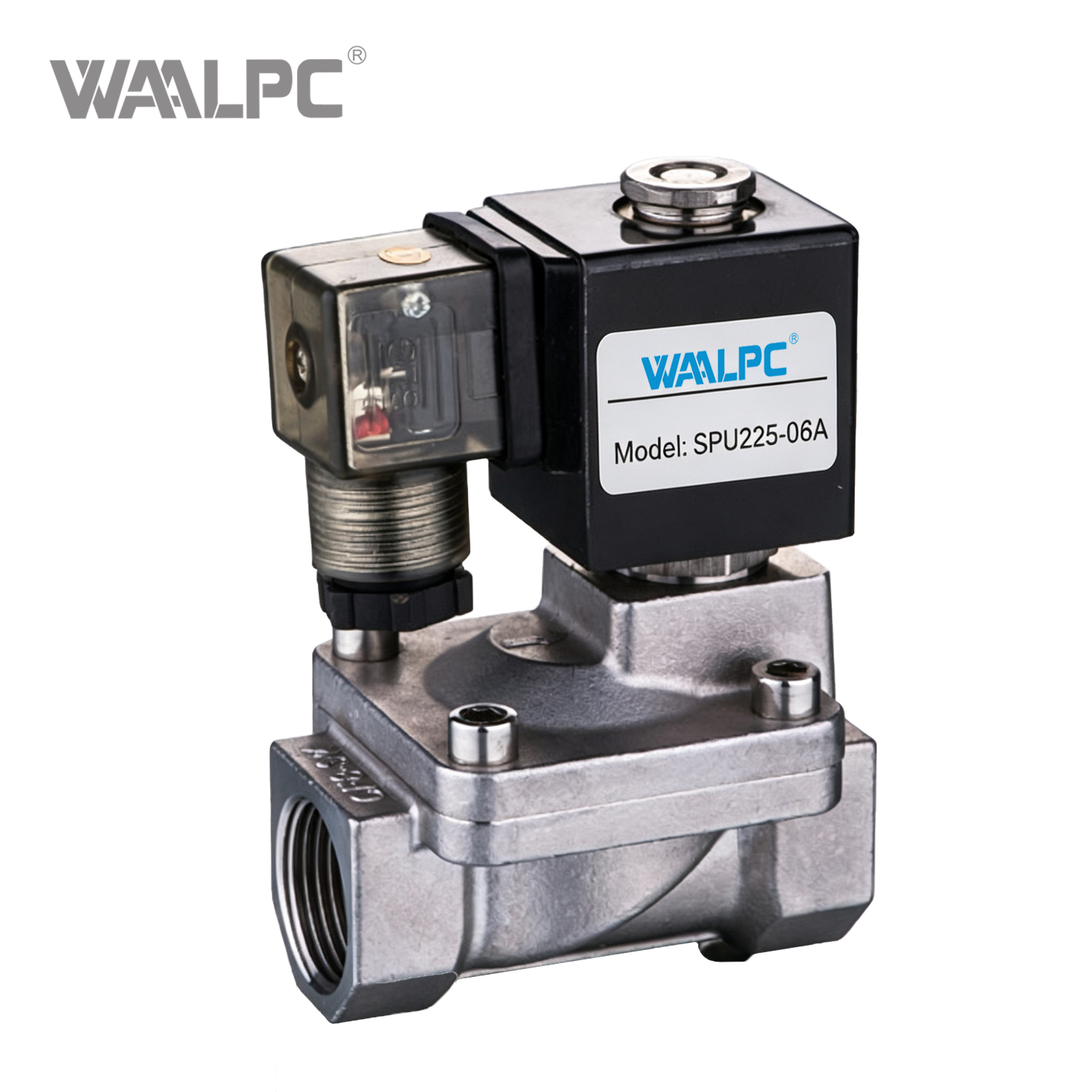

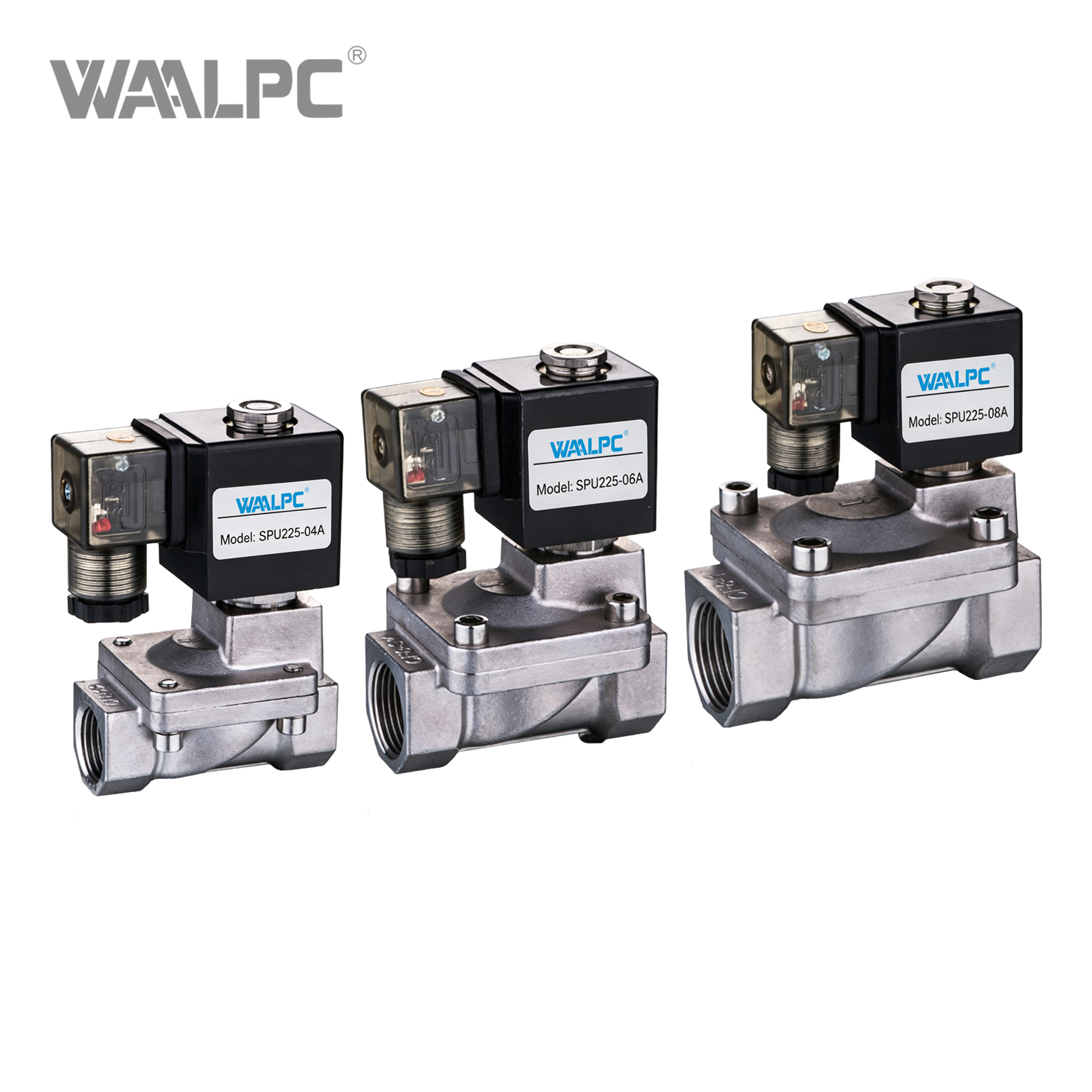

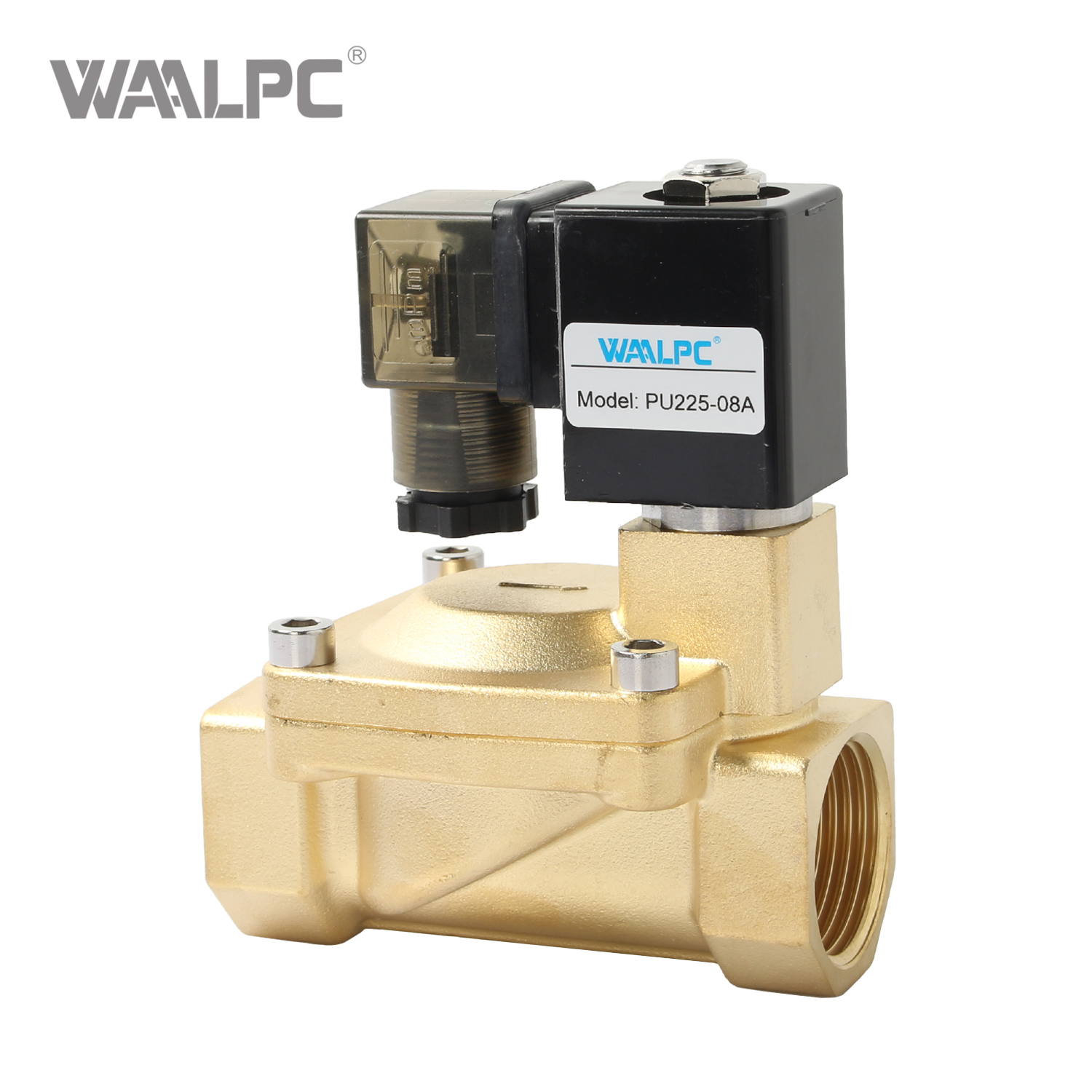

The PU225 Series Solenoid Valve is a compact 2/2-way brass valve designed for reliable on/off control of air, water, oil and other compatible media. It features a durable brass body, responsive solenoid operation and multiple port sizes for flexible installation. The PU225 Series is suitable for industrial automation, pneumatic systems, water control and general fluid control applications.

Model:
PU225
Brand:
WAALPC
Code:
8481804090

Product Description

Durable Brass Construction – High-quality brass body offers excellent durability for long-term industrial use.
Wide Application Range – Suitable for controlling air, water, oil and other compatible fluids.
Cost-Effective Solution – Competitive pricing makes it suitable for OEM equipment manufacturers, distributors and bulk purchasing.
OEM Support – Available for customized requirements and private-label applications.

Technical Parameters

ORDERING CODE

PU225 solenoid valve

SPECIFICATION

Model		PU225-03A	PU225-04A	PU225-06A	PU225-08A	PU225-12A	PU225-14A	PU225-20A
			SPU225-04A	SPU225-06A	SPU225-08A	SPU225-12A	SPU225-14A	SPU225-20A
Working Medium		Air/Water/Oil
Motion Pattern		Guide Type
Type		Normal Close Type
Aperture of Flow Rate(mm)		13	13	20	25	40	40	50
Cv Value		4.5	4.5	7.6	12	29	29	48
Joint Pipe Bore		3/8''	1/2''	3/4''	1''	1 1/4''	1 1/2''	2''
Material of Body		Brass or Stainlest Ssteel
Operation Fluid Viscosity		50 CST
Working Pressure		0.5~16(kgf/cm2)
Normal Open WorkingPressure		0.5~13(kgf/cm2				0.5~8(kgf/cm2)
Max.Pressure Resistance		20(kgf/cm2)
Temperature		-5~80℃
Weight(kg)	PU225	0.797	0.759	0.954	1.524	2.569	2.321	3.509
	SPU225	-	0.732	0.907	1.267	1.701	2.285	3.341

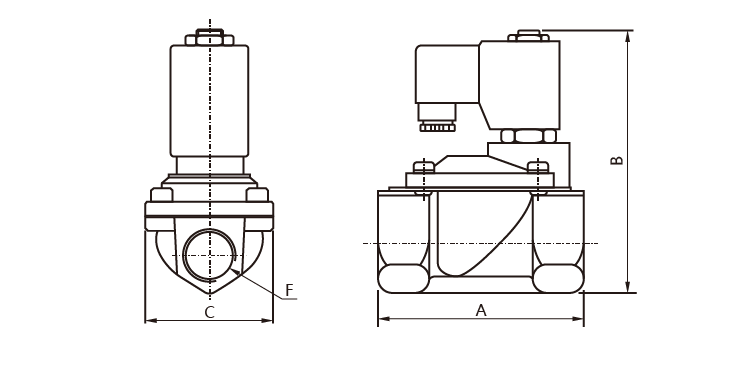

OVERALLDIMENSION&STRUCTURE

stainless steel solenoid valve

Model	F(G)	A	B	C
PU225-03A	3/8''	66	106	48
PU225-04A	1/2''	66	106	48
SPU225-04A	1/2''	66	106	48
PU225-06A	3/4''	75	112	58
SPU225-06A	3/4''	75	110	58
PU225-08A	1''	97	124	70
SPU225-08A	1''	97	119
PU225-12A	1 1/4''	126	139	96
SPU225-12A	1 1/4''	118	134	90
PU225-14A	1 1/2''	126	139	96
SPU225-14A	1 1/2''	120	139	90
PU225-20A	2''	160	160	114
SPU225-20A	2''	150	156	111

Specification Download

PU225.pdf

Superiority

Why choose us? What can we do for you?

♦ Founded in 2011 and professional experienced in the field of producing pneumatic products for over 13+ years.
♦ We have strong production capacity, over 100000 pcs/month.
♦We have rich experience for offering OEM/ODM service
♦ We have strict quality control process with quick response of after sales service.
♦ Management system certification : ISO9001,CE, ROHS
♦ We have 10+ technical experts for researching and developing.
♦ Sales network expands from domestic sales to all over the world.

Related Products

2W Series Brass Solenoid Valve, Direct-Acting, Normally Closed, G1/4

2W160-10 Brass 2-Way Normally Closed (NC) Solenoid Valve - 1/2" Port (G1/2"), 0-10 Bar Pressure Range, Direct-Acting for Air/Water/Gas, AC/DC Voltage Options

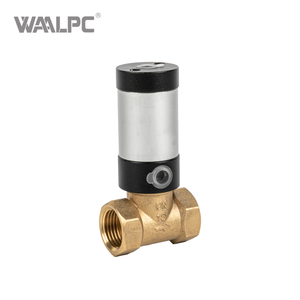

Fluid Air Control Valve Pneumatic Brass Body Valve Normally Closed 5/2 Way
