2W Series Brass Solenoid Valve, Direct-Acting, Normally Closed, G1/4

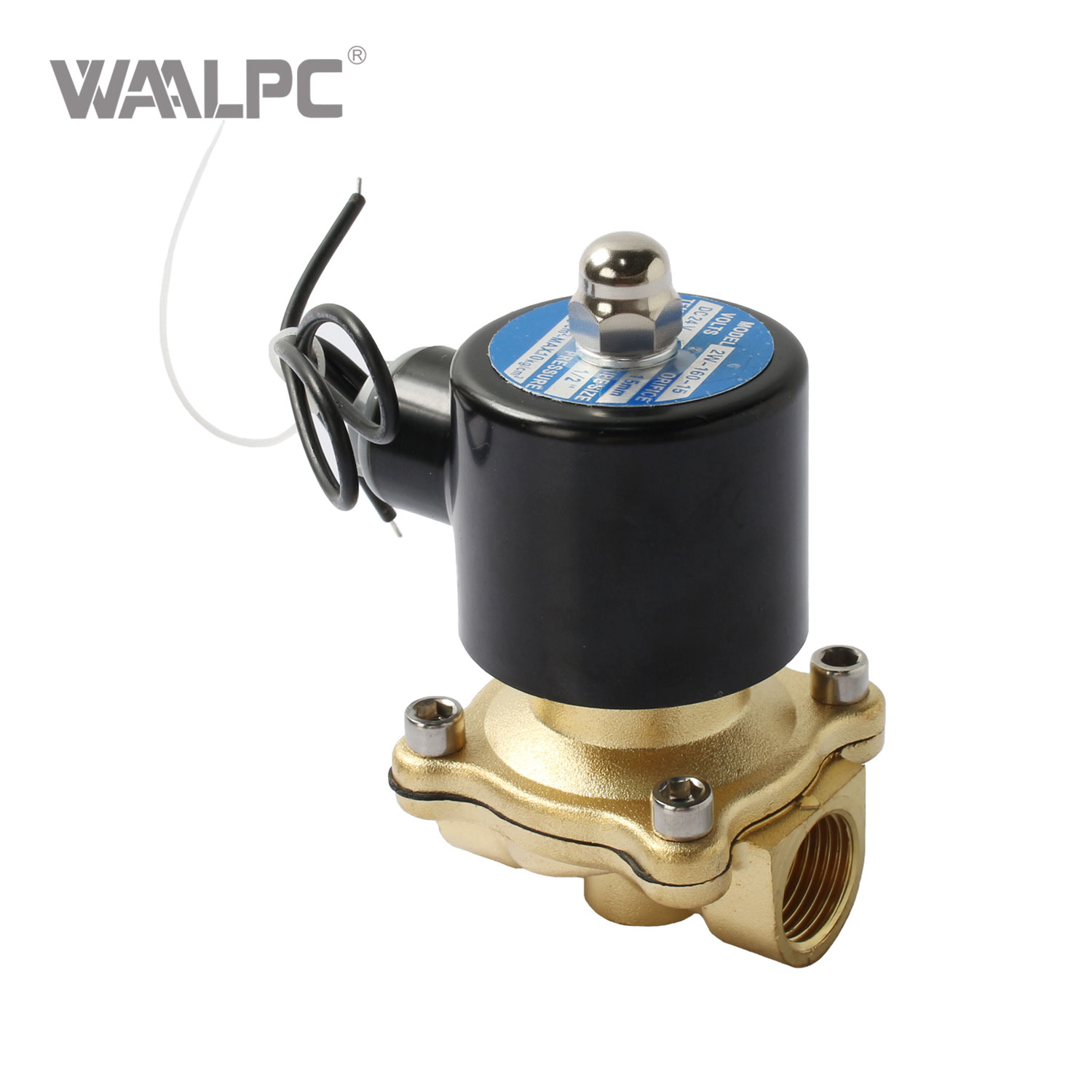

2W160-10 Brass 2-Way Normally Closed (NC) Solenoid Valve - 1/2

2W160-10 Brass 2-Way Normally Closed (NC) Solenoid Valve - 1/2" Port (G1/2"), 0-10 Bar Pressure Range, Direct-Acting for Air/Water/Gas, AC/DC Voltage Options


Availability:

Quantity:



Inquiry Add to Basket

The 2W Serie Brass Solenoid Valve is a high-performance member of the 2W series brass solenoid valves, engineered to deliver reliable fluid control in industrial and commercial B2B applications. Crafted with a robust brass body, this 2-way normally closed valve combines durability with excellent corrosion resistance, making it ideal for handling water, air, inert gases, and non-aggressive liquids—key for plumbing systems, HVAC, irrigation, and water treatment facilities.

Model:
2W Serie
Brand:
WAALPC
Code:
8481804090

Product Description

1. Exceptional Durability:

High-quality brass construction resists corrosion, wear, and high pressure (up to 25 bar), ensuring long service life even in demanding industrial environments.

2. Wide Media Compatibility:

Reliably controls air, water, steam, oil, light fuels, and inert gases (with compatible seals like NBR, EPDM, or FKM/Viton®), offering unmatched versatility.

3. Zero Pressure Operation:

Direct-acting design enables reliable opening and closing from 0 bar (vacuum) up to max pressure, eliminating dependency on line pressure differentials.

Technical Parameters

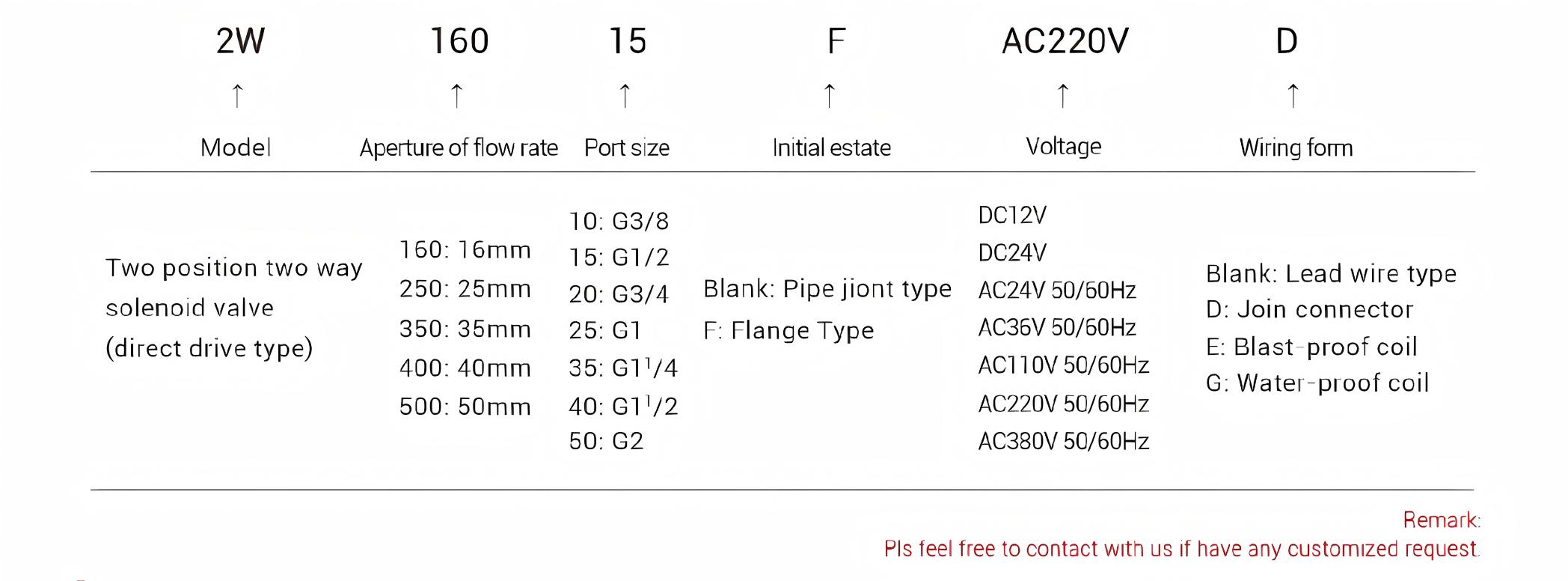

ORDERING CODE

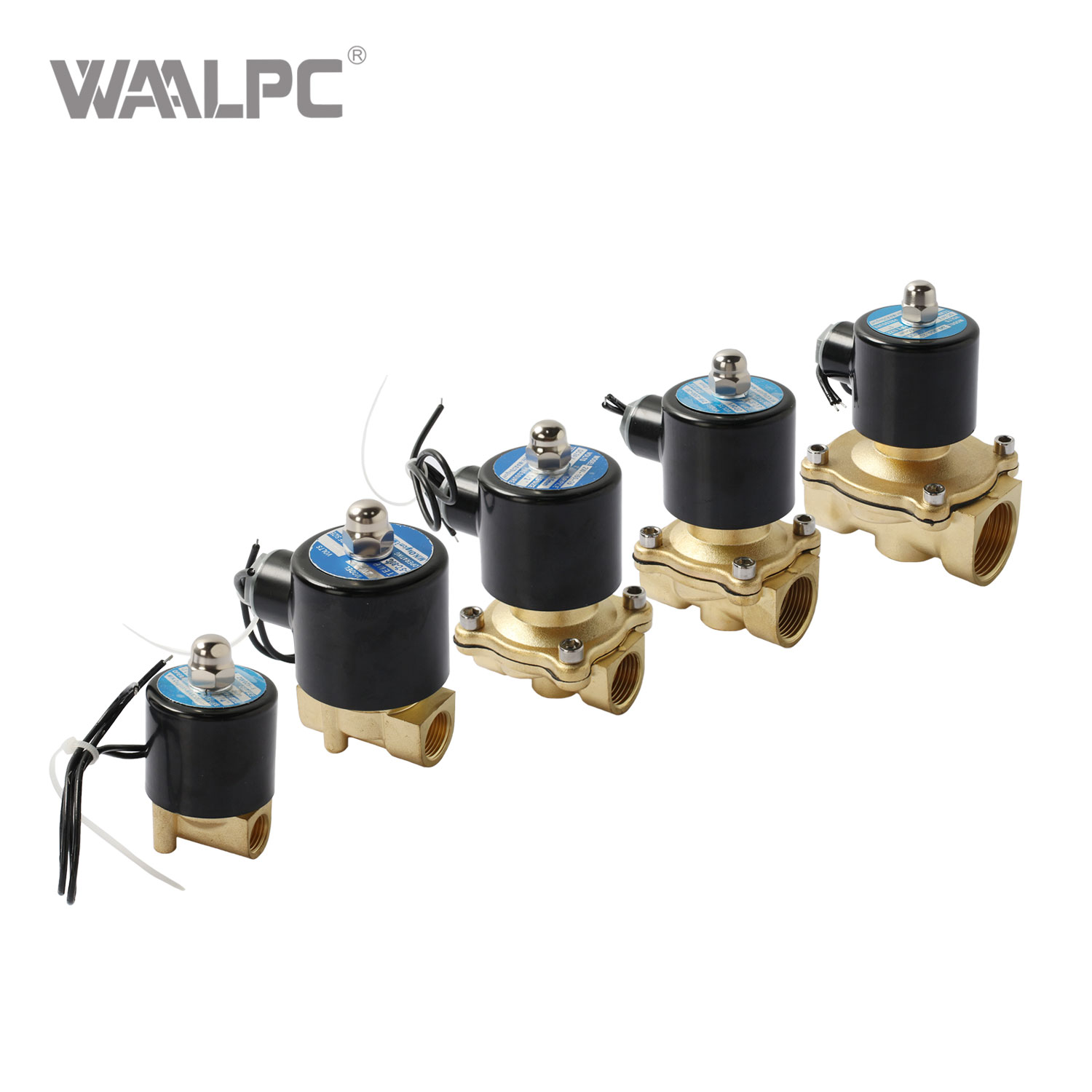

2w series solenoid valves with large diameters

SPECIFICATION

Model	2W160-10(15)	2W200-20	2W250-25	2W350-35	2W400-40	2W500-50
Working Medium	Air/Water/Oil/Gas
Action Mode	Direct Drive Type
Type	Normal Close Type; Normal Open Type
Aperture of Flow Rate(mm)	16	20	25	35	40	50
Cv Value	4.8	7.6	12	24	29	48
Port Size	G3/8(1/2)	G3/4	G1	G1 1/4	G1 1/2	G2
Fluid Viscosity	Below 20CST
Working Pressure	Water: 0~5(Kgf/cm²), Air: 0~7(Kgf/cm²), Oil: 0~5(Kgf/cm²), Gas: 0~7(Kgf/cm²)
Max. Pressure Resistance	10.5(Kgf/cm²)

OVERALLDIMENSION&STRUCTURE

Model	A	B	C	D	K(G)
2W160-10	92.5	57	105	66	G3/8
2W160-15	98.5	57	112	66	G1/2
2W200-20	99.5	57	116	70	G3/4
2W250-25	104	76	124	92	G1
2W350-35	139	92	163	118	G1 1/4
2W400-40	141	92	168	125	G1 1/2
2W500-50	155	120	190	168	G2

Specification Download

2w series solenoid valves with large diameters.png
