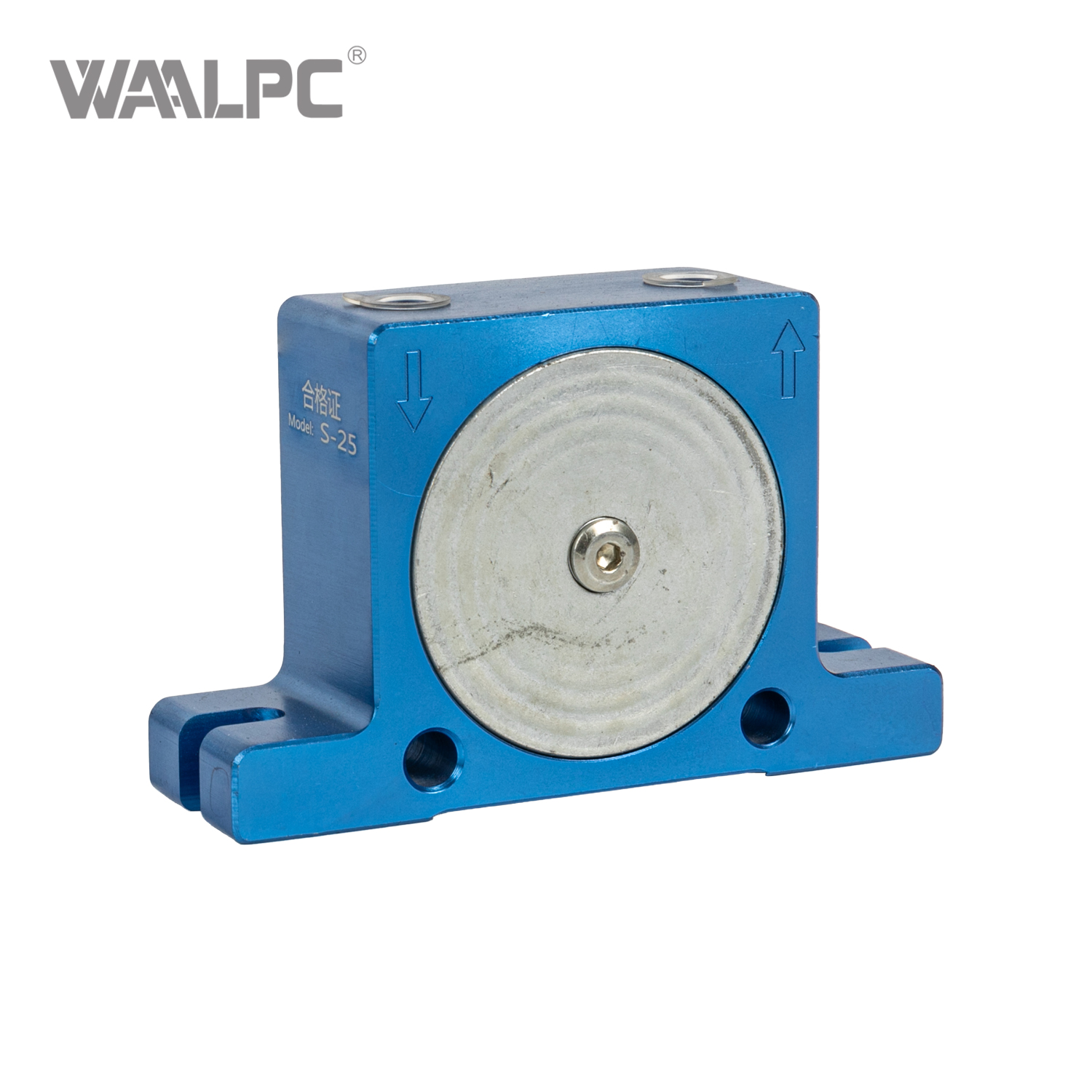

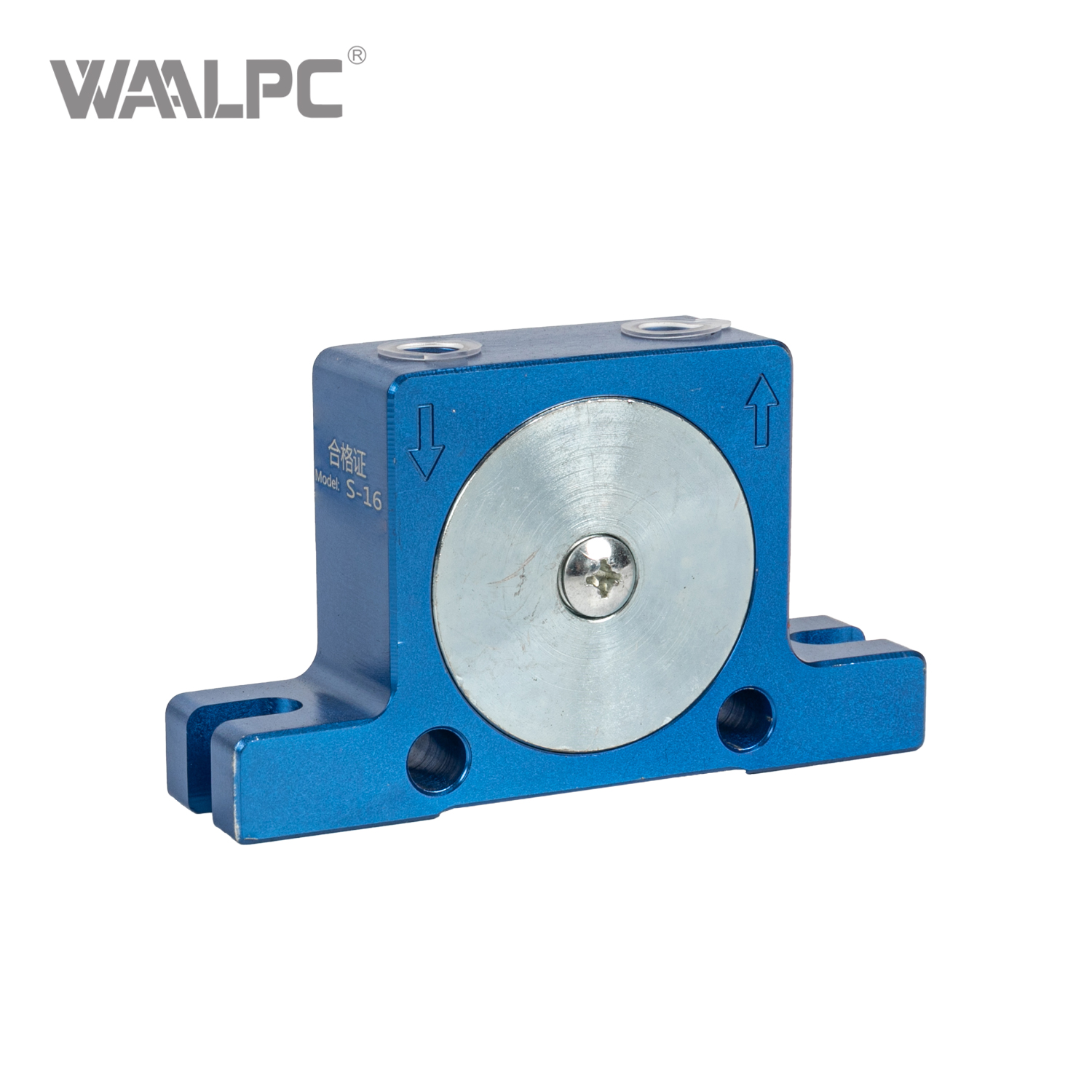

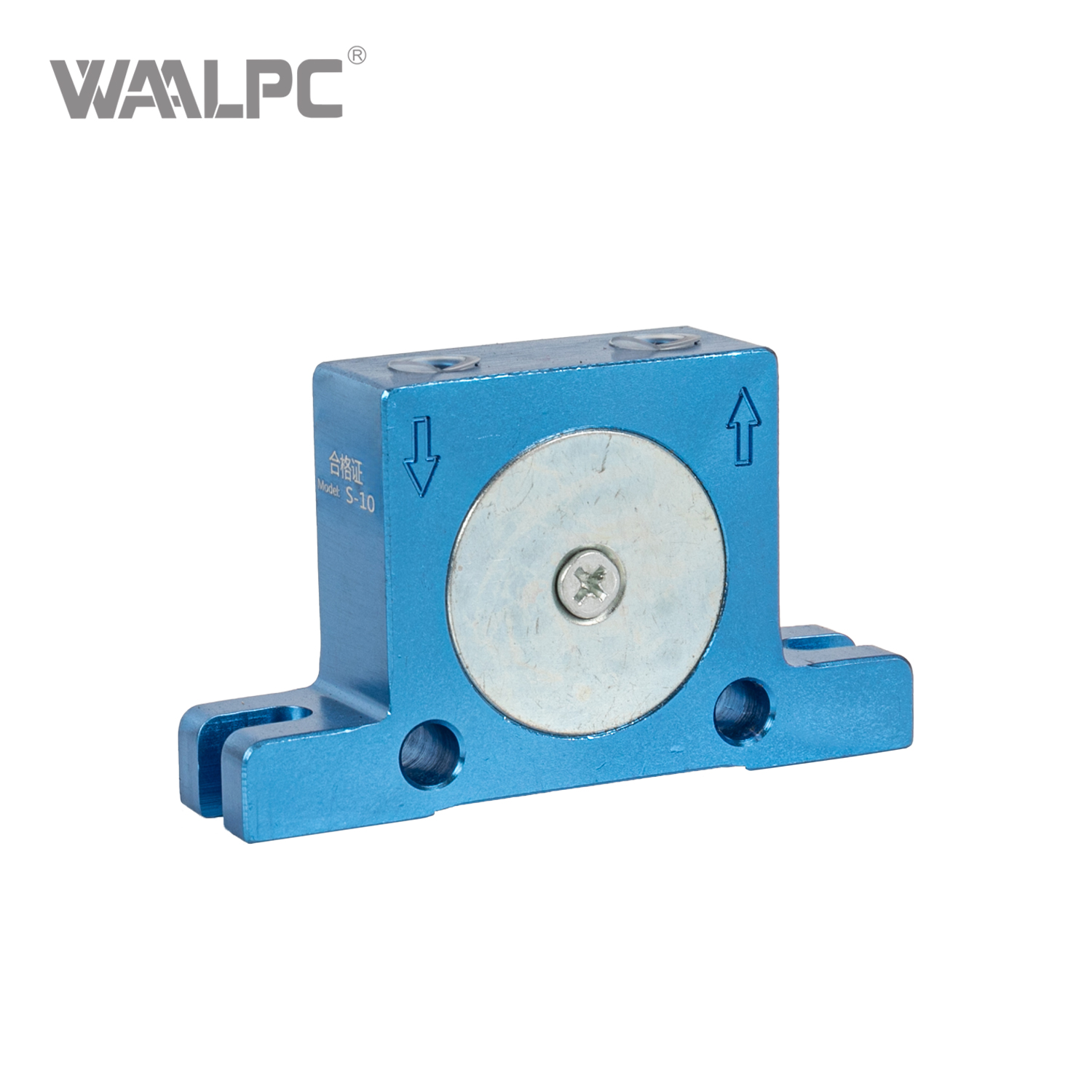

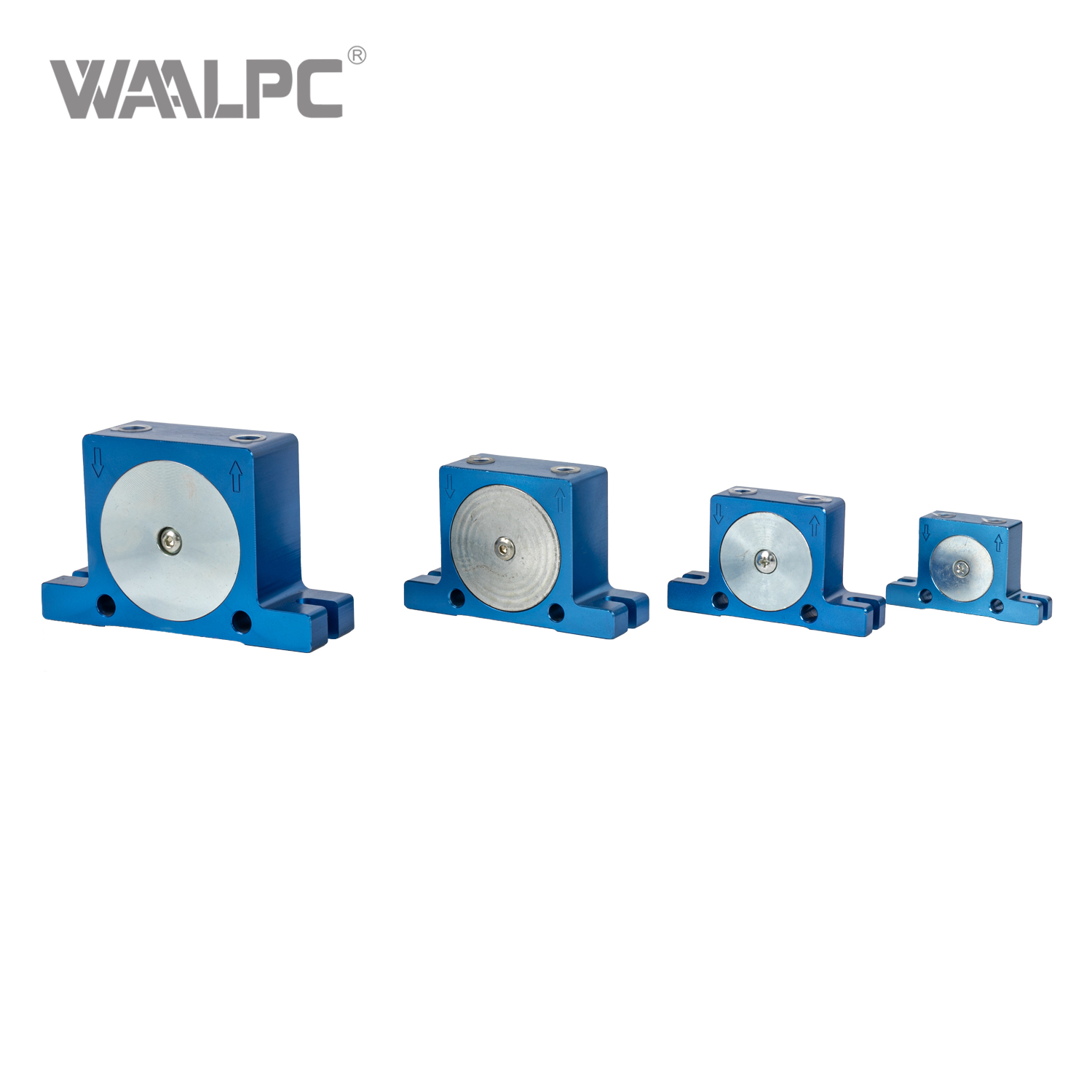

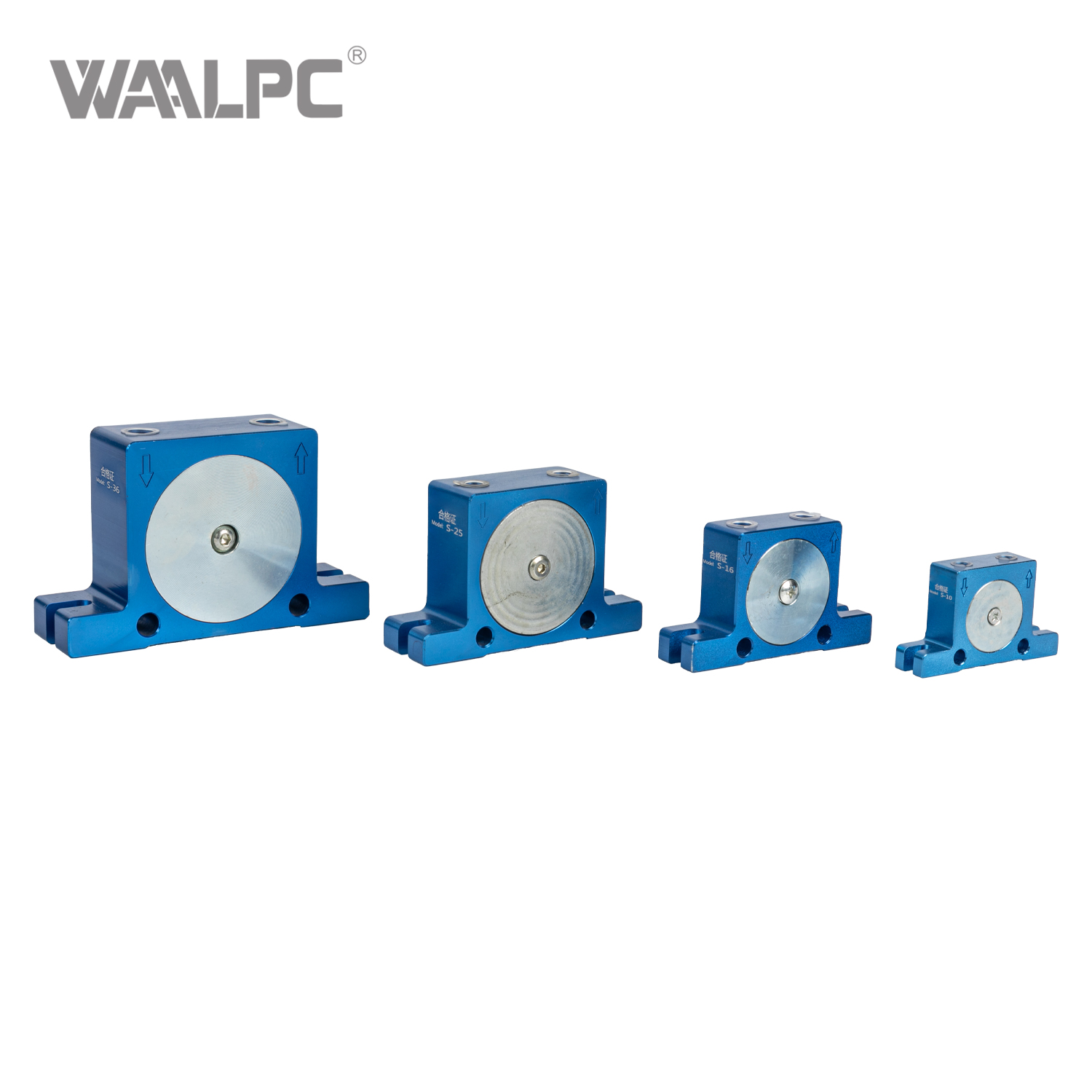

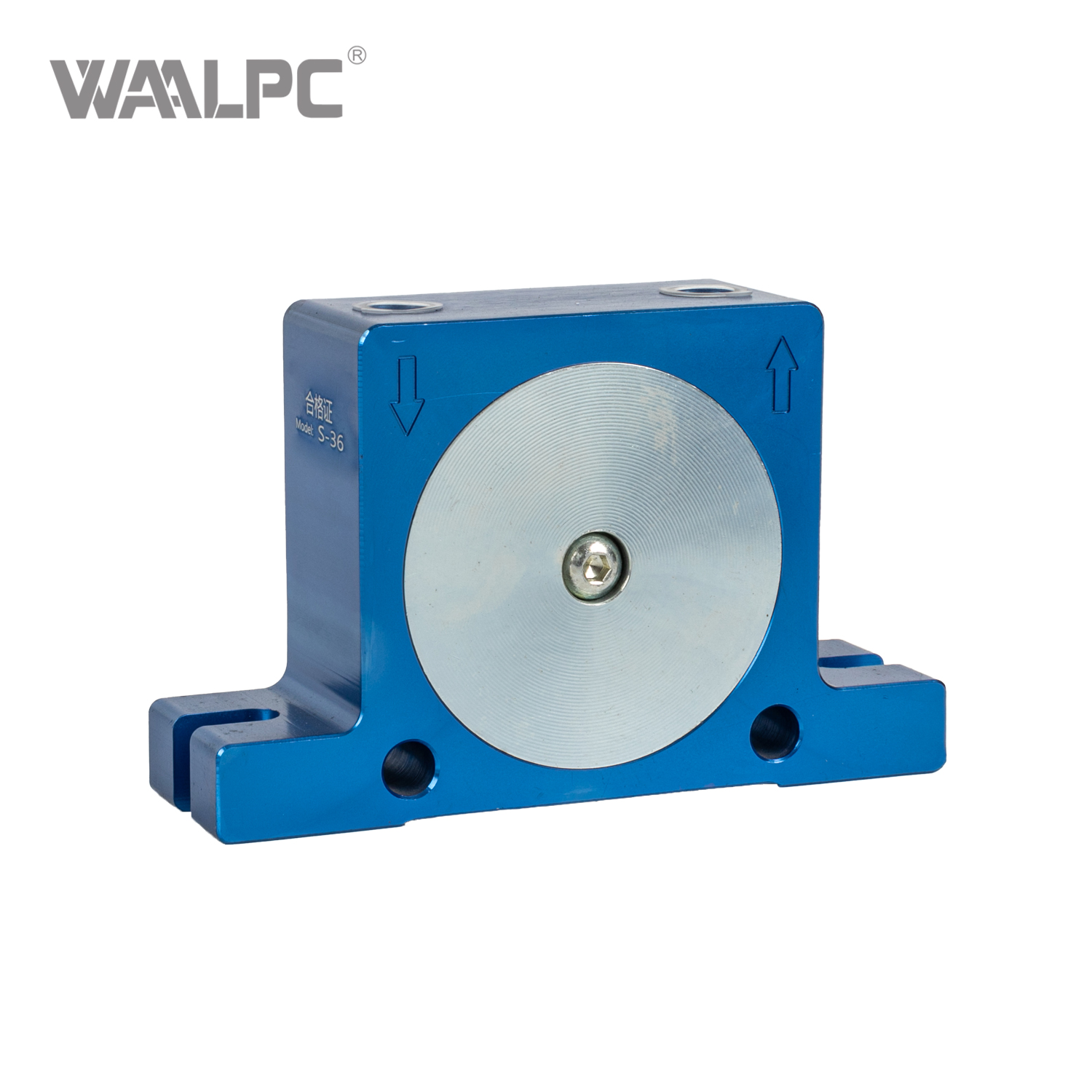

Pneumatic Ball Vibrator High Power Low Noise Air Oscillator


Availability:

Quantity:



Inquiry Add to Basket

The S-Series pneumatic ball vibrator is an industrial-grade device designed to promote the flow of bulk materials. It operates by generating a high-frequency, low-amplitude vibration through the movement of a steel ball inside a specially hardened raceway.

Model:
S8
Brand:
WAALPC
Code:
8501109990

Product Description

Maintenance-Free Operation: Simple, robust design with no motors or bearings, eliminating lubrication needs.

Highly Efficient: Powerful, high-frequency vibration ensures optimal material flow with low air consumption.

Intrinsically Safe: Pneumatic design is ideal for hazardous areas, with available ATEX certification.

Durable & Versatile: Handles high temperatures and harsh environments for long service life.

Clean & Compact: Lightweight, sealed construction prevents product contamination.

Technical Parameters

DATA SHEET

Model	Frequency/minute			Measured centrifugal force			Air consumption/minute
	0.2MPa	0.4MPa	0.6MPa	0.2MPa	0.4MPa	0.6MPa	0.2MPa	0.4MPa	0.6MPa
	0.2MPa	0.4MPa	0.6MPa	KG	KG	KG	L	L	L
S8	25500	31000	35000	13	26	36	83	145	195
S10	22500	28000	34000	25	47	71	92	150	200
S13	15000	18500	22510	32	55	87	94	158	225
S16	13000	17000	19500	45	80	110	122	200	280
S20	10500	14500	16500	72	122	172	130	230	340
S25	9200	12200	14000	93	157	205	160	290	425
S30	7800	9700	12500	151	247	321	215	375	570
S36	7300	9000	10000	206	315	405	260	475	675

[Note]The data in this table was taken from a Kistler 3-axis dynamometer on a heavy-duty experimental platform. When the installation rigidity is poor, the frequency and force values will decrease.

OVERALLDIMENSION&STRUCTURE

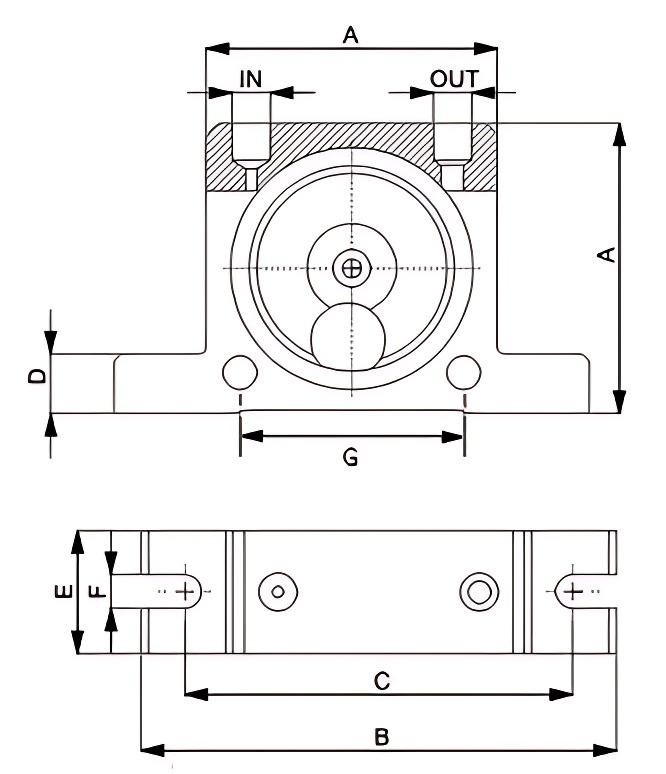

S Series pneumatic ball vibrator structure

Model	A	Width	C	D	E	F	G	IN/OUT	Weight
	mm	mm	mm	mm	mm	mm	mm	IN/OUT	KG
S8	50	86	68	12	20	7	40	G1/8	0.135
S10									0.135
S13	65	113	90	16	28	9	50	G1/4	0.305
S16									0.305
S20	80	128	104	16	38	9	60	G1/4	0.640
S25									0.640
S30	100	160	130	20	50	11	80	G3/8	1.350
S36									1.350

Specification Download

S Series pneumatic ball vibrator structure.pdf
