Pneumatic Component Thread Standards: A Comprehensive Guide To NPT, BSPT, BSPP, And Metric Threads

Introduction

In the world of pneumatic systems, thread standards are the foundation of every connection. A mismatched thread can mean the difference between a reliable, leak-free system and a costly failure. For engineers, maintenance professionals, and procurement specialists working with pneumatic components, understanding thread types is not optional — it is essential.

This guide provides a comprehensive overview of the most common thread standards used in pneumatic components: NPT (American tapered pipe thread), BSPT/PT/ZG (British tapered pipe thread), G/BSPP (British parallel pipe thread), and Metric (M) threads. We will cover their origins, key parameters, sealing mechanisms, applications, and crucially — which threads are compatible and which are not.

1. Quick Reference: Common Thread Sizes in Pneumatics

In the pneumatic industry, thread sizes are commonly referred to by their nominal pipe size in inches, often expressed in "fen" (分) — a traditional Chinese unit where 1 fen equals 1/8 inch. The table below provides a quick reference for the most commonly used thread sizes:

Memory Aid: 1 fen = 1/8", 2 fen = 1/4", 3 fen = 3/8", 4 fen = 1/2", 6 fen = 3/4"

2. NPT Thread (American Standard 60° Tapered Pipe Thread)

Overview

NPT stands for National (American) Pipe Thread. It is the dominant pipe thread standard in North America and is widely used in high-pressure pneumatic, hydraulic, and oil & gas applications.

Key Specifications

Thread Form Characteristics

NPT threads feature a 60° thread angle with flattened crests and roots. The 1:16 taper means that for every 16 mm of axial travel, the thread diameter decreases by 1 mm. This taper creates an interference fit when the male and female threads are tightened, providing a pressure-tight seal.

For example, a 1/4" NPT thread has 18 threads per inch (TPI) , while a 1/8" NPT thread has 27 TPI.

Applications

NPT threads are the standard choice in:

• North American markets

• Petroleum and petrochemical industries

• High-pressure hydraulic systems

• Pneumatic systems requiring reliable sealing

• Fluid power applications

Important Note

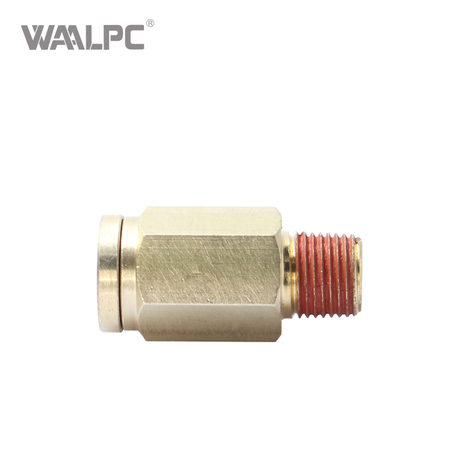

NPT threads require a sealant (such as PTFE tape or liquid thread sealant) to achieve a leak-free connection. The taper alone provides mechanical interference but does not guarantee a seal without additional sealing material.

3. ZG / RC / PT Thread (British Standard 55° Tapered Pipe Thread)

Overview

ZG, RC, and PT are different names for the same thread family — the British Standard tapered pipe thread with a 55° thread angle. The differences are primarily historical and regional:

All three refer to the same 55° tapered pipe thread system.

Key Specifications

Thread Form Characteristics

Like NPT, BSPT threads feature a 1:16 taper. However, the key difference lies in the thread angle: BSPT uses a 55° angle with rounded crests and roots, while NPT uses a 60° angle with flattened profiles.

Male and Female Designations

Within the ISO 7-1 standard:

• R = External tapered thread (male)

• Rc = Internal tapered thread (female)

• Rp = Internal parallel thread (female) — can mate with R external threads

Applications

BSPT/PT threads are commonly used in:

• European and Commonwealth countries

• China and Japan

• Water, gas, and oil pipelines (low to medium pressure)

• Pneumatic systems in regions following British standards

4. G Thread (British Standard 55° Parallel Pipe Thread / BSPP)

Overview

G threads are parallel (non-tapered) pipe threads governed by the ISO 228-1 standard. They are also known as BSPP (British Standard Pipe Parallel) threads.

Key Specifications

Thread Form Characteristics

G threads have a 55° Whitworth thread form with rounded crests and roots. Unlike NPT and BSPT, G threads are cylindrical — the diameter remains constant along the entire length of the thread.

Because G threads are parallel, they do not seal by thread interference alone. A proper seal requires:

• A bonded sealing washer

• An O-ring (commonly used in pneumatic fittings)

• PTFE tape or liquid sealant

Applications

G threads are widely used in:

• Low-pressure pneumatic systems

• Instrumentation and gauge connections

• Electrical conduit fittings

• Plumbing and water supply systems

• Applications requiring frequent assembly and disassembly

Important Note

G threads and BSPT threads are not directly interchangeable, even though they share the same 55° thread angle. G threads are parallel, while BSPT threads are tapered. However, an external tapered R thread can be screwed into an internal parallel G (Rp) thread — this is a common practice in many piping systems.

5. Metric Thread (M) — ISO General Purpose Metric Screw Threads

Overview

Metric threads (M) are the most common fastening threads worldwide. They are used for mechanical connections — bolts, nuts, screws, and machine parts — rather than for sealing fluid or gas connections.

Key Specifications

Thread Form Characteristics

Metric threads feature a 60° thread angle with an equilateral triangular profile. The crests and roots are flattened (with slight rounding at the root).

Key dimensions:

• Major diameter (D/d) : The outermost diameter of the thread (e.g., M8 has a major diameter of approximately 8 mm)

• Pitch diameter (D2/d2) : The primary dimension for thread fit

• Minor diameter (D1/d1) : The innermost diameter

• Pitch (P) : The axial distance between adjacent threads

Coarse vs. Fine Pitch

Metric threads are divided into two main categories:

Applications

Metric threads are used for:

• Mechanical fastening (bolts, nuts, studs)

• Mounting pneumatic components to brackets and panels

• Structural connections in machinery

• Any application requiring mechanical joining rather than fluid sealing

Important Note

Although Metric threads and NPT threads both have a 60° thread angle, they are completely different thread systems. Metric threads are parallel and are not designed for sealing — they should never be used as a substitute for pipe threads in pneumatic or hydraulic systems.

6. Compatibility and Interchangeability — What You Need to Know

NPT vs. BSPT — NOT Interchangeable

Despite both being tapered pipe threads, NPT and BSPT are not interchangeable. The reasons:

Attempting to connect an NPT male to a BSPT female will cause the joint to bind within a few turns and will not seal properly.

BSPT vs. G (BSPP) — Different but Can Mate

BSPT (tapered) and G (parallel) share the same 55° thread angle and thread form. An external tapered R thread can be screwed into an internal parallel G (Rp) thread. However:

• The seal relies on the taper of the male thread

• Sealant is still required

• This combination is common in piping systems

NPT vs. G (BSPP) — NOT Interchangeable

These two thread types are completely incompatible:

• Different thread angles (60° vs. 55°)

• Different thread pitches

• Different thread forms

Metric vs. Pipe Threads — NOT Interchangeable

Metric threads are designed for mechanical fastening, not for sealing fluid or gas connections. Never substitute a metric thread for a pipe thread in a pneumatic system.

7. Summary Comparison Table

8. Practical Tips for Pneumatic System Designers

Selecting the Right Thread

1. Know your market: North American customers typically expect NPT; European and Asian customers typically expect BSPT or G threads.

2. Consider the pressure: For high-pressure pneumatic systems, tapered threads (NPT or BSPT) with sealant are generally preferred.

3. Consider assembly frequency: For applications requiring frequent disassembly, parallel threads (G) with O-ring seals may be more practical.

4. Never mix thread types: Always specify the exact thread standard on drawings, purchase orders, and product labels.

Thread Sealant Best Practices

• For NPT and BSPT threads: Apply PTFE tape or liquid sealant to male threads only, leaving the first thread bare to prevent debris from entering the system.

• For G threads: Use a bonded sealing washer or O-ring for a reliable seal.

Common Mistakes to Avoid

• ❌ Assuming NPT and BSPT are interchangeable (they are not)

• ❌ Using metric threads for pneumatic sealing applications

• ❌ Applying sealant to the first thread (can introduce debris into the system)

• ❌ Overtightening tapered threads (can crack fittings or damage threads)

Conclusion

Understanding thread standards is fundamental to designing, specifying, and maintaining reliable pneumatic systems. The four main thread types covered in this guide — NPT, BSPT, G, and Metric — each serve distinct purposes and are governed by different standards.

Key takeaways:

• NPT (60° tapered) is the American standard for sealing connections

• BSPT/PT/ZG (55° tapered) is the British/ISO standard for sealing connections

• G/BSPP (55° parallel) requires O-rings or gaskets for sealing

• Metric (M) (60° parallel) is for mechanical fastening, not sealing

By selecting the correct thread type for your application and following proper installation practices, you can ensure leak-free, reliable, and long-lasting pneumatic connections.
