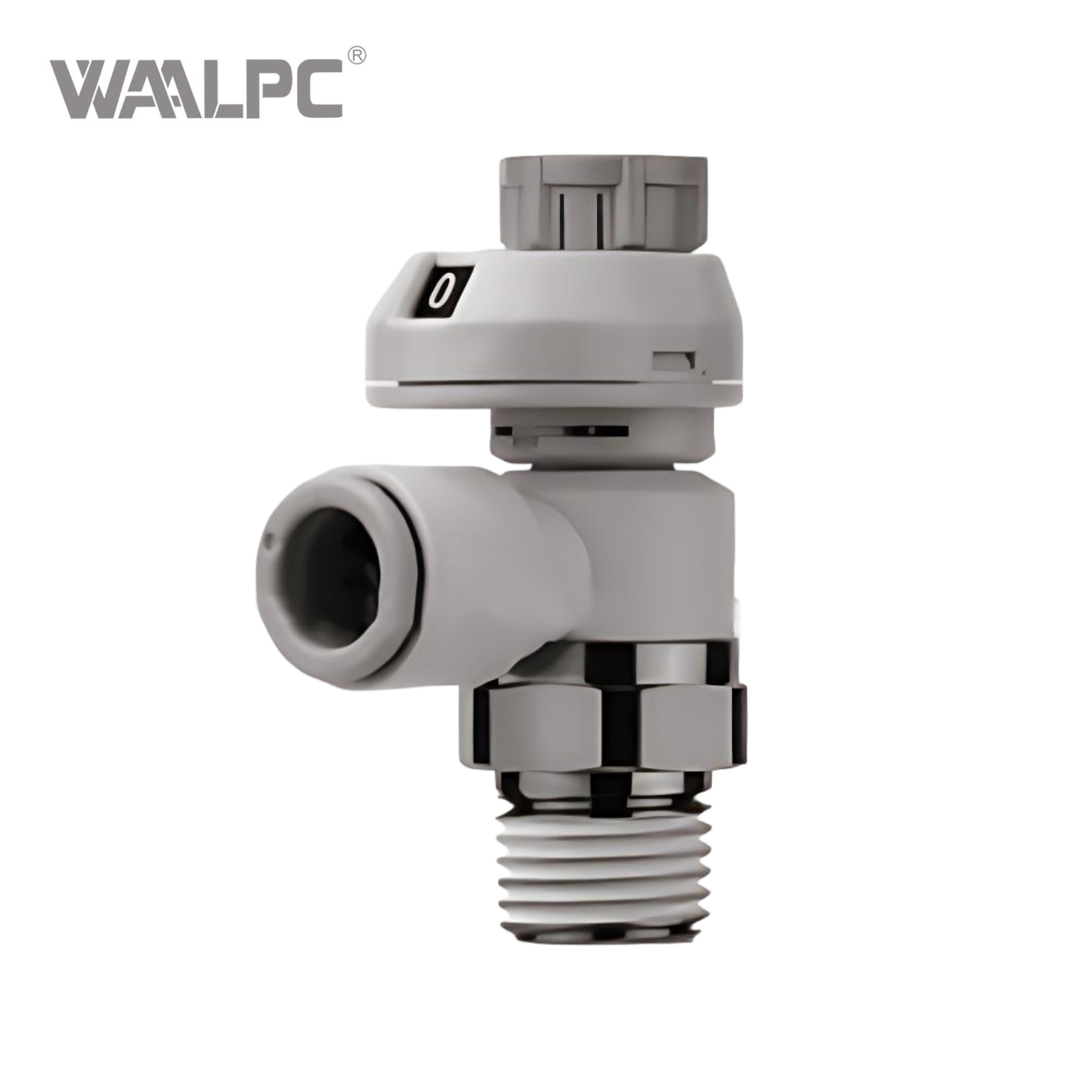

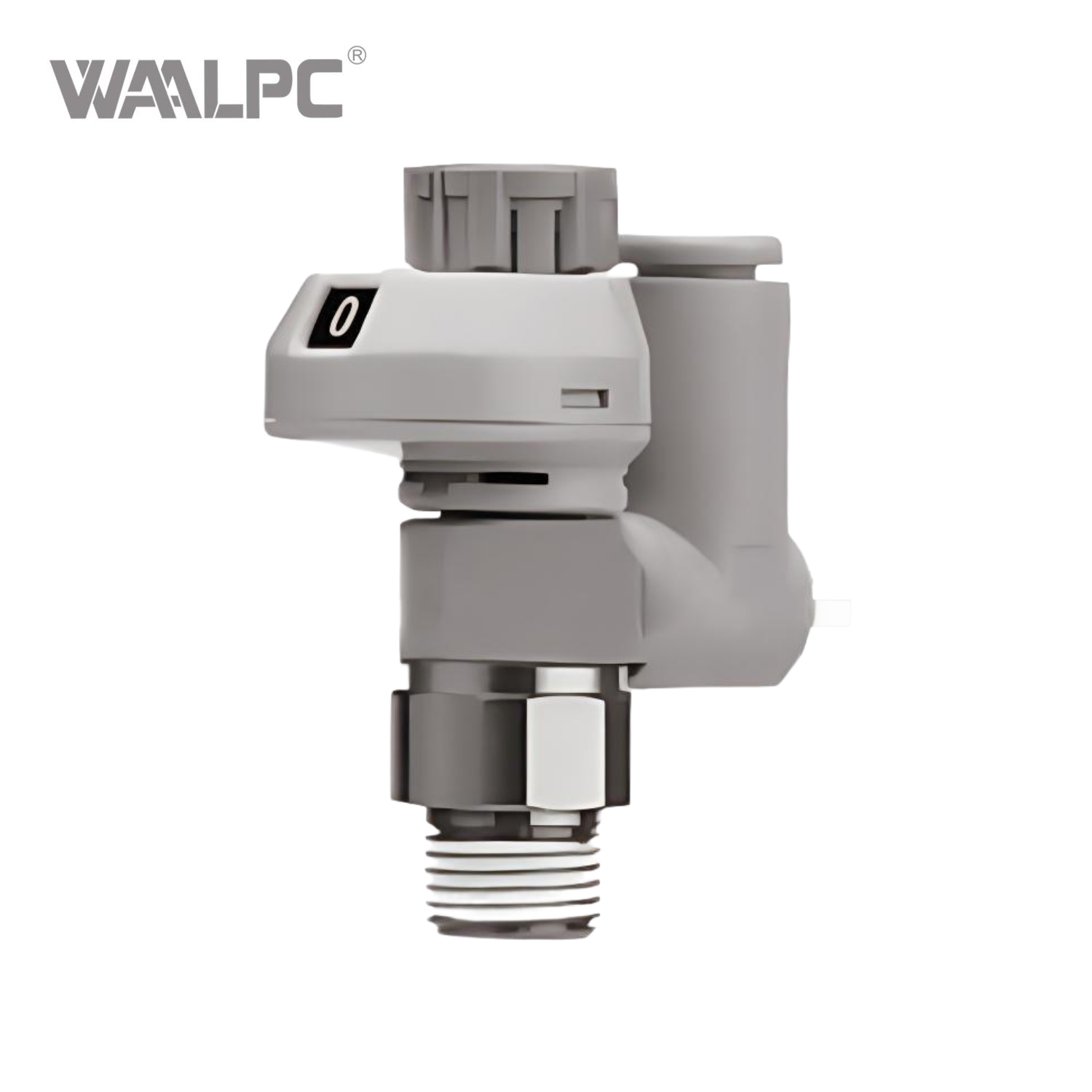

Speed Controller Valve with Indicator One-touch Fitting Elbow Type


Availability:

Quantity:



Inquiry Add to Basket

The main function of pneumatic fittings is to connect pneumatic components to achieve quick connection and disconnection, thereby improving work efficiency.

Model:
AS-FS
Brand:
WAALPC
Code:
7307190000

Product Description

1.Quick pneumatic tube fiting forpneumatic tube systems.

2.Wide range of tube fiting models to meet all your needs in pneumatic tube systems

3.Even after installation,the direction of the tube can be changed freely.

4.Nickel-Plated metal body ensures anti-corrosion and anti contar mination.

5.All R and NPT threads are precoats sealant.

6.All cylindrical threads are standard with O-ring seals.

Technical Parameters

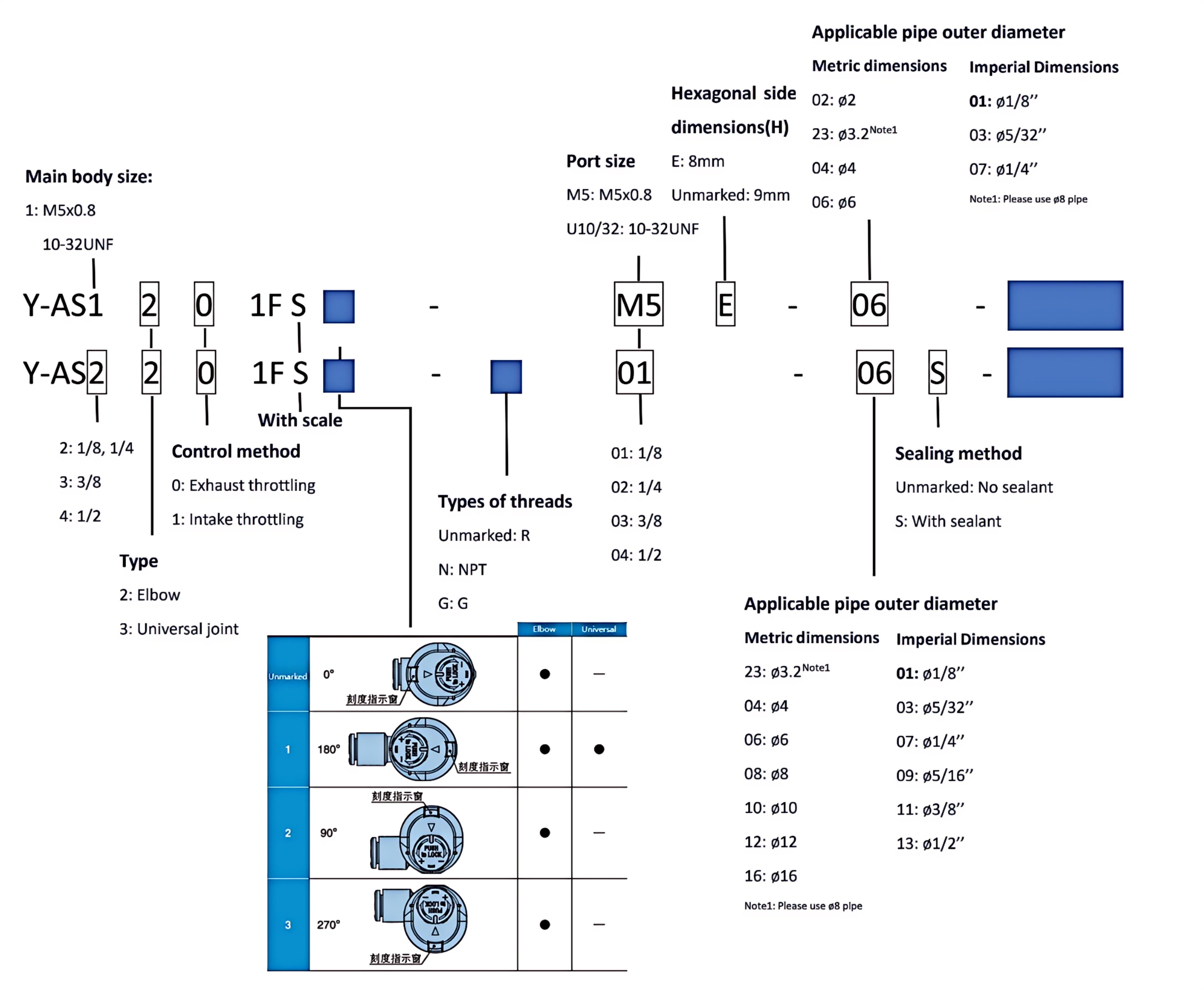

Ordering Code

Speed controller valve

SPECIFICATIONS

Fluid	Air
Ensure pressure resistance	1.5MPa
Maximum operating pressure	1MPa
Minimum operating pressure	0.1MPa
Ambient temperature and operating fluid temperature	-5~60℃(Not frozen)
Applicable pipe materials	Nylon, soft nylon, polyurethane, FEP, PFA

STRUCTURE

Elbow type

Sealing method: gasket seal

Thread type: M5, 10-32UNF

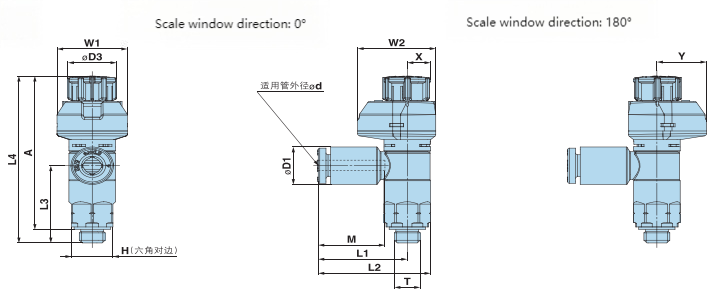

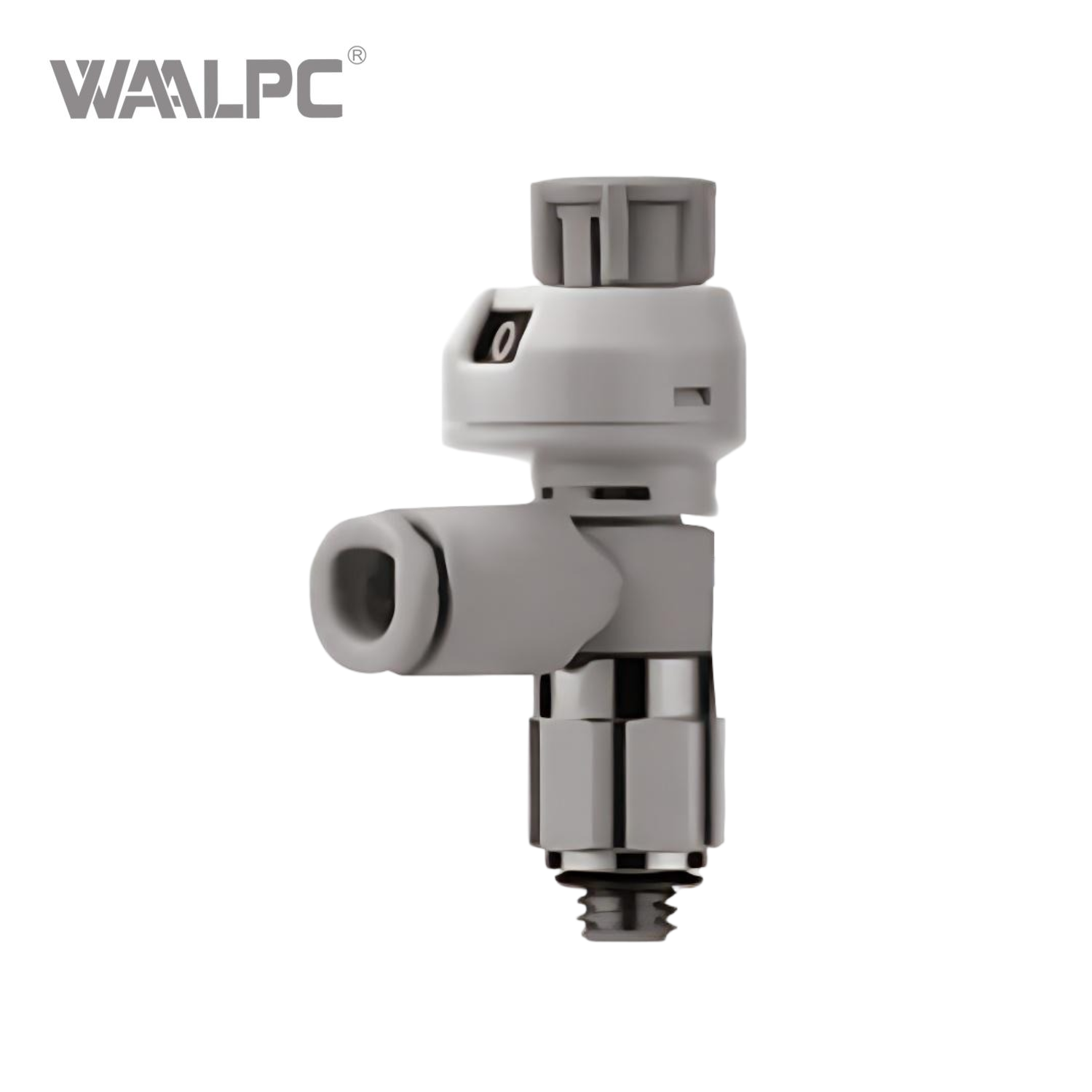

Speed controller valve Y-AS12 FS

Metric dimensions (mm)

Model	d	T	H	D1	D3	L1	L2	L3	L4^note1		A^note2		M	W1	W2	X	Y	Weight (g)
									Unlock	locked	Unlock	locked
Y-AS12口1FS口-M5E-02	2	M5x0.8 10/32UNF	8	5.8	9.4	15.8	20.3	16.9	39	36.5	35	33.5	11.9	13.6	15.1	5.5	9.6	7
Y-AS12口1FS口-U10/32E-02
Y-AS12口1FS口-M5E-23	3.2			7.2		17.2	21.7						13.3
Y-AS12口1FS口-U10/32E-23
Y-AS12口1FS口-M5E-04	4			8.2
Y-AS12口1FS口-U10/32E-04
Y-AS12口1FS口-M5E-06	6			10.4		18.6	23.1	16.5										8
Y-AS12口1FS口-U10/32E-06

Note1: Reference dimensions

Note2: Reference dimensions after threading

Elbow Type

Sealing method: sealant

Thread type: R, NPT

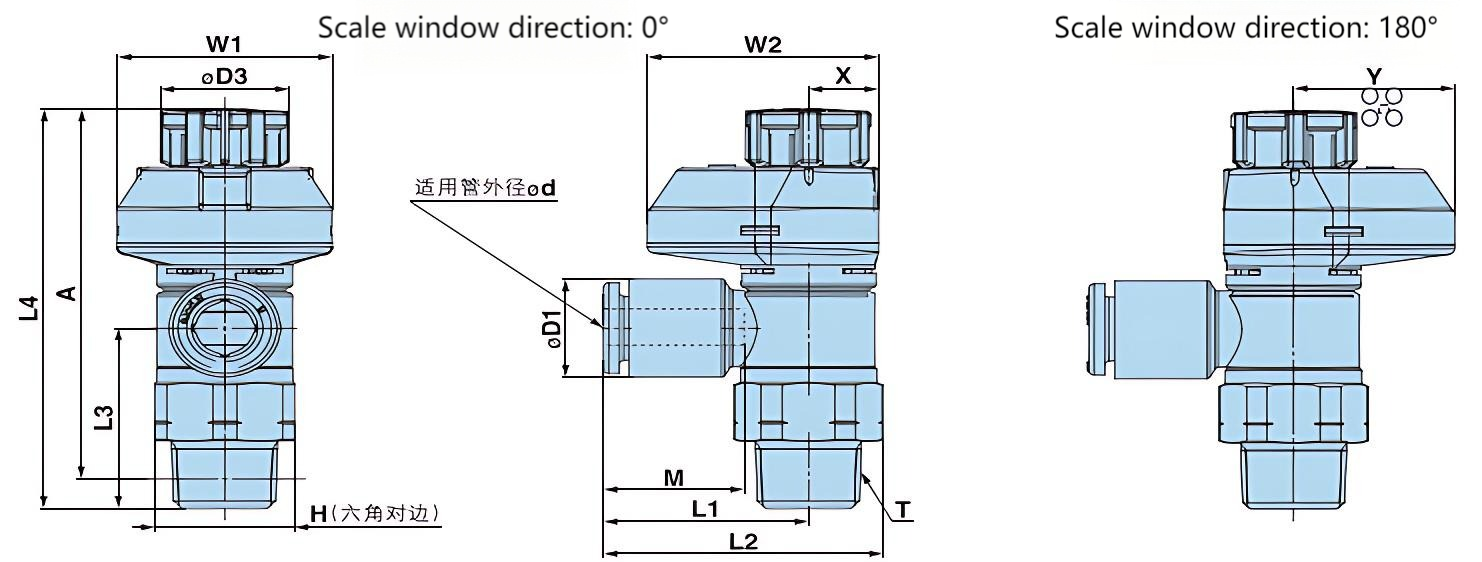

Y-AS22 FS_

(mm)

Model	d	T	H	D1	D3	L1	L2	L3	L4^Note1		A^Note2		M	Weight (g)
									Unlock	Locked	Unlock	Locked
Y-AS22口1F-01-23(S)A	3.2	1/8	13	7.4	12.3	19.1	26.2	19.2	30.6	29.2	27.5	26.1	13.3	9(9)
Y-AS22口1F-01-04(S)A	4			8.8
Y-AS22口1F-01-06(S)A	6			10.7										10(9)
Y-AS22口1F-01-08(S)A	8			13.6		22.4	29.5						14.2	11(10)
Y-AS22口1F-01-10(S)A	10			16.2		25.3	32.4						15.6	12(11)
Y-AS22口1F-02-23(S)A	3.2	1/4	17	7.2	13.5	20.9	30.2	23	37	35.4	31.5	29.9	13.3	18(19)
Y-AS22口1F-02-04(S)A	4			8.8
Y-AS22口1F-02-06(S)A	6			10.7		23.4	32.7
Y-AS22口1F-02-08(S)A	8			13.6		23.9	33.2						14.2	19(20)
Y-AS22口1F-02-10(S)A	10			16.2		26.9	36.2						15.6	20(21)
Y-AS32口1F-02-06(S)A	6	1/4	19	10.7	16.6	21.8	32.1	36.9	50	48.6	44.5	43.1	13.3	40(40)
Y-AS32口1F-02-08(S)A	8			13.6		22.7	33						14.2	41(41)
Y-AS32口1F-02-10(S)A	10			16.2		26.7	37	36.2					15.6	42(42)
Y-AS32口1F-02-12(S)A	12			19		29.7	40	35					17	43(43)
Y-AS32口1F-03-06(S)A	6	3/8	19	10.7	16.6	21.8	32.1	28.8	42.3	40.7	37.1	35.5	13.3	31(32)
Y-AS32口1F-03-08(S)A	8			13.6		22.7	33						14.2
Y-AS32口1F-03-10(S)A	10			16.2		26.7	37	28					15.6	32(33)
Y-AS32口1F-03-12(S)A	12			19		29.7	40	26.8					17	34(35)
Y-AS42口1F-04-10(S)A	10	1/2	24	16.2	18.8	27.4	40.3	36.2	50.8	49.6	43.7	42.5	15.6	54(53)
Y-AS42口1F-04-12(S)A	12			19		30.8	35.1	35.1					17	56(55)
Y-AS42口1F-04-16(S)A	16			23.8		34.8	32.7	32.7					20.6	60(59)

Note1: Reference dimensions

Note2: Reference dimensions after threading

Note3: ( )represents the NPT thread size

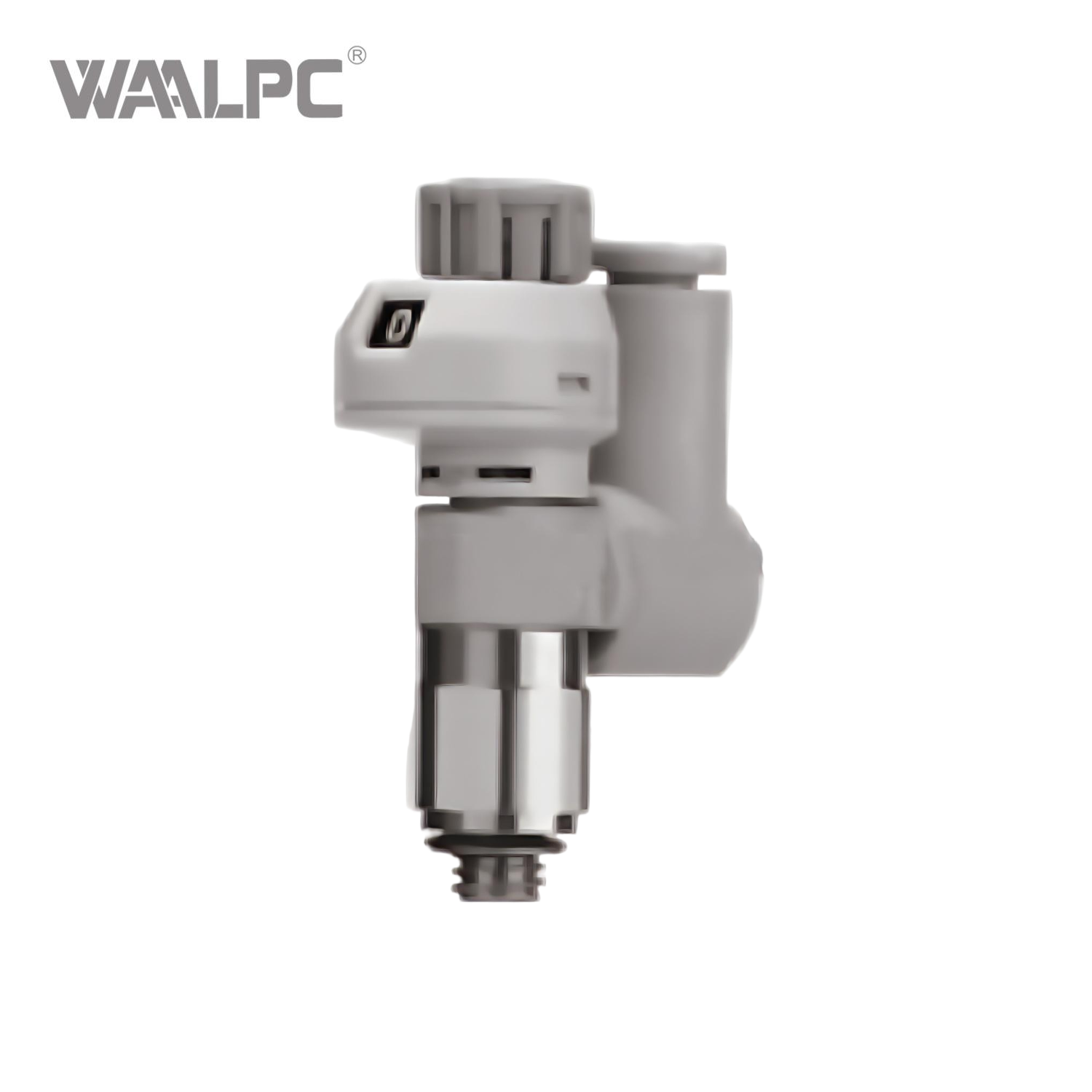

Universal Joint

Sealing method: gasket seal

Thread type: M5, 10-32UNF

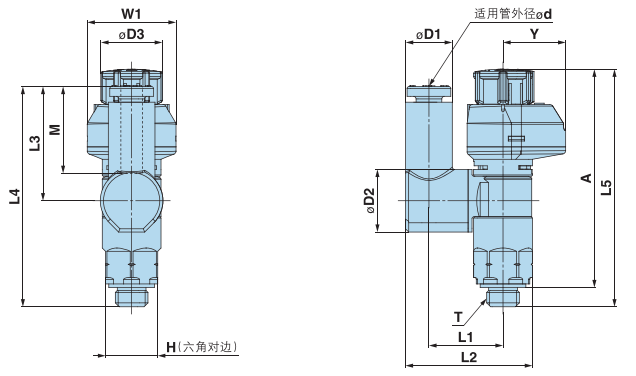

Y-AS13 FS_

Model	d	T	H	D1	D2	D3	L1	L2	L3	L4	L5		A		M	W1	Y	Weight (g)
											Unlock	Locked	Unlock	Locked
Y-AS13口1FS1-M5E-23	3.2	M5x0.8 10/32UNF	8	7.2	9.6	9.4	11.6	19.4	17.5	33.8	39	36.5	35	33.5	13.3	13.6	9.6	7
Y-AS13口1FS1-U10-32/23
Y-AS13口1FS1-M5E-04	4			8.2			11.5	19.8
Y-AS13口1FS1-U10/32-04
Y-AS13口1FS1-M5E-06	6			10.4				20.9	20.4	36.6								8
Y-AS13口1FS1-U10/32-06

Universal Joint

Sealing method: sealant

Thread type: R, NPT

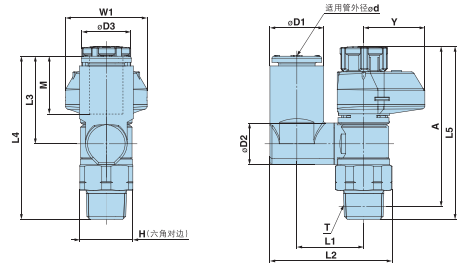

Y-AS23 FS_

Model	d	T	H	D1	D2	D3	L1	L2	L3	L4	L5		A		M	W1	Y	Weight (g)
											Locked	Unlock	Unlock	Locked
Y-AS23口1FS1-01-23(S)	3.2	1/8	13 (12.7)	7.2	9.6	12	13.3	24	17.5	36	43.9	42.4	40.8	39.3	13.3	20	15	14
Y-AS23口1FS1-01-04(S)	4			8.2			13.9	25.1
Y-AS23口1FS1-01-06(S)	6			10.4				26.2	20.4	38.8								15
Y-AS23口1FS1-01-08(S)	8			13.2	10.2		16.4	30.1	21.5	40					14.2			16
Y-AS23口1FS1-02-04(S)	4	1/4	17 (17.5)	8.2	12.9	13	16.5	29.9	17.5	40.1	49.7	48.3	44.2	42.8	13.3	21.5	16.2	24
Y-AS23口1FS1-02-06(S)	6			11.2			19	33.8	21.4	43.9					14.2			26
Y-AS23口1FS1-02-08(S)	8			13.2				34.9	23.5	46					15.6			27
Y-AS23口1FS1-02-10(S)	10			15.9			20.9	38.1	24.7	47.3					17			28
Y-AS33口1FS1-02-06(S)	6	1/4	19	11.2	12.9	16.6	20.2	36	21.4	57.8	63.1	61.7	57.9	56.5	13.3	24.5	19.2	49
Y-AS33口1FS1-02-08(S)	8			13.2				37.1	23.5	59.9					14.2			50
Y-AS33口1FS1-02-10(S)	10			15.9	17.4		23	41.2	26.1	62.5					15.6			53
Y-AS33口1FS1-02-12(S)	12			18.5				42.5	28.3	64.7					17			55
Y-AS33口1FS1-03-06(S)	6	3/8	19	10.4	12.9	16.6	20.2	36	21.4	50.1	55.4	54	50.2	48.8	13.3	24.5	19.2	41
Y-AS33口1FS1-03-08(S)	8			13.2				37.1	23.5	52.2					14.2			42
Y-AS33口1FS1-03-10(S)	10			15.9	17.4		23	41.2	26.1	54.8					15.6			45
Y-AS33口1FS1-03-12(S)	12			18.5				42.5	28.3	57					17			47
Y-AS33口1FS1-04-10(S)	10	1/2	24 (23.8)	15.9	17.4	18.8	25.6	46.4	26.1	61.2	64.1	62.5	57	55.4	15.6	26	19	69
Y-AS33口1FS1-04-12(S)	12			18.5	21		26.2	48.3	28.3	63.4					17			72

Note1: Reference dimensions

Note2: Reference dimensions after threading

Note3: ( )represents the NPT thread size

Elbow Type

Sealing method: sealant

Thread type: G

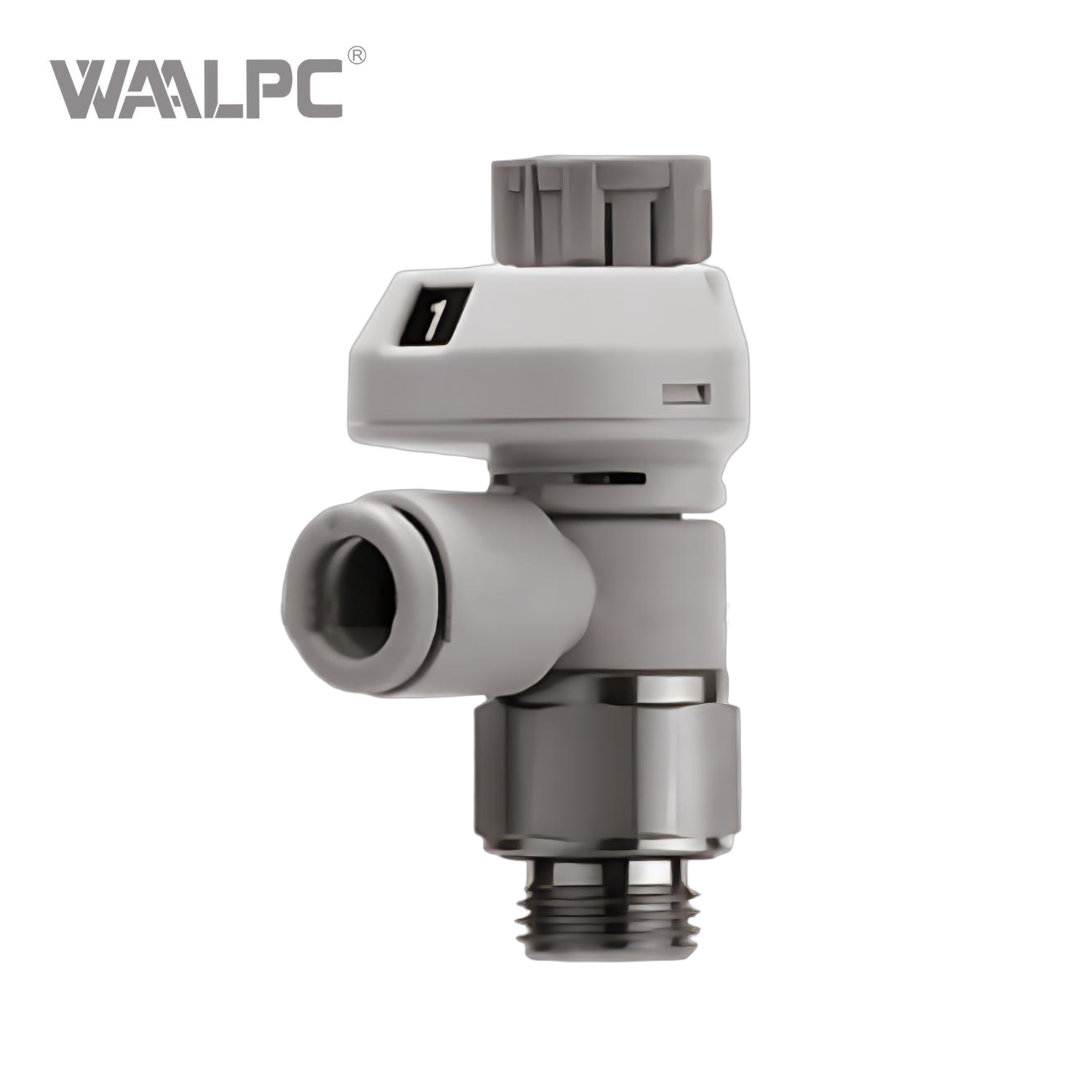

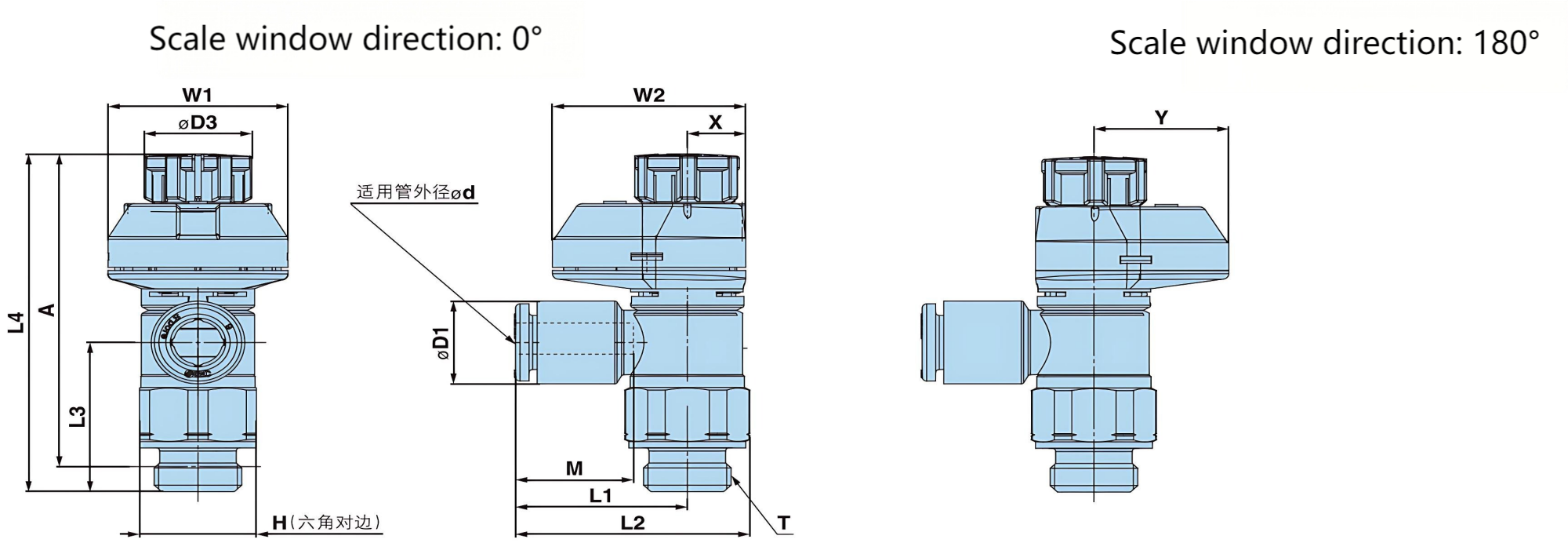

Y-AS22 FS (G) Y-AS22 FS (G)_

Model	d	T	H	D1	D3	L1	L2	L3	L4		A		M	W1	W2	X	Y	Weight (g)
									Unlock	Locked	Unlock	Locked
Y-AS22口1F-G01-23	3.2	1/8	13	7.2	12	19.1	26.2	18.8	43.8	42.4	38.3	36.9	13.3	20	21.5	6.5	15	14
Y-AS22口1F-G01-04	4			8.2
Y-AS22口1F-G01-06	6			10.4
Y-AS22口1F-G01-08	8			13.2		22.4	29.5						14.2					15
Y-AS22口1F-G01-10	10			15.9		25.3	32.4						15.6					16
Y-AS22口1F-G02-23	3.2	1/4	17	7.2	13	20.9	30.2	22.6	49.7	48.3	43.2	41.8	13.3	21.5	24	7.8	16.2	26
Y-AS22口1F-G02-04	4			8.2
Y-AS22口1F-G02-06	6			10.4		23.4	32.7
Y-AS22口1F-G02-08	8			13.2		23.9	33.2						14.2					27
Y-AS22口1F-G02-10	10			15.9		26.9	36.2						15.6					28
Y-AS32口1F-G02-06	6	1/4	21	10.4	16.6	21.8	33	36.4	63.1	61.7	54.6	53.2	13.3	24.5	28.5	9.3	19.2	55
Y-AS32口1F-G02-08	8			13.2		22.7	33.9						14.2
Y-AS32口1F-G02-10	10			15.9		26.7	37.9	35.7					15.6					57
Y-AS32口1F-G02-12	12			18.5		29.7	40.9	34.5					17					59
Y-AS32口1F-G03-06	6	3/8	21	10.4	16.6	21.8	33	28.7	55.4	54	47.9	46.5	13.3	24.5	28.5	9.3	19.2	56
Y-AS32口1F-G03-08	8			13.2		22.7	33.9						14.2					46
Y-AS32口1F-G03-10	10			15.9		26.7	37.9	28					15.6					47
Y-AS32口1F-G03-12	12			18.5		29.7	40.9	26.8					17					49
Y-AS42口1F-G04-10	10	1/2	27	15.9	18.8	27.4	41.8	36.2	64.1	62.5	55.1	53.5	15.6	26	29	10	19	80
Y-AS42口1F-G04-12	12			18.5		20.8	45.2	35.1					17					82
Y-AS42口1F-G04-16	16			23.8		34.8	49.2	32.7					20.6					86

Universal Joint

Sealing method: Sealing ring seal

Thread type: G

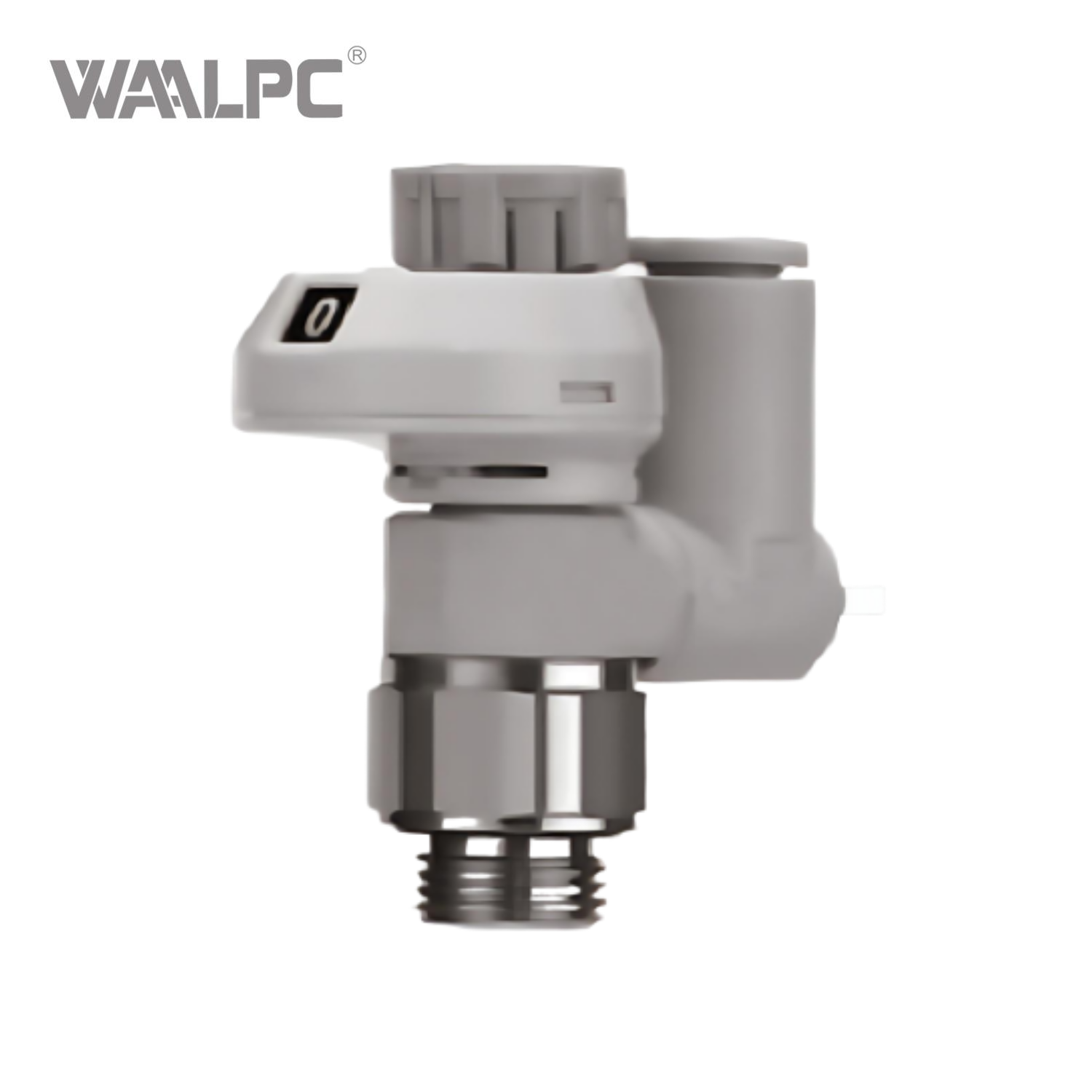

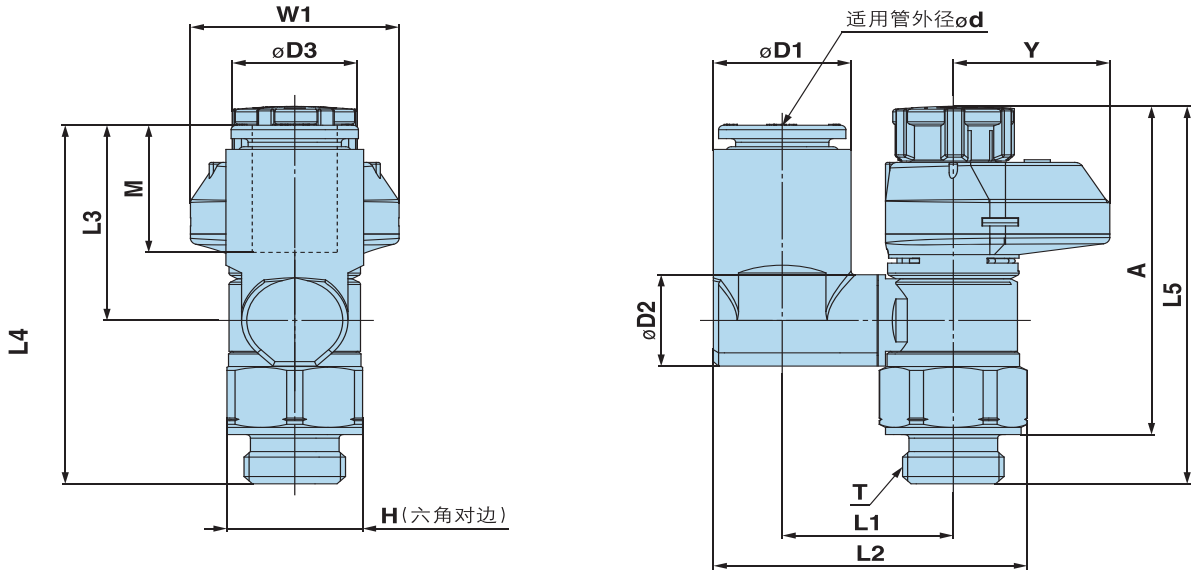

Y-AS23 FS (G)

Model	d	T	H	D1	D2	D3	L1	L2	L3	L4	L5		A		M	W1	Y	Weight (g)
											Unlock	Locked	Unlock	Locked
Y-AS23口1F-G01-23	3.2	1/8	13	7.2	9.6	12	13.3	24.0	17.5	35.7	43.8	42.4	38.3	36.9	13.3	20	15	14
Y-AS23口1F-G01-04	4			8.2			13.9	25.1										15
Y-AS23口1F-G01-06	6			10.4				26.2	20.4	38.5								15
Y-AS23口1F-G01-08	8			13.2	10.2		16.4	30.1	21.5	39.7					14.2			16
Y-AS23口1F-G02-04	4	1/4	17	8.2	12.9	13	16.5	29.9	17.5	40.1	49.7	48.3	43.2	41.8	13.3	21.5	16.2	26
Y-AS23口1F-G02-06	6			10.4			19	33.8	21.4	43.9								28
Y-AS23口1F-G02-08	8			13.2				34.9	23.5	46.0					14.2			29
Y-AS23口1F-G02-10	10			15.9			20.9	38.1	24.7	47.3					15.6			32
Y-AS33口1F-G02-06	6	1/4	21	10.4	12.9	16.6	20.2	36.1	21.4	57.8	63.1	61.7	54.6	53.2	13.3	24.5	19.2	55
Y-AS33口1F-G02-08	8			13.2				38	23.5	59.9					14.2			56
Y-AS33口1F-G02-10	10			15.9	17.4		23	42.2	26.1	58					15.6			59
Y-AS33口1F-G02-12	12			18.5				43.5	28.3	59.9					17			61
Y-AS43口1F-G04-10	10	1/2	27	15.9	17.4	18.8	25.6	47.9	26.1	61.2	64.1	62.5	55.1	53.5	15.6	26	19	80
Y-AS43口1F-G04-12	12			18.5	21		26.2	49.8	28.3	63.4					17			82

Specification Download

Connectors detailed parameters AS Series Elbow and universal type.pdf

Superiority

Why choose us? What can we do for you?

♦ Founded in 2011 and professional experienced in the field of producing pneumatic products for over 13+ years.
♦ We have strong production capacity, over 100000 pcs/month.
♦We have rich experience for offering OEM/ODM service
♦ We have strict quality control process with quick response of after sales service.
♦ Management system certification : ISO9001,CE, ROHS
♦ We have 10+ technical experts for researching and developing.
♦ Sales network expands from domestic sales to all over the world.
