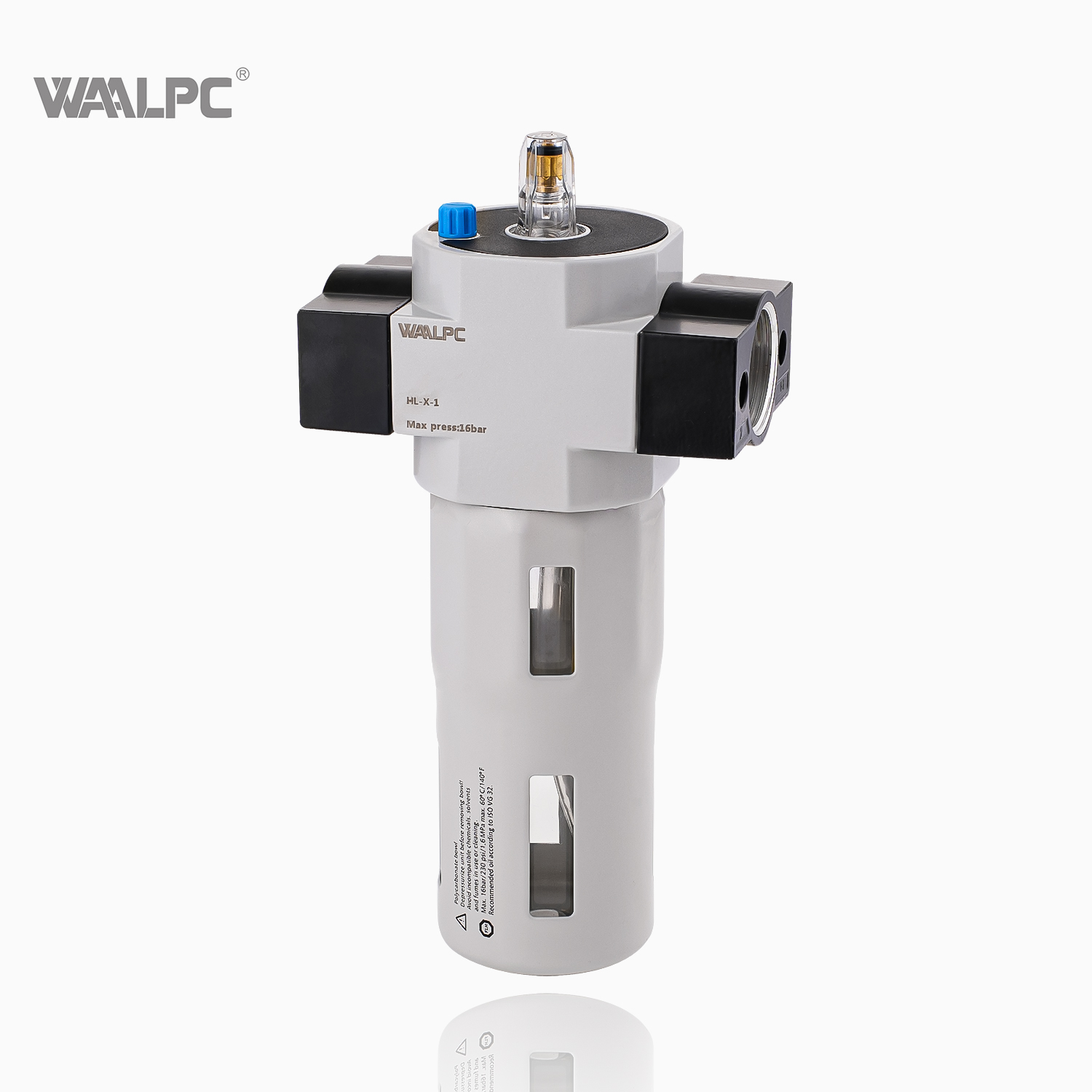

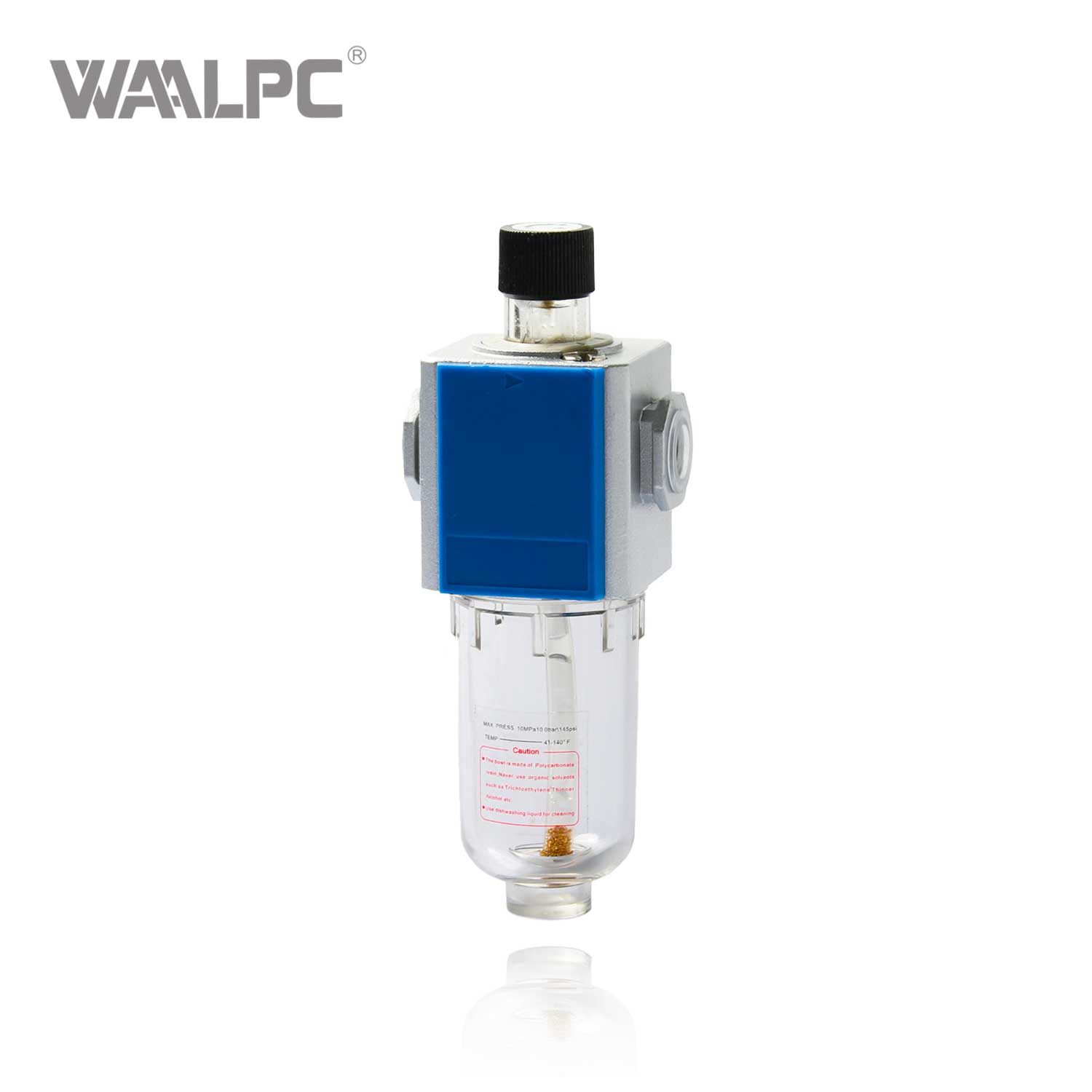

A pneumatic lubricator, also known as an air lubricator or lubricating unit, is a critical component in pneumatic systems designed to introduce a fine mist of lubricating oil into compressed air streams. Its primary function is to protect downstream pneumatic equipment—such as cylinders, valves, motors, and tools—by reducing friction, minimizing wear, and extending operational lifespan. Typically integrated into FRL (Filter-Regulator-Lubricator) units, these devices ensure clean, regulated, and lubricated air for optimal system performance.
The operation of a pneumatic lubricator relies on the Venturi effect or a drip-feed mechanism:
Venturi Effect: Compressed air enters the lubricator and passes through a constricted channel, creating a low-pressure zone. This pressure drop draws oil from a reservoir through a siphon tube, atomizing it into a fine mist that mixes with the air stream.
Drip-Feed System: Oil is released in controlled droplets via an adjustable needle valve. A sight glass allows users to monitor and adjust the drip rate, ensuring consistent lubrication .
Some models also use a wick-feed design, where oil rises through a porous wick via capillary action and is carried by the airflow.
A typical pneumatic lubricator includes:
Oil Reservoir: Stores lubricant, often with a transparent design for easy level checks.
Needle Valve: Adjusts oil flow rate.
Sight Glass/Window: Visually confirms oil misting and drip rate.
Bleeder Assembly: Releases excess air pressure.
Siphon Tube: Transfers oil from the reservoir to the atomization chamber.
Design: Built to withstand high air pressures (e.g., >100 psi) in heavy-duty applications like construction equipment or mining machinery.
Key Features: Reinforced housing, corrosion-resistant materials, and robust seals.
Principle: Uses FDA/NSF-approved lubricants (non-toxic, non-hazardous) to comply with hygiene standards.
Applications: Food and beverage processing, pharmaceutical manufacturing, and medical devices.
Design: Engineered for hazardous environments (e.g., oil refineries, chemical plants) with spark-resistant materials and sealed construction.
Compliance: Meets standards like ATEX or NEC Class I, Division 1.
Technology: Integrates sensors (e.g., oil level, flow rate) and IoT connectivity to monitor and automate lubrication.
Features: Real-time alerts, predictive maintenance, and remote control via software.
Applications: Large-scale industrial systems, predictive maintenance programs.
Design: Uses biodegradable or synthetic oils to minimize environmental impact. Often paired with recycling systems for oil waste.
Applications: Marine equipment, outdoor machinery, and eco-conscious manufacturing.
Design: Compact size for space-constrained systems (e.g., lab equipment, medical devices, or small-scale robotics).
Features: Low oil capacity, lightweight, and easy integration into micro-pneumatic circuits.
Pneumatic lubricators are integral across industries:
Manufacturing: Protects pneumatic tools and robotic arms in assembly lines.
Automotive: Lubricates brake systems, paint sprayers, and engine testing equipment.
Food & Beverage: Uses food-grade lubricants (e.g., NSF H1-certified oils) to comply with hygiene standards in packaging and processing machinery.
Aerospace & Maritime: Ensures smooth operation of valves and actuators in extreme conditions.
Textile & Paper: Reduces friction in weaving looms and paper rollers.
Oil Level: Refill reservoir as needed, ensuring compatibility with system requirements (e.g., mineral vs. synthetic oil) .
Drip Rate: Adjust to manufacturer-recommended levels (e.g., 1–5 drops per minute for standard applications) .
Air Quality: Clean or replace filters to prevent contamination.
Quarterly Maintenance: Disassemble and clean internal components (e.g., siphon tube, needle valve) to remove debris.
Seal Replacement: Check for worn O-rings or gaskets to prevent leaks.
No Oil Flow: Verify needle valve position, siphon tube blockages, or insufficient air pressure.
Excessive Oil Consumption: Adjust drip rate or inspect for leaks in downstream components.
Key considerations include:
Flow Rate: Match lubricator capacity to system airflow (e.g., SCFM requirements) .
Pressure Range: Ensure compatibility with system operating pressures (typically 50–150 PSI) .
Lubricant Type: Choose food-grade oils for food processing or high-temperature synthetics for extreme environments .
Industry Standards: Opt for NSF H1-certified lubricators in food-related applications .
Smart Lubricators: Integration with IoT sensors for real-time monitoring of oil levels and system performance .
Eco-Friendly Solutions: Use of biodegradable lubricants and energy-efficient designs to reduce environmental impact .
Miniaturization: Compact models for space-constrained applications in electronics and medical devices.
Prominent brands include:
SMC: Known for high-quality FRL units with modular designs .
Festo: Specializes in smart, energy-efficient pneumatic solutions .
Pneumatic lubricators are indispensable for maintaining the efficiency and longevity of pneumatic systems. By ensuring proper lubrication, they reduce downtime, enhance safety, and support sustainable operations across diverse industries. With advancements in smart technology and eco-friendly materials, the future of pneumatic lubrication promises even greater precision and reliability.
For optimal performance, always consult manufacturer guidelines and industry standards when selecting and maintaining pneumatic lubricators.
