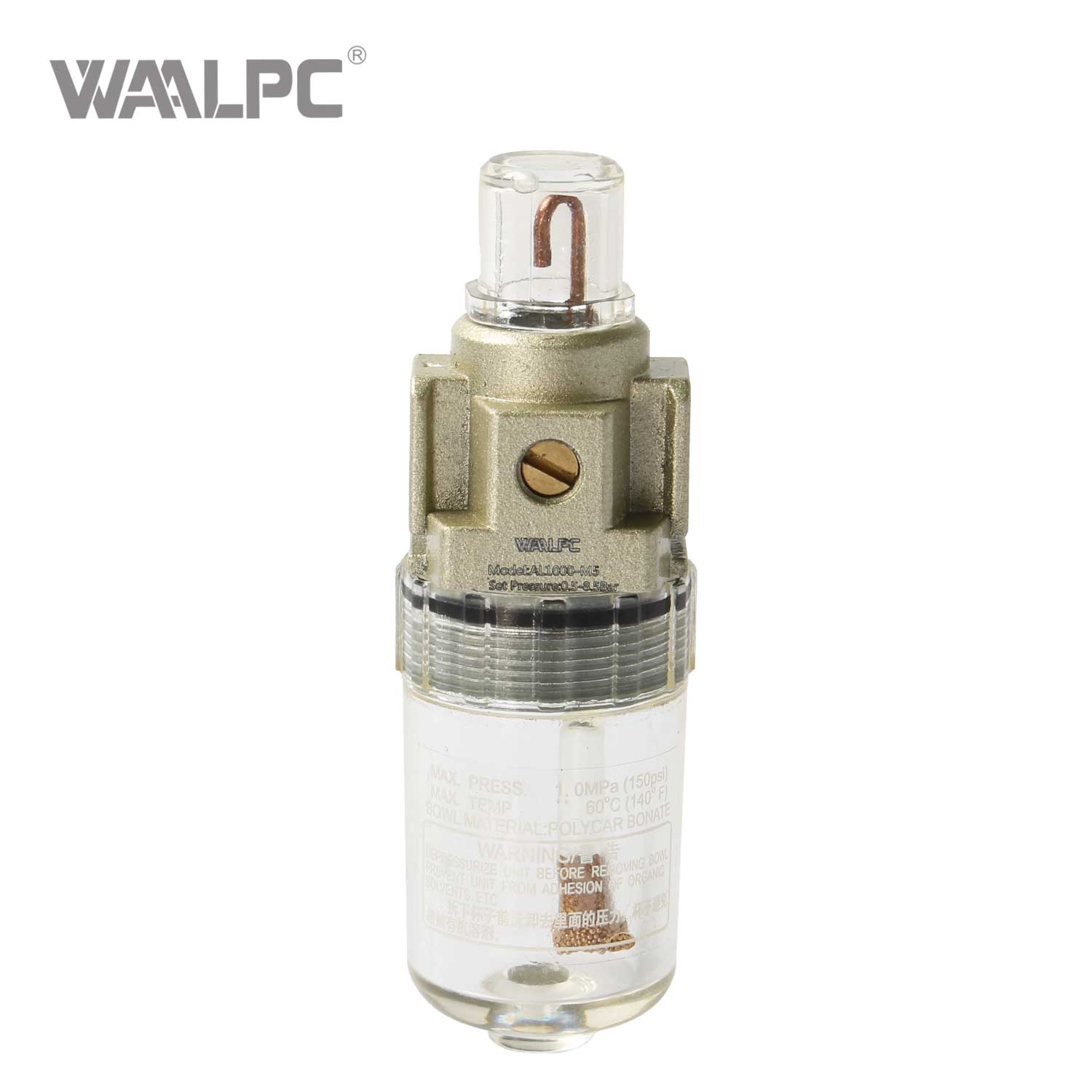

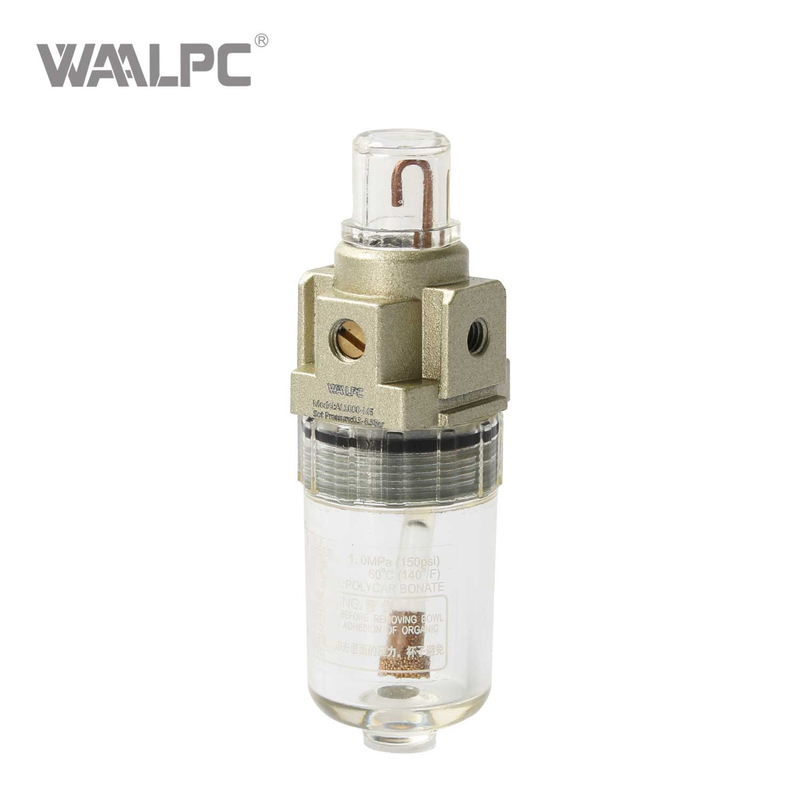

The SMC AL1000-M5 Pneumatic Air Lubricator is a precision-engineered solution designed to ensure optimal lubrication of downstream pneumatic components such as valves, cylinders, and tools. As part of SMC’s modular air treatment series, this lubricator integrates seamlessly with filters and regulators to maintain clean, lubricated compressed air in industrial systems.

Model:
AL1000-M5
Brand:
WAALPC
Code:
8421399090

Product Description

The SMC AL1000-M5 Pneumatic Air Lubricator Advantages

SMC Air Lubricator

1. Prepare air for all types of compressed air tools and equipment;

2. Air lubricator supplies lubricating oil to the pneumatic equipment which is in operation in appropriate proportions;

3. Protect your pneumatic tools for longer lifespan.

The SMC AL1000-M5 Pneumatic Air Lubricator Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Type-name	Air Lubricator

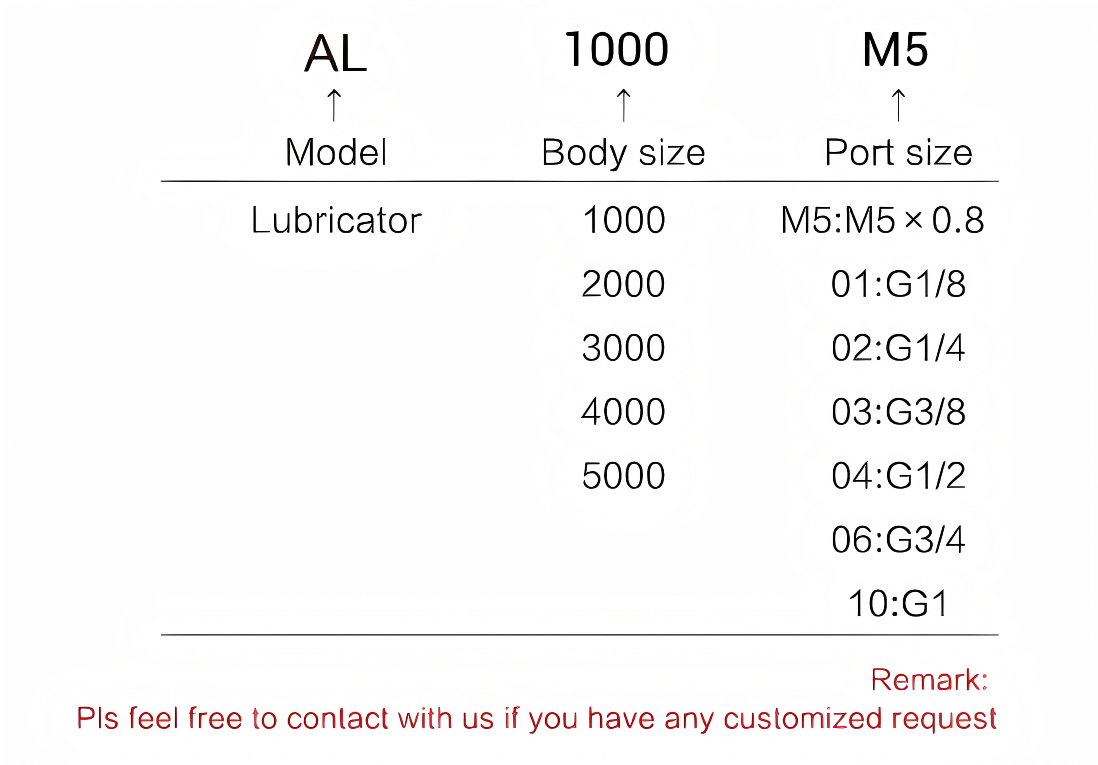

Model	AL1000-M5	AL2000-01	AL2000-02	AL3000-02	AL3000-03	AL4000-03	AL4000-04	AL4000-06	AL5000-06	AL5000-10
Port Size	M5*0.8	1/8	1/4	1/4	3/8	3/8	1/2	3/4	3/4	1
Cup Protective Cover	AL1000-2000(W/0)			AL3000-5000(W)
Working Medium	Air
Operating temperature range	5~60℃
Oil Cup Capacity	10	15	15	20	20	45	45	45	130	130
Recommended Oil	Oil for turbine 1 ISOVG32
Material	Housing: Aluminum die-casting molding; Container cup: PE; Protective cover: iron
Weight	100g	160g	160g	330g	330g	570g	570g	620g	1130g	1130g

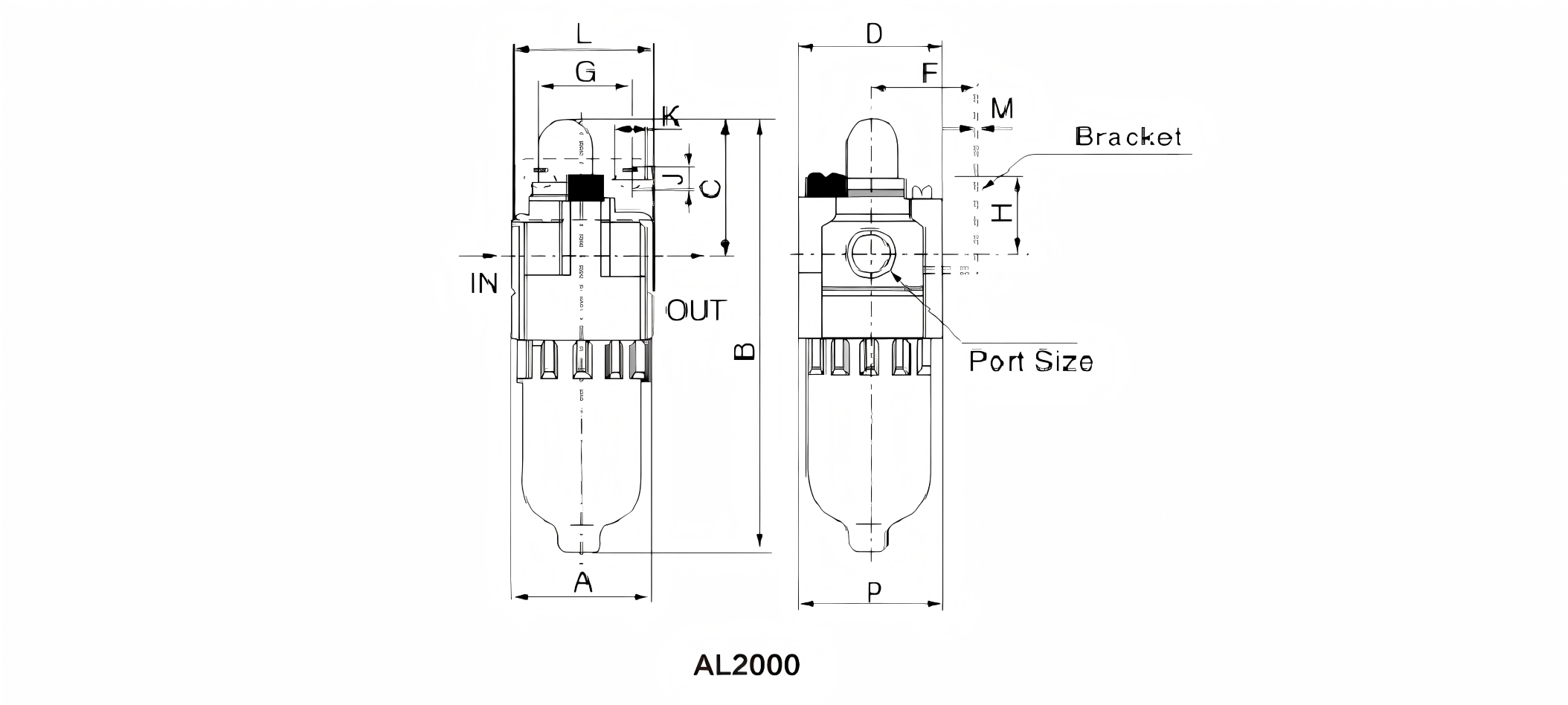

STRUCTURE

SMC Air Lubricator

Model	Port size	A	B	C	D	F	G	H	J	K	L	M	P
AL1000	M5	25	81.5	25.5	25	-	-	-	-	-	-	-	127
AL2000	1/8-1/4	40	122	38	40	30	27	22	5.4	8.4	40	2.3	40
AL3000	1/4-3/8	53	142	38	53	41	40	23	6.5	8	53	2.3	56
AL4000	3/8-1/2	70	177	41	70	50	54	26	8.5	10.5	70	2.3	73
AL4000-06	3/4	75	177	39	70	50	54	25	8.5	10.5	70	2.3	73
AL5000	3/4-1	90	254	45	90	66.5	66	35	11	13	90	3.2	90
