Pneumatic Part Air Filter Regulator Lubricator FRL Combination 398 Series Lubricator Regulator Pneumatic Air Filter Combination

Pneumatic Part Air Filter Regulator Lubricator FRL Combination 398 Series Lubricator Regulator Pneumatic Air Filter Combination


Availability:

Quantity:



Inquiry Add to Basket

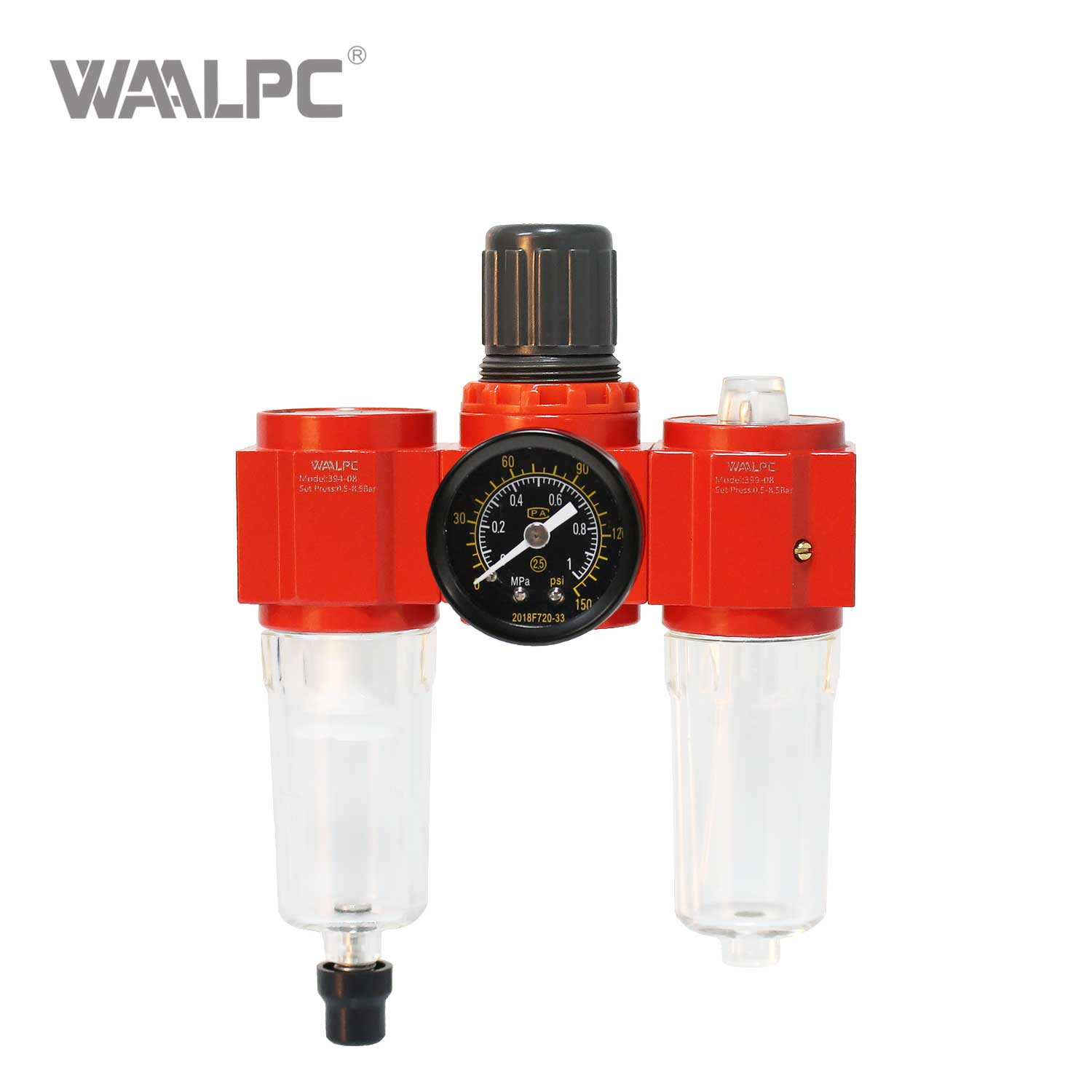

The 39 Series Hailong Type FRL Unit is a modular air treatment system designed to ensure clean, stable, and lubricated compressed air in industrial applications. Comprising an air filter, pressure regulator, and lubricator, this unit efficiently removes contaminants, stabilizes pressure, and provides controlled lubrication for pneumatic tools and machinery. With a modular design allowing easy assembly/disassembly and compatibility with accessories like pressure switches and safety valves, it adapts seamlessly to diverse industrial setups. Available in port sizes from 1/8'' to 1" and multiple configurations (FRL, FR, RL), the 39 Series caters to applications requiring high precision and reliability.

Model:
396-08
Brand:
WAALPC
Code:
8421399090

Product Description

1. High-Quality Air Treatment

Multi-Stage Filtration: Removes particles as small as 5–40μm (depending on model), eliminating dust, moisture, and oil aerosols to protect downstream components from wear and corrosion.

Precision Pressure Regulation: Maintains a stable output pressure within 0.05–0.85 MPa (standard) or 0.05–1.0 MPa (select models), ensuring consistent performance of pneumatic tools and equipment.

2. Durable Construction

Corrosion-Resistant Materials: Constructed with copper alloy, aluminum, ensuring long-term performance in harsh environments.

100% Leak Testing: Rigorous low- and high-pressure tests guarantee reliability under extreme conditions.

3. User-Friendly Design

Modular Interface: Quick-connect components allow tool-free installation and replacement, minimizing downtime.

Transparent Bowl Guard: Enables easy monitoring of filter element and lubricant levels.

Wide Operating Range: Functions reliably in temperatures from 0°C to 60°C, suitable for both indoor and outdoor applications.

Technical Parameters

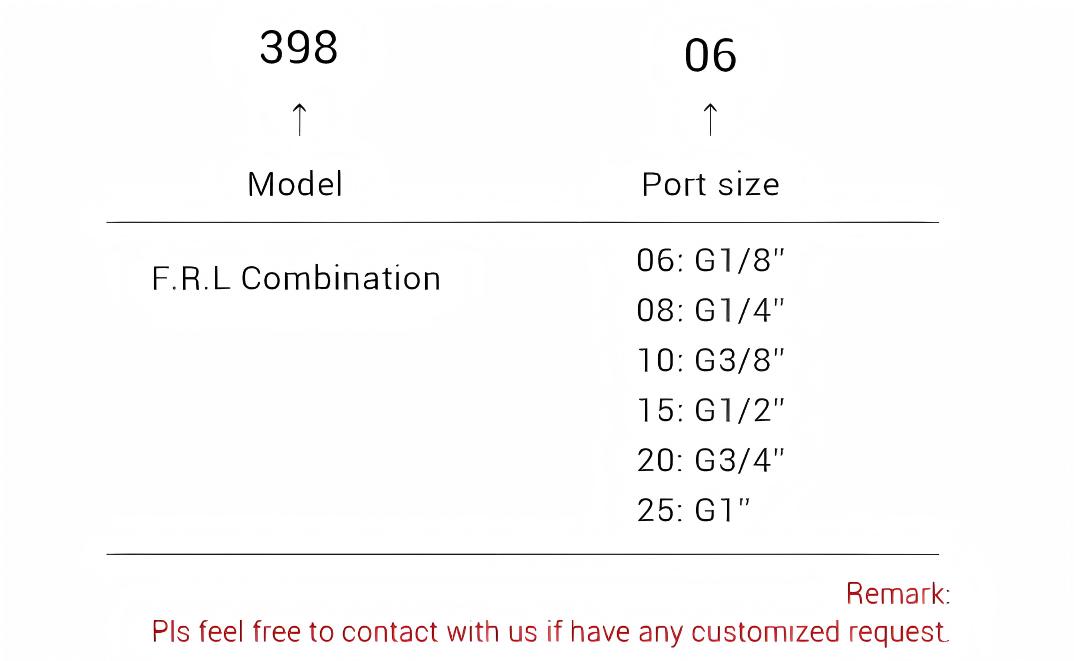

ORDERING CODE

DATA SHEET

Model	398-06	398-08	398-10	398-15	398-20	398-25
Port Size G	1/8''	1/4''	3/8''	1/2''	3/4''	1''
Filter Precision	Standard: 5um
Pressure Range	0.05~0.85MPa
Max. Adjustable Pressure	1MPa
Applicable Temperature	0~50℃

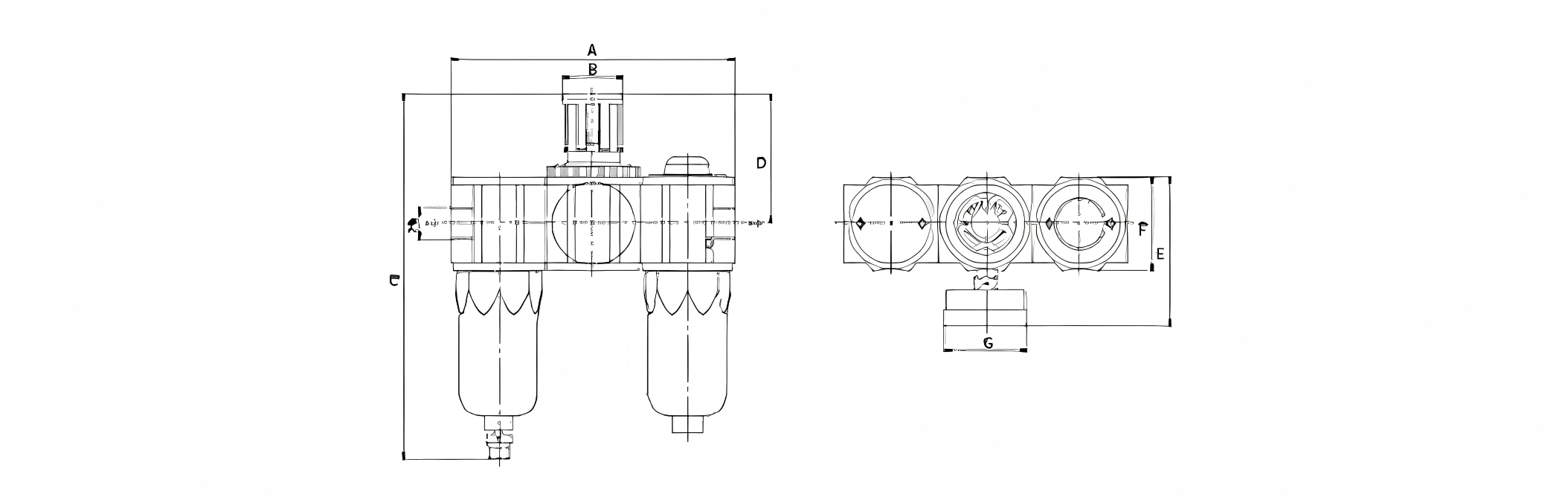

DIMENSION

The 39 Series Hailong Type FRL Unit

Model	A	B	C	D	E	F	G
398-06	127	27	164.5	57	76	39.5	42
398-08	127	27	164.5	57	76	39.5	42
398-10	175	39	231	83.5	92	58	52
398-15	175	39	231	83.5	92	58	52
398-20	235.5	48	284.5	104	112	78	52
398-25	235.5	48	284.5	104	112	78	52

Specification Download

The 39 Series Hailong Type FRL.png
