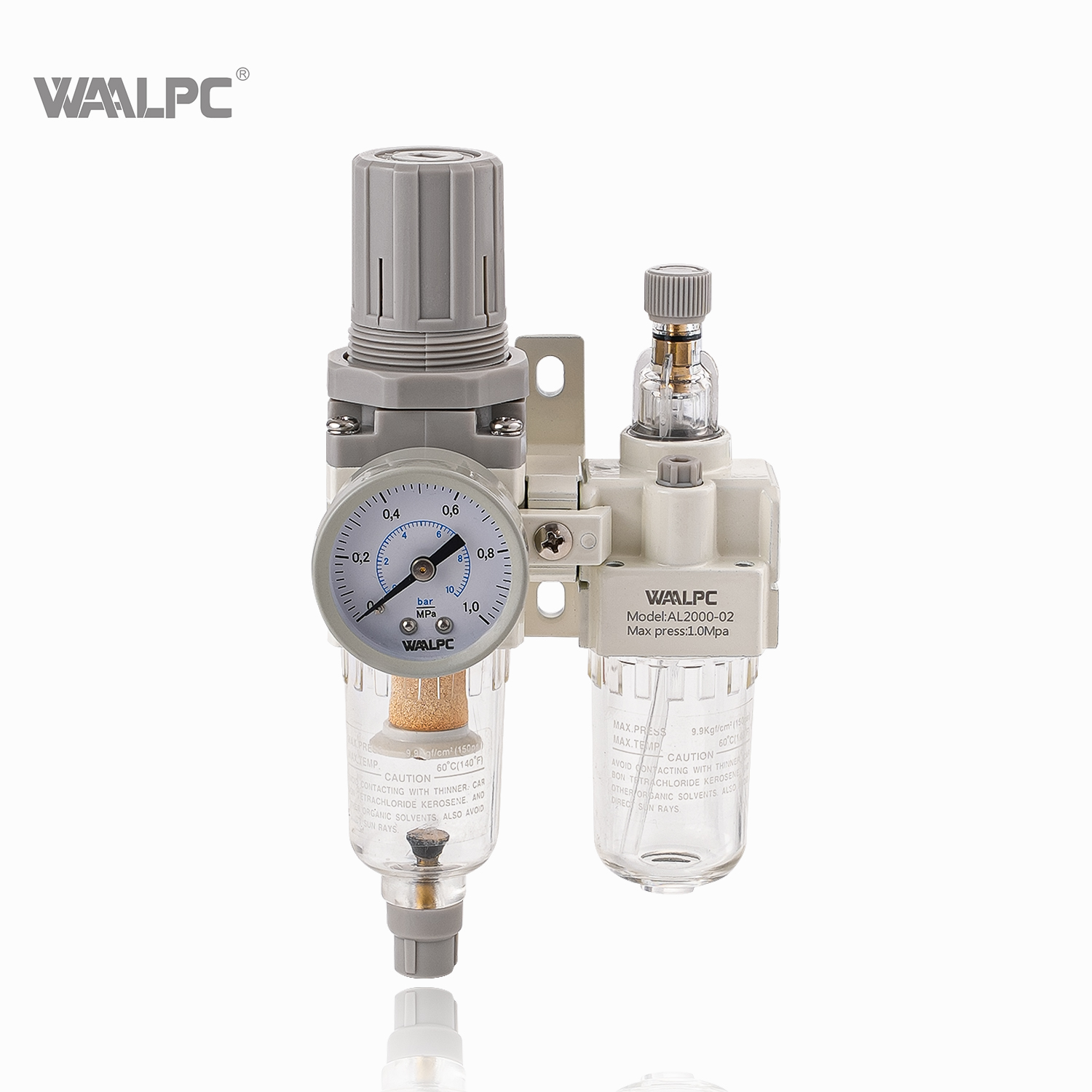

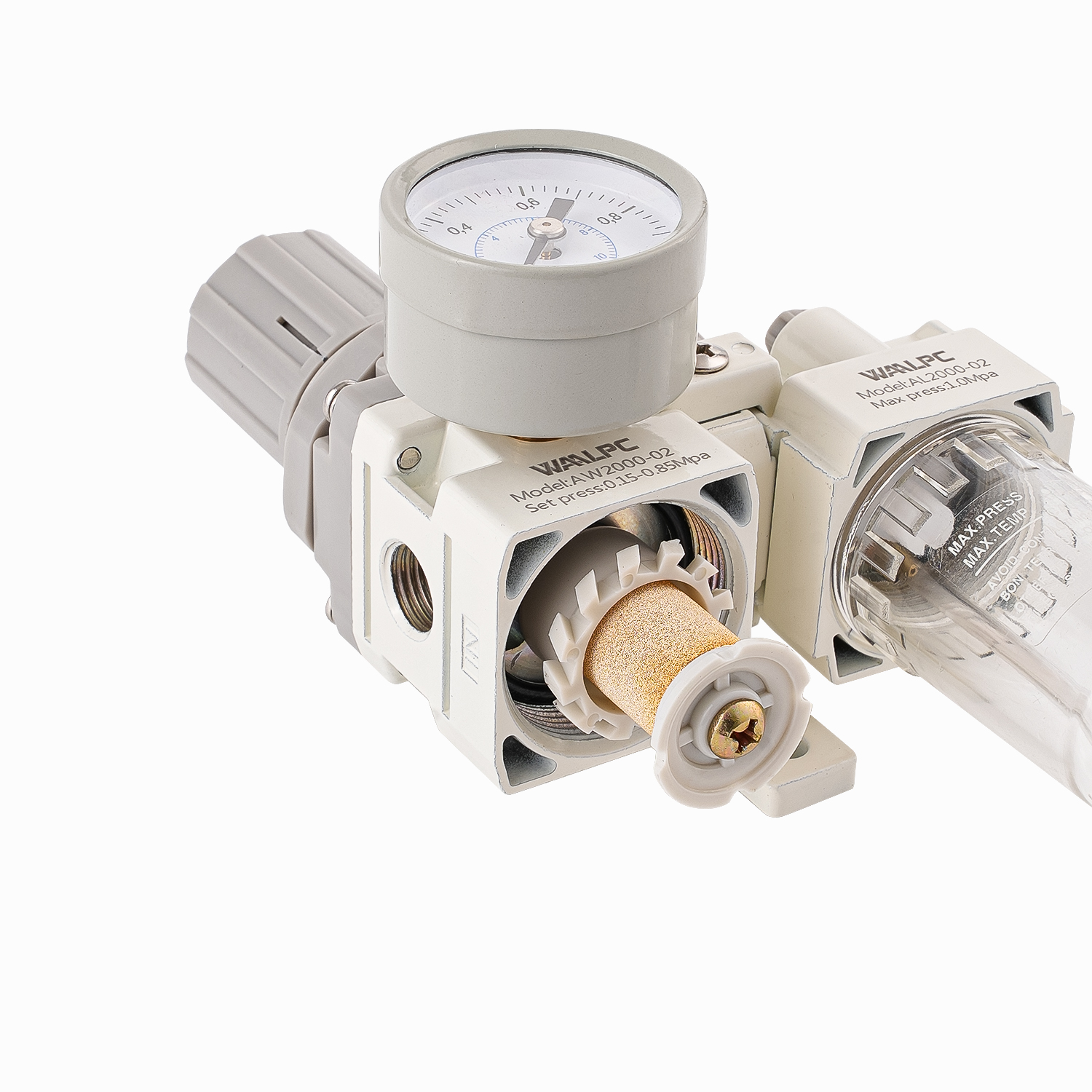

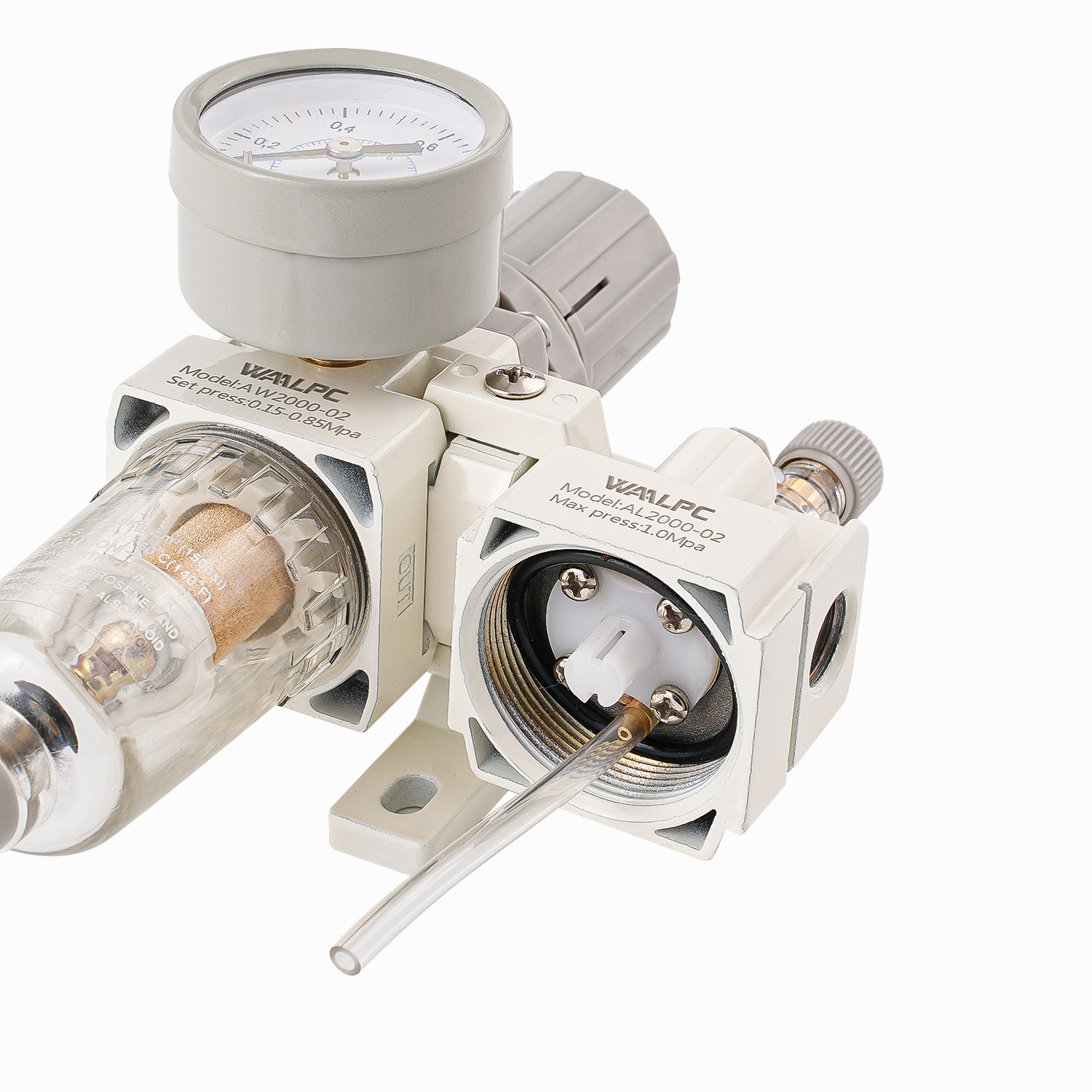

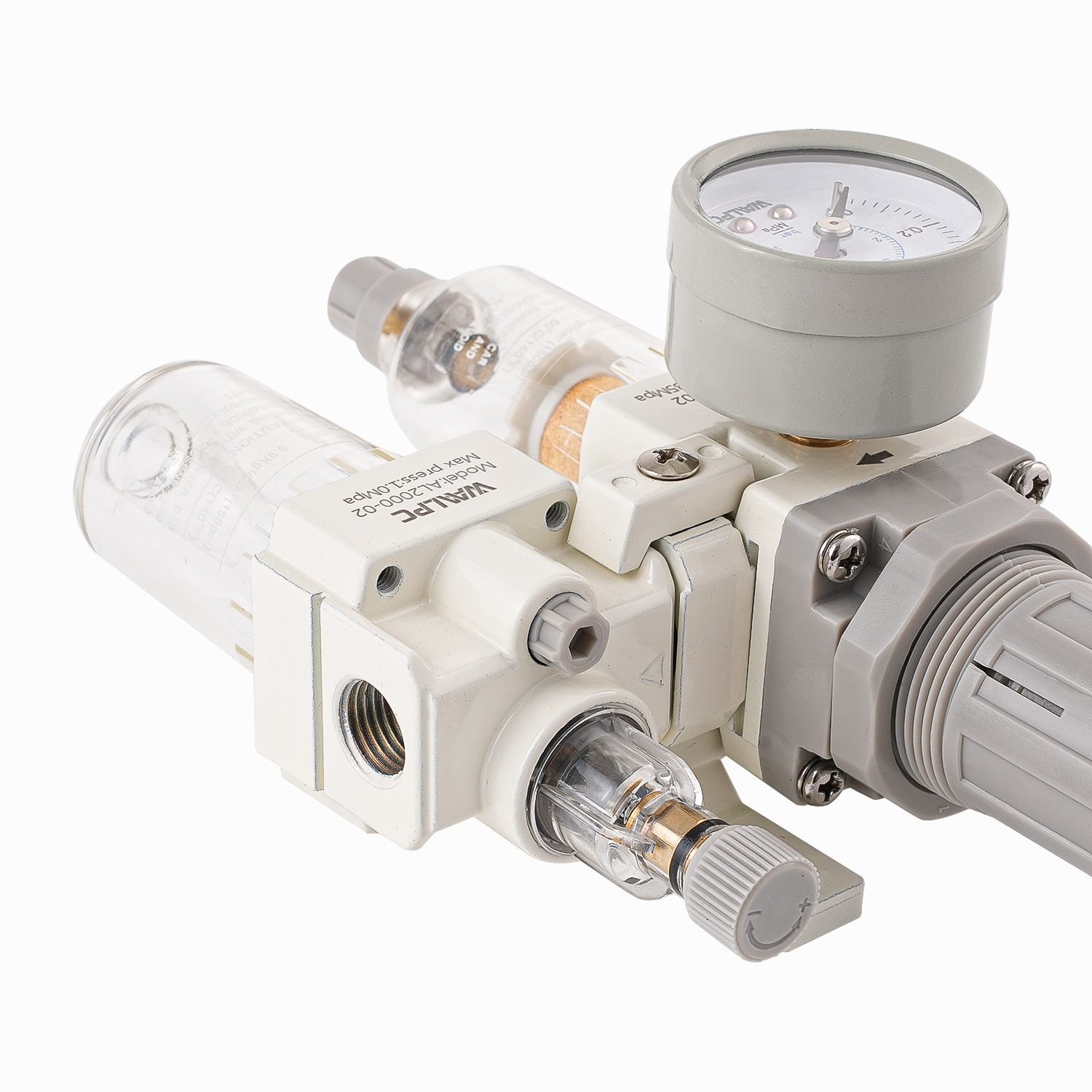

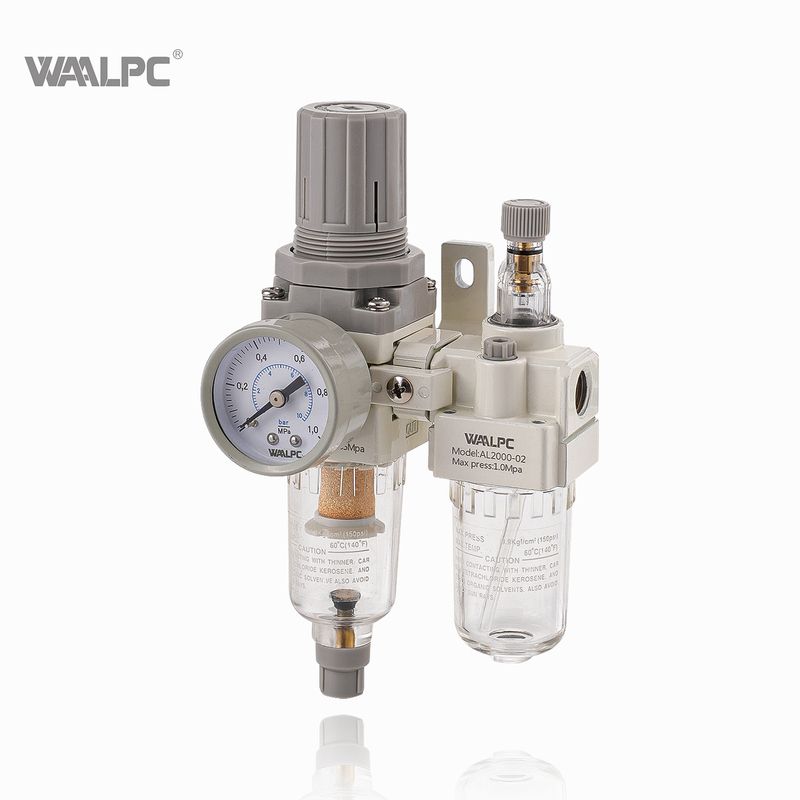

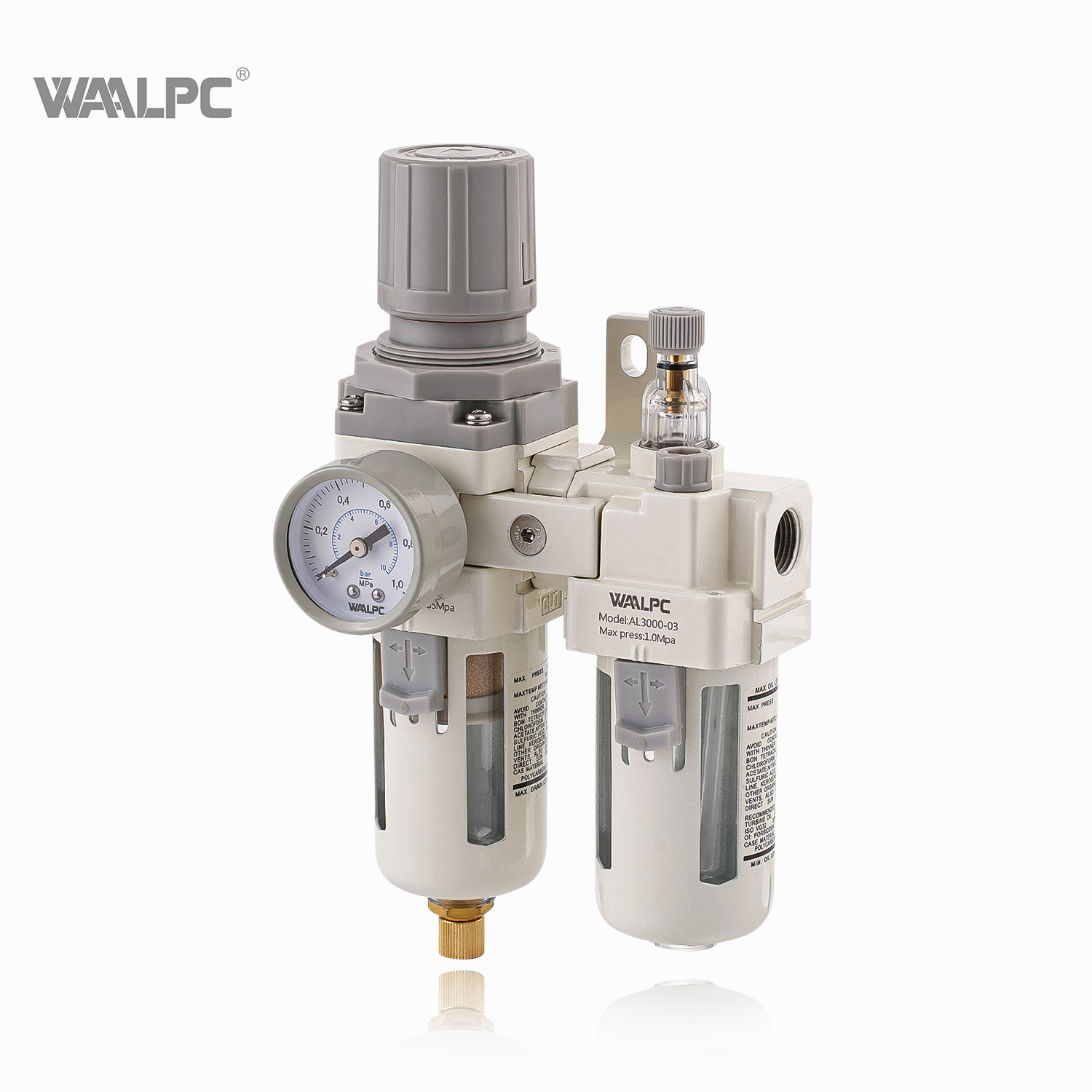

AC2010 white SMC M5 1/8'' 1/4'' Compressed Air Regulator Trap Filter Lubricator Pressure Reducing Valve Oil Separator Frl for Automation equipment

Compressed Air Regulator Filter Lubricator Pressure Reducing Valve Separator Frl for Automation Equipment AC2010 White SMC M5 1/8'' 1/4''

Compressed Air Regulator Filter Lubricator Pressure Reducing Valve Separator Frl for Automation Equipment AC2010 White SMC M5 1/8'' 1/4''


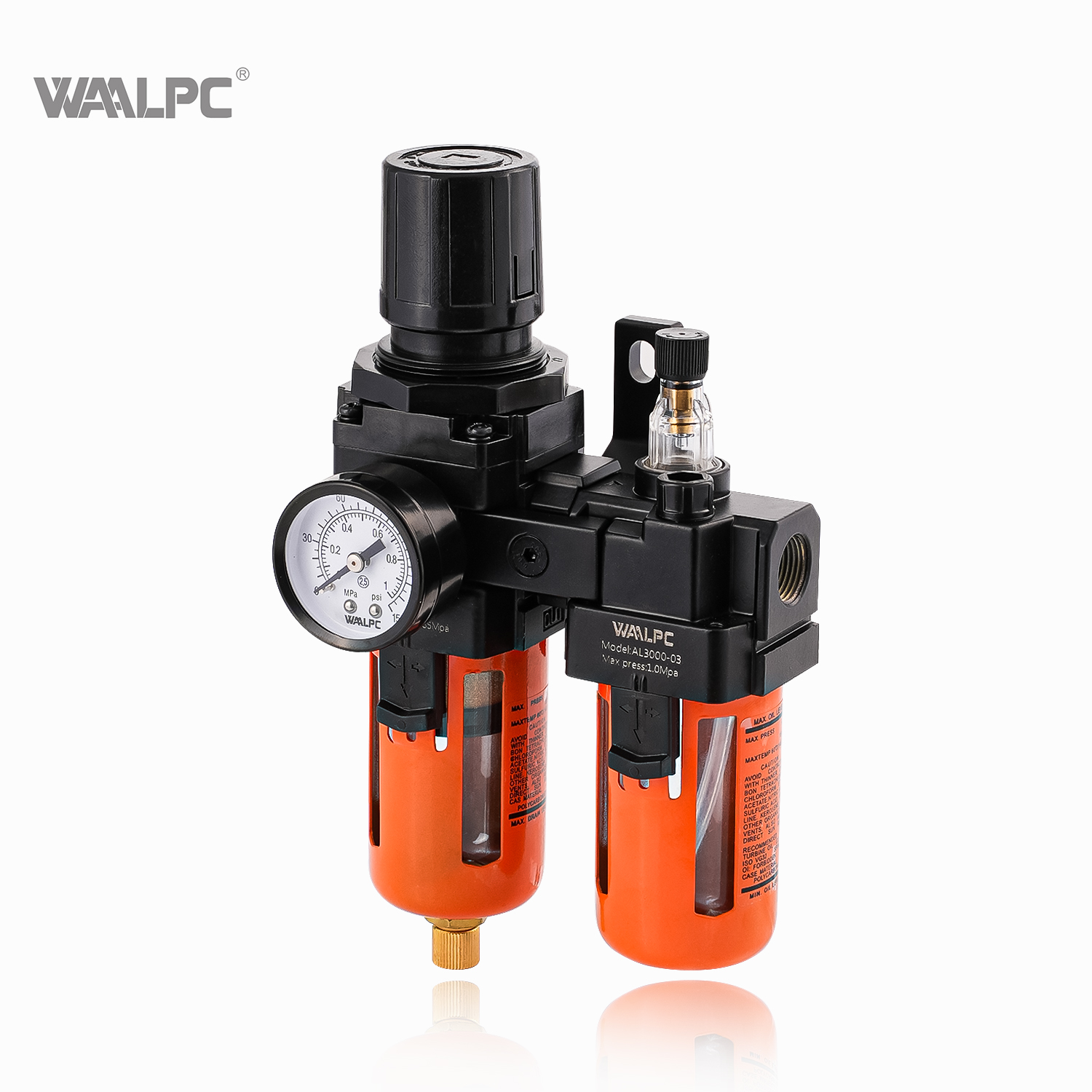

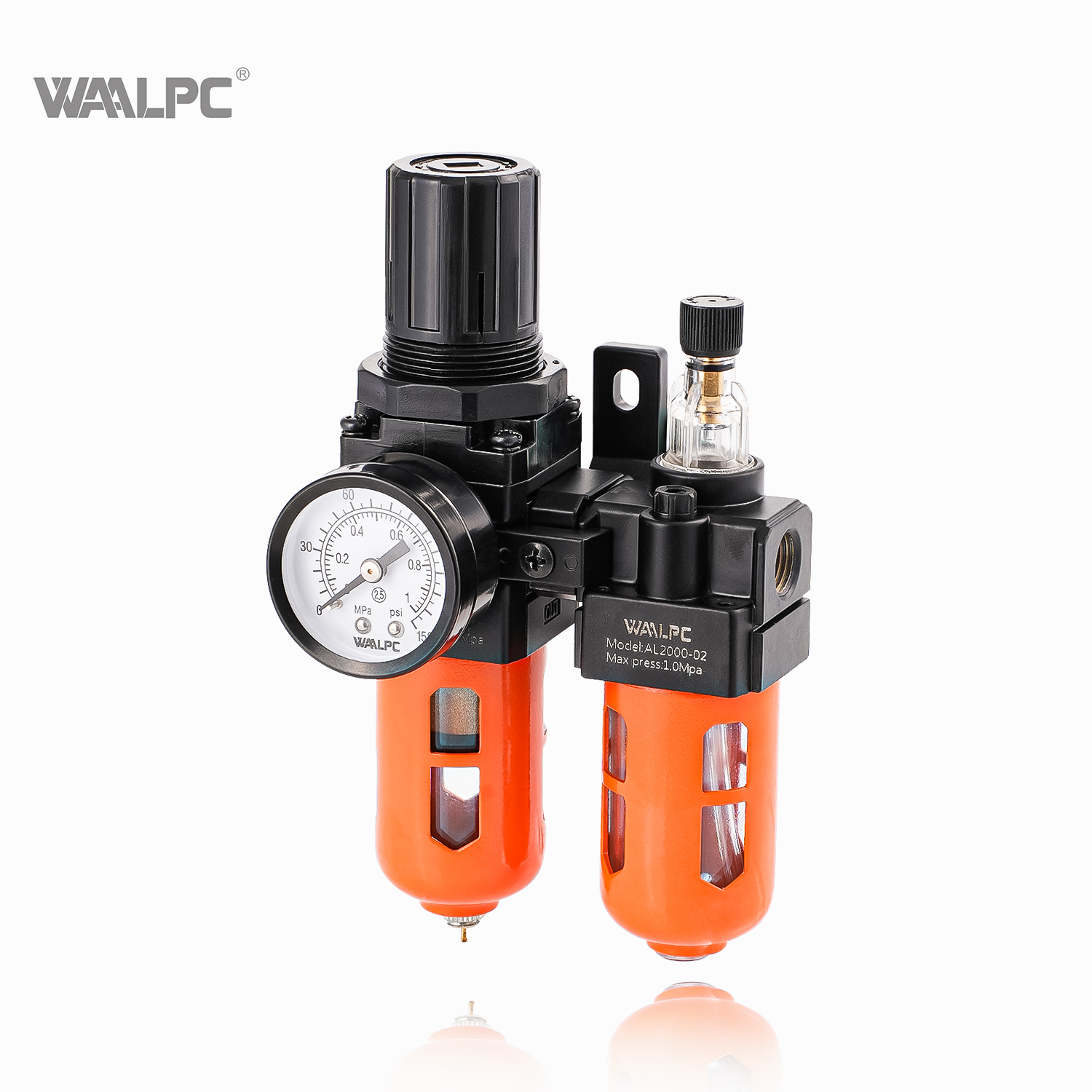

Color:	Black∨ange White
Availability:

Quantity:



Inquiry Add to Basket

SMC Two-Unit Combinations integrate superior filtration and precise pressure regulation into a single, compact unit. These filter regulator units deliver reliable performance, energy efficiency, and maintenance-free operation for industrial pneumatic systems worldwide. Designed for applications demanding clean, stable, and precisely regulated compressed air.

Model:
AC Series
Brand:
WAALPC
Code:
8421999000

Product Description

1. Light and compact structure, easy to install and use.

2. Press-in self-locking mechanism, which can prevent the set pressure from external interference.

3. Small pressure loss,high efficiency of water separation.

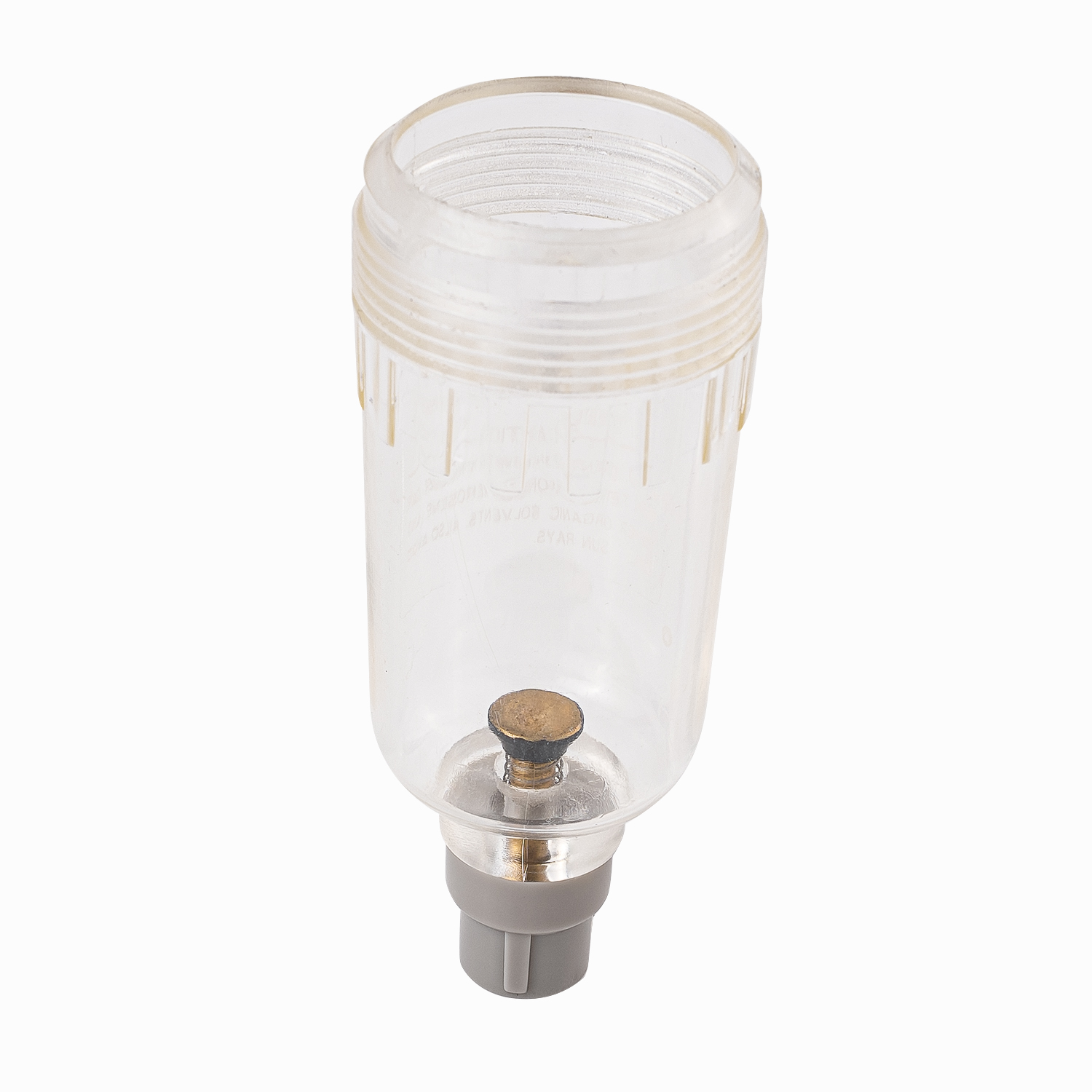

4. Transparent housing,the amount of oil dripping can be observed directly.

5. In addition to the standard type,there is also a low pressure type available (the max. regulating pressure is 0.4MPa)

6. The filter precision includes 5µm and 40µm(optional).

7. Extend the life of the equipment: Filter out particles in the air, reduce wear and tear on the equipment, and extend the life of the equipment.
8. Improved equipment efficiency: Clean air improves the efficiency of equipment operation.
9. Stable output pressure: The pressure regulating valve can accurately adjust the output pressure to ensure the normal operation of downstream equipment.
10. Improve system reliability: Through purification and lubrication, the wear of pneumatic components is reduced and the reliability of the system is improved.
11. High pressure regulation accuracy: It can accurately adjust the output pressure to ensure the normal operation of downstream equipment.
12. Reduced Maintenance: Pneumatic components will need less maintenance due to reduced wear and corrosion.
13. Port size available: M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''.

Technical Parameters

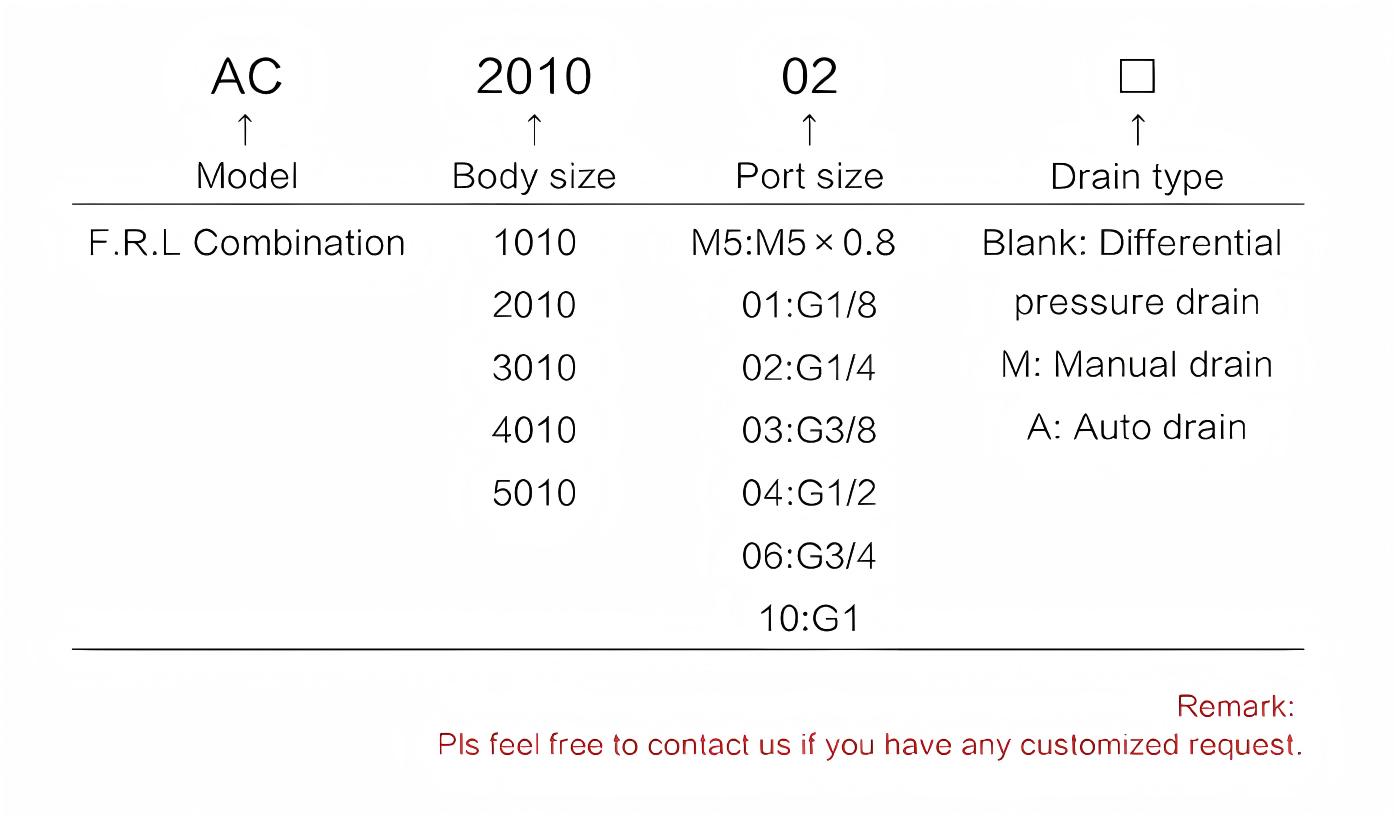

ORDERING CODE

DATA SHEET

Type-name		F.R.L combination
Model		AC1010-M5	AC2010-01	AC2010-02	AC3010-02	AC3010-03	AC4010-03	AC4010-04	AC4010-06	AC5010-06	AC5010-10
Port Size (G)		M5*0.8	1/8	1/4	1/4	3/8	3/8	1/2	3/4	3/4	1
Cup Protective Cover		AC1010-2010（W/O）			AC3010-5010（ W）
Drain Type		Manual drain, auto drain and differential pressure drain (optional)
Grade Of Filtration		5µm , 25µm, 40µm
Working Medium		Air
Pressure Regulating Range		0.05-0.07MPa	0.05-0.85MPa
Max. Operating Pressure		1.0MPa（ 145Psi）
Pressure Resistance		1.5MPa（ 215Psi）
Operating Temperature Range		5-60 ℃
Filter Cup Capacity		10	15	15	20	20	45	45	45	130	130
Lubricator Cup Capacity		10	15	15	20	20	45	45	45	130	130
Recommended Oil		Oil for turbine 1 ISOVG32
Pressure Gauge		Y40-01				Y50-02
L-type Bracket		L10	L20	L20	L30	L30	L40	L40	L50	L50	L60
Material		Housing: Aluminum die-casting molding; Container cup: PE; Protective cover: iron
Components	Weight	400g	470g	470g	950g	950g	1810g	1810g	1910g	3150g	3150g
	Pressure Regulating Filter	AW1000-M5	AW2000-01	AW2000-02	AW3000-02	AW3000-03	AW4000-03	AW4000-04	AW4000-06	AW5000-06	AW5000-10
	Lubricator	AL1000-M5	AL2000-01	AL2000-02	AL3000-02	AL3000-03	AL4000-03	AL4000-04	AL4000-06	AL5000-06	AL5000-10

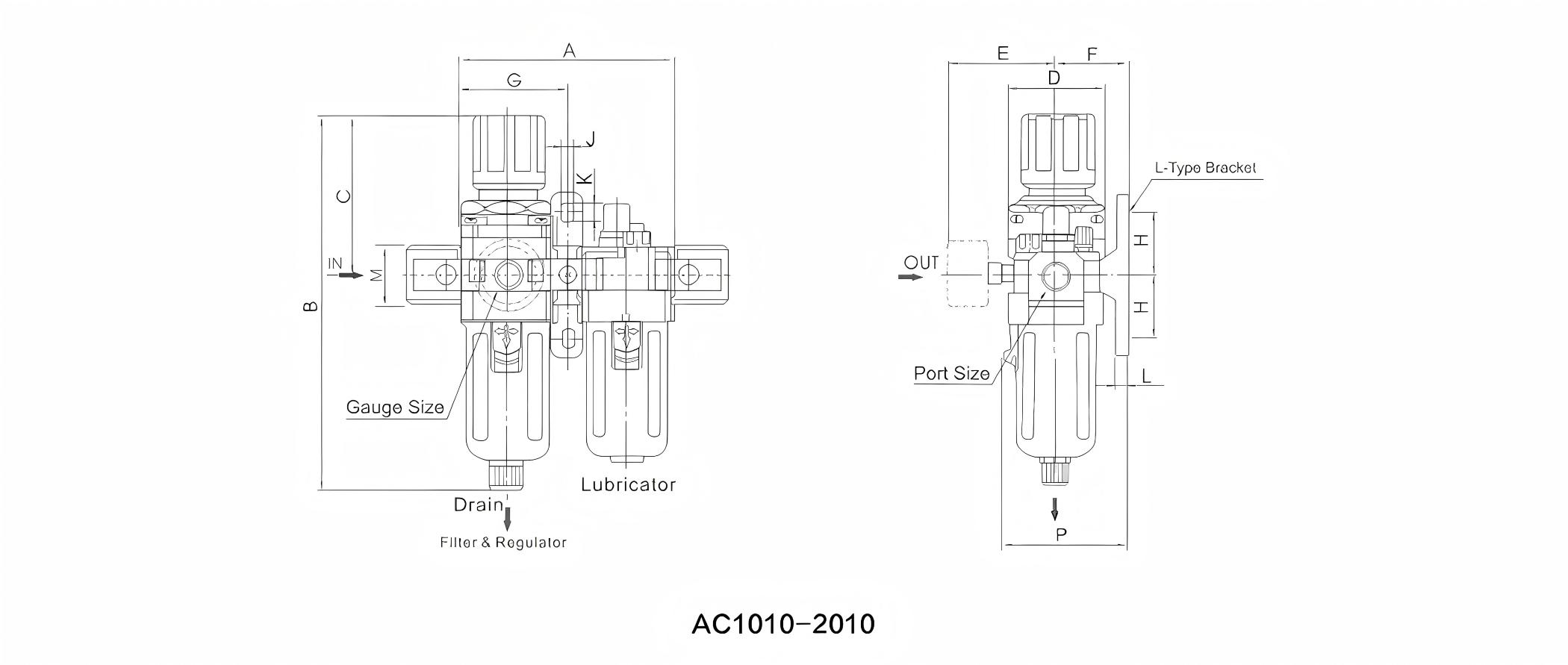

STRUCTURE

Air filter regulator lubricator

DIMENSION(MM)

Model	Port size	A	B	C	D	E	F	G	H	J	K	L	M	N	P
AC1010	M5	58	109.5	50.5	25	26	25	29	20	4.5	7.5	5	17.5	16	38.5
AC2010	1/8-1/4	90	164.5	78	40	56.8	30	45	24	5.5	8.5	5	22	23	50
AC3010	1/4-3/8	117	211	92.5	53	60.8	41	58.5	35	7	11	7	34.2	26	70.5
AC4010	3/8-1/2	154	262	112	70	70.5	50	77	40	9	13	7	42.2	33	88
AC4010-06	3/4	164	267	114	70	70.5	50	82	40	9	13	7	46.2	36	88
AC5010	3/4-1	195	388	116	90	75.5	69.8	97.5	50	12	16	10.5	55.5	40	115
