In industrial pneumatic systems, the solenoid valve serves as the critical interface between electrical control signals and pneumatic actuation. It converts electrical energy into mechanical motion to direct the flow of compressed air, enabling precise control of cylinders, grippers, and other pneumatic actuators. When operating environments involve corrosive substances, high humidity, or stringent hygiene requirements, standard aluminum-bodied valves fall short — and stainless steel becomes not just an option, but a necessity.
The WAALPC S4V Series is a family of stainless steel solenoid valves engineered for demanding industrial environments where corrosion resistance, durability, and reliability are paramount. With models covering 5/2-way single and double solenoid configurations, as well as 5/3-way three-position variants with three center position options, the S4V Series provides comprehensive solutions for a wide range of pneumatic control applications.
This guide provides an in-depth overview of the S4V Series stainless steel solenoid valves, covering model nomenclature, technical specifications, working principles, application scenarios, installation guidelines, and selection considerations.
A solenoid valve is an electromechanically operated valve that uses an electromagnetic solenoid coil to control the opening and closing of the valve mechanism. In pneumatic systems, solenoid valves direct the flow of compressed air to actuate cylinders, valves, and other pneumatic devices.
While most industrial solenoid valves use aluminum alloy bodies for weight and cost considerations, stainless steel offers distinct advantages:
Feature | Aluminum Alloy | Stainless Steel |
|---|---|---|
Corrosion resistance | Moderate | Excellent |
Chemical resistance | Limited | Superior |
Hygiene/sanitation | Moderate | Excellent (easy to clean) |
Durability | Good | Exceptional |
Weight | Lightweight | Heavier |
Cost | Lower | Higher |
Ideal environments | General industrial | Chemical, marine, food, pharmaceutical |
Stainless steel solenoid valves are essential in applications where:
Corrosive chemicals or gases are present
High humidity or salt spray exposure (marine environments)
Strict hygiene standards must be met (food, pharmaceutical)
Long-term durability and minimal maintenance are required
Equipment must withstand frequent cleaning and sanitization
Stainless steel 316 material offers even better corrosion resistance and is commonly used in lithium battery, environmental protection, smelting, and medical industries to replace ordinary solenoid valves for superior performance.

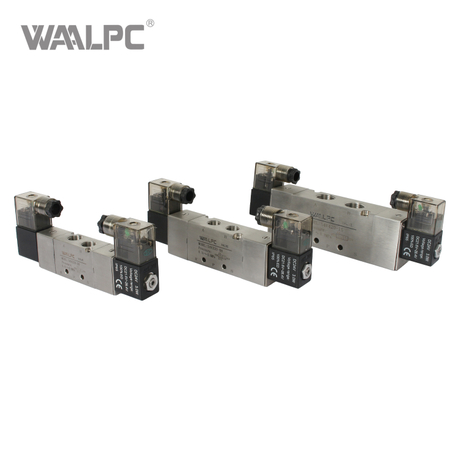

The WAALPC S4V Series is a comprehensive line of stainless steel solenoid valves designed for reliability in challenging environments.
The S4V Series model code follows a systematic structure:
Code Element | Meaning | Examples |
|---|---|---|
S4V | Series: Stainless Steel 4-Way Valve | S4V |
1 / 2 / 3 | Valve type: 1 = Single solenoid 5/2 way; 2 = Double solenoid 5/2 way; 3 = Double solenoid 5/3 way | S4V410, S4V420, S4V430 |
0 | Body size series | 0 (standard) |
C / E / P | Center position type (for 5/3 way only): C = Closed center; E = Exhaust center; P = Pressure center | S4V430C, S4V430E, S4V430P |
-15 | Port size: 15 = 1/2" | S4V410-15 |
Model | Valve Type | Description |
|---|---|---|
S4V410-15 | 5/2-way, single solenoid | Single-coil spring return; one solenoid controls two positions |

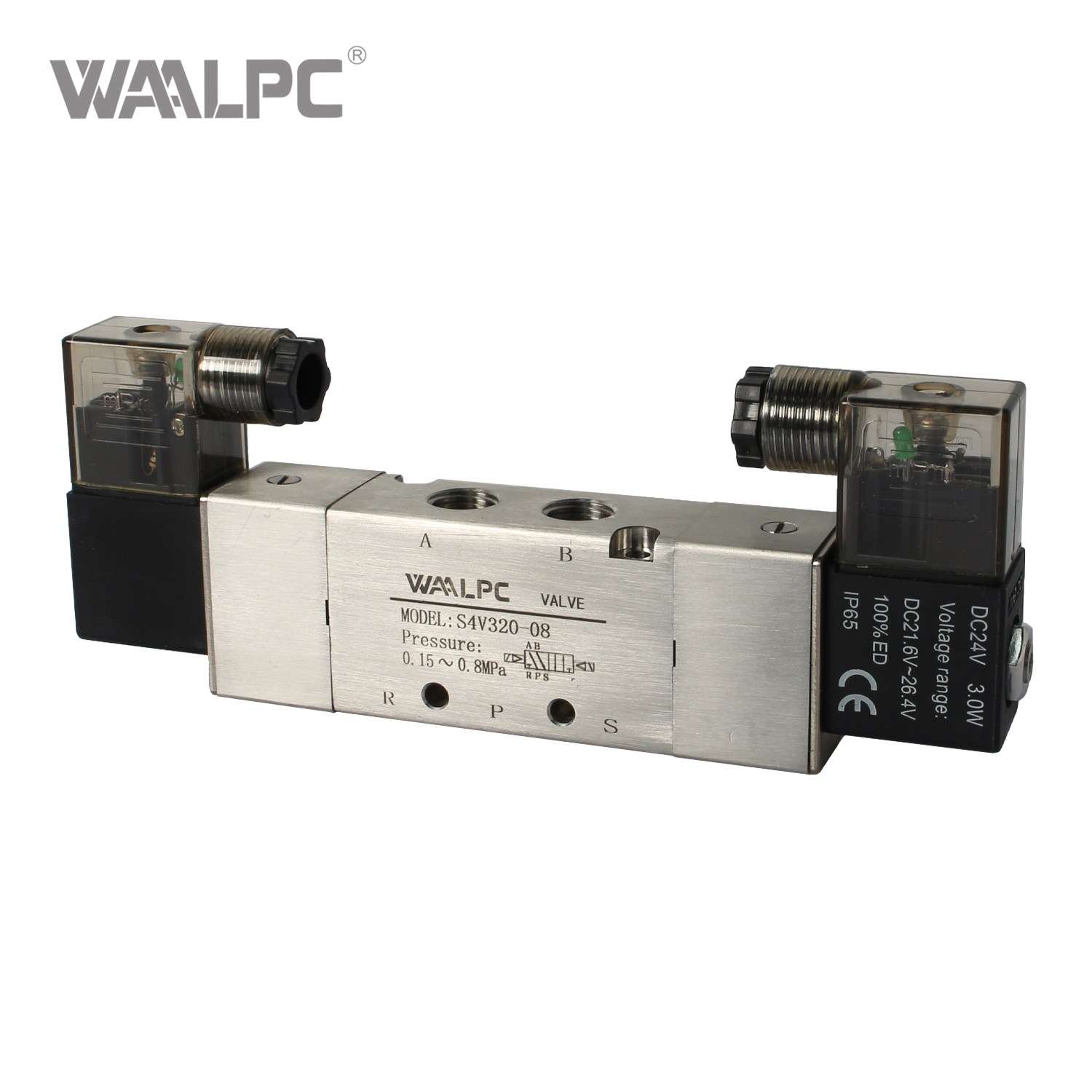

S4V420-15 | 5/2-way, double solenoid | Double-coil; each coil controls one position; memory function |
S4V430C-15 | 5/3-way, double solenoid | Three positions; center position all ports closed |
S4V430E-15 | 5/3-way, double solenoid | Three positions; center position all ports exhausted |
S4V430P-15 | 5/3-way, double solenoid | Three positions; center position all ports pressurized |
The S4V Series offers the following key features:
Pilot-oriented mode: Internal pilot or external pilot available
Sliding column structure: Good sealing performance and sensitive response
Three center position options (5/3-way models): Closed, exhaust, or pressure center
Memory function (double solenoid models): Retains position even after power loss
Special internal hole processing: Low friction, low start pressure, long service life
No lubrication required: Operates with filtered compressed air
Integrated valve group capability: Can be mounted on a manifold base to save installation space
Manual override: Affiliated manual devices for installation and debugging
Multiple voltage options: AC220V, AC110V, AC24V, DC24V, DC12V available
Based on the S4V410-15/S4V420-15/S4V430 series:
Parameter | Specification |
|---|---|
Model | S4V410-15 / S4V420-15 / S4V430C-15 / S4V430E-15 / S4V430P-15 |
Fluid | Air (to be filtered by 40μm filter element) |
Acting | Internal pilot or external pilot |
Port Size | In = Out = Exhaust = 1/2" |
Orifice Size (Cv) | S4V410-15 / S4V420-15: 48.0mm² (Cv = 2.82) |
S4V430C-15: 40.0mm² (Cv = 2.35) | |
Valve Type | 5-port 2-position (S4V410/420) or 5-port 3-position (S4V430) |
Operating Pressure | 0.15–0.8 MPa (21–114 psi) |
Proof Pressure | 1.2 MPa (175 psi) |
Temperature | –20°C to 70°C |
Body Material | Stainless steel |
Lubrication | Not required |
Max. Frequency | 3 cycles/sec |
Note: PT thread, G thread, and NPT thread are all available.
Parameter | AC220V | AC110V | AC24V | DC24V | DC12V |
|---|---|---|---|---|---|
Voltage range | AC±15% | AC±15% | AC±15% | DC±10% | DC±10% |
Power consumption | 4.5VA | 4.5VA | 5.0VA | 3.0W | 2.5W |
Protection | IP65 (DIN40050) | IP65 | IP65 | IP65 | IP65 |
Temperature classification | B Class | B Class | B Class | B Class | B Class |
Electrical entry | Terminal / Grommet | Terminal / Grommet | Terminal / Grommet | Terminal / Grommet | Terminal / Grommet |
Activating time | ≤0.05 sec | ≤0.05 sec | ≤0.05 sec | ≤0.05 sec | ≤0.05 sec |
Feature | S4V420 (Double Solenoid) | S4V430 (Double Solenoid 5/3) | |
|---|---|---|---|
Solenoids | 1 | 2 | 2 |
Positions | 2 | 2 | 3 |
Memory function | No (spring return) | Yes | Yes |
Center position | N/A | N/A | C / E / P (selectable) |
Power-off state | Returns to default position | Retains last position | Retains last position |
Best for | Simple on/off control | Remote control, memory required | Precision positioning, multiple stop positions |
S4V Series solenoid valves operate on the pilot-operated (indirect-acting) principle with a sliding spool design.
How it works:
Solenoid energization: When the solenoid coil is energized, it generates an electromagnetic field that attracts the armature (plunger).
Pilot valve actuation: The armature movement opens a small pilot port, allowing compressed air to enter the pilot chamber.
Spool displacement: The pilot pressure acts on one end of the main spool, pushing it to shift position. This aligns the internal channels with the valve body ports.
Flow direction change: Depending on the spool position, the inlet (P) is connected to either outlet A or outlet B, while the other outlet is connected to the exhaust (R).
De-energization:
For single solenoid (S4V410) : Spring return moves the spool back to its default position
For double solenoid (S4V420/430) : The spool remains in its last position (memory function) until the opposite solenoid is energized
A 5/2-way valve has 5 ports and 2 positions:
Port | Function |
|---|---|
1 (P) | Pressure inlet (supply) |
2 (A) | Working port 1 (to actuator) |
3 (R) | Exhaust port 1 |
4 (B) | Working port 2 (to actuator) |
5 (R2) | Exhaust port 2 |
Position 1 (Default) : P → A, B → R
Position 2 (Energized) : P → B, A → R
This configuration is ideal for controlling double-acting cylinders, where one position extends the cylinder and the other retracts it.
A 5/3-way valve has 5 ports and 3 positions. The third (center) position can be configured in three ways:
Center Type | Function | Symbol | Best For |
|---|---|---|---|
C (Closed center) | All ports blocked | All ports closed | Stopping actuator mid-stroke with position holding |
E (Exhaust center) | All ports exhausted | P blocked, A/B to exhaust | Releasing actuator pressure; allowing free movement |
P (Pressure center) | All ports pressurized | P to A/B, exhaust blocked | Holding actuator with pressure on both sides |
Position 1 : P → A, B → R (actuator extends)
Position 2 (Center) : Depends on C/E/P configuration
Position 3 : P → B, A → R (actuator retracts)
S4V Series valves support two pilot modes:
Mode | Description | Best For |
|---|---|---|
Internal pilot | Pilot air is taken from the main inlet port | Standard applications; no external pilot line needed |
External pilot | Pilot air is supplied from an external source | Low inlet pressure applications; dry-running systems |
The S4V Series uses a sliding spool (also known as sliding column) design. This construction offers:
Good sealing performance: Precision-fit spool and body minimize internal leakage
Sensitive response: Low friction allows rapid shifting
Long service life: Special internal hole processing reduces wear
Low start pressure: Requires minimal pilot pressure to actuate
S4V Series stainless steel solenoid valves are used across a wide range of demanding industries:
The corrosion-resistant stainless steel body makes these valves ideal for controlling pneumatic actuators in chemical plants and refineries. They withstand exposure to corrosive gases, chemicals, and harsh environments while maintaining reliable operation.
Stainless steel construction meets the strict requirements for salt spray corrosion resistance in marine environments. S4V Series valves remain stable and reliable even in high-salinity, high-humidity conditions on ships and offshore oil platforms.
Stainless steel bodies are easy to clean and sanitize, meeting the hygiene standards required by food processing facilities. The valves can withstand frequent washdowns without corrosion or degradation.
Cleanroom-compatible stainless steel valves ensure product purity and meet strict regulatory requirements. The smooth, non-porous surface prevents bacterial growth and facilitates sterilization.
Assembly lines: Controlling cylinders for clamping, positioning, and material handling
Packaging machinery: Precise control of grippers, pushers, and sealing mechanisms
Robotics: End-of-arm tooling and actuation control
Industry | Application |
|---|---|
Electronics | Clean, dry air control for component handling |
Automotive | Assembly line pneumatic tools and fixtures |
Water/Wastewater | Corrosion-resistant control in treatment plants |
Mining | Rugged control in abrasive environments |
Before installing an S4V Series solenoid valve:
Check for shipping damage: Inspect the valve body, coil, and connections
Verify the model: Confirm valve type, voltage, and port size match your requirements
Check the air supply: Ensure air is filtered to 40μm or better
Verify thread type: Confirm PT, G, or NPT thread compatibility
Mechanical Installation:
Mount the valve: Install using the provided mounting holes or on a manifold base
Connect piping: Follow the port markings (P = inlet, A/B = working ports, R = exhaust)
Apply thread sealant: For tapered threads, apply PTFE tape to male threads only, leaving the first thread bare to prevent debris entry
Tighten connections: Do not overtighten
Electrical Installation:
Verify voltage: Confirm the coil voltage matches your power supply
Connect wiring: Follow the wiring diagram for the connector type (terminal or grommet)
Check grounding: Ensure proper grounding for safety
Pneumatic Connection:
Connect inlet: Connect the compressed air supply to port P (1)
Connect working ports: Connect ports A (2) and B (4) to the actuator
Connect exhaust: Connect ports R (3) and R2 (5) to mufflers or exhaust piping
Check flow direction: Ensure flow follows the arrows on the valve body
Do | Do Not |
|---|---|
Use filtered air (40μm or better) | Use unfiltered or contaminated air |
Match voltage to coil specification | Apply incorrect voltage |
Provide adequate clearance for coil replacement | Mount in confined spaces without access |
Use proper thread sealant | Allow sealant debris to enter the valve |
Depressurize before maintenance | Disassemble under pressure |
Protect from vibration and extreme temperatures | Install in high-vibration or extreme environments |
S4V Series valves are equipped with manual override devices to facilitate installation and debugging. These allow the valve to be operated manually without electrical power:
Push-type manual override: Press to shift the valve; releases when pressure is removed
Lock-type manual override: Push and turn to lock the valve in position
Frequency | Task |
|---|---|
Daily | Visual inspection for air leaks; check electrical connections |
Monthly | Verify valve operation; check for unusual noise or heat |
Quarterly | Inspect for signs of corrosion or seal degradation |
Annually | Replace seals if showing signs of aging; clean the valve |
Symptom | Possible Cause | Solution |
|---|---|---|
Valve does not shift | No power; low pilot pressure; spool stuck | Check power supply; verify pilot pressure; clean or replace valve |
Air leakage | Damaged seals; loose connections | Replace seals; tighten connections |
Slow response | Low pilot pressure; contaminated air | Increase pilot pressure; clean/replace filter |
Coil burns out | Incorrect voltage; continuous overheating | Verify voltage; replace coil; check duty cycle |
Valve chatters | Low voltage; insufficient pilot pressure | Check power supply; increase pilot pressure |
Internal leakage | Worn spool or seals | Replace valve or service kit |
Manual override not working | Mechanical obstruction | Clean or replace manual override mechanism |
Factors affecting S4V Series valve service life:
Air quality: Clean, dry air (40μm filtration) extends seal and spool life
Operating frequency: Higher cycling rates may accelerate wear
Ambient conditions: Temperature extremes and contaminants reduce life
Lubrication: While not required, if lubricated air is used, continue with the same medium to optimize valve lifespan. Lubricants like ISO VG32 or equivalent are recommended.
Power supply: Stable voltage prevents coil damage
Coil failure: Burned out or damaged coil
Excessive leakage: Internal leakage affecting performance
Physical damage: Cracked body or damaged threads
Corrosion: Significant pitting or material loss
Seal degradation: Hardened, cracked, or swollen seals
When selecting an S4V Series solenoid valve:
Factor | Consideration |
|---|---|
Valve type | 5/2 single (S4V410), 5/2 double (S4V420), or 5/3 (S4V430) |
Center position | Closed (C), exhaust (E), or pressure (P) for 5/3 models |
Port size | 1/2" (standard) |
Operating pressure | Must be within 0.15–0.8 MPa |
Voltage | AC220V, AC110V, AC24V, DC24V, or DC12V |
Thread type | PT, G, or NPT |
Pilot mode | Internal (standard) or external |
Environment | Temperature range, corrosion exposure, hygiene requirements |
Application: Controlling a double-acting cylinder in a chemical processing plant with corrosive atmosphere, requiring remote control, 0.6 MPa operating pressure, 1/2" piping.
Recommended model: S4V420-15 (5/2-way double solenoid, 1/2" ports, stainless steel body)
Reasoning:
Double solenoid provides memory function for remote control
Stainless steel body resists corrosive atmosphere
1/2" ports match system piping
Operating pressure range (0.15–0.8 MPa) covers the 0.6 MPa requirement
Requirement | Recommended |
|---|---|
Simple extend/retract, spring return | S4V410-15 (single solenoid) |
Extend/retract with memory, remote control | S4V420-15 (double solenoid) |
Mid-stroke stop with position holding | S4V430C-15 (closed center) |
Mid-stroke stop with pressure release | S4V430E-15 (exhaust center) |
Mid-stroke stop with pressure on both sides | S4V430P-15 (pressure center) |
WAALPC S4V Series stainless steel solenoid valves offer a compelling combination of durability, reliability, and versatility:
✅ Full stainless steel construction — Exceptional corrosion resistance for demanding environments
✅ Multiple configurations — 5/2 single, 5/2 double, and 5/3 with three center options
✅ High flow capacity — 48.0mm² (Cv=2.82) for 5/2 models
✅ Wide pressure range — 0.15–0.8 MPa operating pressure
✅ Broad temperature range — –20°C to 70°C
✅ IP65 protection — Dust-tight and protected against water jets
✅ Multiple thread options — PT, G, and NPT available
✅ Multiple voltage options — AC and DC models
✅ Manual override — For easy installation and debugging
✅ Manifold mountable — Saves installation space
✅ No lubrication required — Reduces maintenance
✅ OEM support — Customizable according to customer specifications
The WAALPC S4V Series stainless steel solenoid valves represent the premium choice for pneumatic control in demanding industrial environments. With full stainless steel construction, comprehensive model options (5/2 single, 5/2 double, and 5/3 with three center positions), high flow capacity, and robust technical specifications, the S4V Series provides reliable, long-lasting performance where standard aluminum valves cannot survive.
Key takeaways:
S4V410-15: 5/2-way single solenoid, spring return, 48.0mm² (Cv=2.82)
S4V420-15: 5/2-way double solenoid, memory function, 48.0mm² (Cv=2.82)
S4V430C/E/P-15: 5/3-way double solenoid, three center options, 40.0mm² (Cv=2.35)
Body material: Stainless steel for corrosion resistance
Operating pressure: 0.15–0.8 MPa
Temperature range: –20°C to 70°C
Protection: IP65
Applications: Chemical, marine, food, pharmaceutical, industrial automation
By selecting the correct model for your application and following proper installation and maintenance procedures, WAALPC S4V Series stainless steel solenoid valves will deliver years of reliable, trouble-free service in even the most challenging environments.
For more information about WAALPC S4V Series stainless steel solenoid valves or to discuss your specific application requirements, please contact our technical sales team or visit www.waalpc.com.
