You are here: Home » Products » Air Source Treatment Units » AC Series » SMC ARM Series Pressure Regulators Pressure Reducing Valve Built-in Gauge 0.05~0.7MPa ARM10-07BG

This product is no longer available

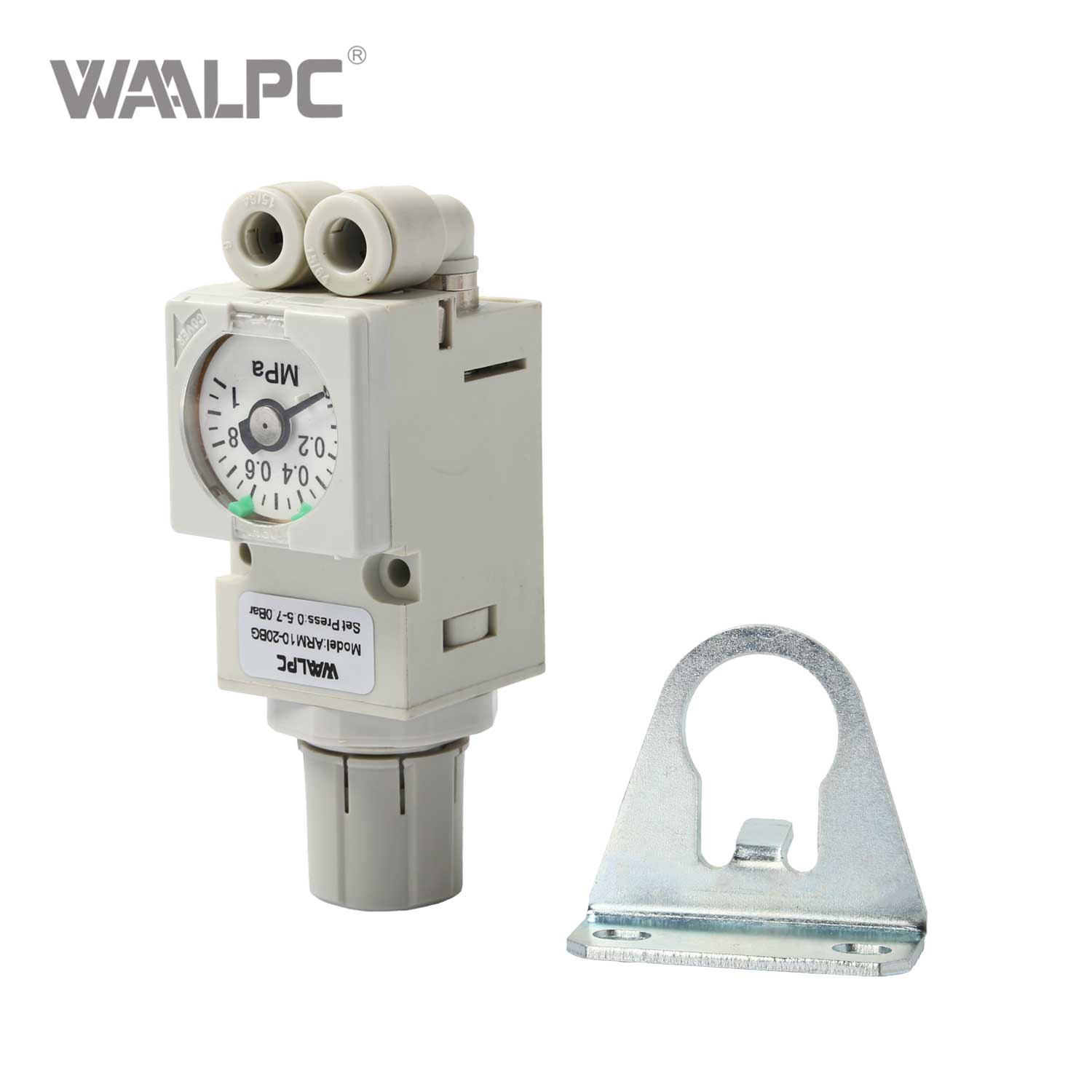

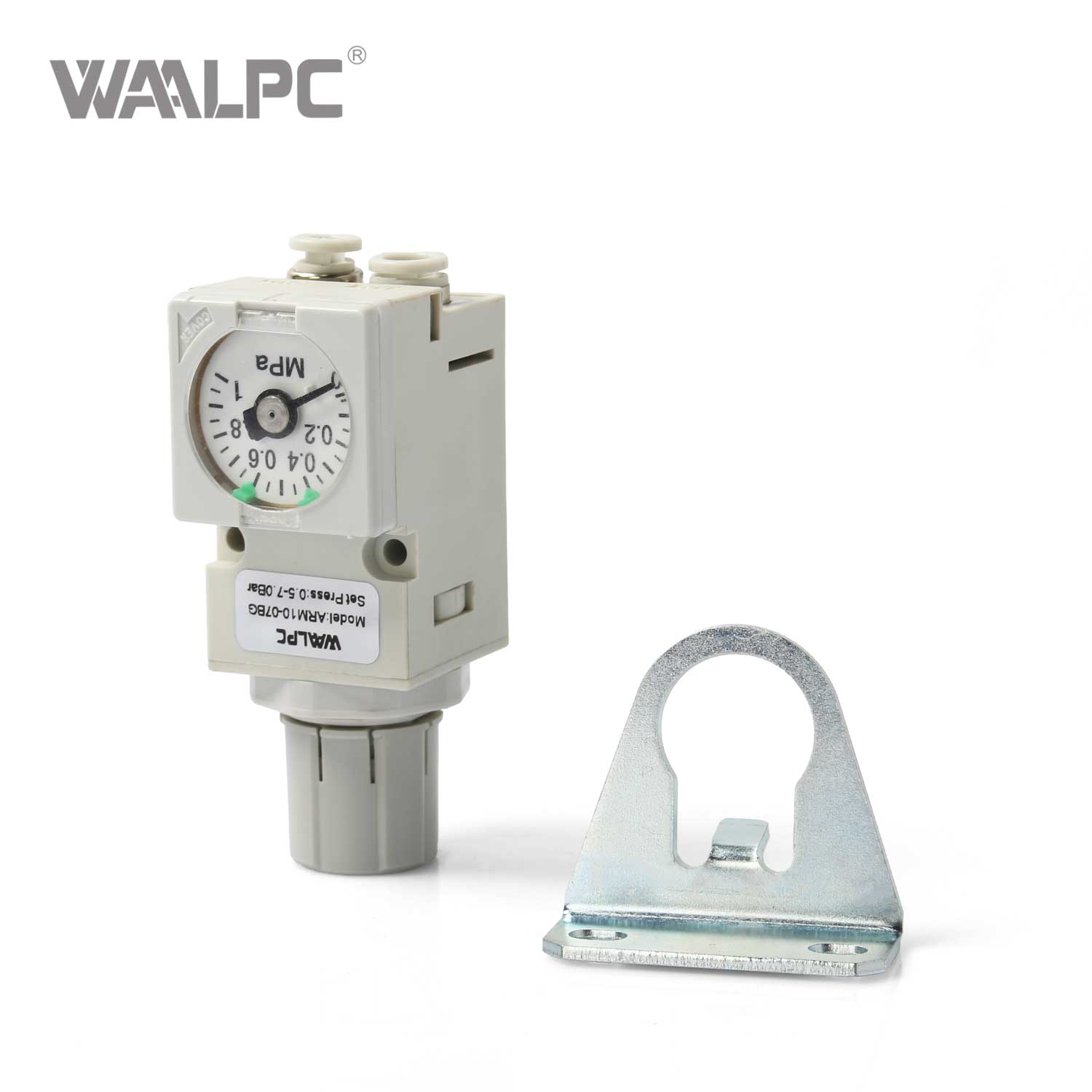

SMC ARM Series Pressure Regulators Pressure Reducing Valve Built-in Gauge 0.05~0.7MPa ARM10-07BG

SMC ARM Series Pressure Regulators Pressure Reducing Valve Built-in Gauge 0.05~0.7MPa ARM10-07BG


Size:	1 2
Availability:

The SMC ARM Series Pressure Regulators are designed to deliver superior performance and stability in a wide range of industrial applications. Built with SMC's renowned engineering expertise, these regulators offer precise pressure control, ensuring consistent output even under fluctuating input conditions.

Model:
ARM10-07BG
Brand:
WAALPC
Code:
8481100090

Product Description

The SMC ARM Series Pressure Regulators Advantages

ARM10-07BG支架

1. Exceptional Precision

Achieves ±1% pressure accuracy, minimizing variations in pneumatic systems critical for automotive assembly, pharmaceutical processing, and precision manufacturing.

2. Durable Construction

Crafted from high-grade materials, the ARM Series withstands harsh industrial environments, extreme temperatures, and high vibration, reducing replacement frequency and maintenance costs.

3. Energy Optimization

Integrated with energy-saving technology, these regulators optimize air consumption, helping businesses cut operational costs and meet sustainability goals.

The SMC ARM Series Pressure Regulators Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Model		ARM10
Structure of pressure reducing valve		Direct acting type
Compression mode		Diaphragm type
Overflow structure	Standard	Overflow type
	Quasi-standardization	Non overflow type
Reverse flow function		Have(Non-equilibium type)
Outer diameterof IN side tube		⌀4,⌀6,⌀5/32,⌀1/4
Ambient and Fluid Temperature		⌀4,⌀6,⌀5/32,⌀1/4
Proof pressure		1.5MPa
Max.working pressure		1.0MPa
Pressure setting range	Standard	0.05~0.7MPa
	Quasi-standardization	0.05~0.35MPa(Low pressure type)
Working Medium		Air
Environment and fluid temperature		5~60℃
Quality(ARM5SA-08-A)		60g

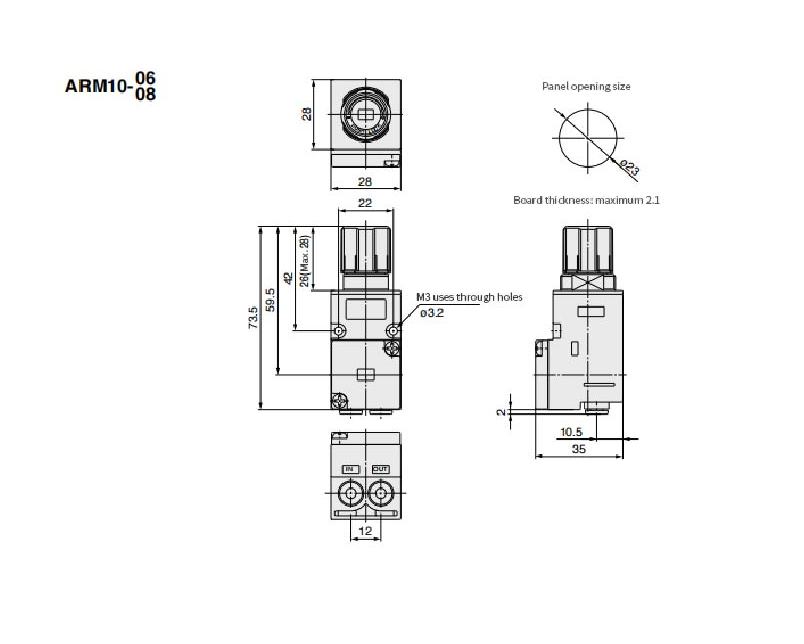

STRUCTURE

Pressure Reducing Valve
