SMC ARG Series Precision Pressure Regulators 1/8'' with Smart Technology Engineered for Optimal Pneumatic System Performance

SMC Type ARG Series Precision Pressure Regulators 1/8'' with Smart Technology Engineered for Optimal Pneumatic System Performance


Availability:

Quantity:



Inquiry Add to Basket

The SMC Type ARG Series Pressure Regulators are advanced pneumatic components designed to deliver unparalleled pressure stability and reliability in industrial applications. Engineered with cutting-edge technology, these regulators ensure precise output pressure control, minimizing fluctuations caused by varying input pressures or flow rates.

Model:
ARG20
Brand:
WAALPC
Code:
8481100090

Product Description

1. Ultra-Precision Pressure Regulation

Achieves ±0.5% pressure stability, critical for sensitive processes in automotive assembly, pharmaceutical manufacturing, and food processing.

2. Smart Sensor Integration

Built-in IoT-enabled sensors monitor real-time performance, enabling predictive maintenance and reducing unplanned downtime by up to 30%.

3. Robust Construction

Constructed with corrosion-resistant materials and tested to withstand extreme temperatures (-5°C to 60°C) and harsh industrial environments, ensuring longevity and minimal maintenance.

Technical Parameters

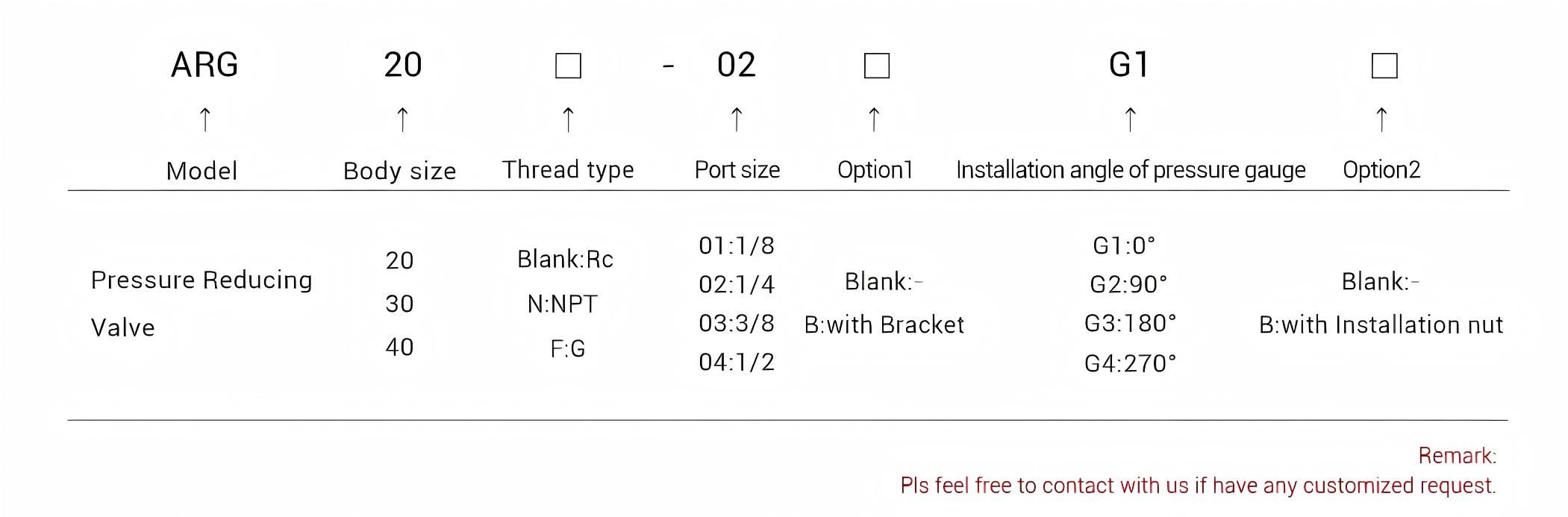

ORDERING CODE

DATA SHEET

Model	ARG20	ARG30	ARG40
PortSize	1/8·1/4	1/4·3/8	1/4·3/8·1/2
Working Medium	Air
Proof Pressure	1.5MPa
Highest Working Pressure	1.0MPa
Pressure Regulating Range	0.05~0.85MPa
Overflow Pressure	Setting pressure+0.05MPa[But when the overflow flow rate is 0.1L/min(ANR)]
Ambient and Fluid Temperature	-5~60℃
Structure	Overflow type
Quality(kg)	0.21	0.40	0.57

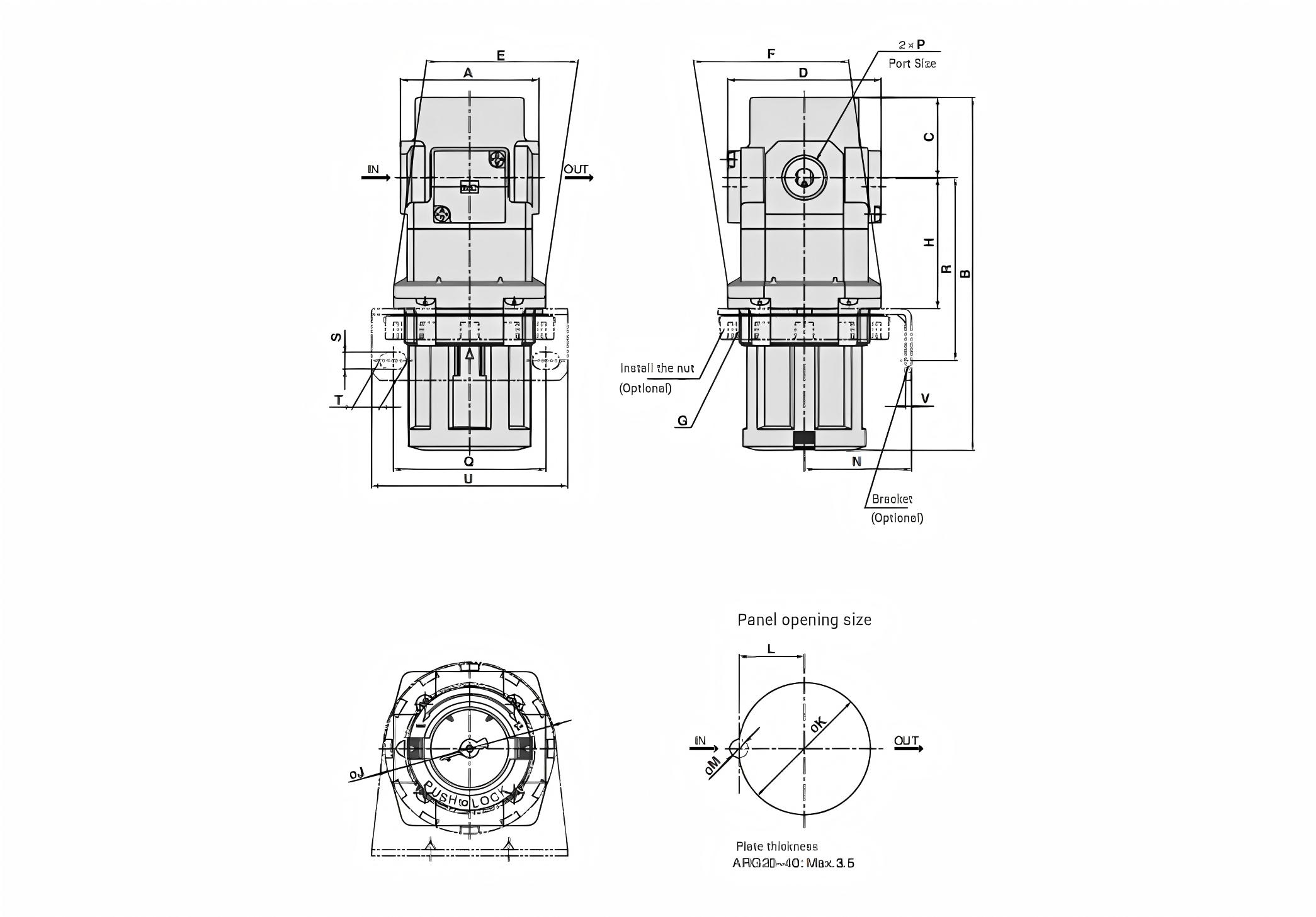

STRUCTURE

Pressure regulating valve

Model	Standard specifications								Optional specifications
	P	A	B	C	D	E	F	G	Panel opening hole					Installation dimensions of bracket
	P	A	B	C	D	E	F	G	H	J	K	L	M	Q	U	T	S	R	V	N
ARG20	1/8·1/4	40	114	26.5	57	45	47	M39X1.5	38	52.5	39.5	19.5	6	48	65	10.4	5.4	60	2.3	35
ARG30	1/4·3/8	53	138.5	31	59	58	59	M50X1.5	50	65	50.5	25	7	58.5	75	10.5	6.5	70	2.3	45
ARG40	1/4·3/8·1/2	70	150.5	35	68	70	70	M55X1.5	54	70	55.5	27.5	7	65.5	85	12.5	8.5	75	2.3	50

Specification Download

ARG Pressure Reducing Valve.jpg
