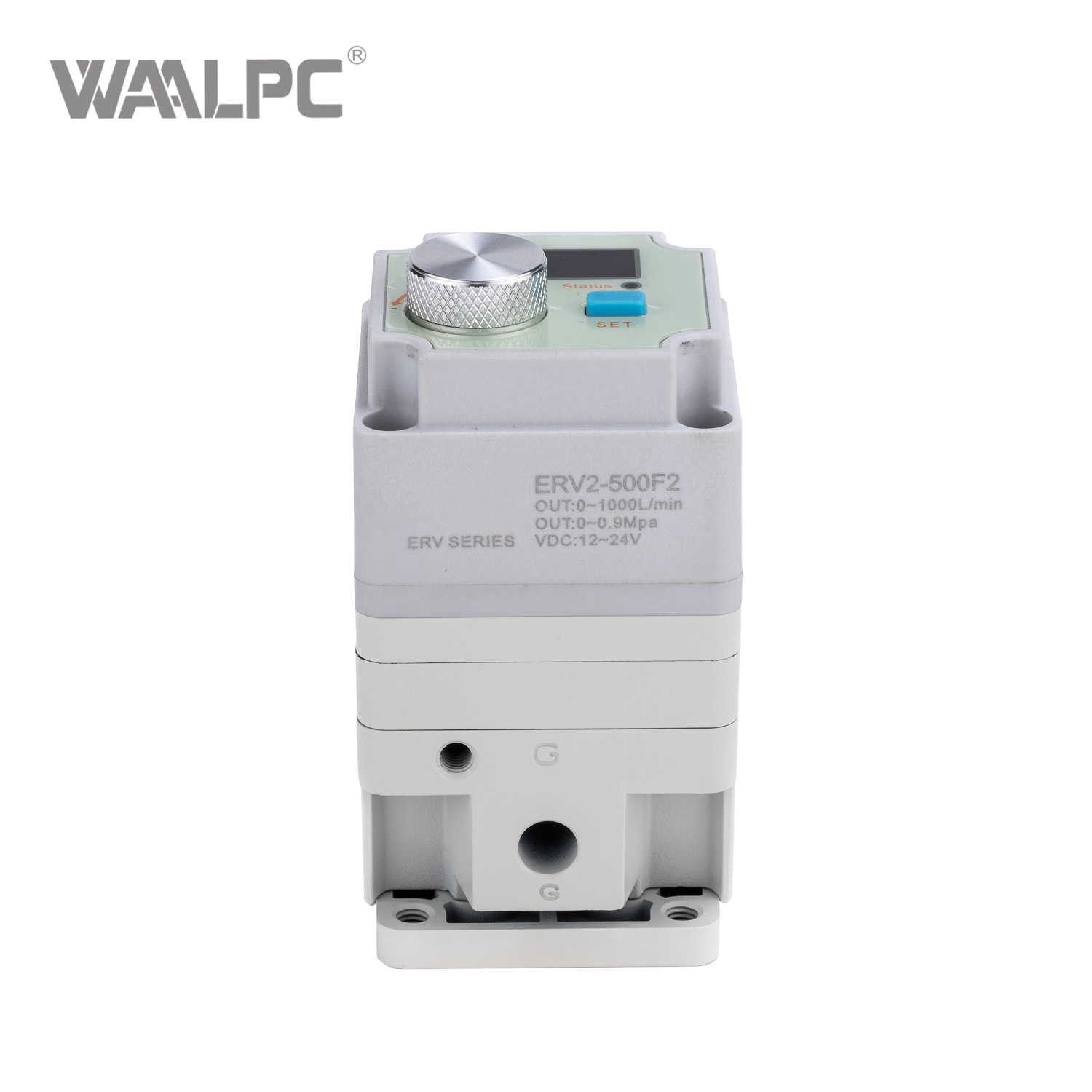

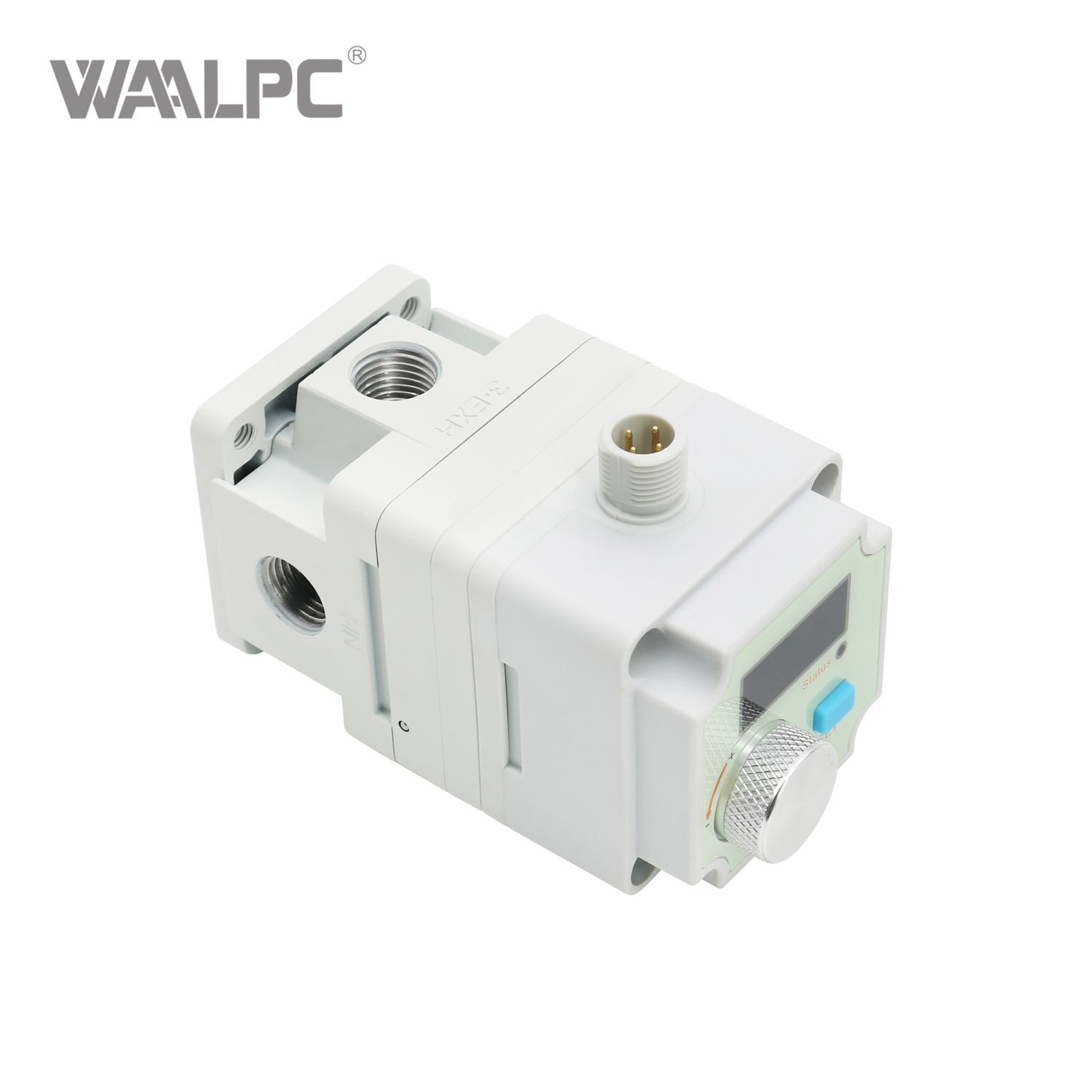

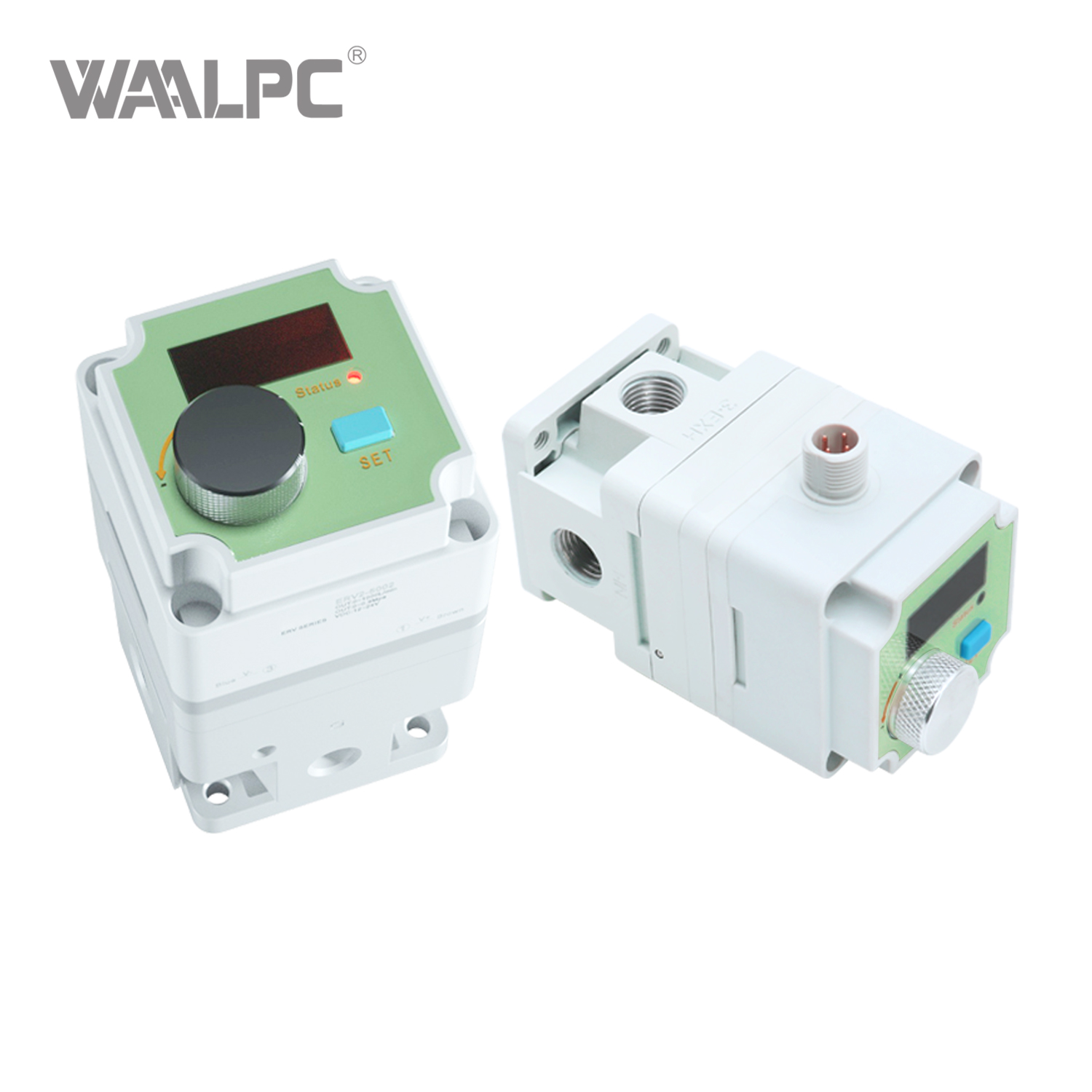

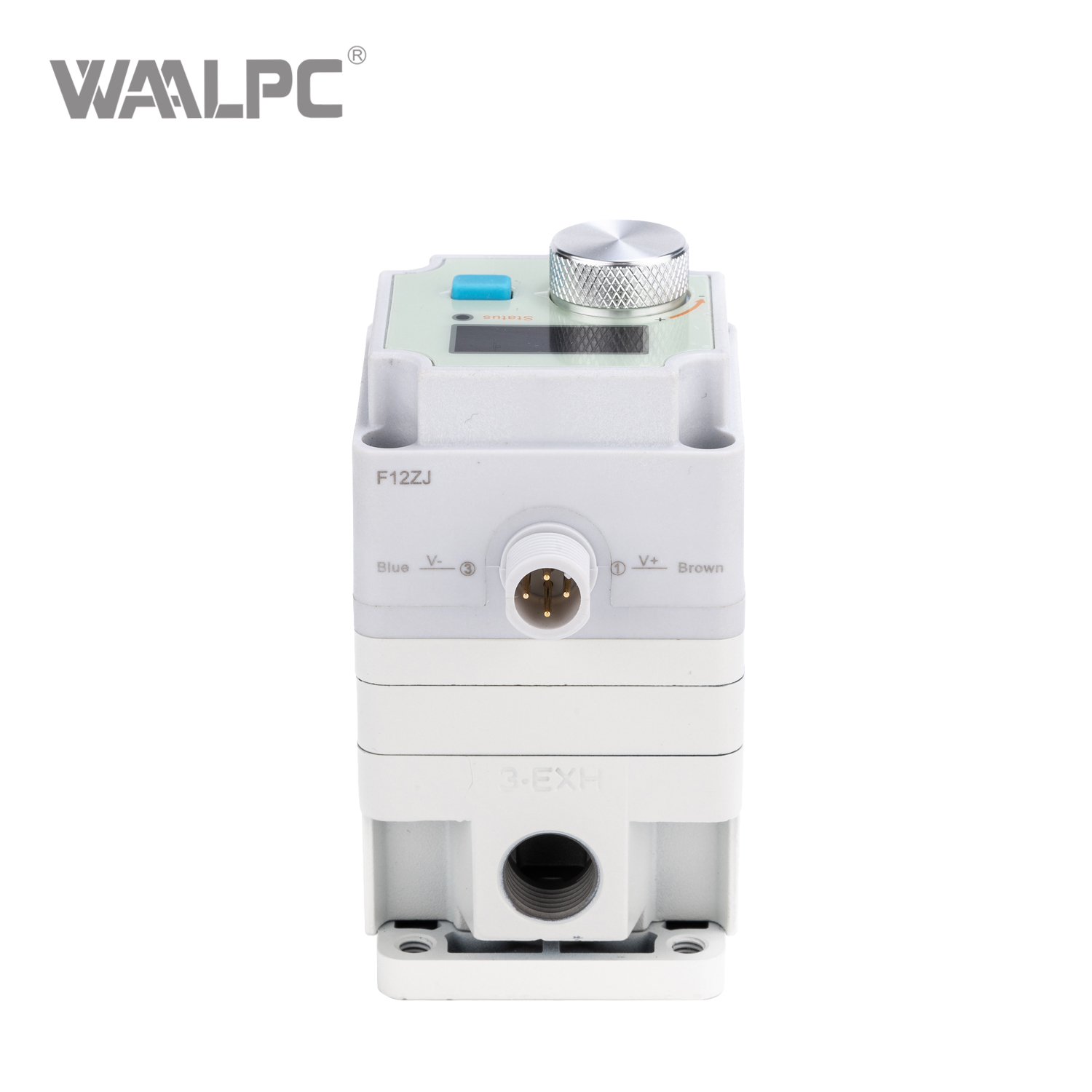

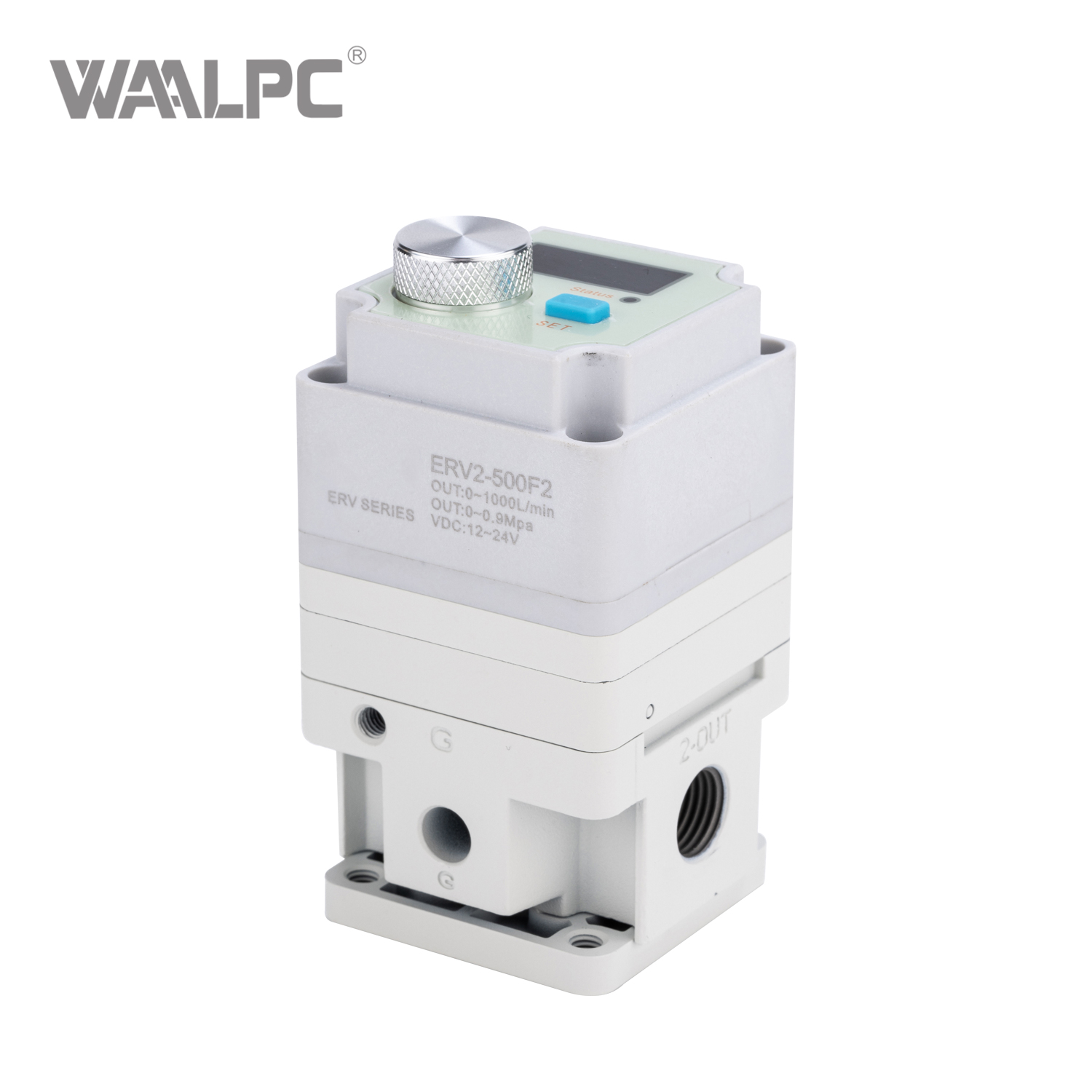

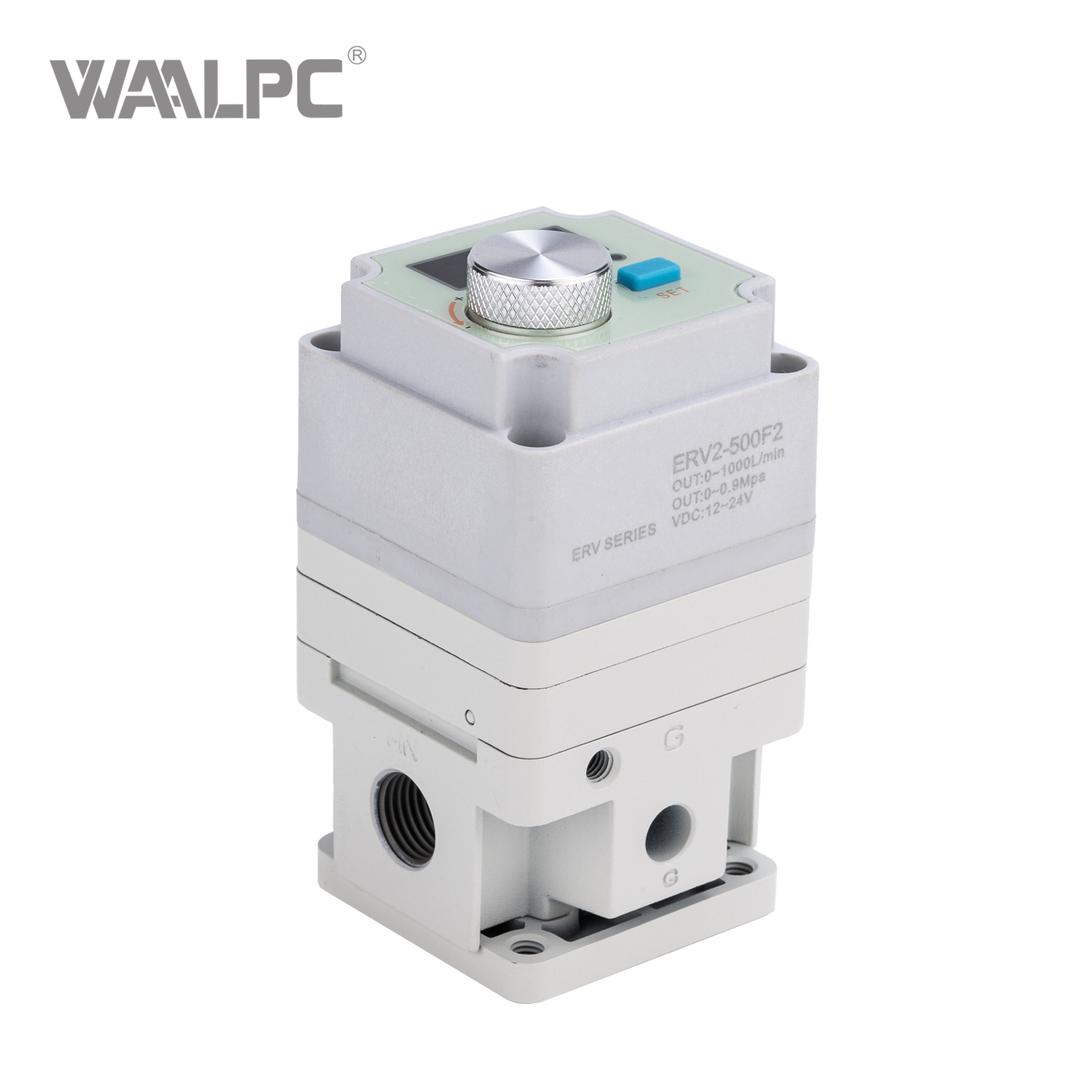

SMC ERV2-500F2 Electronic Pressure Regulator, 0-5V / 4-20mA Input, G1/4 Port, IP65, for Precision Air Pressure Control

Availability:
Quantity:
Inquiry Add to Basket
The SMC Type  ERV2-500F2 is an advanced electro-pneumatic proportional valve designed for precise, closed-loop pressure control in demanding industrial automation applications. Part of the ERV2 series, this regulator converts an analog electrical command signal into a proportional pneumatic output pressure, enabling real-time, accurate pressure adjustments without mechanical adjustments.

  • ERV2-500F2

  • WAALPC

  • 8481804090

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Description

  • High Precision Control: Built-in pressure sensor provides closed-loop feedback, ensuring output pressure linearity within ±1% F.S. for consistent performance.

  • Wide Pressure Range: Adjustable output from 0.005 to 0.5 MPa (0.05–5 bar), ideal for applications requiring fine pressure tuning.

  • Flexible Input Signals: Accepts analog commands (0–5V, 0–10V, or 4–20mA, depending on model variant), easily integrated with PLCs and controllers.

  • Fast Response: Typical response time of 0.1 second for quick system reactions.

  • Robust Design: IP65 enclosure protects against dust and water, suitable for harsh industrial environments.

Technical Parameters

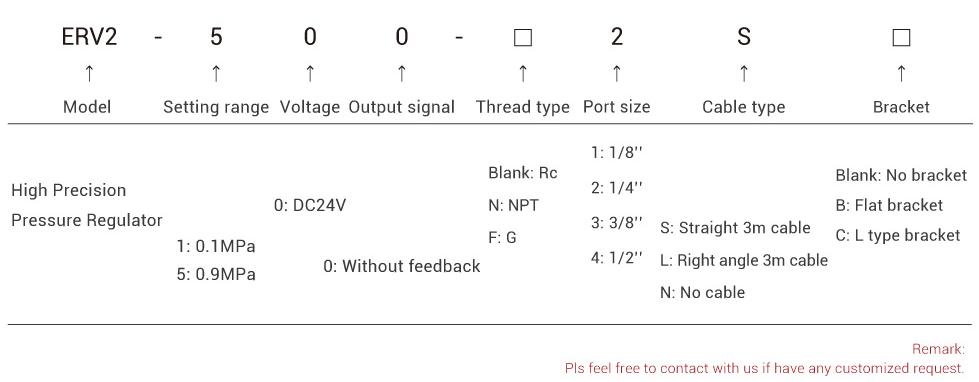

ORDERING CODE

Electronic Precision Regulator

DATA SHEET

Model

ERV2-5

Min.Input Pressure

Set pressure +0.1MPa
Max. Input Pressure 1MPa
Setting Range 0~1MPa
Power Supply Voltage DC24V+10%
Current 0.12A or less
Nonliner

1%F.S.

Hysteresis

0.5%F.S.

Repeatability

0.5%F.S.

Working Temp.

0~50℃

Protection Clas

IP65

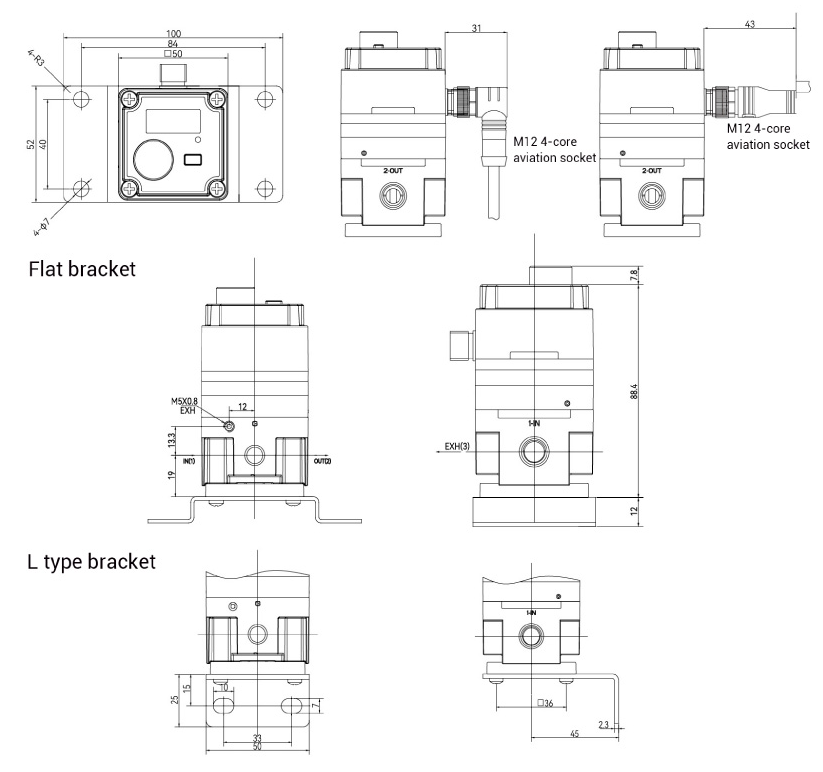

STRUCTURE&DIMENSION(MM)

Electronic Precision Regulator

Specification Download
download ERV2.jpg
