SMC Type Air Pressure Regulating Valve Built in Gauge Regulator with RoHS for Automation Equipments NAR3000 White 1/4'' 3/8''

SMC Type Air Pressure Regulating Valve Built in Gauge Regulator with RoHS for Automation Equipments NAR3000 White 1/4'' 3/8''


Color:	Black White
Availability:

Quantity:



Inquiry Add to Basket

SMC Type Built-in Gauge Pressure Regulators combine precise pressure control with real-time visual monitoring in a single compact unit. Designed for applications where space optimization and accurate pressure setting are critical, these regulators feature an integrated gauge that eliminates the need for separate mounting and plumbing of external gauges. Perfect for maintenance-free operation and easy monitoring in automated systems.

Model:
NAR3000
Brand:
WAALPC
Code:
8421999000

Product Description

1. Light and compact structure, easy to install and use.
2. Press-in self-locking mechanism, which can prevent the set pressure from external interference.
3. Small leakage: can effectively reduce the waste of compressed air.
4. Sensitive and precise pressure adjustment.
5. High pressure, high &low temperature resistant.
6. Strong anti-interference ability: strong adaptability to system pressure fluctuations.

7. Port size available: M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''.

8. Built in gauge instead of external gauge, save space for install.

Technical Parameters

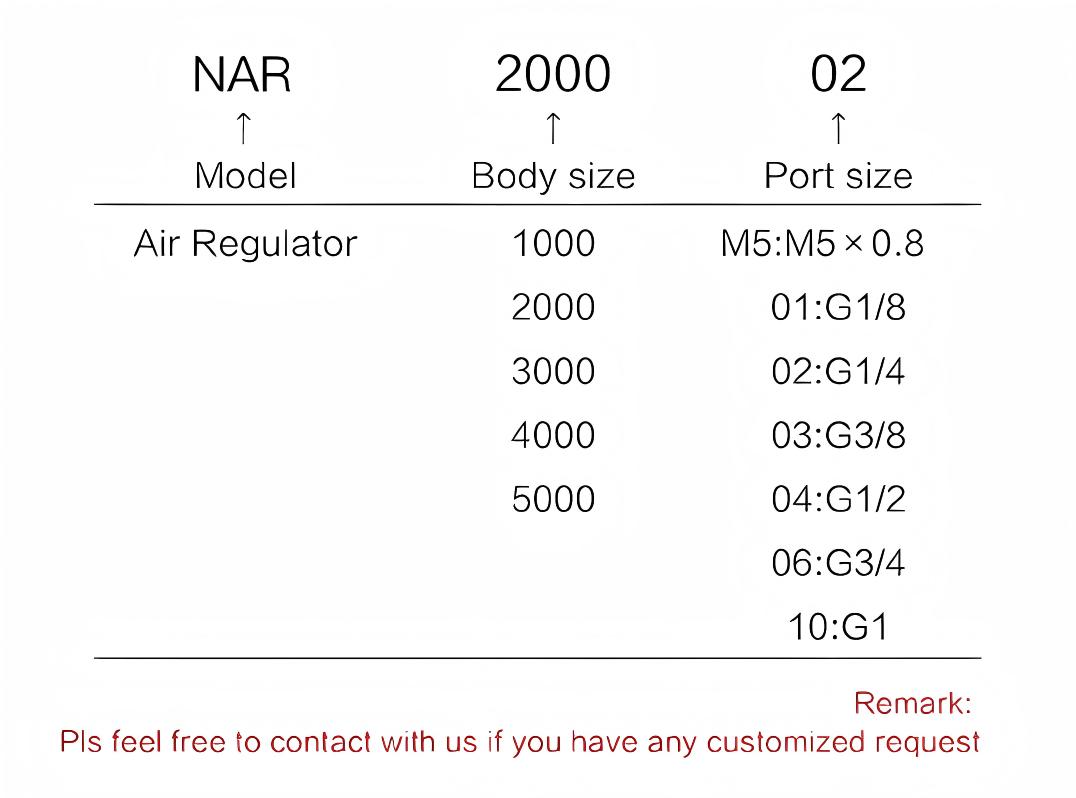

ORDERING CODE

DATA SHEET

Type-name	Air Regulator
Model	NAR1000-M5	NAR2000-01	NAR2000-02	NAR3000-02	NAR3000-03	NAR4000-03	NAR4000-04	NAR4000-06	NAR5000-06	NAR5000-10
Port Size (G)	M5×*0.8	1/8	1/4	1/4	3/8	3/8	1/2	3/4	3/4	1
Working Medium	Air
Pressure Regulating Range	0.05-0.07MPa	0.05-0.85MPa
Max. Operating Pressure	1.0MPa（ 145Psi）
Pressure Resistance	1.5MPa（ 215Psi）
Operating Temperature Range	5-60 ℃
Pressure Gauge	Y40-01				Y50-02
L-type Bracket	L10	L20	L20	L30	L30	L40	L40	L50	L50	L60
Material	Aluminum die-casting molding;
Weight	200g	280g	280g	460g	460g	890g	890g	940g	1200g	1200g

STRUCTURE

SMC Regulator

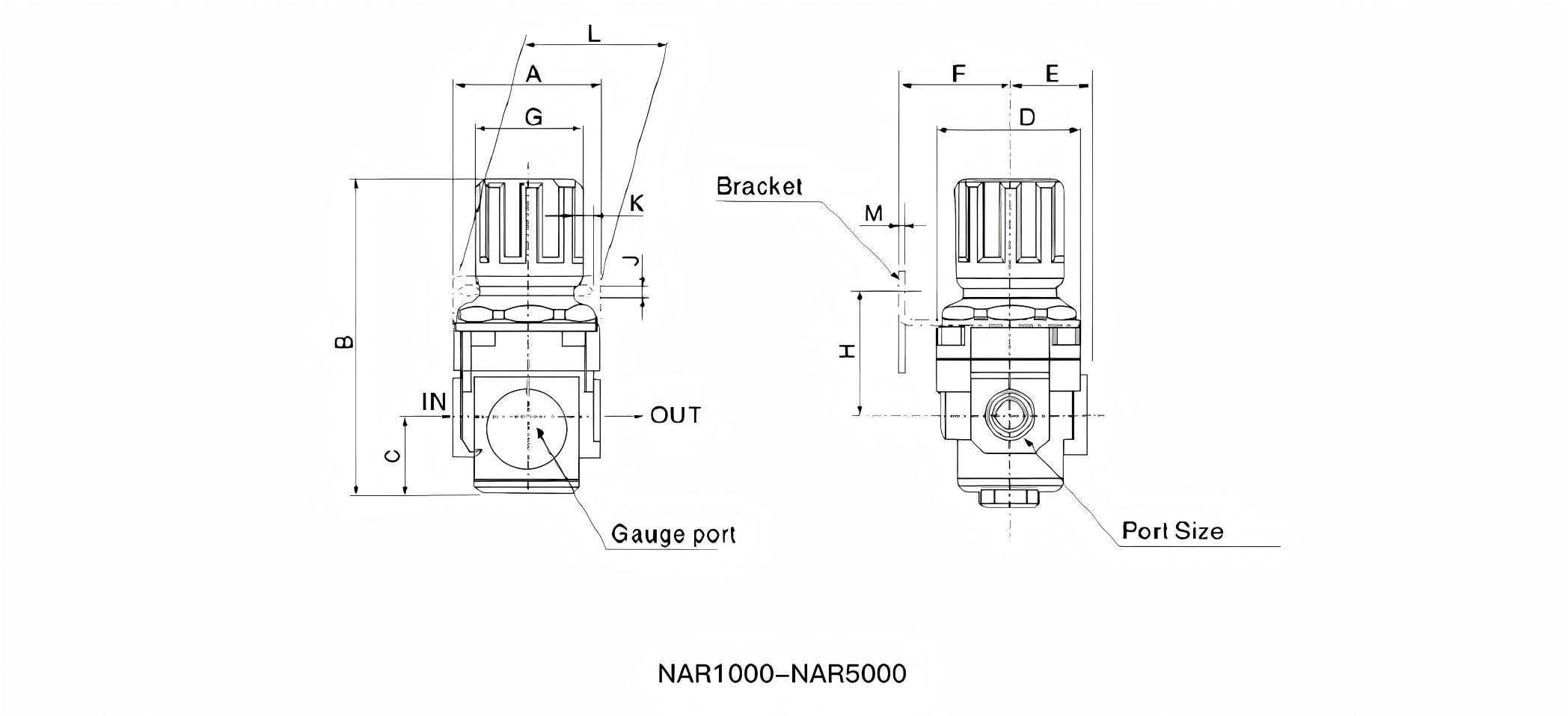

DIMENSION(MM)

Model	Port size	A	B	C	D	E	F	G	H	J	K	L	M	N
NAR1000	M5	25	61.5	11	25	25	25	28	30	4.5	6.5	40	2	20.5
NAR2000	1/8-1/4	40	95	17	40	56.6	30	34	44	5.4	15.4	55	2.3	33.5
NAR3000	1/4-3/8	53	127.5	35	53	60.8	39	40	46	6.5	8	53	2.3	42.5
NAR4000	3/8-1/2	70	149.5	37.5	70	65.5	49.2	54	54	8.5	10.5	70	2.3	52.5
NAR4000-06	3/4	75	154	40.5	70	69.5	49.2	54	55.5	8.5	10.5	70	2.3	52.5
NAR5000	3/4-1	90	168	48	90	75.5	49.2	54	62	8.5	10.5	70	2.3	52.5

Specification Download

SMC NA Series-Air Source treatments-White.pdf
