Pneumatic lubricators are specialized components in air preparation units (FRLs) that inject finely atomized oil mist into compressed air streams, creating a protective lubricating film on the internal surfaces of cylinders, valves, actuators, and tools to drastically reduce metal-to-metal friction, prevent seal drying, and extend component life by 300-500% in industrial pneumatic systems.
For procurement managers and technical engineers specifying lubricators for applications from small workshops to heavy manufacturing lines, selecting the correct type—whether traditional oil-fog, advanced micro-fog, continuous oil, or emerging oil-free variants—is critical for ensuring proper oil delivery (18-50 drops per gallon standard), coverage distance (5-100m), compatibility with downstream equipment, and compliance with ISO 8573 air quality standards while avoiding over-lubrication that contaminates products or clogs precision components.
This comprehensive guide details all major lubricator types, their operating principles, performance specifications, material constructions, sizing methodologies, installation best practices, maintenance protocols, economic lifecycle analyses, real-world application case studies across automotive assembly, food packaging, pharmaceutical processing, and general manufacturing, troubleshooting common issues, selection decision matrices, and future trends in smart and eco-friendly lubrication, empowering you to make precise choices that optimize system reliability, minimize energy waste (up to 15% savings from reduced friction), and achieve rapid ROI through slashed repair costs and downtime.
Compressed air lacks inherent lubricity, causing dry-running wear in pneumatic devices: cylinder pistons gall after 10,000 cycles, valve spools stick, and tool bearings seize prematurely. Lubricators solve this by aspirating ISO VG32-68 mineral oil (or food-grade alternatives) through venturi effect or capillary action, atomizing it into 0.1-5μm droplets that form a 0.001mm boundary layer on metal surfaces, dropping the friction coefficient from 0.2-0.4 (dry steel-on-steel) to 0.03-0.08 (lubricated). Proper dosage—typically 18-32 drops per US gallon (5-8 ml/L) at 90 psi—ensures even coverage without excess oil carryover (>10 mg/m³ risks product contamination in food/pharma apps).
Lubricators mount downstream of filters/regulators in FRL manifolds, with adjustable sight domes confirming mist generation. Oil viscosity must match air velocity (15-25 fps optimal) and line length, while auto-feed reservoirs (4oz-2qt) minimize refills. Critical: Never lubricate oil-free components (e.g., some solenoids) or use silicone oils (media swelling).
Mechanism: Fixed venturi nozzle creates high-velocity air-oil shear, producing 1-5μm fog droplets via impingement. Oil flow proportional to air flow (positive displacement), adjustable 10-50 drops/gal via screw. Coverage: 5-15m downstream before 50% droplet fallout.
Applications: Short-run tools (wrenches, drills), workshops where excess oil acceptable.
Pros: Simple, low-cost ($30-80), high turndown (idle-no oil).
Cons: Limited distance, higher carryover (20-50 drops/gal max).
Mechanism: Multi-stage capillary + venturi generates sub-micron (0.3-1μm) droplets via laminar re-atomization. Bypass valve recirculates excess oil, delivering precise 18-32 drops/gal regardless of flow. Coverage: 30-100m, ideal complex piping.
Applications: Long-line automation, valves/cylinders in factories.
Pros: Extended reach, low waste, adjustable precise dosing.
Cons: Higher cost ($80-250), sensitive to orientation (horizontal required).
Mechanism: Motorized or gravity-feed pump injects fixed oil volume (0.1-2 cc/min) independent of air flow, via calibrated orifice. Digital models offer PLC speed-proportional control.
Applications: High-cycle continuous actuators (e.g., presses, clamps).
Pros: Ultra-precise (1-100 drops/gal), no air dependency.
Cons: Expensive ($200-800), reservoir refills frequent, over-lube risk at idle.
Mechanism: Dual-nozzle combines coarse fog for nearby components + fine mist for distance.
Applications: Mixed systems (tools + remote cylinders).
Pros: Versatile coverage 10-50m.
Cons: Complex adjustment.
Mechanism: PTFE-impregnated media or solid-film injectors (no liquid oil), or bio-degradable micro-emulsions for food-grade.
Applications: Cleanroom, painting, oil-sensitive solenoids.
Pros: Zero contamination, maintenance-free.
Cons: Lower friction reduction (200% life vs 400%).
Lubricator Type | Droplet Size (μm) | Coverage Distance (m) | Dosage Range (drops/gal) | Air Flow Dependency | Carryover Oil (mg/m³) | Cost Range ($) | Element Life (Months) |
Oil-Fog (Standard) | 1-5 | 5-15 | 10-50 Adjustable | Proportional | 5-25 | 30-80 | 12-24 |
Micro-Fog (Advanced) | 0.3-1 | 30-100 | 18-32 Precise | Near-Constant | 1-5 | 80-250 | 12-18 |
Continuous Metering | 2-10 | Unlimited | 1-100 Fixed/Programmable | None | 0.5-10 | 200-800 | 24-36 |
Hybrid Fog/Micro | 0.5-3 | 10-50 | 15-40 | Low | 2-10 | 100-300 | 18-24 |
Oil-Free (Solid Film) | N/A (Dry) | Full Line | Equivalent 10-20 | None | 0 | 150-400 | 36+ |
Key Metrics Explained: Coverage tested at 90 psi, 20 fps velocity; carryover per ISO 8573 Class 3-5.
Application Factor | Oil-Fog Best For | Micro-Fog Best For | Continuous Best For | Oil-Free Best For |
Line Length | Short (<10m) | Long (30m+) | Any | Clean Apps |
Flow Variation | High Turndown | Steady | Variable Speed | All |
Oil Sensitivity | Tolerant | Low Carryover | Precise Dose | Zero Oil |
Cost Sensitivity | Budget | Mid-Range | Premium | Cleanroom |
Body: Aluminum anodized (standard), polycarbonate sight domes (mini), stainless 316 (food/chemical).
Seals: NBR general (-4°F-158°F), Viton high-temp/oil (400°F).
Reservoirs: Transparent poly (4oz mini) to metal (2qt heavy).
Mounting: Modular FRL clamps, wall brackets, inline NPT/G 1/8"-1".
Ratings: IP65 vibration 10G; ATEX Zone 1 oil-fog models.
Durability by Type:
Oil-Fog: 2M cycles, clean weekly.
Micro-Fog: 3M cycles, clog-resistant.
Continuous: 5M+ electronic MTBF.
Map Downstream: Total length (m), branches, components (#cylinders/valves).
Flow Profile: Average/peak SCFM, velocity (15-30 fps).
Dosage Calc: Drops/gal = (Line Length × #Devices × 0.5) / Flow SCFM.
Safety: 1.2x dosage, verify coverage charts.
App Factor: Food=oil-free; long-line=micro-fog.
Example: 50m line, 10 cylinders, 100 SCFM → Micro-fog 25 drops/gal.
System Profile | Line Length (m) | # Components | Flow (SCFM) | Recommended Type | Reservoir (oz) | Port Size |
Workshop Tools | 5-10 | 2-5 Tools | 10-50 | Oil-Fog | 4 | 1/4" |
Assembly Line | 20-50 | 10-20 Valves/Cyls | 50-200 | Micro-Fog | 8-16 | 3/8" |
Continuous Press | 10-30 | 5-10 Actuators | 100-300 | Continuous | 16-32 | 1/2" |
Food Packaging | Any | Any | 20-100 | Oil-Free | N/A | 1/4"-3/8" |
Complex Factory | 50-100+ | 20+ Mixed | 200+ | Hybrid + Multiple | 32+ | 1/2"-1" |
Position: Post-regulator 1-2m (pressure stabilizes mist), horizontal, bowl down 0-10°.
Piping: Smooth bends, droplegs pre-lube, test-no-air first.
Startup: Fill oil (bleed air), set 25 drops/gal witness mist, cycle 10min settle.
Accessories: Filters upstream (protect nozzle), sight gauges.
Cold weather: Insulate reservoirs (>32°F viscosity rises).
Daily: Check sight dome mist, oil level.

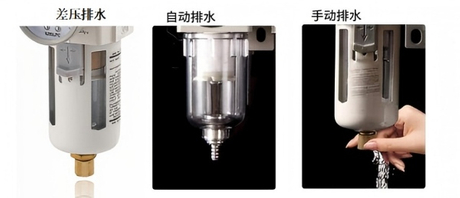

Weekly: Drain bowl sludge, clean nozzle (ultrasonic).
Monthly: Verify dosage (smoke test paper), seals.
Quarterly: Full teardown ($20-50 kits).
Annual: Replace ($50-200).
Troubleshooting Matrix:
Symptom | Cause | Type Affected | Fix |
No Mist | Clogged Venturi | Oil-Fog/Micro | Ultrasonic Clean |
Dry Tools | Low Oil/Vertical | All | Re-Level, Refill |
Oily Exhaust | Over-Dose | Oil-Fog | Reduce Screw 20% |
Inconsistent | Air Pulsing | Continuous | PID Tune |
Predictive: Oil level sensors, flow monitors.
CAPEX: Oil-Fog $50; Micro-Fog $150; Continuous $500.
OPEX: $20-100/yr oil/elements.
ROI: 2-4 months—400% cylinder life = $1-10k/yr saved.
Case: Factory micro-fog upgrade cut valve repairs 75% ($8k/yr).
PLC-linked dosage, biodegradable oils, solid-film dry lube, IIoT mist monitoring.
