You are here: Home » Products » Air Source Control Components » Solenoid Valves » 2/2-Way Solenoid Valves 2V025 Normally Closed AC 110V Electric Solenoid Air Valve 1/8''PT

Product Category

2/2-Way Solenoid Valves 2V025 Normally Closed AC 110V Electric Solenoid Air Valve 1/8''PT

2/2-Way Solenoid Valves 2V025 Normally Closed AC 110V Electric Solenoid Air Valve 1/4''PT

2/2-Way Solenoid Valves 2V025 Normally Closed AC 110V Electric Solenoid Air Valve 1/8''PT


Size:	1 2
Availability:

Quantity:



Inquiry Add to Basket

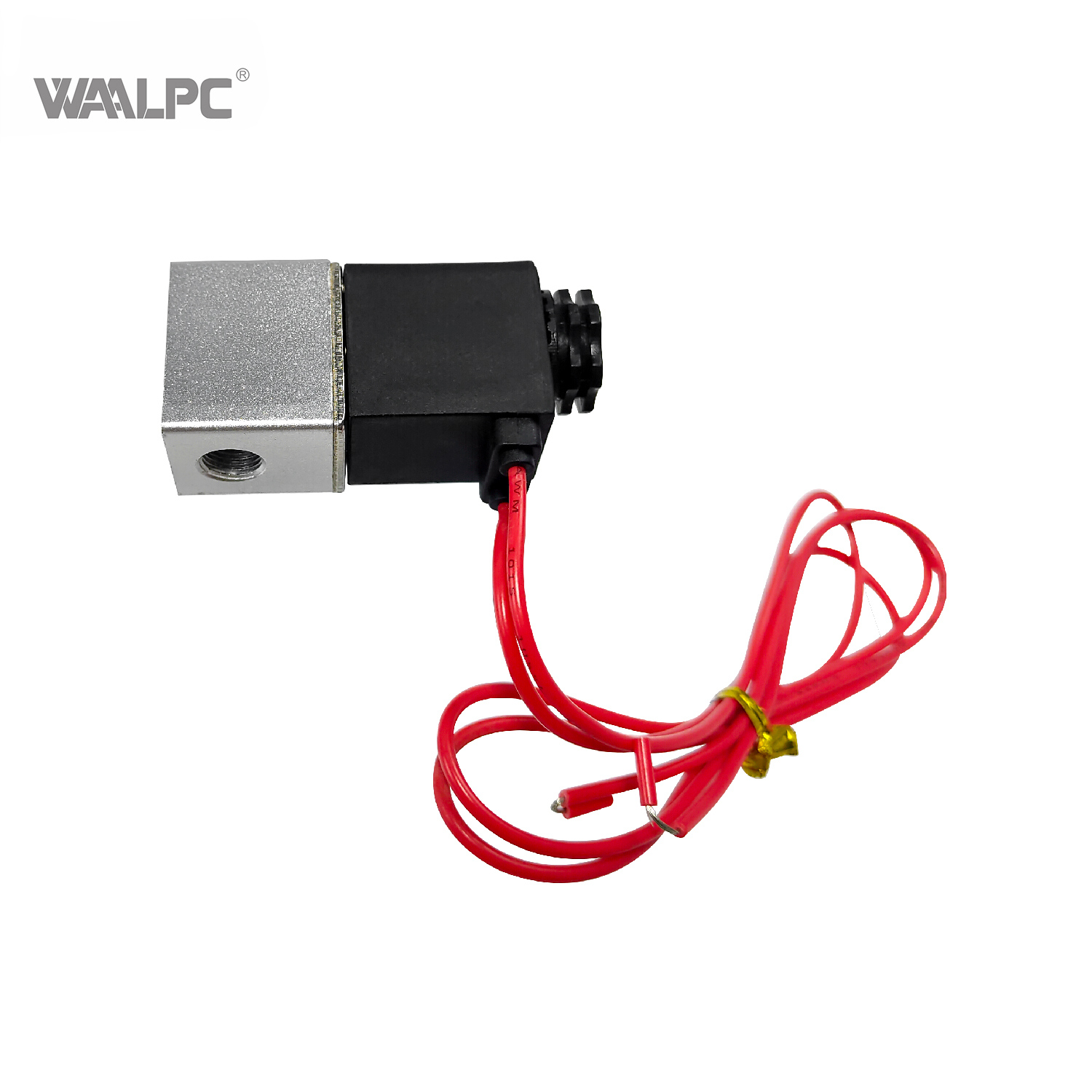

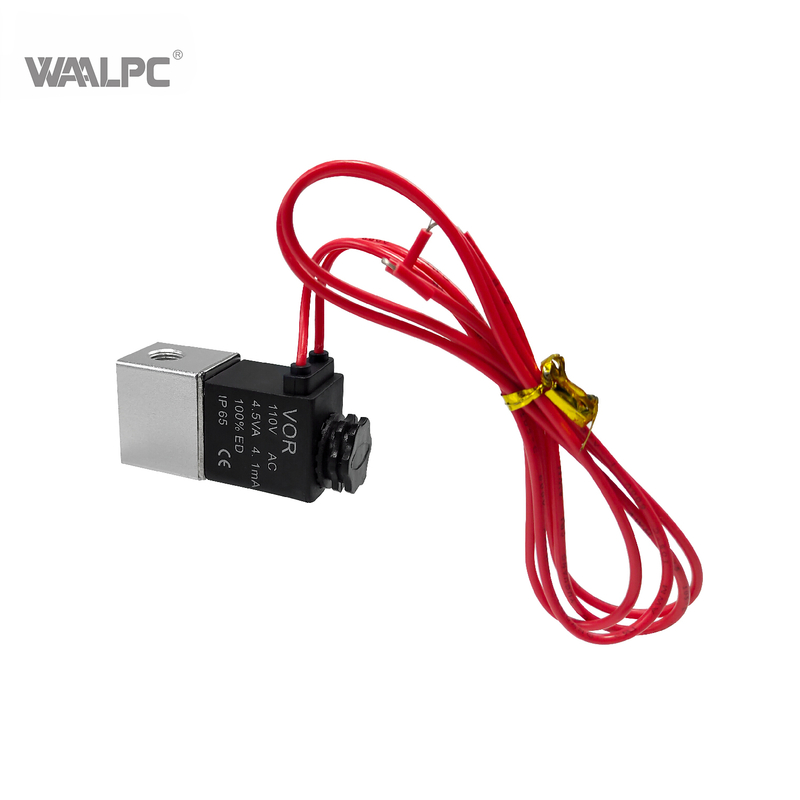

The 2V025 series solenoid valves are high - performance fluid control components engineered for a wide range of applications. These 2/2 - way, direct - acting valves typically feature a normally - closed configuration, ensuring reliable fluid isolation when de - energized.

Model:
2V025-06
Brand:
WAALPC
Code:
8481202090

Product Description

Pneumatic 2V025 Solenoid Valve Advantages

2V025-出线 (1)

1.Direct acting normally closed two-port two-position solenoid valve, fast and sensitive switching;

2. Lightweight and compact structure;

3. The valve body is made of brass, the solenoid valve coil has a heat resistance grade of B, and the seal is made of VITON, suitable for avariety of working media.

Pneumatic 2V025 Solenoid Valve Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Model	2V025-06	2V025-08
Working Medium	Air, Water, Oil
Operation	Direct Acting
Acting Type	Normally Closed
Orifice size (mm)	2.5
Valve (m³/h)	0.23	0.25
Port Size	PT1/8	PT1/4
Operating Fluid Viscosity	Below 20CST
Operating Pressure Range	0~1.0MPa(0~145psi)
GuaranteedPressure Resistance	1.5MPa(215psi)
Material of Body	Copper(Nickel plating treatment)
Material of Oil Seal	VITON
Response Time	0.05 seconds

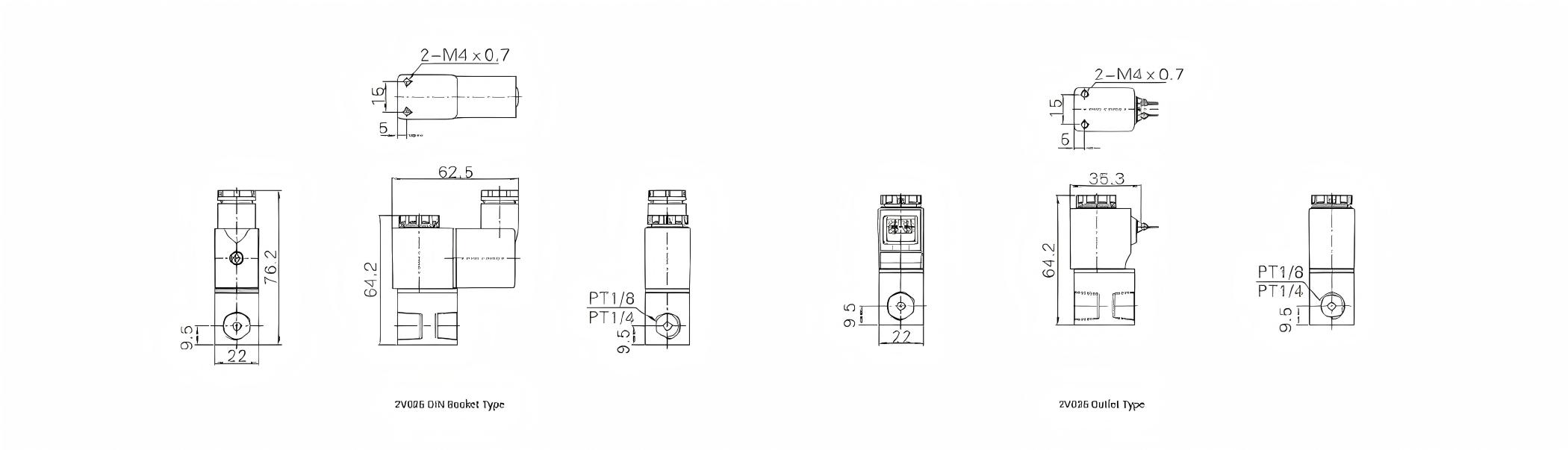

STRUCTURE & DIMENSION(MM)

Solenoid Valve

Specification Download

2V025 solenoid valve.png
