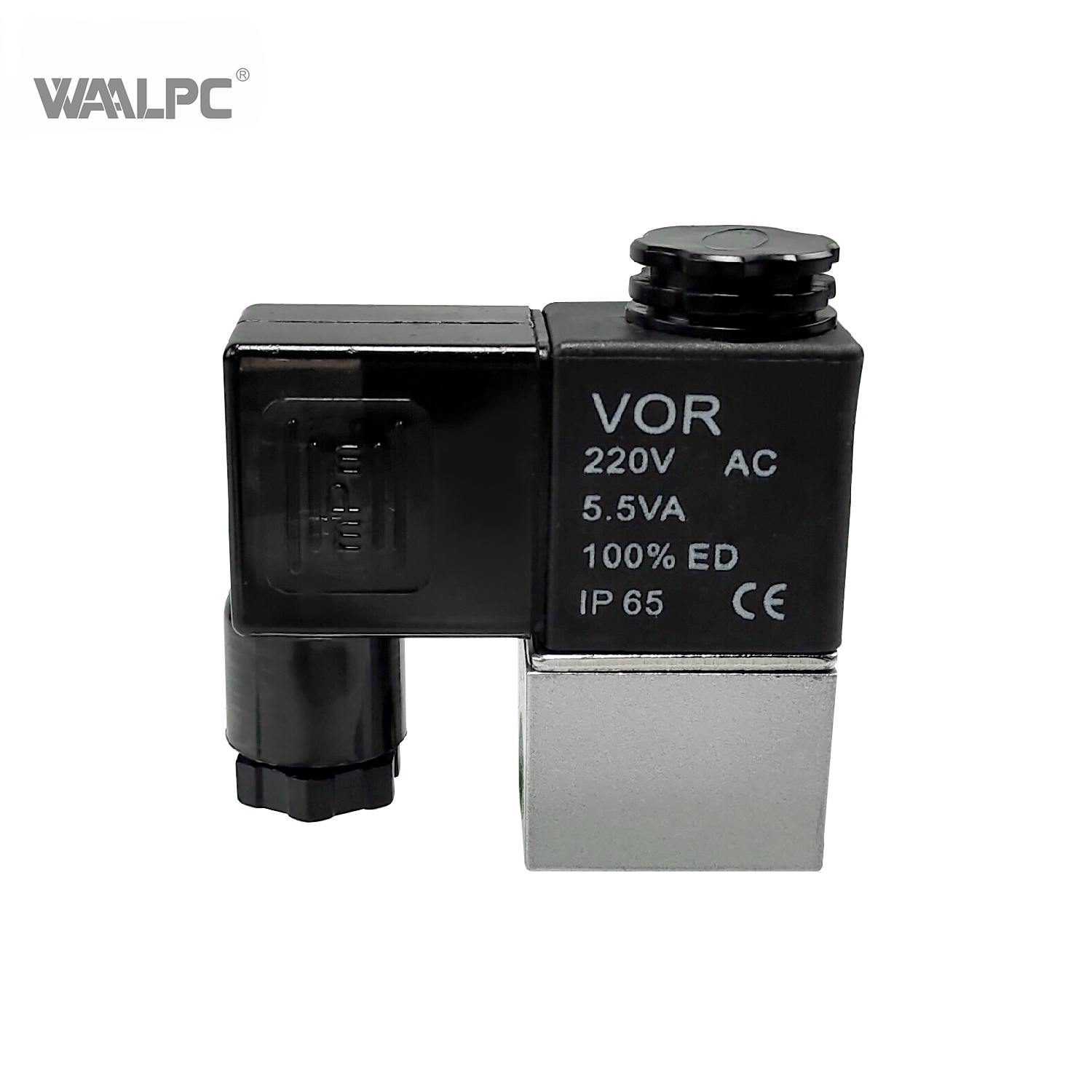

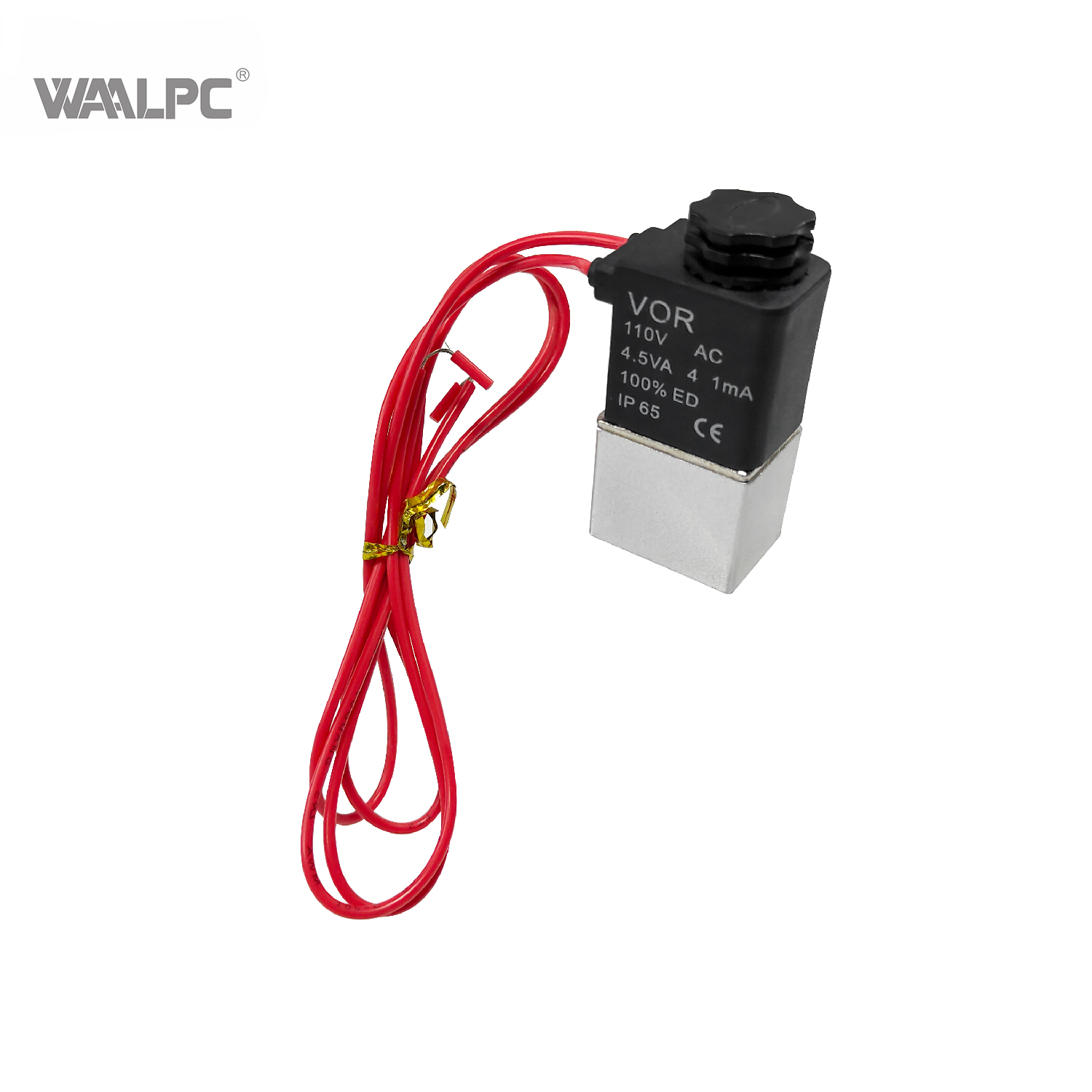

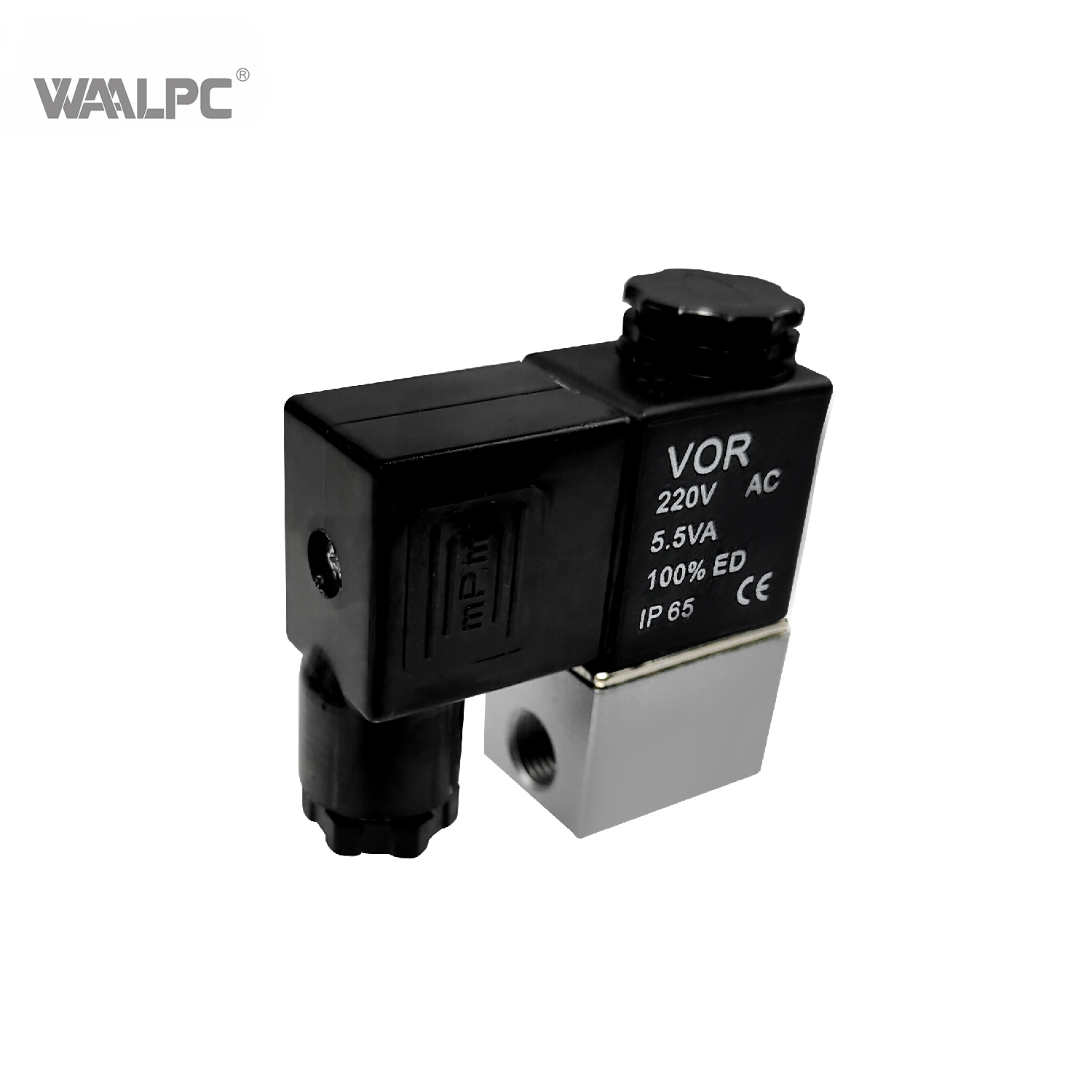

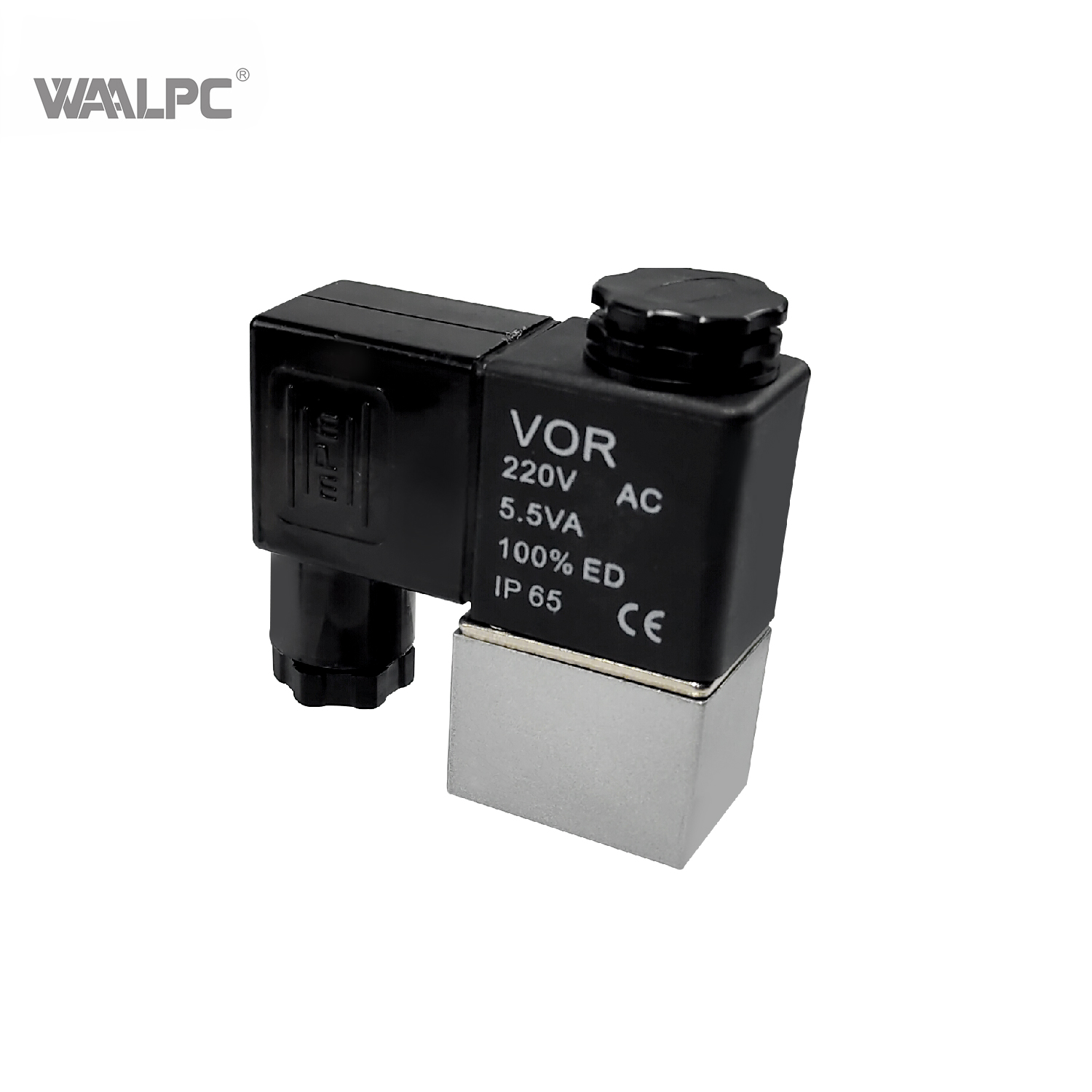

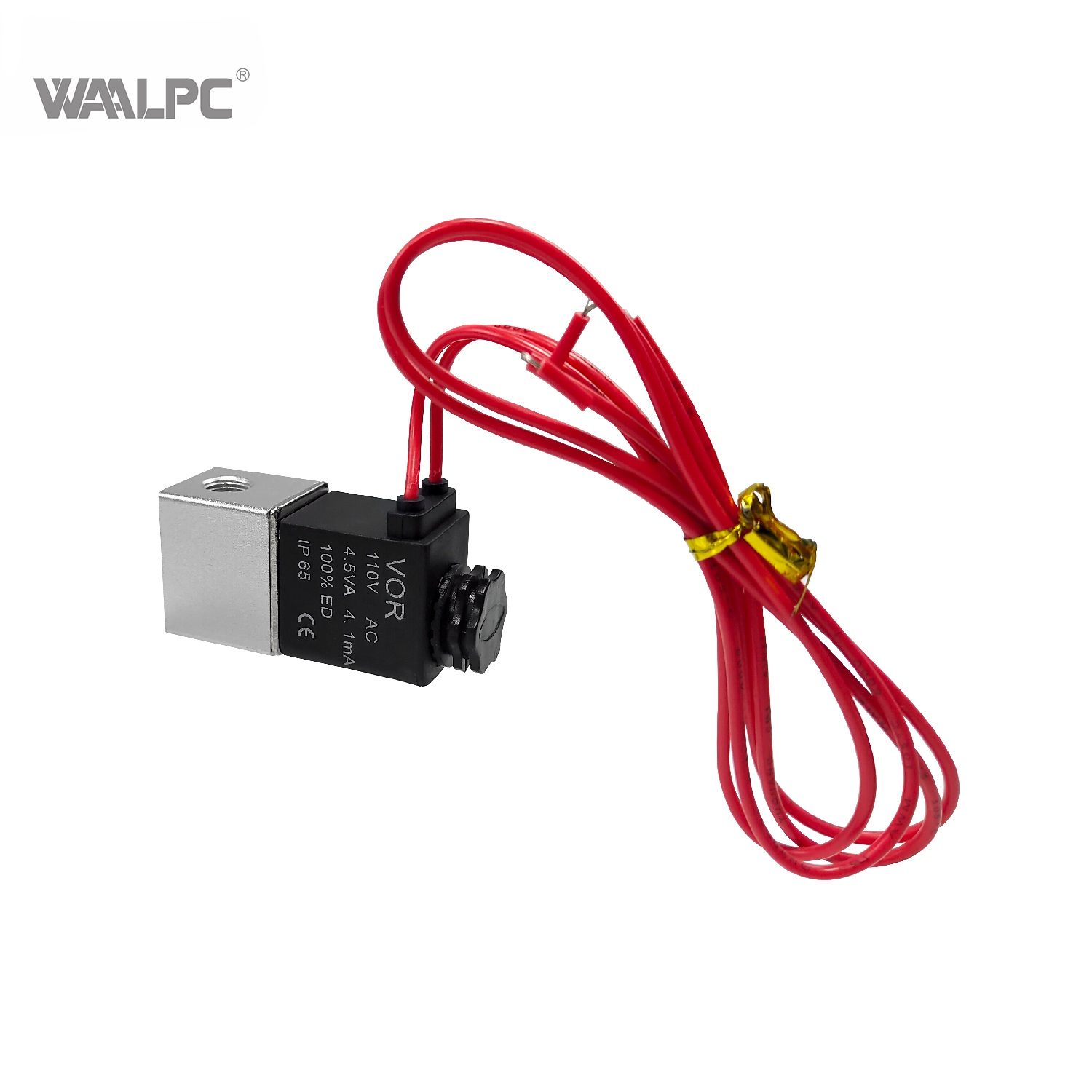

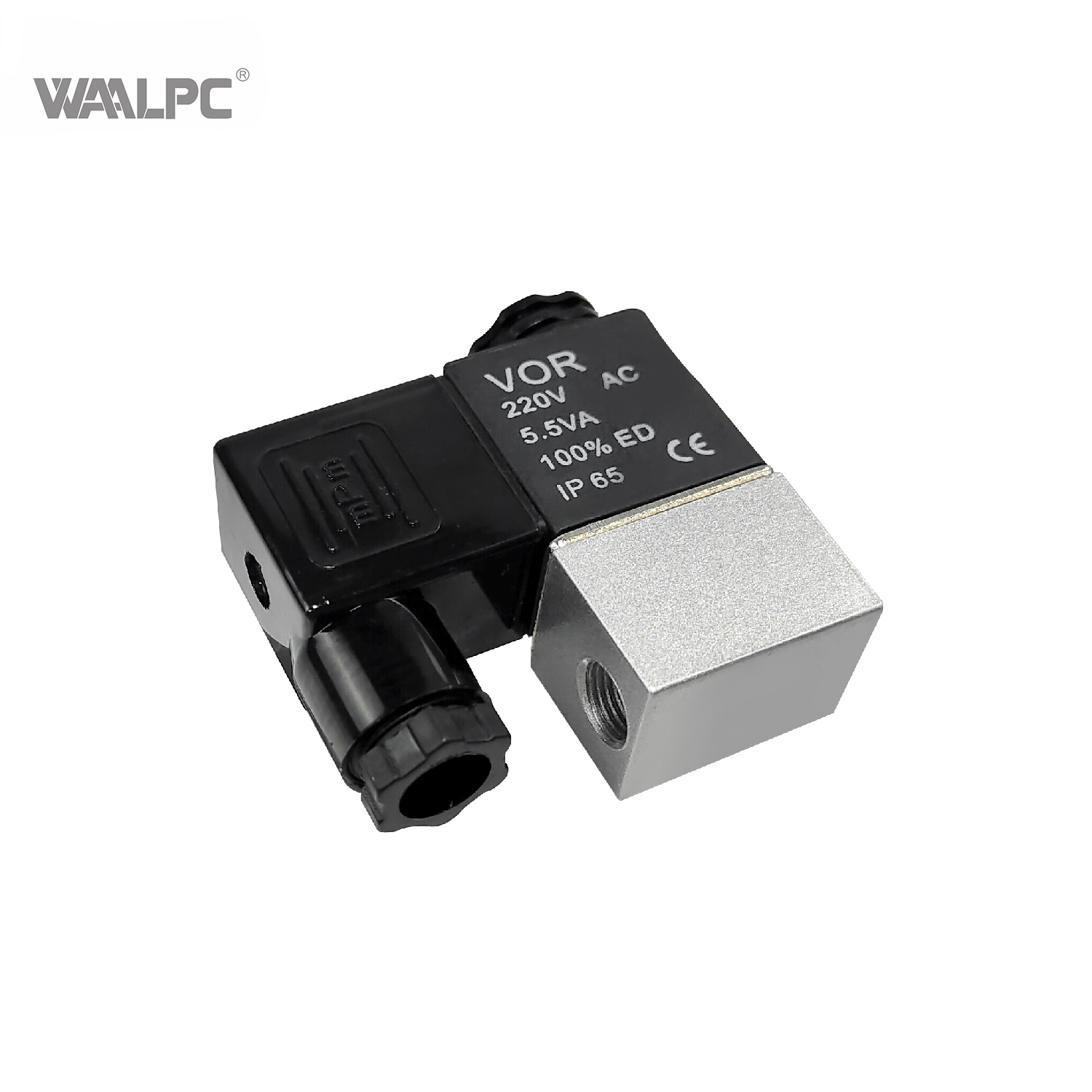

2/2-Way Solenoid Valves 2V025 Rapid Response Pneumatic Control Valves PT1/8'' Normally Closed for Industrial Automation

2/2-Way Solenoid Valves 2V025 Rapid Response Pneumatic Control Valves PT1/8'' Normally Closed for Industrial Automation


Size:	Black White
Availability:

Quantity:



Inquiry Add to Basket

The 2V025 series solenoid valves are high - performance fluid control components engineered for a wide range of applications. These 2/2 - way, direct - acting valves typically feature a normally - closed configuration, ensuring reliable fluid isolation when de - energized.

Model:
2V025-06
Brand:
WAALPC
Code:
8481202090

Product Description

1. Direct acting normally closed two-port two-position solenoid valve, fast and sensitive switching;

2. Lightweight and compact structure;

3. The valve body is made of brass, the solenoid valve coil has a heat resistance grade of B, and the seal is made of VITON, suitable for avariety of working media.

Technical Parameters

DATA SHEET

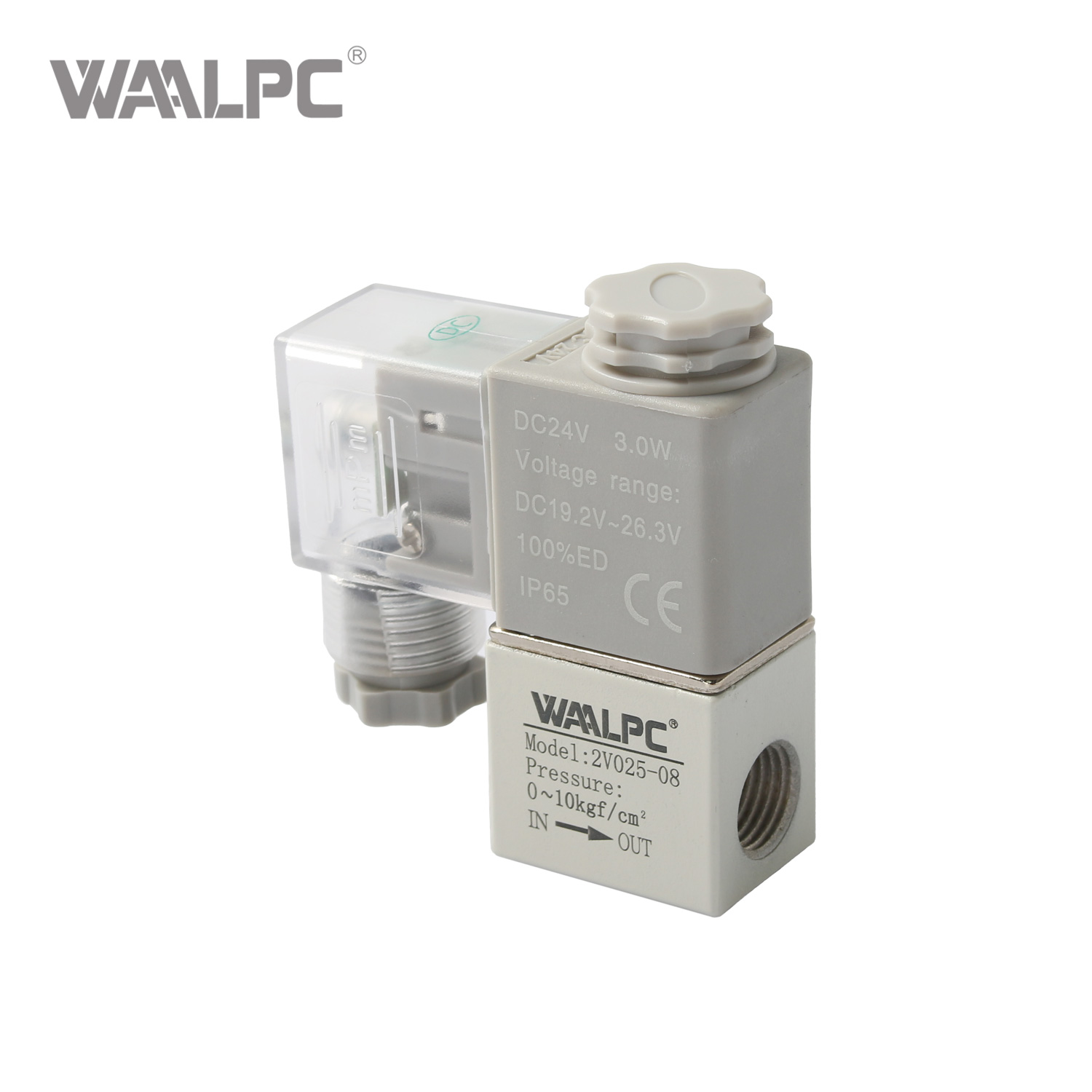

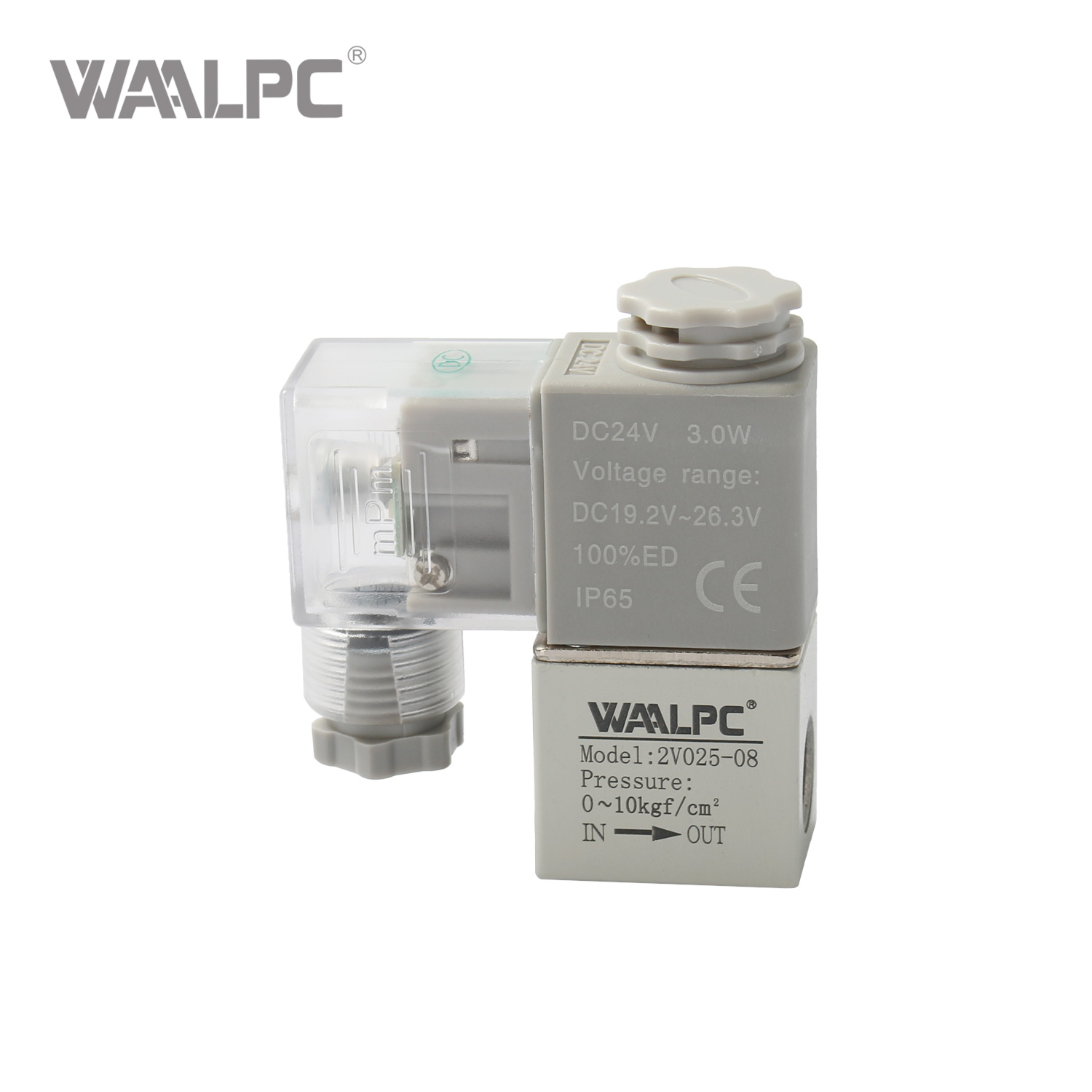

Model	2V025-06	2V025-08
Working Medium	40 Micron Filtered Air
Action Mode	Direct Drive
Port Size	G1/8	G1/4
The Position Couting	Two-position Two-way
Working Temperature	-5~50°C
Working Pressure	0~8.0kgf/cm²
Power Consumption	AC220V: 2.0VA DC24V: 3.0W
Protection Class	IP65(DIN40050)
Wiring Form	Connector Type
Max. Frequency	10 Cycle/Sec
Insulation	F Class
Voltage Range	-15%~+10%
Shortest Excitation Time	0.05 Second

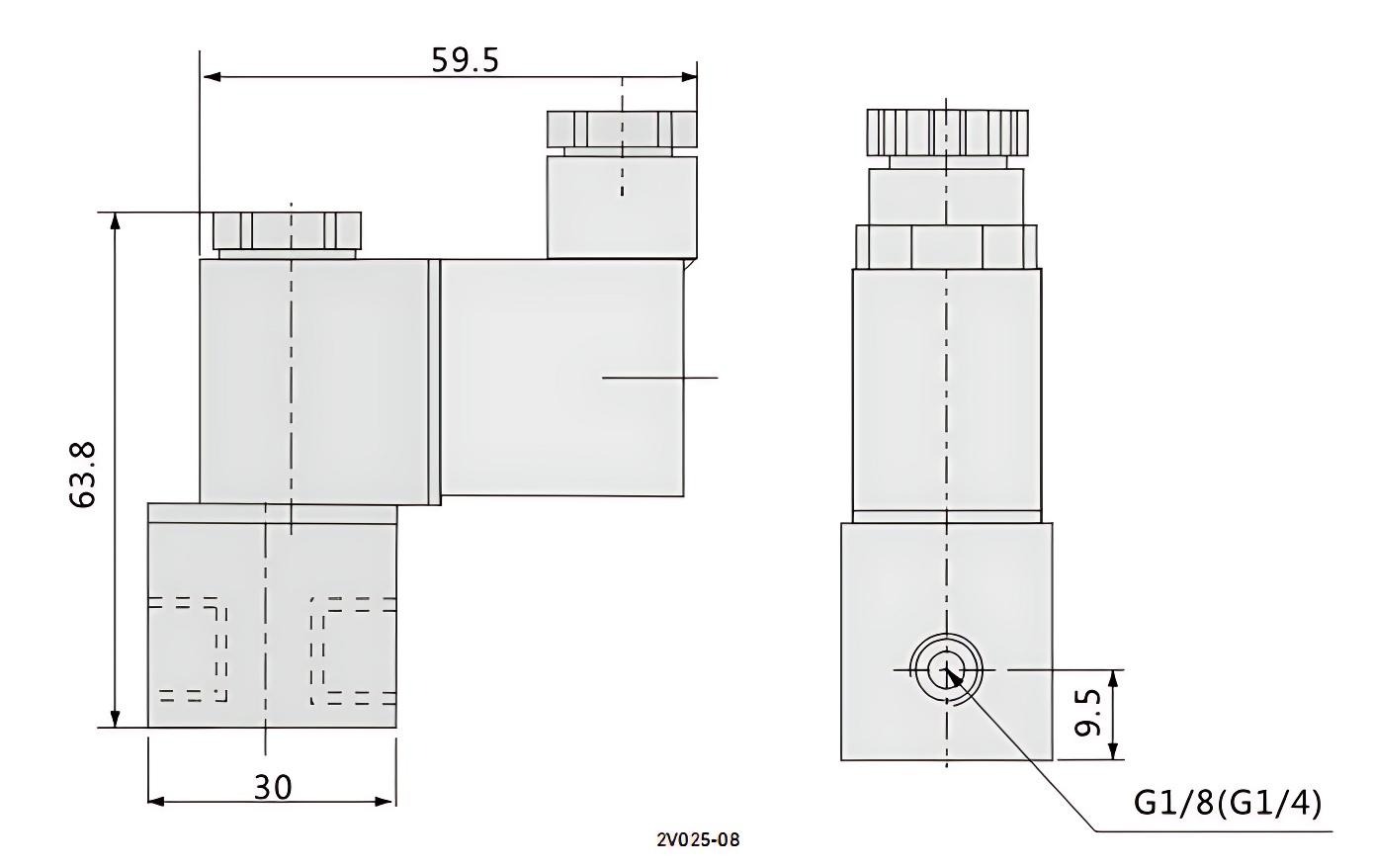

STRUCTURE & DIMENSION(MM)

2V025-08 structure_

Specification Download

2V Series Solenoid Valve.pdf
