The 3V1 Series is a line of direct-acting solenoid valves engineered for precision fluid control in compact pneumatic systems. Featuring a robust aluminum body and sliding-armature design, these valves deliver reliable performance with zero minimum pressure requirement (0 MPa start) – making them ideal for low-pressure applications.

Model:
3V1
Brand:
WAALPC
Code:
8481202090

Product Description

1. Direct acting normally closed type, sensitive commutation

2. No need to add oil for lubrication

3. It is available to form integrated valve group with the base to save installation space

4. Affiliated manual devices are equipped to facilitate installation and debugging

5. Several standard voltage grades are optional

Technical Parameters

DATA SHEET

Model	3V1-M5	3V1-06
Fluid	Air(to be filtered by 40um filter element)
Acting	Direct Drive Type
Port size [Note1]	M5	PT1/8
Valve type	3 port 2 position
Lubrication	Not required
Operating pressure	0~0.8MPa(0~114psi)
Proof pressure	1.2MPa(175psi)
Temperature	-20~70°℃
Flow aperture	Φ1.2mm
Material of body	Aluminum alloy

[Note1]G thread and NPT thread are available

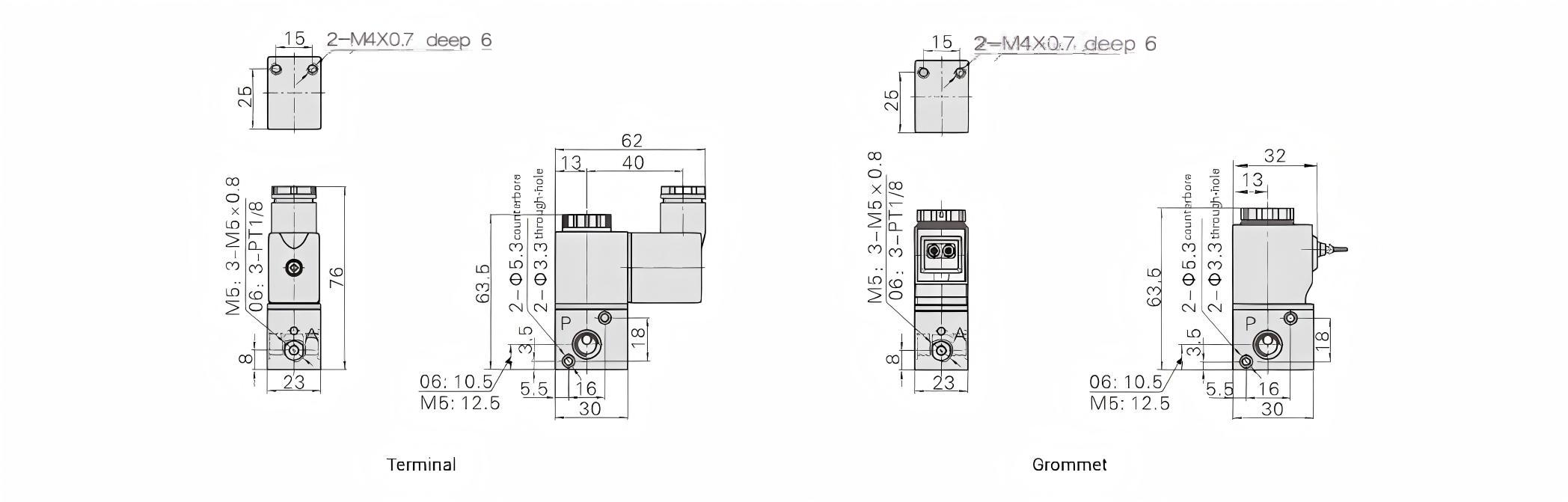

STRUCTURE&DIMENSION(MM)

3V1 Solenoid Valve

Specification Download

3V1 Solenoid Valve.png
