3H Series Hand Lever Valve, 3-Way Manual Control for Pneumatic Systems

3H Series Hand Lever Valve, 3-Way Manual Control for Pneumatic Systems


Availability:

Quantity:



Inquiry Add to Basket

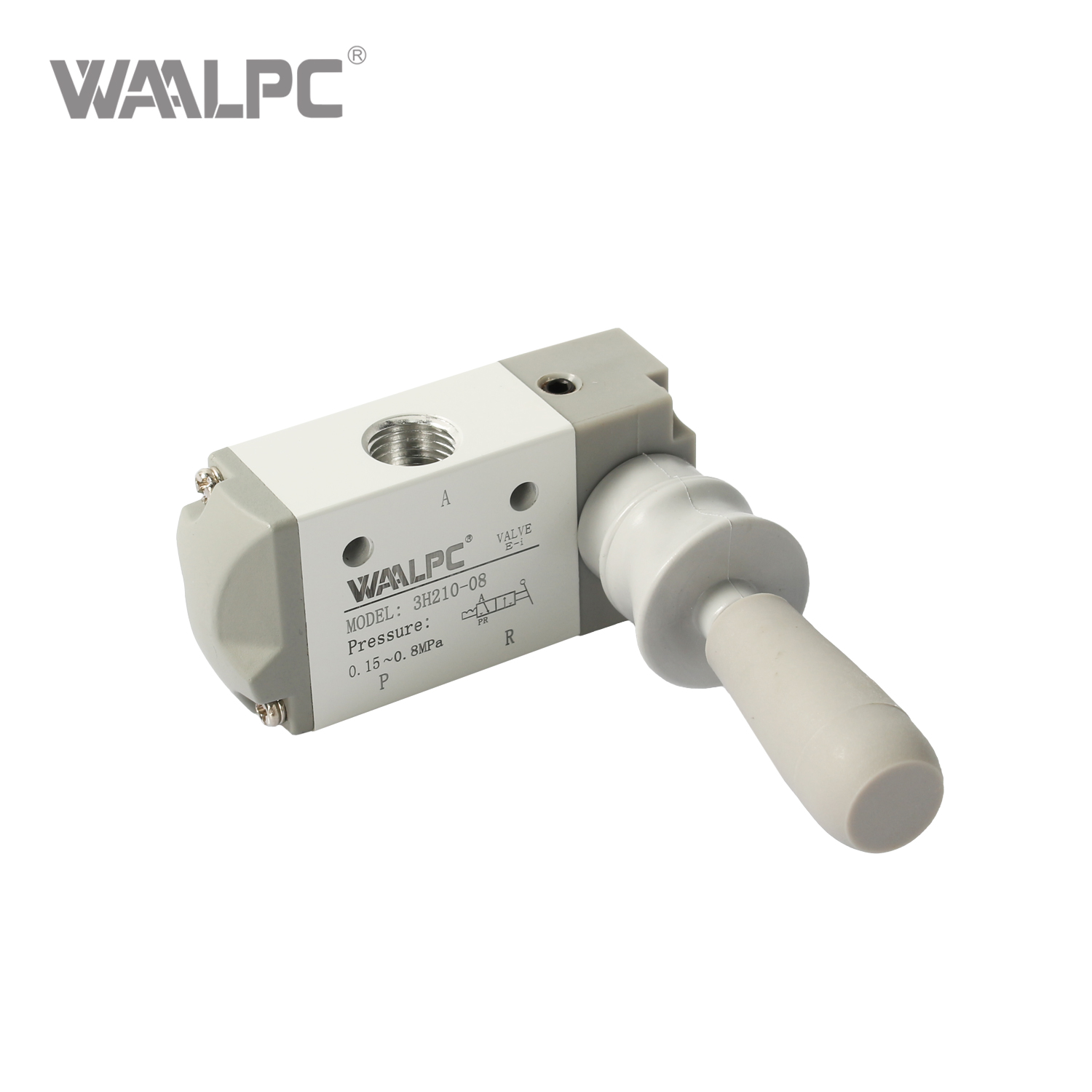

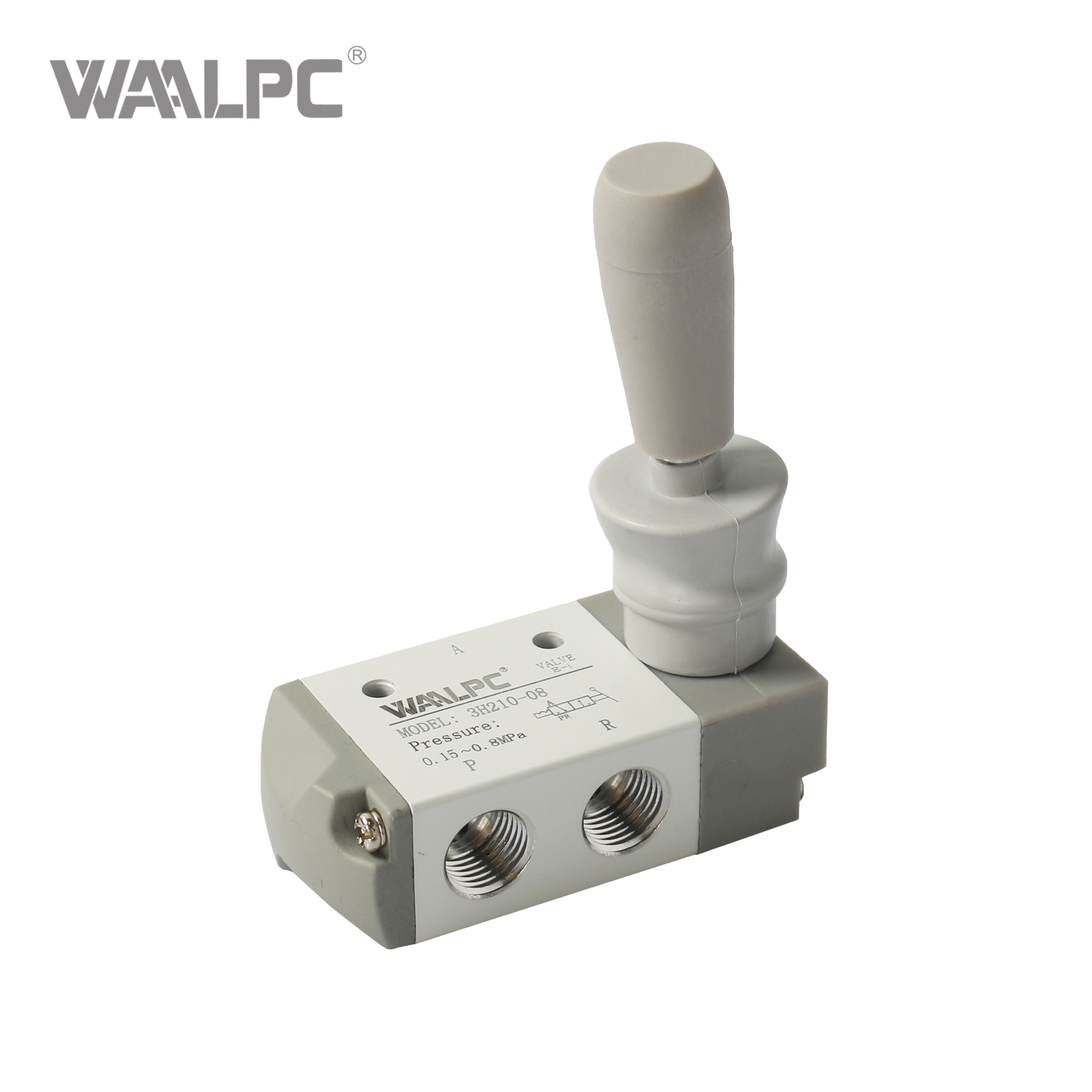

The 3H Series Hand Lever Valve is a manually operated, 2-position, 3-way pneumatic valve designed for reliable directional control in various industrial applications . Known for its robust construction and simple design, it is a standard and widely used component in pneumatic systems.

Model:
3H210-08
Brand:
WAALPC
Code:
8481804090

Product Description

Smooth and Reliable Operation: The valve features a spool-type structure and special internal machining, ensuring smooth actuation, accurate positioning, and quick response.

Compact and Durable: Its design is compact and lightweight, saving space in control panels. The aluminum alloy body provides robustness for industrial environments.

Easy Installation: Designed for panel mounting, these valves are straightforward to install and maintain, reducing downtime.

Maintenance-Free: The valve operates without the need for lubrication, reducing maintenance requirements .

Technical Parameters

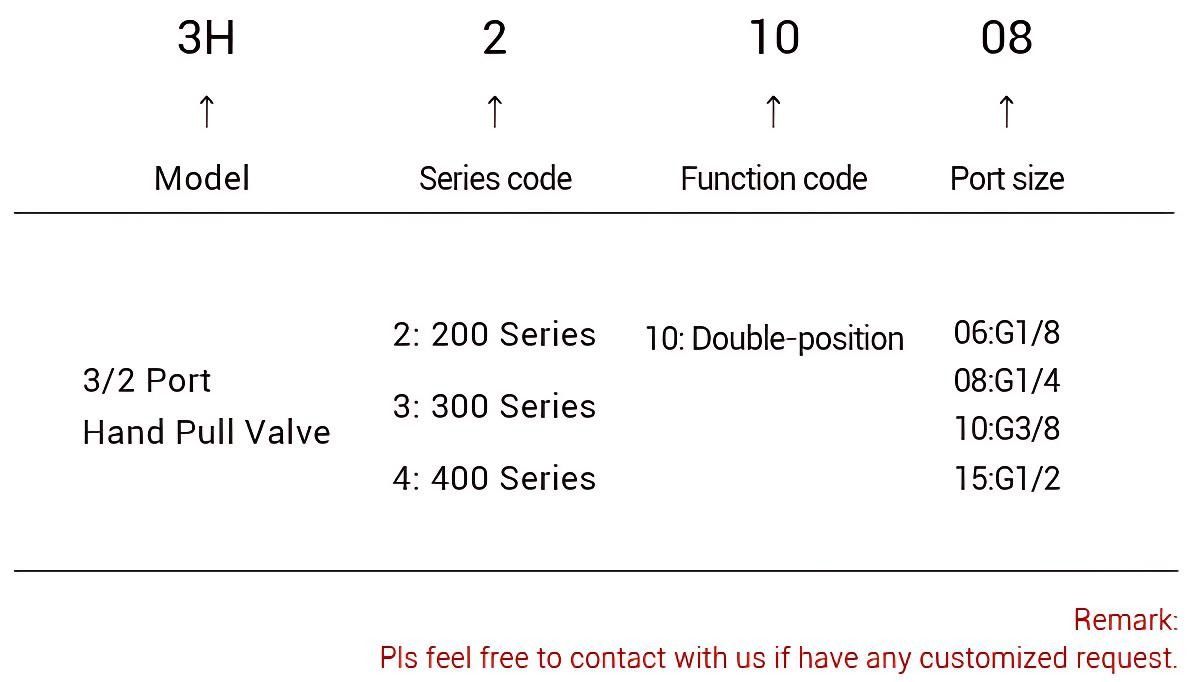

Ordering Code

SPECIFICATION

Model Material of Body	3H110-M5	3H110-06	3H210-06	3H210-08	3H310-08	3H310-10	3H410-10	3H410-15
Working Medium	Air(to be filtered by 40um filter element)
Action Mode	Hand controlled direct action type
Port Size[Notel]	06:G1/8			08:G1/4		10:G3/8		15:G1/28
EffectiveSectionArea	14mm2 （Cv=0.78）			16mm2 (Cv=0.89)	25mm2 (Cv=1.39)	30.0mm2 (Cv=1.67)		50mm2 (Cv=2.79)
Position	3 port 2 position
Lubrication[Note2]	Not required
Working Pressure Range	0~0.8MPa(0~116psi)
Proof Pressure	1.2MPa(170psi)
Working Temperature	-50~60°℃
Material of Body	Aluminum alloy

[Note1]PT thread, and NPT thread are available

[Note2]Once lubricated air is used, continue with same medium to optimise valve life span. Lubricants like ISO VG32 or equivalent are recommend

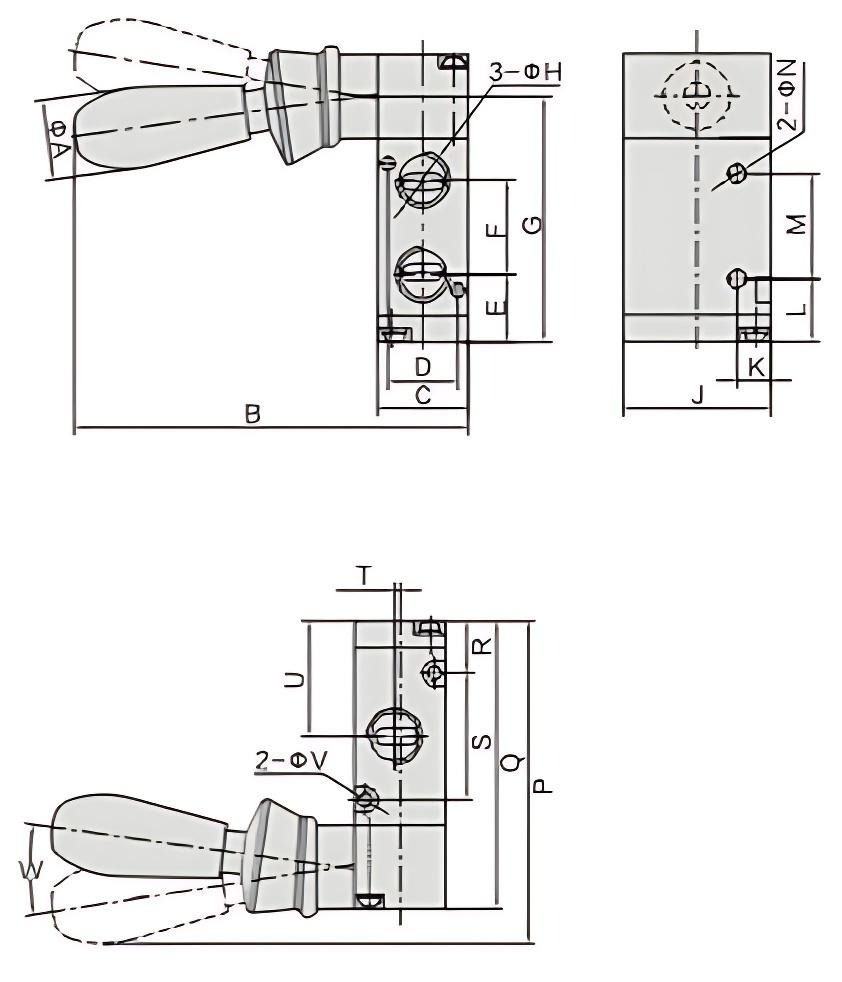

OVERALLDIMENSION&STRUCTURE

Hand lever valve structure

Symbol/Model	3H210		3H310		3H410
Symbol/Model	06	08	08	10	15
A	19	19	19	19	19
B	94	94	984	98.4	105
C	22	22	27	27	34
D	17	17	20	20	27
E	16.2	16.2	20.3	20.3	23
F	22.5	22.5	24	24	36
G	58.4	58.4	67.3	67.3	84.5
H	G1/8	G1/4	G1/4	G3/8	G1/2
J	35	35	40	40	50
K	8	8	10	10	13.5
L	14.9	14.9	14.8	14.8	16
M	25	25	30	30	50
N	4.3	4.3	4.3	4.3	5.2
P	76.5	76.5	85.2	85.2	105
Q	68.4	68.4	77.3	77.3	95.5
R	12.4	12.4	14.8	14.8	19.5
S	30	30	35	35	43
T	0	1.5	0	2	3
U	27.4	27.4	32.3	32.3	41
V	3.2	3.2	4.3	4.3	4.3
W	16.8	16.8	16.5	16.5	22.3

Specification Download

3H Series Hand Lever Valve.pdf
