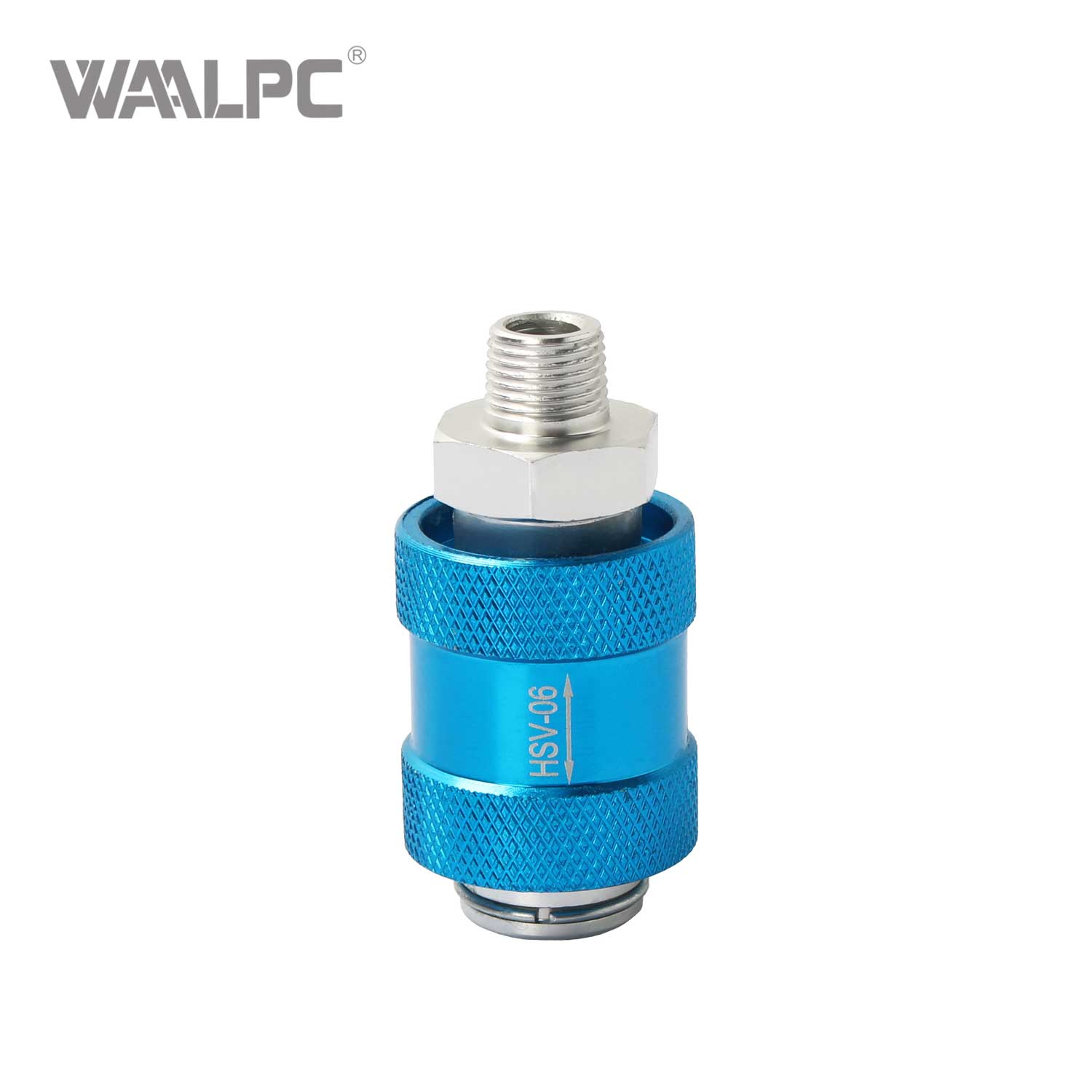

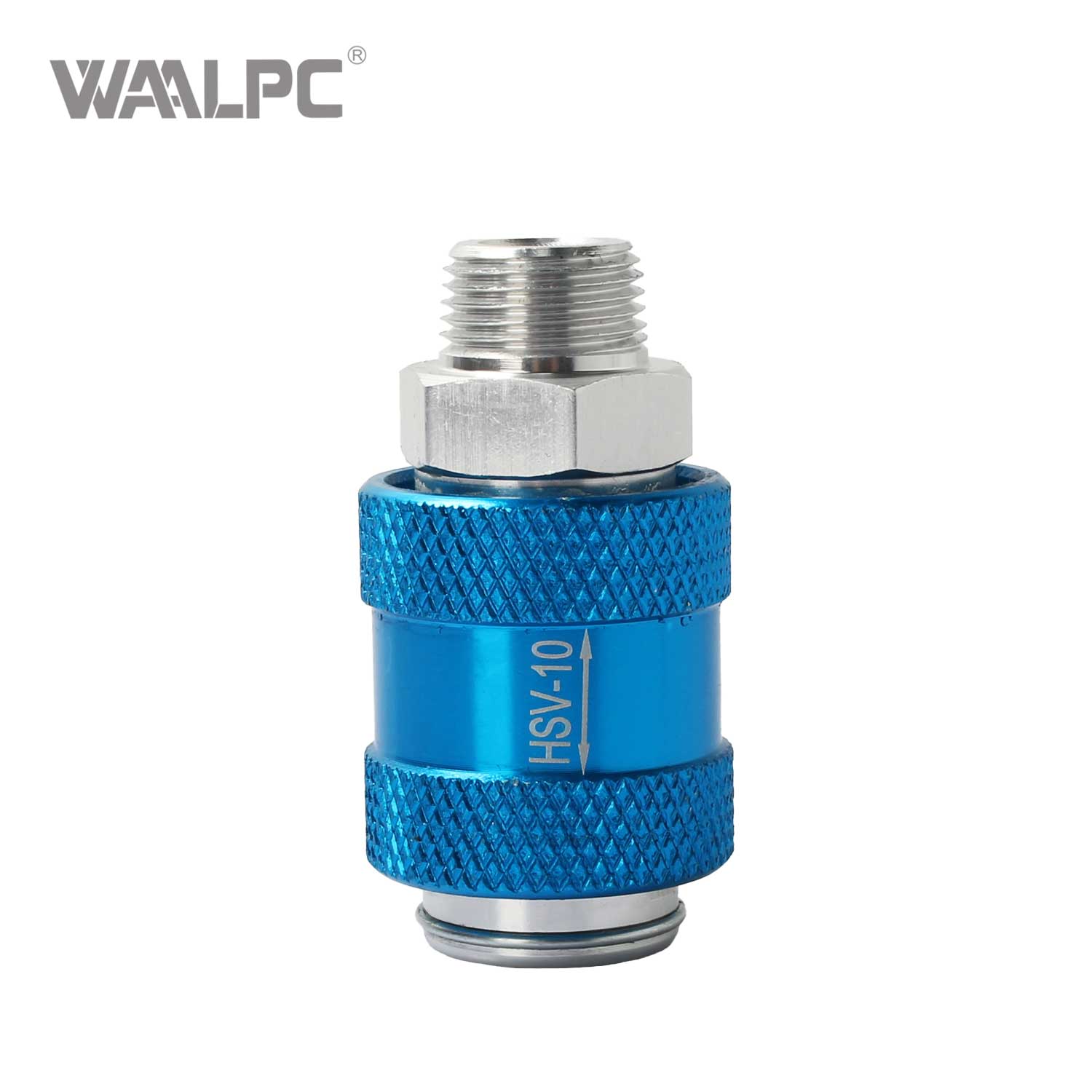

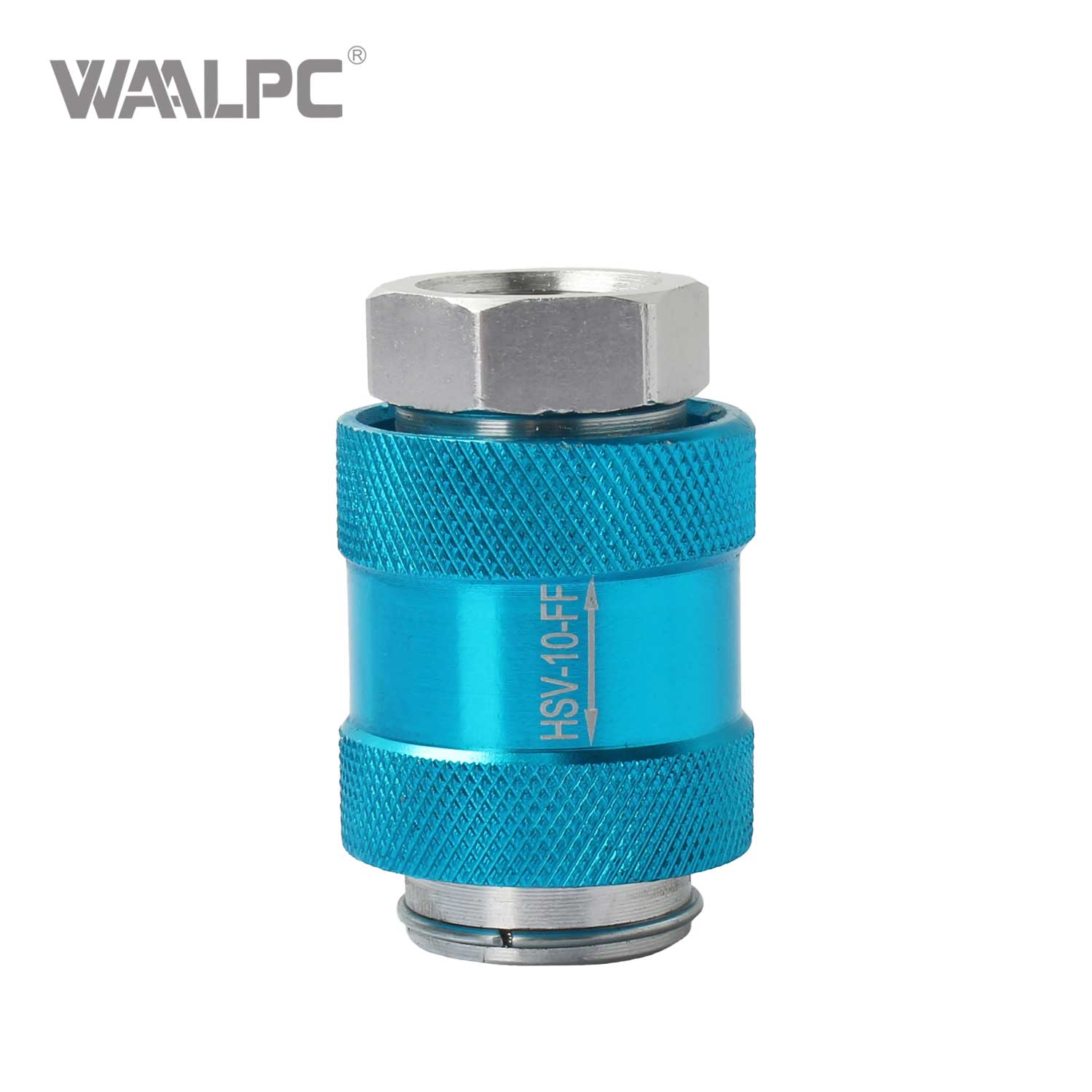

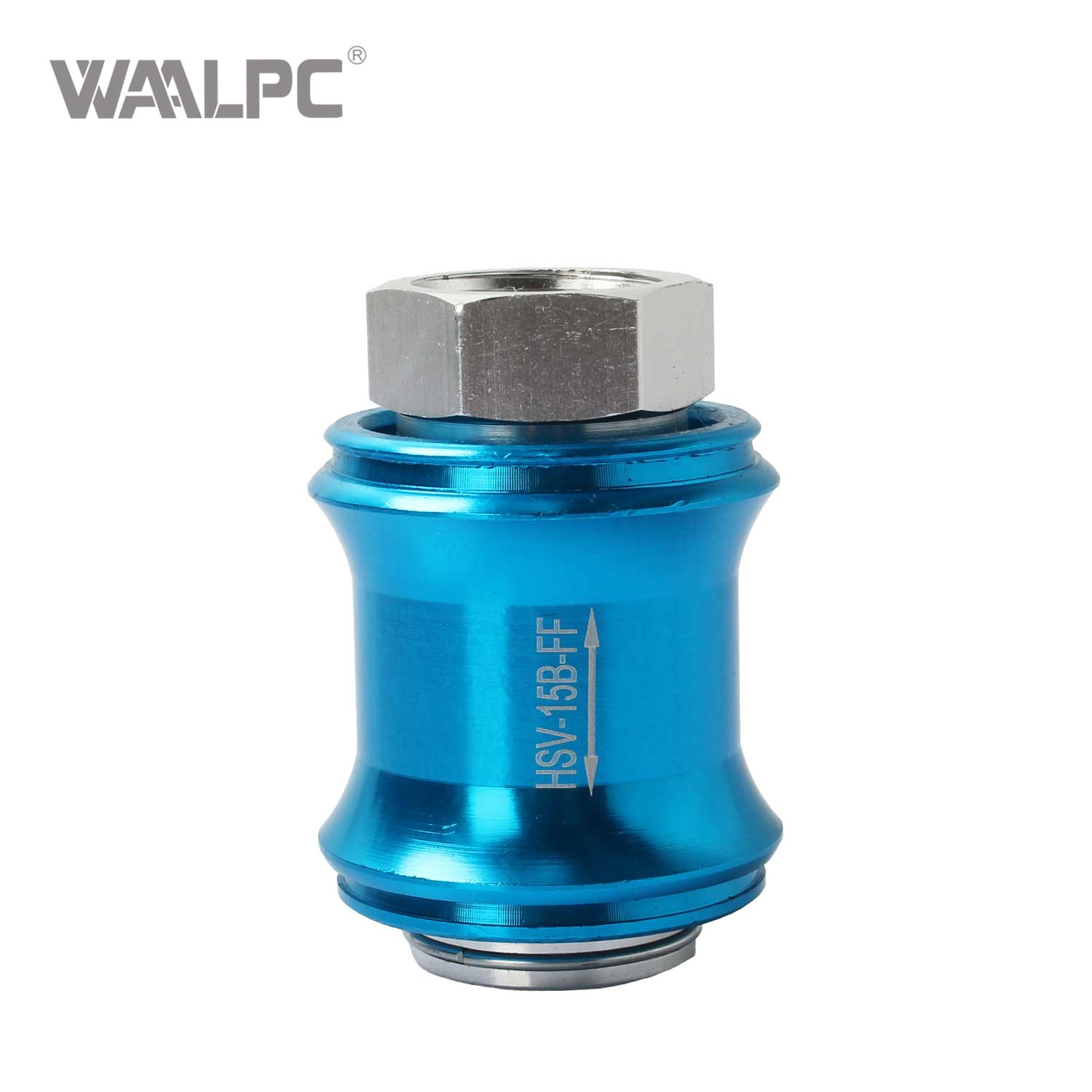

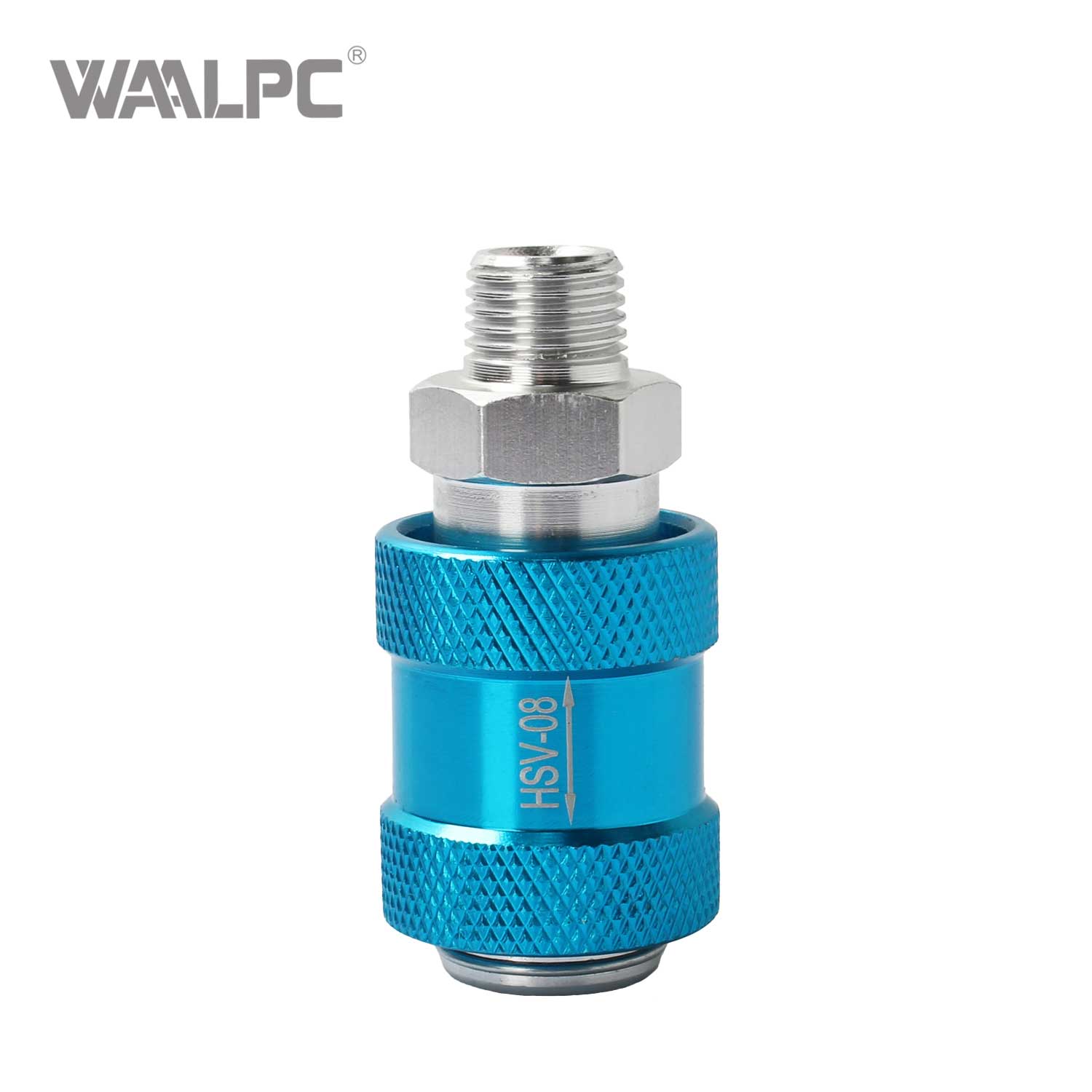

Manual Hand Slide Valve HSV-25 Aluminum PT1" Thread Pneumatic Flow Control


Availability:

Quantity:



Inquiry Add to Basket

A Manual Slide Valve is a mechanical flow control device operated by hand, designed to regulate or stop the flow of liquids, gases, or granular materials in pipelines or systems. It features a sliding plate or disc that moves linearly within a housing to open, close, or throttle the passage, providing precise control over fluid dynamics. Ideal for the need for reliable, on-demand operation without external power sources, this valve is widely used in industrial, commercial, and process control applications.

Model:
HSV-25
Brand:
WAALPC
Code:
8481804090

Product Description

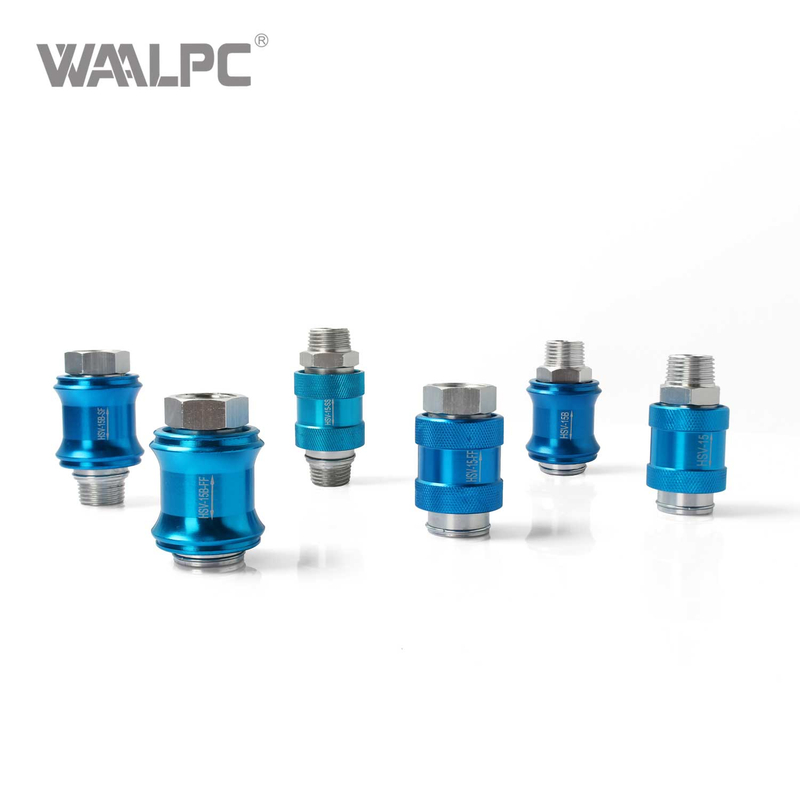

1. A variety of internal and external thread connection forms, suitable for different piping systems;

2. Smooth reversing and sliding, good feel;

3. Large effective flow area;

4. The valve core surface ishard anodized,the valve body surface is anodized, the color is kept for a long time.

Technical Parameters

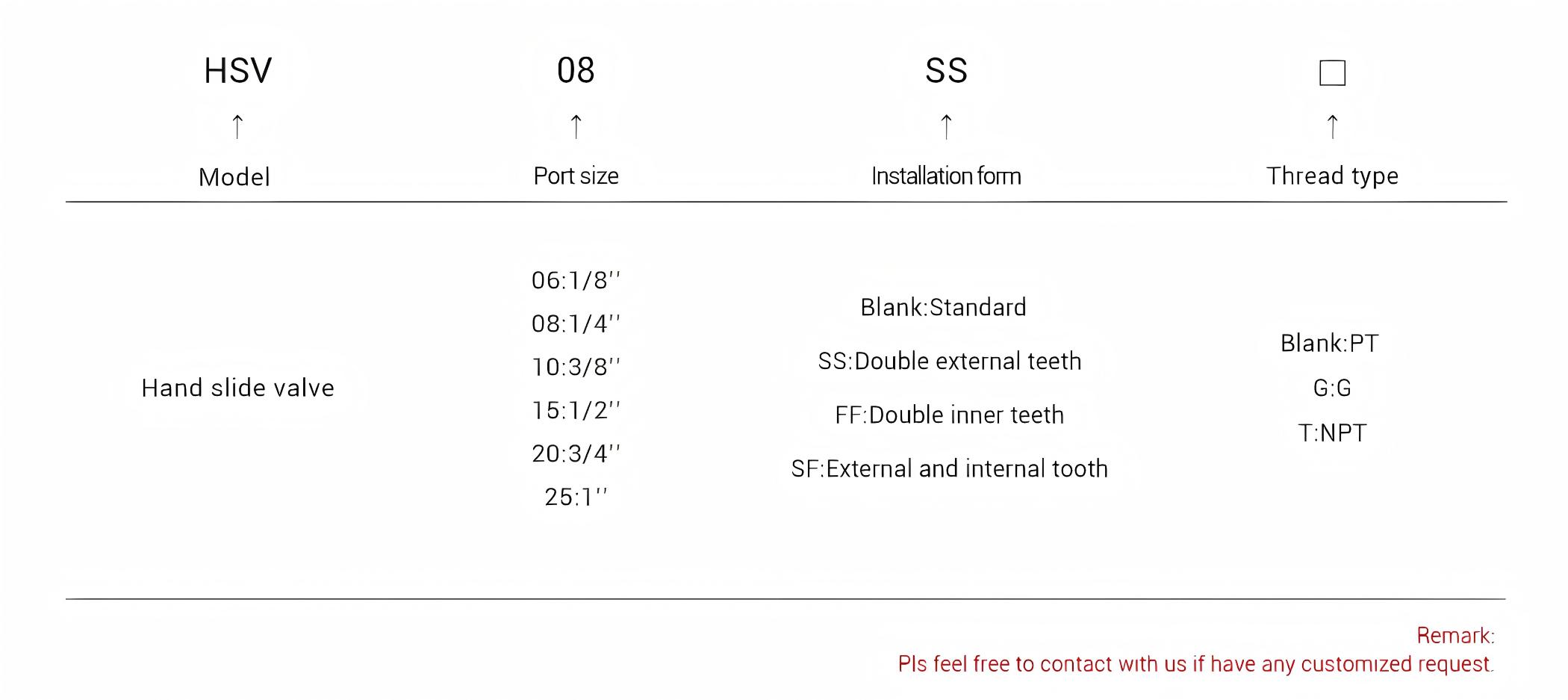

ORDERING CODE

DATA SHEET

Model	HSV-06	HSV-08	HSV-10	HSV-15	HSV-20	HSV-25
Port Size	PT1/8	PT1/4	PT3/8	PT1/2	PT3/4	PT1
Effective cross-sectional area	23.0mm²(Cv=1.28)	40.0mm²(Cv=2.20)	62.0mm²(Cv=3.50)	140.0mm²(Cv=7.80)	250.0mm²(Cv=13.80)	3922.0mm²(Cv=21.78)
Number of positions	Three interfaces and two working positions
Lubricating	Unnecessary
Operating pressure range	0~1.0MPa(0~145psi)
Guaranteed pressureresistance	1.5MPa(215psi)
Material	Aluminum Alloy

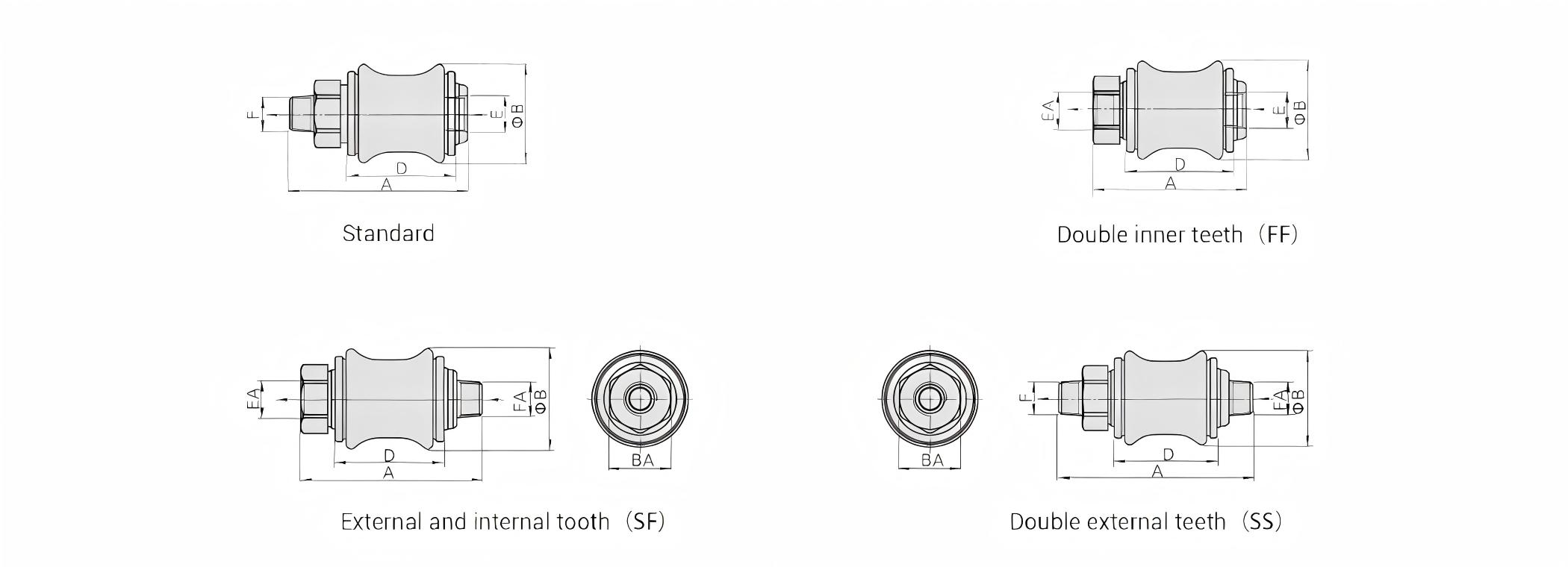

DIMENSION

Manual hand slide valve

Specification Download

Manual hand slide valve.png
