Size: | |
---|---|
Availability: | |
Quantity: | |

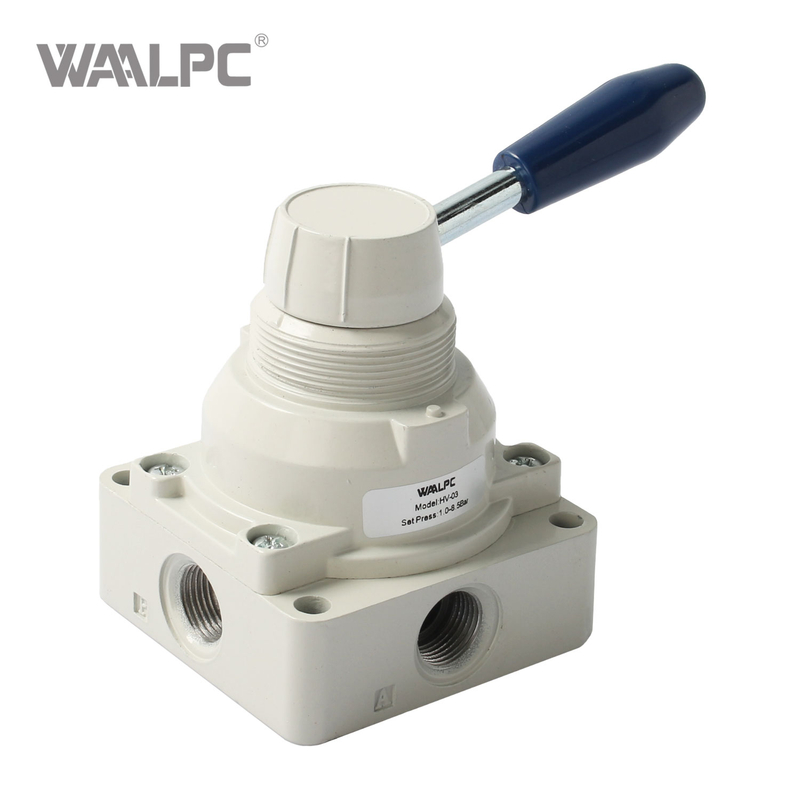

HV-02/03/04
WAALPC
8481804090
Operates solely by manual force (handwheel/lever), ideal for power-scarce environments like offshore platforms, mining sites, and emergency shutdown systems.
Tech Highlight:
Resilient wedge design: Near-zero leakage for liquids/gases;
DATA SHEET
Model | HV-02 | HV-03 | HV-04 |
Working medium | Clean air | ||
Action mode | Manual control | ||
Port size | G1/4 | G3/8 | G1/2 |
Max. working pressure | 8.5Bar | ||
Proof pressure | 1.0Bar | ||
Working temperature range | 0~60°℃ | ||
Lubrication | No need | ||
Material | Aluminum alloy+NBR |

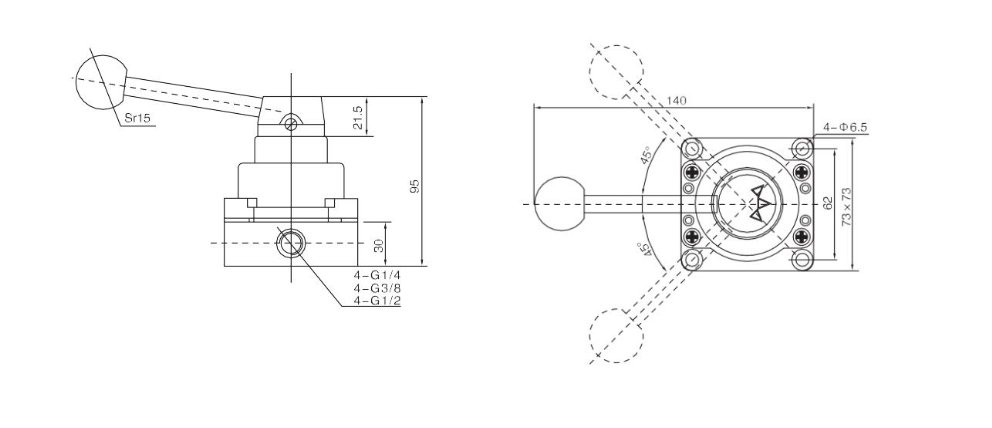

DIMENSION
